Key takeaways
- LFP (lithium iron phosphate) chemistry dominates containerised BESS for its thermal stability, cycle life and lower degradation risk.
- Power-to-energy ratio (C-rate) sets the PCS rating: a 1C system rated 1 MW/1 MWh discharges fully in about one hour.
- BMS manages cell-level safety and balancing; EMS coordinates dispatch, grid-code compliance and interconnection response.
- Fire safety references include NFPA 855 for installation, UL 9540A for thermal runaway propagation testing, and IEC 62619 for cell/module safety.
- A typical warranty envelope covers a defined cycle count (e.g. 6000 cycles) and end-of-life capacity retention (e.g. 70-80% of nameplate).

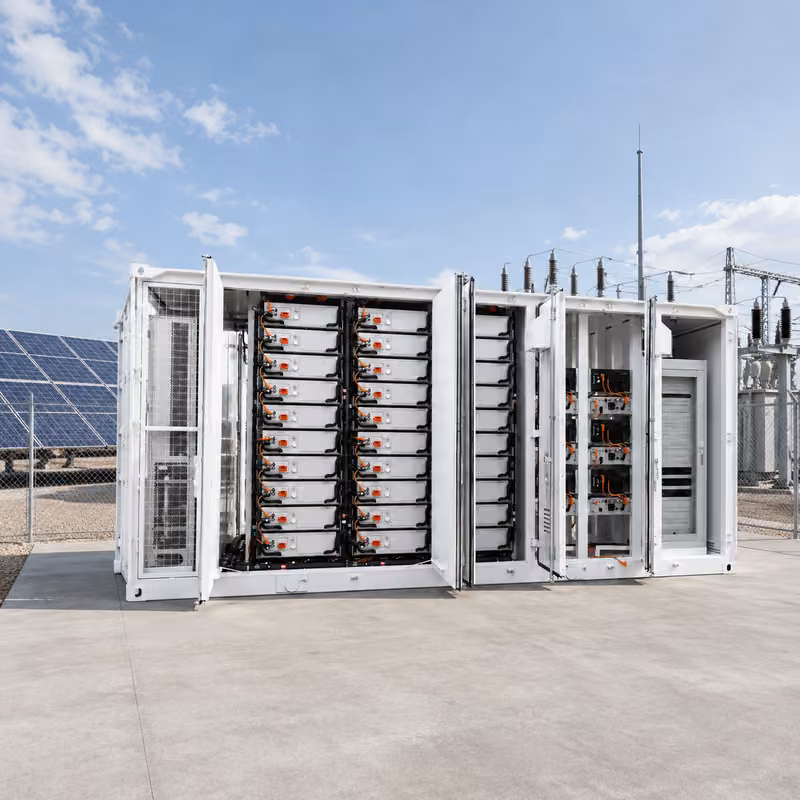

Specifying a containerised battery energy storage system (BESS) in the 1-5 MWh range means fixing seven interlocking decisions — chemistry, power-to-energy ratio, PCS rating, control architecture, grid compliance, thermal management, and fire safety — before a single container is ordered. Getting any one wrong is expensive to correct after fabrication, so this guide works through each in the order a specification should address them.
Chemistry: why LFP dominates
Lithium iron phosphate (LFP) is now the default chemistry for containerised stationary storage, and for good reason: its olivine crystal structure is more thermally stable than nickel manganese cobalt (NMC) chemistries, giving a materially higher onset temperature for thermal runaway and a lower propensity for rapid cascading failure between cells. LFP also typically achieves a longer cycle life at a given depth of discharge (DoD), which matters directly for the levelised cost of storage over a 10-15 year asset life. The trade-off is lower gravimetric and volumetric energy density than NMC — but because a container has more usable volume than an EV battery pack, that penalty is far less constraining for stationary applications. A specification should state LFP explicitly, along with the cell format (prismatic is now near-universal for containerised systems) and the nominal cell capacity, rather than leaving chemistry to the bidder’s default.
C-rate and power-to-energy ratio
The power-to-energy ratio — commonly expressed as a C-rate — determines how fast the system can charge or discharge relative to its stored energy, and it is the single number that sizes the power conversion system. A 1C system can theoretically discharge its full rated energy in one hour; a 0.5C system takes two hours; a 2C system discharges in 30 minutes. The application drives this choice:
- Peak shaving / demand charge management: typically 0.5C-1C, prioritising energy duration over instantaneous power.
- Frequency regulation / fast response: typically 1C-2C or higher, prioritising power response over duration.
- Renewable smoothing / firm capacity: usually 0.5C-1C, sized to the expected ramp-rate and duration of the smoothing duty.
The C-rate must also stay within the cell manufacturer’s continuous and peak discharge limits — specifying a duty beyond the cell’s rated C-rate accelerates degradation regardless of what the PCS can deliver.
PCS sizing
The power conversion system (PCS) — the bidirectional inverter stack between the battery DC bus and the AC grid connection — is sized directly from the power-to-energy ratio chosen above, then checked against three further factors: the PCS’s own continuous vs peak rating (many units can deliver 110-125% of nameplate power for short bursts), the number of PCS units needed for redundancy or partial-capacity operation, and the AC output voltage, typically 400 V or increasingly 690-800 V on larger containerised units to reduce cable losses. A specification should state required continuous power (kW), peak power and its duration, output voltage, and whether N+1 PCS redundancy is required for availability.
BMS and EMS
Two control layers govern safe, coordinated operation. The battery management system (BMS) works at cell and module level: monitoring individual cell voltage and temperature, balancing charge across cells, and issuing protective trips or contactor openings if any cell drifts outside safe limits. The energy management system (EMS) works at system level: scheduling charge and discharge against a dispatch strategy or external signal, communicating with the site controller or grid operator, coordinating PCS output with BMS state-of-charge limits, and logging performance data. A specification should require both, with clearly documented communication protocols (commonly Modbus TCP, IEC 61850 or DNP3 for grid-facing interfaces) so the BESS integrates with existing SCADA or plant control systems without custom middleware.
Grid codes and interconnection
Interconnection requirements vary by jurisdiction and by connection voltage, but a containerised BESS specification should at minimum address: voltage and frequency ride-through requirements, reactive power / power factor control range, anti-islanding protection, ramp-rate limits on charge and discharge, and any capacity firmness or state-of-charge reserve mandated by the interconnection agreement. These requirements typically flow down from national or regional grid codes and should be confirmed with the interconnecting utility before the PCS and protection scheme are finalised, since ride-through and reactive-power capability are PCS design parameters, not afterthoughts.
Step-up transformer and MV skid
PCS output at 400-800 V AC is rarely the interconnection voltage — a step-up transformer, typically to 10-35 kV class depending on the local distribution voltage, is needed between the container and the point of common coupling. This is usually supplied as a separate oil-immersed or dry-type transformer on an adjacent MV skid, complete with MV switchgear (commonly a compact RMU or fused switch-disconnector) for isolation and protection. Coordinating the transformer’s impedance, vector group and protection settings with the PCS and the utility’s fault-level study is a step easily missed when the transformer and BESS are procured from different suppliers — specifying them as one coordinated package reduces that risk. See MARS’s transformer range for compatible step-up transformer options.
Thermal management: air vs liquid
Cell temperature directly affects both performance and degradation rate, so containerised BESS thermal design is a core specification item, not a secondary detail. Air-cooled systems circulate conditioned air through the battery racks using HVAC units mounted on or beside the container; they are simpler, lower cost, and adequate for moderate climates and moderate C-rates. Liquid-cooled systems circulate coolant through cold plates in direct or close contact with the cells, giving materially better temperature uniformity across the pack, which matters increasingly as containers scale toward 5 MWh and C-rates rise — better uniformity reduces the spread of degradation between cells and supports a longer usable cycle life, particularly in hot climates. The choice interacts directly with fire safety and auxiliary power consumption, covered in the companion article on liquid-cooled vs air-cooled energy storage cabinets.
Fire safety: NFPA 855, UL 9540A, IEC 62619
Fire safety for containerised BESS rests on three reference points. NFPA 855 is the installation code governing siting, spacing between units, fire suppression system requirements, and emergency response planning — it is the document a fire marshal or AHJ (authority having jurisdiction) will check a project against in North America. UL 9540A is a test method, not an installation code: it determines whether thermal runaway in one cell propagates to adjacent cells, modules, and racks, and by how much, and its results are used to justify (or challenge) the spacing and separation NFPA 855 would otherwise require by default. IEC 62619 covers safety requirements for secondary lithium cells and batteries used in industrial applications, addressing cell and module-level abuse testing. A specification should require the supplier to provide UL 9540A test data (or equivalent) alongside confirmation of design compliance with the applicable installation code and IEC 62619 cell safety testing.
Degradation and warranty
LFP degradation is driven primarily by cycle count, depth of discharge, temperature, and calendar age. A specification should state the required warranty in terms the bidder cannot obscure: number of cycles at a stated DoD (commonly 6000-10000 cycles at 80-90% DoD for current-generation LFP), calendar term (commonly 10 years), and guaranteed minimum end-of-warranty capacity retention (commonly 70-80% of nameplate), with the warranty triggered by whichever limit — cycles, years, or capacity — is reached first.
Worked example: 2 MWh / 1 MW peak-shaving system
A commercial site with a demand charge structure needs to shave a one-hour afternoon peak. Sizing at 0.5C gives a 2 MWh / 1 MW system: LFP prismatic cells in a standard 20 ft or 40 ft container, PCS rated 1 MW continuous with short-term peak headroom, liquid or air cooling depending on ambient climate, and a step-up transformer sized to the site’s 10 kV or 11 kV interconnection. At 1 MWh usable energy delivered daily on a typical demand-shaving cycle, roughly 300 full-equivalent cycles per year, a 6000-cycle warranty comfortably covers a 15-20 year service intent even allowing for partial cycling variance. This sizing logic — matching C-rate, PCS, and warranty cycle life to the actual duty cycle — is the core of any credible BESS specification.
Container design and environmental protection
The physical container is more than an enclosure: it sets the ingress protection rating (commonly IP54 or better for the electrical compartments), the mechanical strength needed for transport and site stacking where applicable, and the fire-rated separation between battery racks, PCS compartment, and any auxiliary switchroom. Standard 20 ft and 40 ft ISO container footprints are common for logistics convenience, though purpose-built cabinets are also used for smaller sub-1 MWh installations. A specification should state the ambient temperature range the container must operate across (including any derating expected at the extremes), the seismic zone if applicable, corrosion protection for coastal or high-humidity sites, and whether the container needs to be relocatable or is intended as a permanent fixed installation, since foundation and cable entry design differ materially between the two.
Commissioning and acceptance testing
Before energisation, a containerised BESS typically undergoes factory acceptance testing (FAT) covering BMS communication, PCS functional checks, and insulation resistance, followed by site acceptance testing (SAT) that verifies grid-code compliance functions such as ride-through and reactive power response under actual interconnection conditions. A specification should require both FAT and SAT reports, along with a defined performance test — commonly a capacity test discharging the system at a stated rate to confirm delivered energy against the nameplate rating within an agreed tolerance — before final acceptance and the start of the warranty period. Establishing this acceptance protocol early avoids disputes later over whether a shortfall in delivered capacity is a design issue, a degradation issue, or simply normal tolerance.
Summary
A sound containerised BESS specification fixes chemistry (LFP), power-to-energy ratio and PCS rating together, defines the BMS/EMS control architecture and its communication protocol, states interconnection and grid-code requirements explicitly, coordinates the step-up transformer and MV skid as part of the same package, chooses air or liquid cooling based on climate and C-rate, references NFPA 855/UL 9540A/IEC 62619 for fire safety, and states warranty terms in cycles, years and capacity retention together. Review MARS’s energy storage systems or liquid-cooled ESS containers for configuration options relevant to a specific project.
How MARS can help
MARS manufactures LFP containerised energy storage systems from 500 kWh to 10 MWh, with liquid-cooled options, configurable PCS sizing, BMS/EMS integration, and coordinated step-up transformer and MV switchgear packages. Systems can be specified against project-specific grid codes and fire safety references. To discuss a 1-5 MWh project, contact MARS or request a quote.
Frequently asked questions
What size PCS does a 2 MWh containerised BESS need?
It depends on the required power-to-energy ratio. For 1-hour duration peak shaving, a 2 MWh system typically pairs with a 1-2 MW PCS (0.5C-1C rate). For shorter, higher-power applications such as frequency regulation, the same 2 MWh of cells might pair with a 2-4 MW PCS at 1C-2C, subject to the cell's maximum continuous discharge rating.
Why is LFP preferred over NMC for containerised energy storage?
LFP (lithium iron phosphate) has a higher thermal runaway onset temperature and more stable crystal structure than NMC (nickel manganese cobalt), reducing fire risk and typically supporting a longer cycle life at a given depth of discharge, at the cost of somewhat lower energy density. For stationary storage, where footprint is less constrained than in EVs, that trade generally favours LFP.
What is the difference between a BMS and an EMS in a BESS?
The battery management system (BMS) operates at the cell and module level, monitoring voltage, temperature and current to protect cells, balance charge, and trigger protective disconnection. The energy management system (EMS) operates at the system level, scheduling charge/discharge to meet a dispatch strategy, communicating with the grid or site controller, and coordinating the PCS, BMS and thermal system.
Does a containerised BESS need its own transformer?
For any interconnection above low voltage, yes — a step-up transformer is needed to bring the PCS output (typically 400-800 V AC) up to the medium-voltage grid connection point, usually housed in an adjacent MV skid or integrated into the container arrangement. The transformer and its protection are sized to the site's interconnection voltage and fault-level requirements.
What is the difference between NFPA 855 and UL 9540A?
NFPA 855 is an installation code covering siting, spacing, fire suppression and emergency response planning for stationary battery storage. UL 9540A is a test method that determines whether and how thermal runaway propagates from a failed cell to adjacent cells, modules and units — its results are used to justify the spacing and suppression decisions that NFPA 855 requires.
How many cycles should a containerised BESS warranty cover?
Typical LFP containerised BESS warranties cover a defined cycle count, commonly in the range of 6000-10000 cycles at a stated depth of discharge, alongside a calendar term (often 10 years) and a guaranteed minimum capacity retention at end of warranty, typically 70-80% of nameplate energy, whichever limit is reached first.
