Invention of Electric Battery: History to Modern Industrial BESS

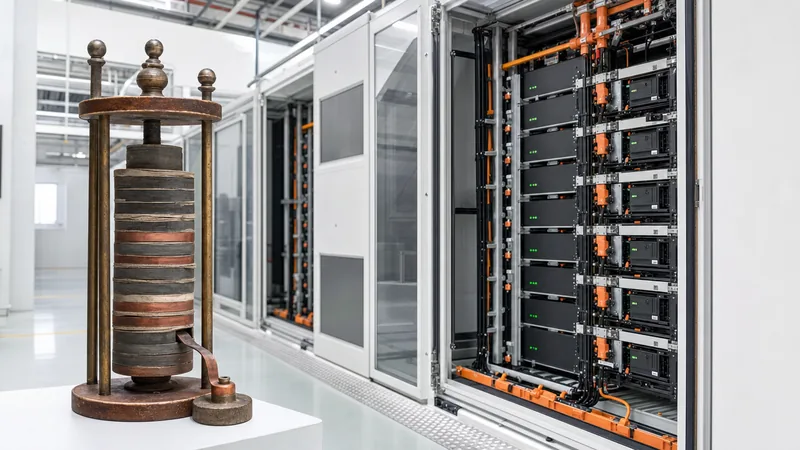

Quick answer: The invention of electric battery technology was achieved in 1800 by Italian physicist Alessandro Volta, who stacked alternating discs of copper and zinc separated by brine-soaked pasteboard to produce continuous direct current. This device, known as the voltaic pile, proved that chemical reactions can continuously generate electrical energy without biological tissue.

Before the invention of electric battery cells, electrical experimentation was limited to transient electrostatic charges accumulated in Leyden jars or friction machines. Volta's breakthrough unlocked continuous, manageable direct-current electricity, sparking two centuries of rapid innovation. This direct line of electrochemical development extends from wet zinc-copper piles through to the multi-megawatt-hour battery systems that stabilise regional electrical grids today. For power engineers, consulting teams, and utility planners, understanding the fundamental thermodynamic and physical principles underpinning early cell design remains critical to evaluating modern industrial energy storage architectures.

What Year Was the Battery Invented? Alessandro Volta and the 1800 Breakthrough

The battery was invented in the year 1800 when Alessandro Volta communicated his findings to the Royal Society of London in a letter dated 20 March 1800. His apparatus directly challenged Luigi Galvani's 1780 hypothesis of animal electricity, demonstrating that electrical flow arose from contact between dissimilar metals separated by a moist conducting medium.

Volta configured pairs of zinc and copper (or silver) discs in a vertical column, interleaving each metallic junction with porous cardboard or leather saturated with an aqueous electrolyte, such as brine (sodium chloride solution) or dilute acid. By connecting external metallic conductors to the top and bottom plates, he proved that a continuous electrical current would flow through an external load resistor. Each copper-zinc pair formed an individual electrochemical cell yielding roughly 0.76 V to 1.10 V depending on electrolyte concentration and electrode oxidation states.

The voltaic pile had notable limitations: the weight of the stacked discs compressed the lower cardboard separators, squeezing out electrolyte and causing internal short-circuits. Furthermore, the reduction of hydrogen ions at the copper cathode created a layer of insulating hydrogen gas bubbles—a phenomenon known as polarisation—which dramatically increased the cell's internal resistance and rapidly reduced output current. Despite these operational constraints, the invention of electric battery apparatuses gave science its first continuous DC power source, paving the way for electrolysis, electroplating, and telegraphy networks.

The Invention of Electric Battery Systems: From Primary Piles to Rechargeable Cells

Following the initial invention of electric battery stacks, researchers focused on resolving cathodic polarisation and chemical degradation to build sustainable power sources. In 1836, British chemist John Frederic Daniell developed the Daniell cell, which eliminated hydrogen gas accumulation by using two separate electrolytes: a zinc anode immersed in zinc sulphate ($ZnSO_4$) solution and a copper cathode immersed in copper sulphate ($CuSO_4$) solution, separated by a porous earthenware barrier.

The Daniell cell provided a remarkably stable potential of 1.10 V and served as the primary power source for early electrical telegraphy across Europe and North America. However, like Volta's pile, the Daniell cell was a primary cell: its electrochemical reactants were irreversibly consumed during discharge, requiring complete replacement of electrodes or electrolytes once depleted.

The transition to rechargeable electrical storage arrived in 1859, when French physicist Gaston Planté invented the lead-acid accumulator—the world's first secondary cell. Planté rolled two sheets of pure lead separated by rubber strips into a spiral, immersing the assembly in a 10% sulphuric acid ($H_2SO_4$) electrolyte. When an external DC current was forced through the cell opposite to the discharge direction, the lead anode oxidised to lead dioxide ($PbO_2$) while the cathode was reduced back to metallic spongy lead ($Pb$). This reversible process allowed electrical energy to be stored chemically, discharged on demand, and repeatedly recharged, establishing the engineering baseline for industrial battery backup power supply installations that remain in use today.

Electrochemical Thermodynamics: Calculating Open-Circuit Potential

An electrochemical cell converts chemical free energy directly into electrical energy through paired reduction and oxidation (redox) reactions governed by Faraday's laws and the Nernst equation. The theoretical open-circuit voltage ($E_{\text{cell}}^\circ$) of any galvanic cell is calculated from standard reduction potentials ($E^\circ$) measured against the standard hydrogen electrode (SHE) at 298.15 K (25 °C) and 101.325 kPa:

$$E_{\text{cell}}^\circ = E_{\text{cathode}}^\circ - E_{\text{anode}}^\circ$$

In the classic zinc-copper galvanic cell derived from Volta's original materials:

• Anodic Oxidation: $Zn_{(s)} \rightarrow Zn^{2+}_{(aq)} + 2e^- \quad (E^\circ = -0.763\text{ V vs SHE})$
• Cathodic Reduction: $Cu^{2+}_{(aq)} + 2e^- \rightarrow Cu_{(s)} \quad (E^\circ = +0.340\text{ V vs SHE})$

Applying the standard potential formula yields the theoretical cell potential:

$$E_{\text{cell}}^\circ = (+0.340\text{ V}) - (-0.763\text{ V}) = +1.103\text{ V}$$

The thermodynamic relationship governing this cell potential is expressed through the change in standard Gibbs free energy ($\Delta G^\circ$):

$$\Delta G^\circ = -nFE_{\text{cell}}^\circ$$

Where $n = 2$ (moles of electrons transferred per mole of reaction), $F = 96,485\text{ C/mol}$ (Faraday constant), and $E_{\text{cell}}^\circ = 1.103\text{ V}$.

$$\Delta G^\circ = -(2)(96,485)(1.103) = -212,846\text{ J/mol} = -212.85\text{ kJ/mol}$$

The negative value confirms the reaction is thermodynamically spontaneous. In modern systems, lithium chemistries achieve significantly higher cell voltages because metallic lithium exhibits an exceptionally negative reduction potential ($E^\circ = -3.04\text{ V vs SHE}$). When paired with transition-metal polyanion cathode structures, such as in LFP vs NMC battery technologies, open-circuit potentials reach 3.20 V to 3.70 V per cell, multiplying energy density by orders of magnitude compared to Volta's 1800 stack.

Evolution of Battery Chemistries: Technical Comparison

Battery chemistries have progressed over two centuries from low-energy, mechanically fragile liquid assemblies to sealed, high-efficiency, solid-state and lithium-intercalation designs. The following engineering comparison illustrates the evolution of performance characteristics across critical battery technologies from 1800 to present-day industrial platforms.

While the voltaic pile was limited to small benchtop loads, modern chemistries operate within engineered utility-scale installations, detailed in our battery bank industrial guide, where multi-string arrays deliver megawatt-level response within milliseconds.

From Laboratory Piles to Grid-Scale Energy Storage Architecture

Scaling electrochemical storage from laboratory curiosities to grid-level infrastructure requires integrating electrochemical cells into complex, monitored power plants governed by international engineering standards. Individual cells are connected in series-parallel configurations inside racks to create a high-voltage DC bus (typically 800 V to 1,500 V DC in contemporary utility installations).

Industrial systems rely on three critical layers of architecture:

1. Battery Module and Rack Assembly: Individual prismatic or cylindrical cells are mounted within mechanically reinforced enclosures compliant with IEC 62619 clause 8.2 (evaluating propagation resistance during thermal events) and UL 9540A testing procedures.
2. Battery Management System (BMS): A multi-tiered electronic control network monitors individual cell voltages down to millivolt resolution, cell temperatures via embedded RTDs, and string currents. The BMS controls contactors to isolate strings whenever parameters exceed safe operating limits.
3. Power Conversion System (PCS) and Step-Up Transformation: Direct current from the DC bus must be inverted to balanced 3-phase alternating current. A bi-directional power conversion system modulates power factor and provides four-quadrant active and reactive power control. This output is subsequently stepped up to medium voltage (11 kV to 33 kV) through an adjacent oil-immersed or dry-type step-up transformer.

Thermal management has likewise evolved dramatically. Early wet cells dissipated minimal heat due to low current draw, but high-rate C-rate cycling in modern grid-scale assets demands forced-air or direct-to-plate liquid cooling circuits to maintain core cell gradients within ±2 °C across the entire container, preventing localized degradation.

Modern Safety and Performance Standards for Industrial Batteries

Modern energy storage installations are governed by strict international standards that prevent the mechanical, electrical, and thermal failures common in early battery history. Engineers specifying energy storage systems must ensure compliance across cell-level safety, enclosure integrity, and grid-interconnection capabilities.

Key international standards include:

• IEC 62619: Specifies safety requirements for secondary lithium cells and batteries used in industrial applications, including automated guided vehicles, uninterruptible power supply (UPS) systems, and utility-scale stationary energy storage. Clause 7 dictates severe impact, drop, and thermal abuse tests.
• IEC 62933-5-2: Governs safety requirements for grid-integrated electrical energy storage systems (EESS), detailing hazard mitigation, fault isolation, and structural ventilation for off-gas events.
• IEEE 1547-2018: Standard for Interconnection and Interoperability of Distributed Energy Resources with Associated Electric Power Systems Interfaces, establishing voltage and frequency ride-through requirements for utility-connected battery plants.
• NFPA 855: Standard for the Installation of Stationary Energy Storage Systems, enforcing minimum spatial separation distances (typically 3 feet / 0.9 m between individual units and walls) and fire containment systems.

Adhering to these standards ensures that the unpredictable chemical reactions seen in nineteenth-century workshops are fully contained within fail-safe, utility-grade equipment designed for decades of reliable field operation.

Next steps: specifying and sourcing

When planning a commercial or utility-scale energy storage project, accurate specification early in the design cycle prevents costly field integration issues. Engineers should establish the required nominal capacity (kWh to MWh), continuous C-rate, DC bus operating window, and target cycle life under specific ambient thermal profiles. Factory Acceptance Testing (FAT) data covering round-trip efficiency, temperature rise across racks, and insulation resistance per IEC 60076 and IEC 62619 must be reviewed prior to dispatch. Explore our factory-engineered energy storage system solutions and modular liquid-cooled ESS container options, or submit your single-line diagrams to our engineering team for a project review via our quotation inquiry page.
