Battery Bank Industrial Systems: Engineering & Sizing Guide

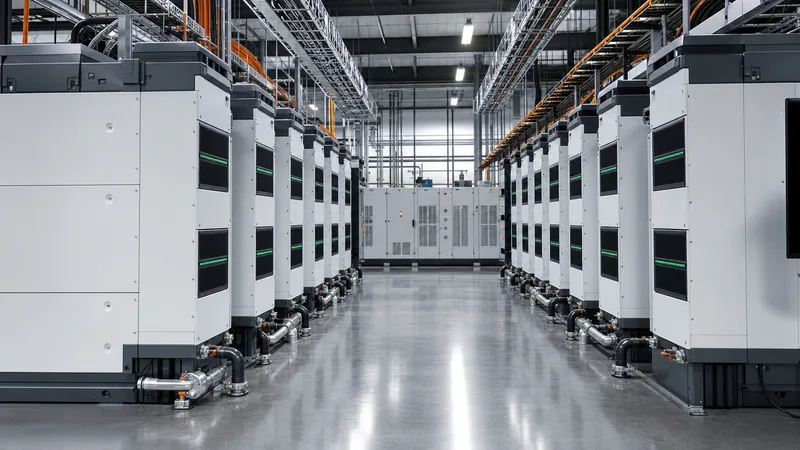

Quick answer: A battery bank industrial installation is an engineered, utility- or facility-scale electrochemical storage system that combines industrial battery packs, multi-tiered battery management systems (BMS), power conversion systems (PCS), and dedicated switchgear. These heavy-duty systems provide uninterruptible backup, peak load shaving, and process power stability across harsh operating environments.

Industrial operations cannot tolerate the voltage sags, power factor penalties, or brief outages that damage automated equipment, interrupt continuous chemical processing, or stall heavy mining conveyors. Unlike light commercial backup units, a heavy-duty battery industrial installation must withstand continuous cycling, severe ambient temperatures, and aggressive load steps without degradation. Sizing, specifying, and commissioning an industrial battery bank requires an interdisciplinary engineering approach that links electrochemical cell performance directly to site-level electrical distribution.

What Defines an Industrial Battery Bank?

An industrial battery bank is defined by its modular electrical hierarchy, rigorous safety compliance, and high fault-current withstand ratings. At the core, individual cylindrical or prismatic cells are connected in series-parallel configurations to form modules, which are stacked into high-voltage racks operating between 600 V DC and 1,500 V DC. These direct-current voltages feed bidirectional power conversion systems that step up to facility medium-voltage levels through dedicated step-up transformers and HV/LV switchgear.

Industrial environments impose severe operational demands that separate facility-grade storage from consumer or light commercial units:

• High cycle life under dynamic loads: Industrial duty cycles frequently require one or two full charge-discharge cycles daily under deep discharge conditions (80% to 90% DoD).
• Galvanic and environmental isolation: Industrial installations require robust protection ratings (typically IP54 to IP66 enclosures) to guard internal electronics against conductive dust, chemical fumes, and wash-down moisture.
• High short-circuit withstand: Because high-capacity DC strings can deliver short-circuit currents exceeding 50 kA, the internal busbars, DC contactors, and disconnect switches must clear massive fault energies before catastrophic arc events occur.

Specifying the optimal chemistry is the first engineering decision. While nickel-manganese-cobalt (NMC) cells provide high gravimetric energy density, lithium iron phosphate (LFP) has emerged as the global industrial benchmark. Reviewing the trade-offs in our LFP vs NMC battery guide highlights why LFP's higher thermal runaway threshold (approximately 270°C compared to 210°C for NMC) and flat discharge voltage curve make it ideal for demanding factory floors.

Sizing an Industrial Battery Bank: Engineering Calculations

Sizing an industrial battery bank requires calculating the net usable energy after factoring in round-trip efficiency, inverter conversion losses, depth of discharge limits, and end-of-life cell capacity retention. Sizing a system solely on raw kilowatt-hour (kWh) nameplate capacity invariably results in premature tripping or failure to support critical loads during planned autonomy windows.

Consider a practical factory backup and peak-shaving application with the following engineering design parameters:

• Critical facility load (P): 750 kW continuous
• Required autonomy duration (t): 2 hours
• Inverter (PCS) efficiency (η_inv): 96.5% (0.965)
• Maximum operational Depth of Discharge (DoD): 85% (0.85)
• End-of-Life degradation factor (SOH limit): 80% (0.80)
• Internal DC resistance / cabling losses (η_dc): 98% (0.98)
• Temperature derating margin (k_temp): 5% (0.95 at lower ambient limits)

The total usable energy delivered to the AC bus is:

E_AC = P × t = 750 kW × 2 h = 1,500 kWh

To calculate the required gross DC nameplate capacity (E_{DC_gross}), apply all system loss and degradation deratings:

E_{DC_gross} = E_AC / (η_inv × DoD × SOH × η_dc × k_temp)

E_{DC_gross} = 1,500 / (0.965 × 0.85 × 0.80 × 0.98 × 0.95) = 1,500 / 0.6111 = 2,454.6 kWh

Therefore, a nominal battery bank rated at approximately 2.5 MWh is required on day one to guarantee that the 750 kW critical plant load can operate for a full two hours in year ten of operation. Neglecting the SOH and inverter conversion losses would have resulted in an undersized 1,765 kWh system that fails to meet autonomous duration after only three years of cycling.

Industrial Battery Packs vs Commercial Battery Pack Architectures

Industrial battery packs differ fundamentally from a standard commercial battery pack in voltage class, structural framing, thermal stability, and communications architecture. While commercial packs are often integrated into plug-and-play light commercial cabinets for retail or office backup, industrial battery packs are designed for multi-megawatt scaling, seismic compliance, and severe duty cycles.

As shown in the technical comparison, the move toward 1,500 V DC architectures in heavy-duty battery industrial configurations reduces cabling volume, decreases system I²R resistive losses, and allows higher efficiency coupling to utility-scale inverters. However, higher DC voltages mandate stringent creepage and clearance distances inside enclosures, along with specialised DC contactors rated to interrupt loads without continuous arcing.

Battery Pack Systems for Industrial Devices: Ingress, Thermal, and Protection Standards

Engineers specifying battery pack systems for industrial devices must adhere to harmonised international standards governing electrical, mechanical, and fire protection safety. Industrial facilities expose battery enclosures to mechanical shock, vibration from heavy overhead cranes or stamping presses, and airborne contaminants.

Key engineering standards that govern industrial installations include:

1. IEC 62619: Mandates safety requirements for secondary lithium cells and batteries used in industrial applications, focusing on drop tests, internal short-circuit propagation, thermal abuse, and overcharge protection.
2. UL 9540 and UL 9540A: Standard for Energy Storage Systems and Equipment, where the UL 9540A test method evaluates thermal runaway fire propagation at the cell, module, unit, and installation level. Compliance confirms that an internal cell thermal runaway event cannot cascade to neighbouring packs.
3. NFPA 855: Standard for the Installation of Stationary Energy Storage Systems, which sets maximum allowable energy capacity per indoor fire compartment (typically 600 kWh for indoor industrial rooms unless verified by full-scale UL 9540A testing) and dictates clearance distances from walls and egress doors.
4. IEC 60529 (IP Ratings): Enclosures housing industrial battery packs must achieve minimum ratings of IP54 for indoor industrial dust and splashing environments, or weatherproof IP65 or NEMA 4X ratings for outdoor or corrosive process plants.

For outdoor installations, container design is critical to isolate electrical racks from moisture and corrosive atmospheres. For a comprehensive review of structural framing, insulation materials, and ingress seals, refer to our battery enclosure engineering guide.

Thermal Management: Liquid vs Air Cooling in Industrial Banks

Thermal management dictates the operational lifespan, round-trip efficiency, and fire safety of any high-capacity battery bank industrial project. Operating lithium-based battery cells above 35°C accelerates solid electrolyte interphase (SEI) growth and active material degradation, whereas operating cells with a temperature disparity greater than 5°C across a string creates impedance mismatches that force premature string cutoffs.

Liquid cooling has rapidly replaced traditional forced-air HVAC systems as the industrial standard. Circulating a chilled water-glycol mixture through aluminium cold plates positioned directly beneath or between cell groups allows heat removal at 25 times the thermal transfer rate of air. This ensures that internal cell core temperatures stay within their ideal operational range of 20°C to 28°C, even during rapid 1C or 2C discharge surges.

For a deeper analysis of chilling loops, fluid dynamics, and operational cost comparisons, consult our technical review on liquid-cooled vs air-cooled energy storage cabinets. Maintaining tight thermal control prevents hot spots that otherwise void manufacturer cell degradation warranties.

Battery Monitoring and Safety Control Architecture

Industrial facilities require real-time monitoring and microsecond-level fault interruption to isolate faulted modules before high-energy DC arc-flashes occur. An industrial-grade BMS utilizes a three-tier hierarchical architecture consisting of Module Battery Management Units (BMU), Rack Battery Control Units (BCU), and an overall Battery Array Management System (BAMS).

The protection scheme operates across multiple layers of defense:

• Cell-level monitoring: The BMU measures cell voltages with ±2 mV precision and multiple thermistor points per module at sampling frequencies of 10 Hz to 100 Hz.
• Rack-level protection: The BCU computes string-level State of Charge (SoC), State of Health (SoH), and detects insulation resistance breakdown between the floating DC bus and chassis ground (typically triggering an alarm at <500 Ω/V and a trip at <100 Ω/V).
• System-level coordination: The BAMS integrates via industrial Modbus TCP, DNP3, or IEC 61850 protocols with the plant supervisory control and data acquisition (SCADA) network to coordinate dispatch commands with main substations.

For detailed schematics on BMS sensor distribution, insulation monitoring devices, and communication bus redundancy, see our battery monitoring system guide.

Evaluating Battery Pack Manufacturers: Factory Acceptance Checklist

Evaluating battery pack manufacturers requires an empirical review of cell matching tolerances, weld integrity, and factory acceptance test (FAT) procedures. In production, reputable factories assemble industrial battery packs using automated robotic laser welding to connect cell terminals to nickel-plated copper busbars, measuring weld resistance to ensure values below 10 μΩ.

Procurement engineers can utilize the following specification checklist during factory audits and FAT witnessing:

1. Cell Capacity and Impedance Grading: Verify that cells assembled into identical modules have AC internal resistance variance ≤ 0.1 mΩ and static capacity variance ≤ 0.5% to minimize balancing losses.
2. High-Potential (Hi-Pot) Insulation Testing: Perform AC dielectric withstand tests between live DC busbars and the grounded rack enclosure at 2,500 V AC or (2 × V_nom + 1,000 V) for 60 seconds according to IEC 62477-1.
3. Thermal Cycle Stress Screening: Confirm that sample modules undergo at least 10 thermal shock cycles (-20°C to +55°C) to verify mechanical solder and busbar joint integrity before shipment.
4. BMS Firmware Verification: Witness physical injection of overvoltage (>3.70 V for LFP), undervoltage (<2.20 V), and overtemperature (>60°C) signals to verify that the high-speed solid-state or pyro-fuse disconnects the string within 50 milliseconds.
5. Gas and Aerosol Suppression Integration: Check enclosure fire control systems, verifying that aerosol or clean agent nozzles (e.g., FK-5-1-12 clean agent) align with deflector plates and early-stage off-gas sniffers (detecting H₂ and CO at ppm levels).

Grid and Substation Integration for Battery Industrial Installations

Integrating a high-voltage battery bank industrial system into an existing facility distribution network requires seamless coordination between the PCS, medium-voltage transformer, and protective switchgear. When the battery shifts from charging to discharging to provide peak shaving or active spinning reserve, high dI/dt current transitions can distort local plant power quality.

Engineers must calculate short-circuit contributions from the battery bank into the plant distribution bus. While inverter-based storage systems typically contribute only 1.1 to 1.2 times their rated continuous current into an AC fault, the DC-side fault contribution from the electrochemical cells is virtually instantaneous and limited only by cell internal impedance and cable resistance. Installing high-speed DC circuit breakers or semiconductor fuses compliant with IEC 60947-2 is mandatory to clear DC faults before the busbar deformation threshold is exceeded.

On the plant AC side, the bidirectional inverter output connects directly to an isolation transformer—typically an oil-immersed or dry-type step-up transformer—which raises the 400 V or 690 V inverter AC output to the facility distribution level (such as 11 kV, 22 kV, or 33 kV). Incorporating harmonic filters or selecting multi-level inverter topologies (such as 3-level NPC) ensures Total Harmonic Distortion (THD) remains below 3% in accordance with IEEE 519 standards.

Next steps: specifying and sourcing

Specifying a heavy-duty industrial battery bank requires an accurate project brief including continuous load demand, peak surge duration, site environmental extremes, available grid interconnection voltage, and seismic zone requirements. Our engineering team designs and manufactures turnkey industrial storage solutions, including utility-grade energy storage systems and advanced liquid-cooled ESS containers, fully integrated with matching medium-voltage transformers and switchgear. To submit your facility one-line diagrams and receive an engineered technical specification and proposal, visit our quote page or submit an inquiry to our application engineers via the contact page.
