Key takeaways
- A radial feed configuration supplies power via a single utility path, making it cost-effective initially but vulnerable to complete service interruptions during line or equipment faults.
- A loop feed transformer features dual high-voltage bushings per phase (six total), enabling ring-bus daisy-chaining, alternative power routing, and minimal downtime during maintenance.
- Selecting between radial and loop configurations dictates the required internal switching: loop units incorporate two-position or four-position load-break oil-rotary (LBOR) switches.
- Underground medium-voltage cable sizing in loop circuits must account for total emergency load transfer when the normally open switch closes after an upstream fault.
- While radial installations require 15% to 30% lower initial capital expenditure, loop systems significantly reduce SAIDI and SAIFI metrics across commercial, industrial, and utility infrastructure.

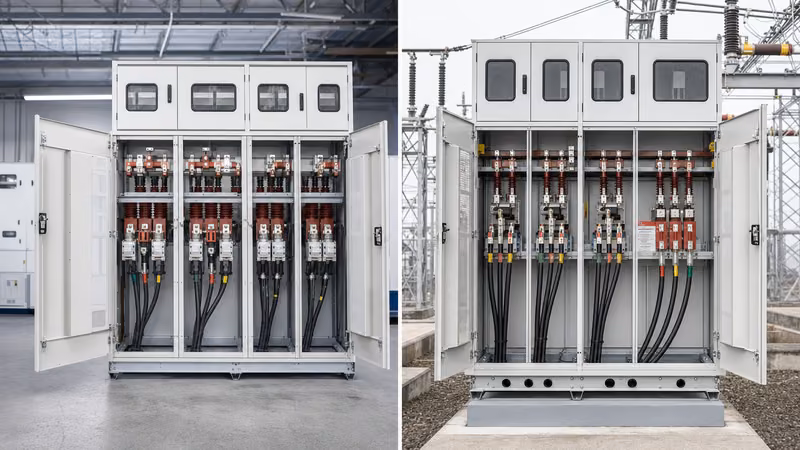

Quick answer: In a radial feed vs loop feed evaluation, radial systems supply a transformer via a single incoming medium-voltage path, offering the lowest capital cost but zero redundancy. A loop feed transformer accommodates two incoming sources or a daisy-chain ring via six medium-voltage bushings, allowing rapid fault sectionalisation and alternate power routing without interrupting downstream services.
Medium-voltage distribution networks form the critical backbone of modern commercial parks, solar farms, industrial complexes, and institutional facilities. Specifying electrical infrastructure requires plant engineers, utility liaisons, and EPC contractors to weigh upfront capital expenditure against lifetime operational reliability. The debate between radial and loop configurations impacts transformer compartment design, underground cabling topology, switchgear protection schemes, and maintenance schedules.
Understanding how a loop feed transformer interacts with underground distribution circuits is essential for optimizing system uptime and safety.
