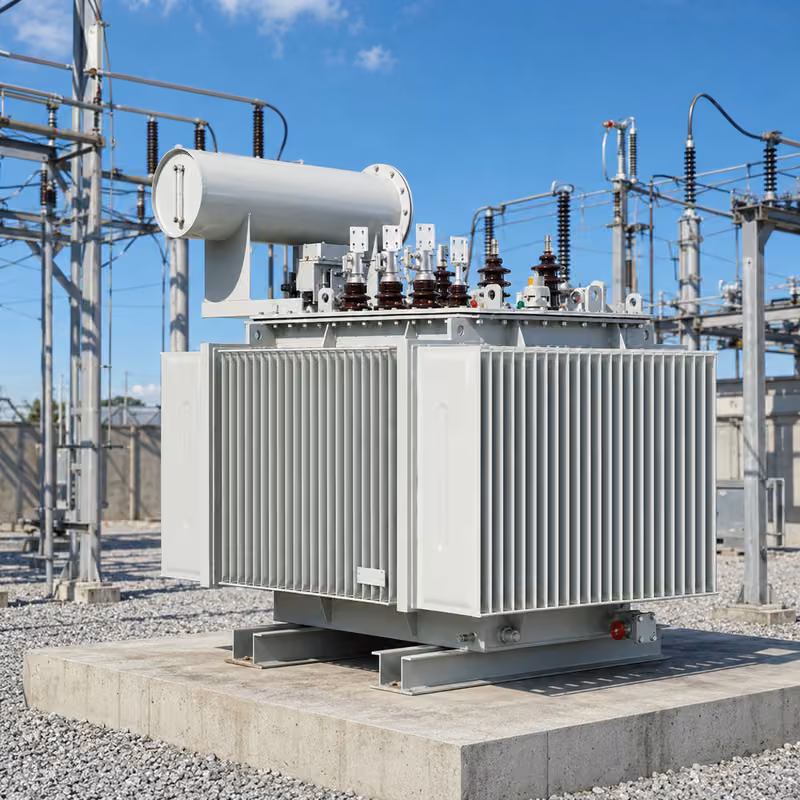

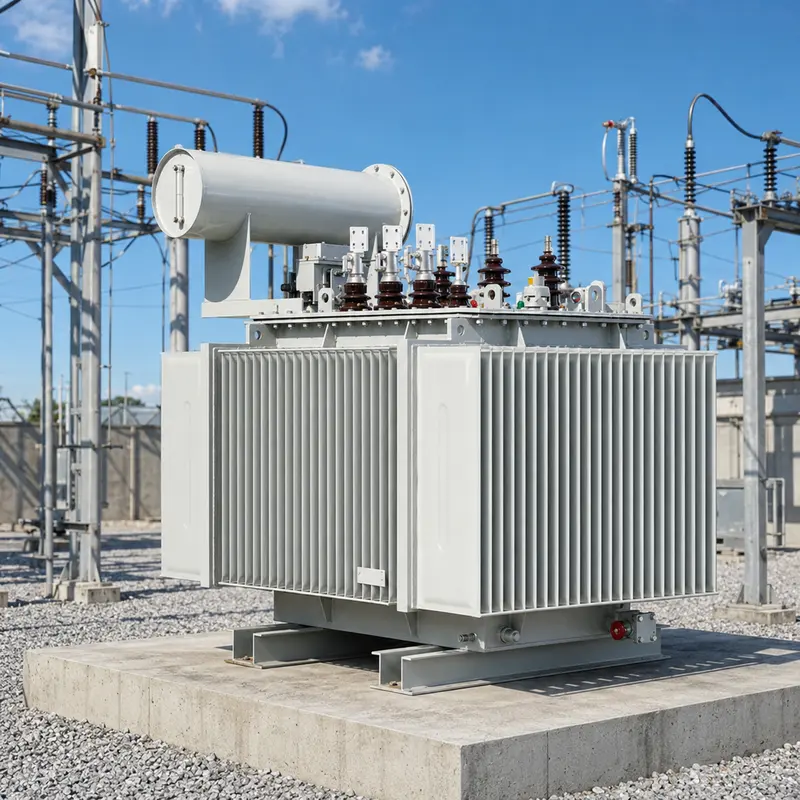

Transformer Vector Groups: Dyn11, Yyn0, Dyn5 Explained

A transformer’s vector group states two things on its nameplate: how the high-voltage and low-voltage windings are internally connected (star, delta or zigzag), and the phase angle between them, expressed as a clock-hour figure. Getting the vector group right matters for earthing strategy, harmonic behaviour, and — critically — whether two transformers can be operated in parallel without damaging circulating currents. This guide explains the notation and the three groups engineers meet most often: Dyn11, Yyn0 and Dyn5.

Reading the notation

A vector group code such as Dyn11 has three parts, defined in IEC 60076-1:

• First letter (capital): connection of the higher-voltage winding — D for delta, Y for star (wye), Z for zigzag
• Second letter (lowercase): connection of the lower-voltage winding — d, y or z as above, with a following “n” if the neutral is brought out to a terminal (e.g. “yn”)
• Number: the phase displacement between HV and LV line voltage phasors, in units of 30 degrees, using a clock-face convention where the HV phasor is fixed at 12 o’clock and the number gives the LV phasor’s position

So Dyn11 reads as: delta HV winding, star LV winding with earthed/accessible neutral, LV phasors displaced 11 x 30 = 330 degrees (equivalently -30 degrees, i.e. LV leads HV by 30 degrees). Yyn0 reads as: star HV, star LV with neutral, zero phase displacement. Dyn5 reads as: delta HV, star LV with neutral, 5 x 30 = 150 degrees displacement.

Why Dyn11 dominates distribution

Dyn11 is the default vector group for MV/LV distribution transformers worldwide, and the reason is a combination of two properties working together:

• Delta HV winding: A closed delta traps triplen harmonic currents (3rd, 9th, 15th, and other odd multiples of three) that are generated by non-linear and unbalanced LV loads. These harmonics are in phase with each other across all three phases, so in a delta they circulate within the closed loop of the winding rather than flowing out onto the upstream network, which keeps the utility supply and other connected loads cleaner.
• Star LV winding with neutral (yn): A star connection on the low-voltage side brings out a neutral point, essential for supplying single-phase loads (lighting, single-phase equipment) alongside three-phase loads, and for solid or resistance earthing of the LV system.

No other common combination delivers both properties simultaneously, which is why Dyn11 is specified as standard across most national distribution codes for typical MV/LV transformers in the 100 kVA to a few MVA range.

Where Yyn0 and Dyn5 are used instead

Yyn0 (star-star with LV neutral, zero displacement) appears where a simple in-phase relationship to the HV system is wanted — for example, feeding directly from another star-connected transformer or generator without introducing a phase shift, or in some power transformer applications where triplen harmonic circulation is not a concern because the load is well balanced and largely linear. Yyn0 has a comparative disadvantage: without a delta winding anywhere in the transformer (or a stabilising tertiary), triplen harmonics and zero-sequence unbalance are not trapped as effectively, which can distort the neutral voltage under unbalanced loading. Some Yyn0 designs add a delta tertiary winding specifically to address this.

Dyn5 (delta-star, 150 degrees displacement) is functionally similar to Dyn11 — delta HV, earthed star LV — but with the opposite winding lead convention, giving a 150-degree instead of 330-degree displacement. It is used where a network’s existing transformer fleet, or a specific national standard, has standardised on this displacement instead of Dyn11, or where a particular parallel or interconnection requirement calls for it. The choice between Dyn11 and Dyn5 is largely a matter of matching existing network convention rather than one being technically superior for a given load type.

Parallel operation rules

Paralleling two transformers — feeding the same bus from both — is common in substations for redundancy and load sharing, but it is only safe under specific conditions:

1. Same phase-displacement group: Vector groups group into families by phase angle, commonly labelled group 0 (0 degrees, e.g. Yy0, Dd0), group 1 (30 degrees), group 5 (150 degrees, e.g. Dyn5), group 6 (180 degrees, e.g. Yy6) and group 11 (330 degrees, e.g. Dyn11). Only transformers within the same group can be paralleled directly — a 30-degree mismatch, uncorrected, drives a very large circulating current even with no load connected, because the two secondary voltage phasors are not aligned.
2. Same voltage ratio: HV and LV nominal voltages must match (or be within the tolerance the application allows), otherwise a voltage difference across the paralleled LV terminals drives circulating current even with matching phase angle.
3. Same phase rotation: Both transformers must present the same phase sequence (e.g. both ABC, not one ABC and one ACB).
4. Comparable impedance: Percentage impedance should be equal or close (typically within about 10% of each other) so that load current divides between the two transformers in proportion to their kVA ratings rather than overloading the lower-impedance unit.

A Dyn11 transformer cannot be paralleled with a Yyn0 transformer without an intermediate arrangement to correct the 330-degree mismatch — matching kVA rating, voltage ratio and even manufacturer does not overcome a phase-displacement-group mismatch.

Neutral and earthing implications

The lowercase “n” in a vector group (as in Dyn11, Yyn0) indicates the LV neutral point is brought out to a terminal, which is what allows that winding to be earthed and to supply single-phase loads referenced to neutral. On the HV delta winding of a Dyn11 unit, there is no neutral point to earth at the transformer — HV system earthing is handled elsewhere on the network (commonly at the source substation or via a separate earthing transformer). This split matters for protection and earth-fault current calculations: LV earth faults return through the transformer’s LV star neutral, while HV earth faults depend entirely on the HV network’s own earthing arrangement, not on this transformer.

Worked example: paralleling two Dyn11 transformers

A substation has an existing 630 kVA Dyn11 transformer with 6% impedance and needs a second unit to share a growing load. A 500 kVA transformer is available with 5% impedance.

• Vector group: both Dyn11, group 11 — compatible for paralleling.
• Voltage ratio: both 10.5/0.4 kV — compatible.
• Phase rotation: both ABC — compatible.
• Impedance: 6% vs 5% — within acceptable range, but not identical, so load will not divide exactly in proportion to kVA rating. The lower-impedance 500 kVA unit will take a slightly higher share of load relative to its rating than the 630 kVA unit, and the combined bank’s effective short-circuit current contribution should be recalculated for protection coordination rather than assumed additive.

Because both units share vector group, ratio and rotation, they can be paralleled; the impedance mismatch is a load-sharing and protection-coordination detail to check, not a barrier to paralleling itself.

Other vector groups worth knowing

Beyond Dyn11, Yyn0 and Dyn5, a few further combinations appear often enough in distribution and power transformer practice to be worth recognising:

• Dyn1: Delta-star with 30 degrees displacement (opposite lead convention to Dyn11’s -30 degrees). Functionally similar to Dyn11 in harmonic and earthing behaviour but belongs to a different phase-displacement group, so the two cannot be paralleled together despite looking almost identical on paper.
• Yzn11: Star HV, zigzag LV with neutral. The zigzag winding, formed by splitting each LV phase winding across two limbs, gives good zero-sequence impedance characteristics and is sometimes used for single-phase-to-earth fault current limiting on the LV side without a delta winding, at the cost of slightly higher manufacturing complexity than a plain star LV winding.
• Dd0: Delta-delta with zero displacement, occasionally used in industrial power transformer applications with no LV neutral requirement, where both windings are three-phase-only loads with earthing handled separately.

A transformer’s full nameplate vector group, together with its voltage ratio and impedance, should always be checked against any existing unit it may need to parallel with, or against the network operator’s standard practice, before finalising an order — assuming Dyn11 as a universal default without confirming it against the specific network is a common and avoidable error.

Choosing a vector group in practice

For most new MV/LV distribution transformers supplying mixed single- and three-phase loads, Dyn11 remains the correct default, consistent with the majority of distribution networks and utility interconnection practice. Departures — Yyn0, Dyn5, or others — are usually driven by matching an existing installation, a specific utility requirement, or an unusual load/earthing configuration, and should be confirmed against the site’s existing transformer fleet before ordering, particularly wherever parallel operation is anticipated.
