Key takeaways
- Battery energy storage system design requires balancing depth-of-discharge, degradation over project life, and thermal parasitic loads to determine true DC overbuild capacity.
- A standard 2 MW / 8 MWh export target at the Point of Interconnection requires approximately 10.4 MWh of nameplate DC storage to guarantee end-of-life delivery across 10 years.
- Liquid cooling architectures reduce cell-to-cell thermal deviation to under 2.5 degrees Celsius, cutting auxiliary HVAC parasitic energy demand by 30 to 40 percent.
- Compliance with NFPA 855 and UL 9540A mandates unit-level deflagration venting and a minimum 3-foot (0.91 m) physical separation between individual battery enclosures.
- Centralised power conversion architectures lower upfront balance-of-plant capital costs, whereas string PCS architectures maximise cluster-level state-of-charge balancing and availability.
Quick answer: Battery energy storage system design is the multidisciplinary engineering process of integrating electrochemical cell racks, bidirectional power conversion systems, thermal controls, and medium-voltage grid interfaces into a coordinated utility or commercial asset. A successful design balances initial capacity, degradation rates, auxiliary parasitic losses, and safety compliance under standards such as IEC 62933-5-2 and NFPA 855.
Designing an industrial or utility-scale facility demands precise cross-disciplinary coordination. Electrical engineers must calculate DC short-circuit contributions, match inverter operating windows, and size step-up transformers, while thermal and structural engineers must mitigate heat dissipation and fire risks. Whether planning a 500 kWh commercial peak-shaving installation or a 100 MWh transmission-connected facility, a rigorous battery energy storage system design prevents premature cell degradation, avoids compliance rejections, and ensures reliable plant operation across a 15- to 20-year lifecycle.

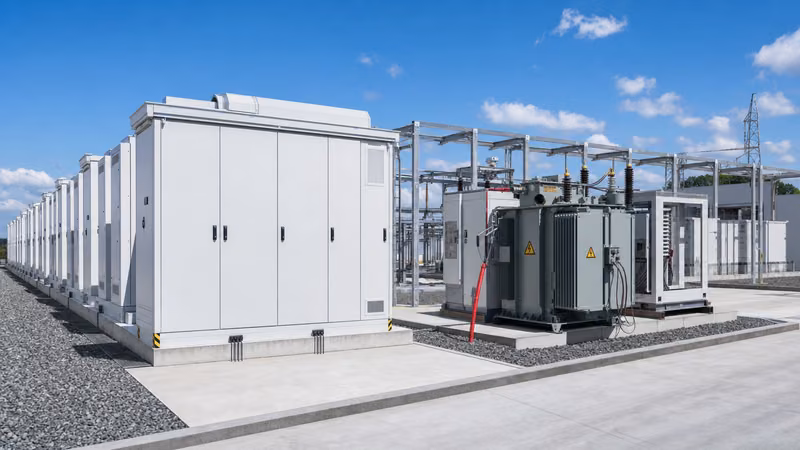

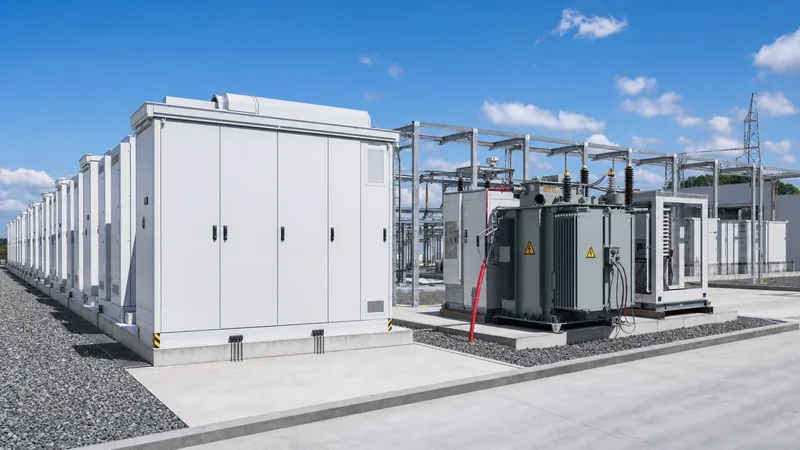

Core Architecture in BESS System Design
A battery energy storage system comprises four tightly integrated functional subsystems: the DC battery array, the bidirectional power conversion system (PCS), balance of plant (auxiliary thermal and safety systems), and the overarching monitoring hierarchy. In standard bess system design, the DC array is organised hierarchically from individual prismatic lithium iron phosphate (LFP) cells assembled into modules, which are wired in series to create high-voltage DC racks operating between 900 V and 1500 V DC.
The DC bus feeds the PCS, which performs AC-to-DC rectification during charging and DC-to-AC inversion during discharge. At the control level, a three-tier software architecture dictates safe operation. The local Battery Management System (BMS) manages cell voltages, module temperatures, and contactors. The Power Plant Controller (PPC) and Site Energy Management System (EMS) coordinate active (P) and reactive (Q) power commands to comply with grid codes. Complete details on control integration are covered in our guide to BESS software architecture. Finally, the AC output of the inverters connects through low-voltage switchgear to a medium-voltage step-up transformer, interfacing with distribution or transmission networks typically between 11 kV and 33 kV.
Sizing Methodology and Battery Energy Storage System Design Calculation
Sizing an electrochemical plant begins by determining the net usable energy delivered at the Point of Interconnection (POI) at the system's End of Life (EoL). Because lithium cells lose storage capacity through cycling and calendar ageing, initial design calculations must incorporate round-trip efficiency (RTE), depth of discharge (DoD), auxiliary parasitic consumption, and the targeted degradation retention factor.
Consider a practical engineering requirement for a four-hour utility peak-shifting installation:
- Target Net Delivery at POI: 2,000 kW for 4 hours = 8,000 kWh (8.0 MWh) at Year 10.
- Allowable Operating Depth of Discharge (DoD): 90% (operating between 5% and 95% State of Charge).
- PCS Bi-directional Conversion Efficiency: 98.2% (discharge mode).
- MV Step-Up Transformer Efficiency: 99.0%.
- DC Cable and Busbar Conduction Losses: 1.0% (99.0% transmission efficiency).
- Auxiliary Parasitic Loads during Discharge: 40 kW continuous (liquid cooling pump, BMS, monitoring, HVAC = 160 kWh over 4 hours).
- 10-Year End of Life Cell Capacity Retention: 72% of rated initial capacity.
The calculation proceeds through the energy balance equations from grid to cell:
- Total Energy Required at Inverter AC Terminals: Add POI delivery and transformer losses:
E_AC = (8,000 kWh / 0.99) + 160 kWh = 8,080.8 kWh + 160 kWh = 8,240.8 kWh. - DC Energy Output Required from Battery Racks: Account for inverter and DC cabling losses:
E_DC_discharge = 8,240.8 kWh / (0.982 × 0.99) = 8,477.5 kWh. - Nameplate Usable DC Energy at Year 10: Account for allowable DoD:
E_usable_DC = 8,477.5 kWh / 0.90 = 9,419.4 kWh. - Installed Beginning of Life (BoL) Gross DC Capacity: Compensate for 72% EoL degradation limit:
E_gross_BoL = 9,419.4 kWh / 0.72 = 13,082.5 kWh (approx. 13.08 MWh).
This design calculation proves that delivering 8.0 MWh of usable energy after 10 years of cyclic service requires an initial DC nameplate installation of approximately 13.1 MWh. Specifying engineers must choose between installing this initial oversizing at Day 1 or adopting a planned augmentation strategy at Year 5 to minimise initial capital expenditure.
Electrical Interconnection and Protection Coordination
Electrical safety and protection coordination across the DC and AC domains require specialized switchgear capable of isolating high prospective fault currents. On the DC side, lithium battery racks have negligible internal impedance, yielding prospective short-circuit currents often exceeding 20 kA to 50 kA per rack line. Designers must deploy fast-acting semiconductor or gBat-class high-speed DC fuses, complemented by DC Moulded Case Circuit Breakers (MCCB) or air break switches rated according to IEC 60947-2 Annex P.
For the AC interface, protection schemes must adhere to local interconnection standards such as IEEE 1547-2018 or regional grid codes. Fault current contributions from inverter-based resources differ substantially from synchronous machines; inverters supply only 1.1 to 1.2 times their rated continuous current during fault events. Consequently, traditional overcurrent elements (ANSI 50/51) must be combined with directional overcurrent (67), rate of change of frequency (81R), and undervoltage ride-through (27) schemes. Interconnection engineers should coordinate with our detailed guide to BESS siting and engineering to verify substation physical boundaries and MV cable routing.
Thermal Management and Enclosure Safety Engineering
Thermal control determines cell operating life and system safety, as operating lithium iron phosphate cells outside their optimal window of 20°C to 28°C accelerates Solid Electrolyte Interphase (SEI) layer growth and capacity loss. In modern battery energy storage system design, engineers select between forced air HVAC systems and closed-loop liquid cooling plates directly affixed to module bases. For an in-depth analysis of heat transfer regimes, consult our engineering guide to battery cooling systems.
Containerized installations must comply with strict fire suppression and deflagration mitigation standards, notably NFPA 855 (Standard for the Installation of Stationary Energy Storage Systems) and IEC 62933-5-2 clause 6.2. Enclosures require multi-stage gas detection capable of sensing off-gas byproducts—primarily hydrogen (H2) and carbon monoxide (CO)—prior to smoke generation or thermal runaway. Venting panels designed according to NFPA 68 calculate deflagration vent areas to ensure structural integrity should an internal explosion occur, alongside aerosol or clean-agent fire suppression systems like Novec 1230 or water mist curtains.
Design Comparison: Centralised vs Distributed PCS Architectures
A critical technical choice during BESS system design is whether to implement a centralised inverter architecture or a distributed string inverter topology. The selection directly affects DC collection wiring, round-trip efficiency, systemic availability, and system footprint.
| Design Parameter | Centralised PCS Architecture | Distributed (String) PCS Architecture |
|---|---|---|
| Typical Inverter Unit Rating | 1,000 kW – 3,450 kW | 100 kW – 250 kW |
| DC Operating Voltage | Up to 1,500 V DC | 900 V – 1,500 V DC |
| String/Rack Mismatch Losses | Moderate (Racks combined in parallel on DC bus) | Minimal (Individual MPPT/rack-level optimization) |
| DC Bus Infrastructure | External DC combiner boxes & heavy busbars | Direct rack-to-inverter cabling |
| Auxiliary Power Consumption | Lower (central liquid chillers/HVAC) | Slightly higher (multiple integrated cooling units) |
| System Availability / Redundancy | Single PCS trip disconnects 1–3 MW block | Single PCS trip isolates only one string (N-1 resilient) |
| Installation & Replacement | Requires heavy crane; complex on-site replacement | Modular, slide-in chassis replaceable in under 1 hour |
| Balance-of-Plant (BoP) Initial Cost | Lower ($/kW) for utility installations above 20 MW | Higher initial capital expenditure per kW |
Factory Testing and Acceptance Checklist
To prevent field failures and project delays, engineers must incorporate comprehensive Factory Acceptance Testing (FAT) and Site Acceptance Testing (SAT) parameters into their procurement specifications. The following checklist details mandatory verification stages mandated under IEC 62933-5-2 and IEEE 2030.2.1:
- Insulation Resistance and Dielectric Withstand: Verify that DC bus to chassis insulation exceeds 100 Megaohms at 2,500 V DC test potential for 60 seconds; conduct AC Hi-Pot testing on low-voltage and medium-voltage circuits.
- BMS Communication and Interlocking: Validate that loss of CAN or Modbus TCP/IP communication drops the main DC rack contactor in under 100 milliseconds; confirm over-voltage, under-voltage, and cell differential trip limits.
- Thermal Runaway and Safety Interlocks: Simulate early gas detection (CO/H2) to confirm that HVAC dampers automatically close, exhaust fans activate, and the master Emergency Power Off (EPO) initiates.
- Rated Capacity and Round-Trip Efficiency Verification: Execute three continuous charge-discharge cycles at the specified nominal C-rate to confirm that delivered kWh matches initial nameplate specifications at container terminals.
- Step-Up Substation Integration: Verify MV transformer winding impedance, ratio, and vector group compatibility with the PCS inverter bridge, ensuring harmonic distortion (THD) remains below 3% at the Point of Common Coupling.
Next steps: specifying and sourcing
Executing an optimized battery energy storage system design requires clear design boundaries, verified cell cycling data, and robust electrical gear. When preparing an RFQ, provide your site's peak active and reactive load profile, grid connection voltage, local ambient temperature extremes, and targeted asset life.
Our engineering team manufactures and delivers integrated commercial and industrial battery energy storage systems, high-density liquid-cooled ESS containers, and custom-engineered transformer substations built to IEC, ANSI, and regional utility standards. Contact our application engineers through our engineering enquiry portal or submit your single-line diagram and duty cycle directly to our commercial quotation desk for prompt sizing and project feasibility support.
Frequently asked questions
What is the typical lifespan of a utility battery energy storage system design?
A utility BESS is typically designed for an operational life of 10 to 20 years, depending on the cycling regime and thermal management. Using lithium iron phosphate (LFP) chemistry, systems generally deliver between 4,000 and 8,000 full equivalent cycles before reaching an end-of-life threshold of 70% nominal capacity.
What is the difference between AC-coupled and DC-coupled BESS design?
In an AC-coupled design, the battery system and renewable generation assets connect through separate inverters onto a shared alternating-current bus. In a DC-coupled system, both solar arrays and battery racks share a common DC bus connected to a shared bi-directional inverter, reducing conversion losses but increasing DC control complexity.
Why is liquid cooling preferred over air cooling in modern BESS system design?
Liquid cooling delivers significantly higher thermal conductivity than forced air, maintaining cell temperature differentials within 2 to 3 degrees Celsius across the entire rack. This uniformity prevents localized cell degradation, mitigates thermal runaway risks, and cuts auxiliary cooling power demand by up to 40%.
How does NFPA 855 impact the physical layout of an energy storage project?
NFPA 855 mandates a maximum grouped energy capacity of 50 kWh for residential units and 600 kWh for commercial battery groupings, requiring at least 3 feet (0.91 metres) of physical separation between individual enclosures or arrays unless unit-level UL 9540A testing demonstrates that fire cannot propagate.
What auxiliary loads must be accounted for in battery storage sizing calculations?
Auxiliary loads include liquid chillers or HVAC cooling compressors, circulation pumps, BMS controllers, site lighting, uninterruptible power supplies (UPS), and fire suppression controls. These parasitic loads typically consume between 1.5% and 4% of the system's total daily energy throughput.
