Battery Energy Storage System Market: Engineering Guide

Quick answer: The battery energy storage system market is expanding through the widespread deployment of utility-scale, grid-tied lithium iron phosphate systems designed for capacity firming, frequency regulation, and renewable curtailment mitigation. Modern projects demand integrated 1500 V DC containerised architectures, liquid thermal management, and strict compliance with interconnection standards such as IEEE 2800.

As power grids retire thermal baseload generation and bring gigawatts of intermittent wind and solar online, grid operators require flexible assets capable of delivering sub-second response times. Within the global and us energy storage market, multi-megawatt battery energy storage systems (BESS) have transitioned from demonstration pilots to critical transmission infrastructure. Navigating this sector requires a precise understanding of nameplate oversizing, round-trip efficiency (RTE) losses, medium-voltage transformation, and thermal safety certifications.

Drivers Shaping the Stationary Battery Storage Market

The stationary battery storage market is driven by regional capacity shortfalls, transmission congestion, and aggressive decarbonisation policies. In wholesale markets managed by system operators such as CAISO, ERCOT, and PJM, revenue stacking has evolved beyond basic merchant arbitrage into ancillary services, including fast frequency response (FFR), spinning reserve, and black-start capability. Consulting engineers and project developers must evaluate these revenue mechanisms to determine whether a 2-hour or 4-hour system architecture offers the optimum return on investment, as discussed in our commercial battery storage costs breakdown.

Government mechanisms such as the United States Inflation Reduction Act (IRA) standalone energy storage Investment Tax Credit (ITC) have reduced project capital expenditure (CapEx) hurdles. Concurrently, transmission system operators enforce stringent capacity performance penalties, making system availability and power conversion efficiency paramount during peak dispatch events.

Technology Architecture in the Battery Energy Storage Market

System design in the battery energy storage market has converged on 1500 V DC architectures utilising lithium iron phosphate (LFP) chemistry over nickel manganese cobalt (NMC). LFP delivers higher thermal stability, an intrinsic runaway threshold exceeding 270 °C, and cycle life metrics spanning 6,000 to 8,000 equivalent full cycles at 80% Depth of Discharge (DoD) under IEC 62620 testing protocols.

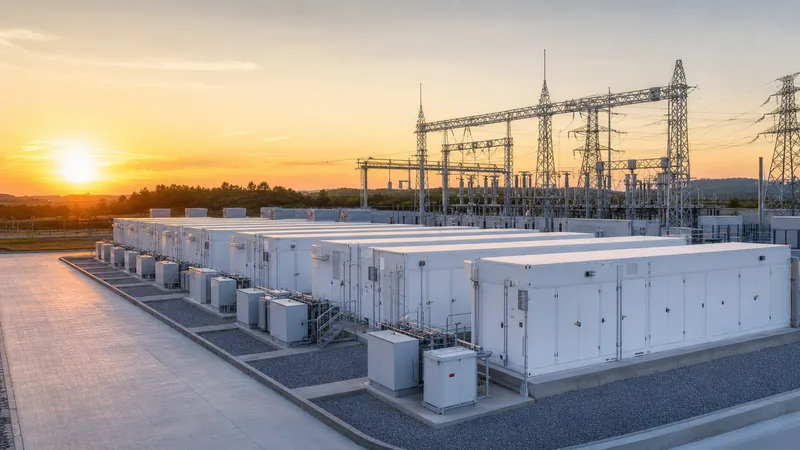

Mechanical enclosure design has transitioned from converted ISO shipping containers with central air handlers to purpose-built, high-density modular cabinets equipped with closed-loop liquid cooling. Circulating inhibited glycol through cold plates embedded directly against cell surfaces restricts intra-rack temperature deltas to less than 3 °C. This uniformity prevents uneven string degradation, eliminates premature capacity fade, and reduces parasitic auxiliary power consumption by up to 35% compared to forced-convection air-cooling units. System integrators combine these racks with intelligent power conversion system (PCS) units that provide four-quadrant active and reactive power control.

Battery Energy Storage System Market Sizing Calculation

Accurately sizing a utility-scale installation requires calculating degradation over the contract life, round-trip conversion losses, and auxiliary parasitic loads rather than simply matching nameplate power to the point of interconnection (POI) rating. Below is a practical worked example for a 50 MW / 200 MWh net usable AC delivery mandate over a 10-year operating horizon.

Design Inputs:

• Required Net POI Energy: 200 MWh AC at Year 10
• Required Net POI Active Power: 50 MW AC
• Inverter / PCS Efficiency (one-way): 98.2%
• MV Step-up Transformer Efficiency: 99.0%
• Balance of Plant Auxiliary Consumption: 1.5% of total delivered energy
• Target Maximum Operating Depth of Discharge (DoD): 90%
• End of Life (EOL) Cell Retention Capacity (Year 10): 78% (without mid-life augmentation)

Step 1: Calculate Net Delivery Efficiency from DC Bus to POI

The transmission efficiency from the DC bus through the PCS and medium-voltage transformer is calculated as:

Efficiency (DC to AC) = 0.982 × 0.990 = 0.97218 (97.22%)

Step 2: Determine Required Net DC Energy at Year 10

Accounting for the auxiliary load factor (1.5% deduction) and transmission efficiency:

Required DC Energy (EOL) = (200 MWh × 1.015) ÷ 0.97218 = 208.81 MWh DC

Step 3: Factor Usable Depth of Discharge and Degradation

To avoid cell damage, cycling is restricted to 90% DoD. Factoring the 78% capacity retention at year 10 establishes the required initial DC nameplate capacity:

Initial Nameplate DC Capacity = 208.81 MWh ÷ (0.90 × 0.78) = 297.45 MWh DC

Consequently, the engineering specification must call for a nominal 298 MWh DC installation to reliably supply 200 MWh AC at the POI throughout the project duration, or alternatively plan a modular augmentation schedule at Year 5. Further system sizing principles can be referenced in our utility-scale battery storage guide.

Turnkey CapEx Cost Breakdown Across System Components

Capital expenditures in the utility-scale segment are divided among cell modules, medium-voltage power equipment, enclosure balance of plant, and civil works. The table below outlines typical percentage and dollar allocations for a representative 4-hour, 50 MW / 200 MWh turnkey installation conforming to IEC and IEEE utility benchmarks.

Grid Interconnection and Safety Compliance Standards

Integrating utility-scale assets into transmission networks requires compliance with stringent functional safety and electrical performance standards. In North America and global markets adhering to IEEE codes, IEEE 2800-2022 clause 5 sets mandatory ride-through capabilities for inverter-based resources, stipulating that systems must remain connected during severe positive-sequence and zero-sequence voltage dips down to 0.0 p.u. at the transmission bus. Detailed engineering rules for grid tie-ins are covered in our guide on grid integration of renewable energy sources.

For fire safety and life protection, installations must satisfy NFPA 855-2023 along with exhaustive thermal runaway testing under UL 9540A. These tests evaluate cell-to-cell, module-to-module, and unit-level thermal propagation. On the international stage, IEC 62933-5-2 clause 6.2 dictates environmental risk management and electromagnetic compatibility (EMC) thresholds for electrochemical energy storage systems. Meeting these requirements demands redundant insulation monitoring devices, gas detection (hydrogen, carbon monoxide), and automated deflagration ventilation systems.

Procurement and Engineering RFQ Checklist

To ensure tender packages result in reliable commercial bids, project engineers must provide fully defined technical parameters within their request for proposal (RFP) documentation. The following checklist details the minimum requirements necessary for system integrators and electrical manufacturers to price a system accurately:

1. Point of Interconnection Characteristics: Specify grid nominal voltage (kV), short-circuit ratio (SCR) at the high-voltage bus, utility frequency limits, and target power factor range (-0.90 to +0.90).
2. Duty Cycle and Throughput: Define daily equivalent full cycles, expected C-rate discharge (typically 0.25C to 0.5C for energy arbitrage), and auxiliary power feed voltage (e.g. 400 V or 480 V, 3-phase).
3. Thermal and Environmental Envelope: Provide local ambient temperature extremes (-25 °C to +50 °C), seismic category, wind load ratings, and altitude derating factors if installed above 1,000 metres as per IEEE C37.20.2.
4. Safety and Certification Packages: Require unit-level UL 9540 listing, UL 9540A test reports, IEC 62619 cell certification, and an approved NFPA 68/69 explosion prevention strategy.
5. Substation Skid Scope: Confirm whether skid-mounted medium-voltage transformers and SF6-free or vacuum switchgear must be supplied on a common baseplate with the PCS.

Next steps: specifying and sourcing

Navigating the rapid development of the energy storage sector requires dependable medium-voltage distribution and containerised thermal management equipment engineered to international standards. When preparing a project tender, compile your single-line diagrams, interconnection voltage specifications, cycling profiles, and environmental parameters. Our engineering team designs and manufactures utility-grade energy storage systems, compact liquid-cooled ESS containers, and dedicated skid-mounted transformer substations tailored to IEC and IEEE requirements. Contact our engineering office directly or submit your technical schedule through our quotation request page to review equipment specifications and factory acceptance testing protocols.
