Largest Storage Battery Systems: Utility BESS Engineering

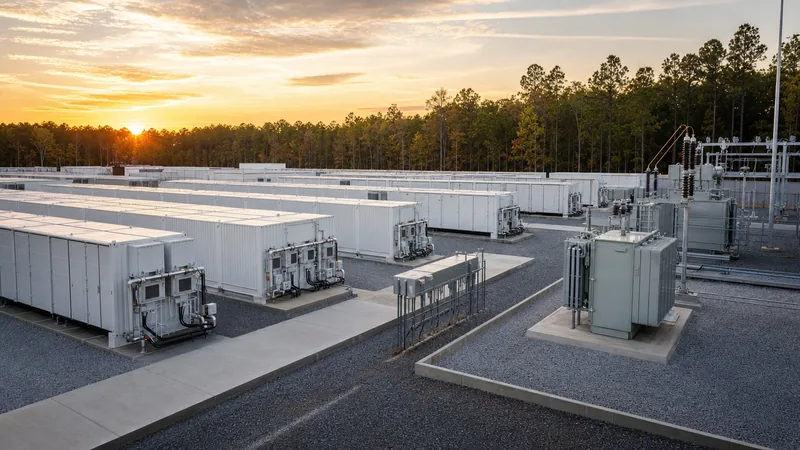

Quick answer: A utility-scale installation operating between hundreds of megawatt-hours (MWh) and several gigawatt-hours (GWh) represents the modern largest storage battery. These infrastructure-grade installations deploy modular lithium iron phosphate (LFP) containers, liquid-cooling loops, centralised power conversion systems (PCS), and medium-voltage power transformers to stabilise transmission networks, arbitrate power, and eliminate renewable curtailment.

Scaling electrochemical storage to the gigawatt-hour threshold requires moving beyond basic rack architecture. When executing projects at this magnitude, electrical balance-of-plant (BOP), thermal management, and fire safety systems dictate site viability. Understanding how to configure, protect, and interconnect the largest storage battery blocks is essential for EPC contractors, utilities, and design engineers targeting multi-hundred-megawatt grid deployments.

Engineering Metrics of the Largest Storage Battery Installations

Utility-scale assets are categorised primarily by power rating in megawatts (MW) and energy capacity in megawatt-hours (MWh). The largest storage battery installations worldwide typically feature discharge durations ranging from 2 to 4 hours, yielding capacities from 400 MWh up to 3,000 MWh across a single contiguous switchyard footprint. At this scale, cell chemistry selection dictates plant density, cycle life, and thermal risk.

Modern utility facilities overwhelmingly specify Lithium Iron Phosphate (LFP) chemistry over Nickel Manganese Cobalt (NMC) due to superior thermal stability and cycle life exceeding 6,000 to 8,000 cycles at 80% Depth of Discharge (DoD). As examined in our LFP vs NMC battery chemistry guide, LFP eliminates cobalt supply risks and exhibits an onset temperature for thermal runaway above 270°C, compared to roughly 210°C for nickel-rich chemistries.

Achieving gigawatt-hour capacity requires configuring multiple parallel strings. A representative 20-foot high-density container delivers between 3.35 MWh and 5.0 MWh at 1,500 V DC. Connecting 200 to 600 of these enclosures requires a hierarchical electrical topology, where DC battery racks connect to skid-mounted power conversion systems (PCS) that invert DC power to 0.69 kV AC before stepping up to medium-voltage collection levels.

Architecture of the Largest Solar Battery Facilities

Integrating massive storage directly with utility-scale photovoltaic (PV) generation creates the world's largest solar battery complexes. System designers must decide between AC-coupled and DC-coupled architectures based on interconnection constraints, round-trip efficiency (RTE), and operational flexibility.

In an AC-coupled configuration, the solar PV array and the battery energy storage system (BESS) maintain separate inverters and feed into a common medium-voltage (MV) AC busbar at 33 kV or 34.5 kV. This approach dominates large-scale deployments because it allows independent dispatch, simplifies commissioning, and enables the storage asset to be retrofitted to existing solar farms without reconfiguring string inverters. For a comprehensive review of transmission-scale designs, consult our utility-scale energy storage engineering guide.

DC-coupled systems connect both the PV strings and the battery storage racks to a shared bi-directional inverter via DC-DC converters. While DC coupling eliminates one AC-DC conversion stage—improving clipping recapture by 2% to 4%—it introduces complex fault-current dynamics on the DC bus and restricts simultaneous full-capacity export from both solar and storage assets without oversized inverter capacity.

Thermal Management: Liquid Cooling at GWh Scale

Thermal uniformity across every cell module is the single most critical factor in preventing premature capacity degradation and catastrophic failure in high-capacity storage. In a 1,000 MWh facility housing millions of individual prismatic cells, forced-air cooling creates unacceptable temperature gradients between inlet and exhaust modules, often exceeding 8°C to 12°C across a single rack.

Liquid cooling has become the engineering standard for high-density containerised energy storage. By circulating an inhibited water-glycol mixture through micro-channel aluminium cold plates integrated beneath or between cell blocks, liquid-cooled systems maintain cell-to-cell temperature differentials below 3°C. Detailed calculations on fluid velocity and chilling stages are available in our battery cooling engineering guide.

Controlling this thermal boundary reduces auxiliary parasitic consumption by 30% to 40% compared to direct-expansion air-conditioning units, raising overall system round-trip efficiency (RTE) from 85% to well over 88% at a 0.5C operating rate. Furthermore, liquid cooling permits enclosed IP54 or IP67 container designs that isolate the active battery racks from external ambient dust, humidity, and coastal salt-spray ingress.

Technical Comparison: Containerised BESS Architectures

Selecting container architecture for utility-scale systems requires balancing volumetric energy density, auxiliary losses, and civil footprint constraints. The table below outlines parameters across generation tiers commonly deployed in transmission-connected projects.

Generation 3 platforms cut balance-of-system civil works by roughly 35% because fewer concrete foundation pads, underground trenching runs, and medium-voltage terminations are needed per 100 MWh block.

Worked Sizing Calculation: 500 MW / 2,000 MWh BESS Substation Interface

To illustrate the balance-of-plant sizing for one of the world's largest storage battery systems, consider a facility designed to deliver 500 MW continuous active power for 4 hours (2,000 MWh usable AC energy at Point of Interconnection) into a 230 kV transmission grid.

1. Gross DC Storage Sizing:

Account for system losses: battery round-trip efficiency (RTE) η_bat = 92%, inverter and step-up transformer efficiency η_BOP = 96.5%, and an end-of-life (EOL) degradation margin allowing 20% capacity fade over a 15-year operating agreement (degradation factor F_deg = 0.80). Usable depth of discharge (DoD) is set at 90% (0.90).

Required gross DC installed capacity (E_{DC_gross}):

E_{DC_gross} = E_{usable_AC} / (η_bat × η_BOP × DoD × F_deg)

E_{DC_gross} = 2,000 MWh / (0.92 × 0.965 × 0.90 × 0.80) = 2,000 / 0.6392 ≈ 3,128.9 MWh DC.

Deploying 5.0 MWh liquid-cooled 20-foot enclosures requires: 3,129 / 5.0 = 626 containerised battery units.

2. Medium-Voltage (MV) Skid Sizing:

Organise the plant into 100 power blocks using 5.0 MW centralised inverter skids. Each skid pairs two 2.5 MW PCS units with an integrated 5.0 MVA, 0.69 kV / 33 kV oil-immersed step-up transformer with an impedance of Z% = 6.5%.

3. Transmission Substation Transformer Sizing:

The central substation must handle 500 MW active power plus reactive power capability to meet grid code requirements of power factor (PF) = 0.95 lagging/leading at the 230 kV busbar:

Apparent Power (S_total) = P / PF = 500 MW / 0.95 = 526.3 MVA.

To avoid a single point of failure and comply with N-1 contingency rules, specify two 300 MVA, 33 kV / 230 kV three-phase oil-immersed ONAN/ONAF power transformers operating in parallel, providing a combined firm capacity of 600 MVA.

Safety, Fire Protection, and NFPA 855 Compliance

Mitigating runaway propagation across gigawatt-scale sites requires strict compliance with international fire safety codes, notably NFPA 855 (Standard for the Installation of Stationary Energy Storage Systems) and IEC 62933-5-2. At this density, protection systems rely on active suppression, physical separation, and exhaust ventilation.

1. Unit Separation Distances: NFPA 855 clause 4.3 mandates a minimum separation of 3 feet (0.91 m) between outdoor BESS units and 10 feet (3.05 m) from lot lines or public ways, unless large-scale fire testing under UL 9540A proves that fire cannot spread at closer spacing.
2. Multi-Stage Gas Detection: Install aspirated smoke detection (ASD) alongside off-gas sensors calibrated for hydrogen (H₂) and carbon monoxide (CO). Early off-gas detection identifies cell venting 8 to 15 minutes prior to temperature escalation, allowing the battery management system (BMS) to open string contactors.
3. Deflagration Relief: Containers must integrate rupture panels or mechanical latches compliant with NFPA 68, designed to vent internal overpressure safely upwards rather than horizontally toward adjacent battery enclosures.
4. Water-Based Suppression: While aerosol and clean-agent gaseous systems extinguish flaming combustion, they cannot cool thermal runaway within prismatic cells. External deluge connections or internal deluge pipework hooked to dedicated site fire-water storage mains are mandatory to achieve sustained cooling.

Specification Checklist for Multi-MWh Battery Storage

When preparing requests for quotation (RFQs) for high-capacity battery installations, engineers should enforce strict performance criteria. Incorporate this specification checklist into your project procurement package:

• Cell Grade & Chemistry: Grade-A prismatic LFP cells conforming to IEC 62619, UL 1642, and UN 38.3 with zero tolerance for re-purposed or secondary-market stock.
• Thermal Control System: Closed-loop liquid cooling featuring dual redundant circulation pumps, modulated variable-speed chillers, and an automatic glycol concentration monitoring circuit.
• Fault Interrupt Ratings: DC high-speed fuses rated for at least 65 kA interrupting capacity at 1,500 V DC, paired with motor-driven DC circuit breakers capable of isolation under full short-circuit current.
• Balance of Plant Compatibility: Factory integration with pre-commissioned liquid-cooled ESS containers and skid-mounted medium-voltage transformer substations to minimise site assembly hours.
• Control and Cybersecurity: Modbus TCP/IP, DNP3, and IEC 61850 protocol compliance with dual-redundant optical fibre ring architecture and hardware firewalls compliant with NERC CIP standards.

Next steps: specifying and sourcing

Deploying utility-scale BESS facilities demands rigorous alignment between electrochemical performance, medium-voltage transformation, and grid compliance standards. Our engineering team designs and manufactures utility-grade energy storage systems, high-density liquid-cooled ESS containers, and heavy-duty step-up prefabricated substations tested to IEC and IEEE standards. Submit your single-line diagrams, required MWh capacity, interconnect voltage, and dispatch profile directly via our quotation request page or contact our application engineers at inquiry@electrical-equipment-factory.com to begin detailed project sizing.
