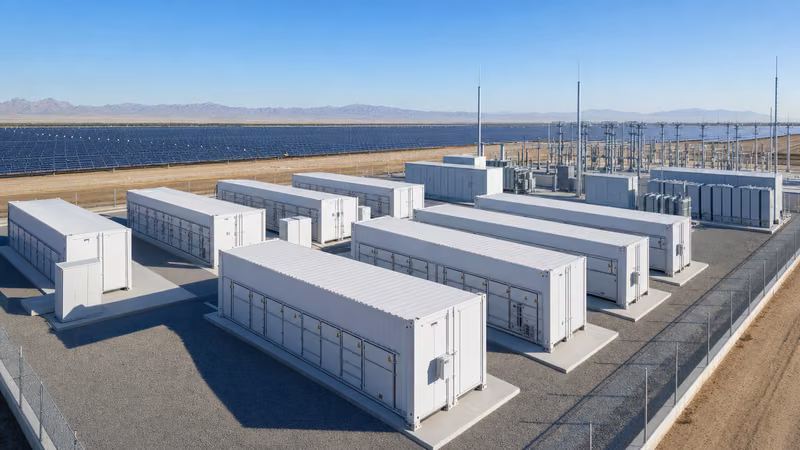

Utility scale energy storage system integrated with solar farm and substation transformers

Key takeaways

Utility scale energy storage systems typically deploy lithium iron phosphate (LFP) chemistry with DC block voltages ranging from 1,000 V to 1,500 V DC to maximise power conversion efficiency.
A standard 100 MW solar plant co-located with a 50 MW / 200 MWh BESS requires detailed coordination between inverter clipping limits, C-rate profiles, and medium-voltage step-up transformers.
Liquid cooling provides thermal uniformity across battery racks within 2.5 degrees Celsius, reducing auxiliary HVAC parasitic loads by up to 30 percent compared to forced-air systems.
Grid code compliance mandates full four-quadrant reactive power support (power factor 0.85 leading to 0.85 lagging) and synthetic inertia under standards such as IEEE 2800 and IEC 62933-5-2.
Thermal runaway mitigation must comply with NFPA 855 and UL 9540A unit-level fire test thresholds, incorporating multi-stage deflagration venting and gaseous suppression.

Quick answer: Utility scale energy storage refers to multi-megawatt battery energy storage systems (BESS) directly connected to the electrical transmission or high-voltage distribution network to balance generation and demand. These systems mitigate renewable intermittency, manage peak shaving, provide frequency response, and enable firm power delivery from utility-scale solar and wind facilities.

As intermittent renewable generation increases across international grids, large scale energy storage systems have transitioned from optional ancillary assets to mandatory infrastructure. Connecting several hundred megawatt-hours of electrochemical storage directly into transmission substations presents distinct electrical, mechanical, and thermal engineering challenges. System integrators and project developers must evaluate round-trip efficiency (RTE), cycle life degradation, fault current contributions, and fire safety codes when designing grid level energy storage assets.

This engineering guide covers the architecture, integration typologies, capacity calculations, thermal management approaches, and procurement specifications required for deploying grid scale energy storage alongside utility solar farms.

System Architecture: Grid Scale Battery Energy Storage System Typologies

A modern grid scale battery energy storage system integrates thousands of individual battery cells grouped into modules, racks, enclosures, and medium-voltage power blocks. High-voltage utility applications standardise on 1,500 V DC rack architectures to reduce copper cross-sections, minimise I²R cable losses, and optimise input stage utilisation for utility scale power conversion systems (PCS).

Engineers deploying utility scale energy storage must choose between AC-coupled and DC-coupled architectures when integrating with photovoltaic (PV) arrays:

AC-Coupled Integration: The PV array and the large scale battery storage system utilise separate central or string inverters. Both feed into dedicated medium-voltage step-up transformers before connecting to a common 33 kV or 34.5 kV substation collection bus. This topology simplifies retrofits, isolates battery faults from solar generation, and allows independent dispatch, though it introduces double-conversion losses.
DC-Coupled Integration: The PV string outputs and battery racks connect to a common DC bus through bidirectional DC-DC converters feeding a shared central inverter. This architecture captures clipped solar energy that exceeds inverter AC output limits, increases round-trip capture efficiency by 2 to 4 percent, and reduces the number of medium-voltage step-up transformers required on-site.

For large utility installations exceeding 50 MW / 200 MWh, the AC-coupled approach remains the industry baseline due to modular commissioning, simplified protection schemes, and vendor flexibility. For an in-depth review of industrial storage principles, consult our commercial energy storage guide.

Solar Farm Integration and Utility Scale Solar Battery Storage Sizing

Sizing utility scale solar battery storage requires balancing the plant peak generation profile, point of interconnection (POI) export limits, and target capacity duration. In utility contracts, capacity payments often depend on delivering a firm capacity block for a continuous four-hour discharge window during evening peak demand periods.

To design an asset correctly, engineers model battery degradation based on annual cyclic ageing and calendar fade governed by Arrhenius kinetics. The primary sizing formulation calculates usable AC energy delivery at the point of interconnection over the system warranty lifetime:

E_POI = E_DC,nominal × DoD × RTE_sys × (1 - Deg_annual)ⁿ

Where DoD is depth of discharge (typically 0.90 to 0.95), RTE_sys is full system round-trip efficiency (typically 0.85 to 0.88 inclusive of inverter, transformer, and auxiliary loads), and Deg_annual is blended annual degradation (typically 1.8% to 2.5%).

The worked calculation below demonstrates the DC nameplate capacity required to guarantee 50 MW / 200 MWh net export at Year 10 for an AC-coupled solar farm BESS:

Required Net AC Output (Year 10): 200,000 kWh at POI.
Substation & Step-up Transformer Efficiency: 98.8% (0.988).
Inverter (PCS) AC/DC Efficiency: 98.5% (0.985).
Battery Depth of Discharge (DoD): 90% (0.90) to preserve cycle life.
Year 10 Retained Capacity: 80% (0.80) end-of-life state of health (SoH).
Required Year 10 DC Discharged Energy: 200,000 kWh / (0.988 × 0.985) = 205,510 kWh DC.
Required Year 1 Nameplate DC Capacity: 205,510 kWh / (0.90 × 0.80) = 285,430 kWh (285.4 MWh DC).

Consequently, an EPC contractor must procure approximately 285.4 MWh of gross DC storage or design an operational overbuild strategy coupled with periodic battery rack augmentation to maintain contractual capacity guarantees without excessive upfront capital expenditure.

Core Chemistries: Grid Energy Storage Batteries and Performance Characteristics

Electrochemical grid energy storage batteries must sustain high cyclic throughput, demonstrate exceptional thermal stability, and offer bankable levelised cost of storage (LCOS). Lithium Iron Phosphate (LiFePO4 or LFP) has superseded Lithium Nickel Manganese Cobalt (NMC) as the dominant chemistry for utility scale batteries due to superior thermal runaway thresholds and extended cycle life.

Alternative energy storage technologies, such as vanadium redox flow batteries and sodium-ion cells, are emerging for long-duration energy storage (LDES) exceeding eight hours, but LFP retains over 90 percent of current utility market share.

Storage Technology	Cell Nominal Voltage (V)	Cycle Life (80% DoD, 25°C)	Round-Trip Efficiency (DC %)	Thermal Runaway Onset (°C)	Typical Discharge Duration (h)
Lithium Iron Phosphate (LFP)	3.2 V	6,000 – 10,000	93 – 96%	210 – 270°C	2 – 6 hours
Nickel Manganese Cobalt (NMC)	3.6 V – 3.7 V	3,000 – 4,500	94 – 97%	150 – 180°C	1 – 4 hours
Vanadium Redox Flow (VRFB)	1.2 V – 1.4 V	15,000 – 20,000	70 – 78%	Non-flammable	6 – 12+ hours
Sodium-Ion (Na-Ion)	3.0 V – 3.1 V	3,000 – 5,000	88 – 92%	240 – 290°C	2 – 6 hours

For utility scale solar battery storage, LFP cells configured in modular racks provide an operational life of 15 to 20 years when operating between 0.5C and 0.25C continuous charge/discharge rates. For detailed parameters on enclosure packaging and racking standards, reference our guide on how to specify a containerised BESS.

Thermal Management: Liquid Cooling vs Air Cooling for Large Scale Battery Storage

Thermal uniformity inside battery enclosures directly determines cell degradation rates, fire risk, and round-trip efficiency in large scale battery storage installations. Maintaining cell-to-cell temperature differentials (ΔT) within 2.5°C across an entire 3 MWh to 5 MWh container is critical to prevent localised cell overstressing and uneven internal resistance escalation.

Utility scale deployments increasingly standardise on closed-loop liquid cooling systems over conventional forced-air HVAC units:

Liquid Cooling Plates: Aluminium cold plates with internal micro-channels are clamped directly against prismatic cell faces. A 50/50 water-glycol mixture circulates through external dry coolers or chillers, removing heat directly at the source. This achieves precise temperature control within ±1.5°C and consumes up to 30 percent less parasitic power than forced-air systems under high-ambient (45°C) desert conditions.
Air Cooling Architecture: Ducted industrial HVAC systems circulate conditioned air through internal container aisles. While simpler mechanically, air cooling frequently creates thermal stratification from bottom to top shelves, resulting in rack-level ΔT spreads exceeding 5°C to 8°C. This accelerates degradation on upper modules and limits continuous high-C-rate operation.

For an expanded fluid dynamic analysis and auxiliary power consumption breakdown, refer to our comparison of liquid-cooled vs air-cooled energy storage.

Grid Interconnection, Protection and Substation Integration

Interconnecting a grid battery energy storage system to the transmission network requires strict compliance with international grid interconnection standards, including IEEE 2800-2022, IEEE 1547-2018, and IEC 62933-5-2. Modern grid operators mandate that grid scale electricity storage assets operate as synchronous resources capable of providing dynamic voltage regulation, primary frequency response, and fault-ride-through (FRT) capabilities.

Key electrical substation and protection design elements include:

Grid-Forming (GFM) vs Grid-Following (GFL) Inverters: While conventional inverters track the grid voltage angle using phase-locked loops (GFL), modern utility assets implement grid-forming control algorithms. GFM inverters act as true voltage sources behind an impedance, delivering synthetic inertia, black-start support, and instantaneous damping of sub-synchronous oscillations during high-renewable penetration scenarios.
Short-Circuit Contribution and Protection Coordination: Inverter-based resources produce limited fault currents—typically 1.1 to 1.3 times rated current—compared to traditional synchronous generators that deliver 5 to 6 times base rating. Overcurrent protection (ANSI 50/51) must be coordinated with directional overcurrent (ANSI 67) and high-speed line differential relays (ANSI 87L) to isolate faults reliably.
Step-Up Transformers: Battery storage blocks utilise multi-winding medium-voltage transformers (such as 0.69 kV or 0.8 kV to 33 kV) designed with electrostatic shielding to suppress high-frequency harmonic propagation generated by high-power inverter switching bridges. Explore step-up design nuances in our battery storage engineering guide.

Safety Engineering: Fire Protection and NFPA 855 Compliance

Thermal runaway prevention and fire containment represent the most stringent safety requirements when procuring large scale energy storage systems. Battery failures stem from internal cell defects, thermal overstress, electrical overcharge, or physical damage, causing self-sustaining exothermic propagation that releases flammable off-gases (including hydrogen, carbon monoxide, and methane).

International standards mandate a defense-in-depth safety architecture under NFPA 855 (Standard for the Installation of Stationary Energy Storage Systems), UL 9540, and UL 9540A:

Off-Gas Detection: Continuous monitoring using multi-criteria sensors detecting trace hydrogen (H₂) concentrations at 1 to 5 ppm and carbon monoxide (CO) prior to smoke or heat evolution. This enables immediate rack-level electrical isolation before thermal runaway occurs.
Unit-Level Explosion Prevention: Compliance with NFPA 68 and NFPA 69, requiring calibrated deflagration roof panels or mechanical exhaust ventilation designed to maintain off-gas concentrations below 25 percent of the Lower Flammability Limit (LFL).
Suppression Systems: Integration of clean agent systems (such as gaseous chemical suppression agents) for initial enclosure fire suppression, coupled with dry-pipe deluge water sprinkler systems designed per NFPA 13 (minimum design density 0.3 gpm/ft² over the entire footprint) to provide structural cooling and prevent cell-to-cell thermal propagation.
Spatial Clearances: Maintaining minimum separation distances of 3.05 metres (10 feet) between individual containerised enclosures, substation transformers, and perimeter boundaries unless UL 9540A large-scale fire testing validates closer placement without risk of fire spread.

Engineering Specification and Procurement Checklist for BESS EPC Projects

Developing an engineering procurement specification for utility scale energy storage systems requires rigorous verification of hardware ratings, software interfaces, safety certifications, and warranty benchmarks. The technical checklist below provides essential criteria that procurement teams and consulting engineers should incorporate into tender documents.

System Parameter	Standard / Benchmark	Engineering Requirement / Verification Value
Cell Chemistry & Form Factor	IEC 62619 / UL 1642	LiFePO4 (LFP) prismatic cell; minimum 280 Ah or 314 Ah capacity.
System Operating Voltage	IEC 61010 / UL 9540	1,500 V DC nominal; 1,100 V to 1,500 V operating range per string.
Rated Round-Trip Efficiency (RTE)	IEC 62933-2-1	≥ 86.0% AC-to-AC measured at 0.5C rate at medium-voltage terminals.
Thermal Management Scheme	Factory Standard	Liquid-cooled with closed-loop glycol; enclosure ΔT ≤ 2.5°C across cells.
Grid Interface & Control	IEEE 2800 / IEEE 1547	Grid-forming (GFM) capability; dynamic reactive support (PF ±0.85).
Fire Risk Assessment	UL 9540A / NFPA 855	Full-scale test report confirming zero module-to-module propagation.
Deflagration Venting	NFPA 68 / NFPA 69	Top-mounted explosion relief panels sized to maximum off-gas volume.
Enclosure Protection Class	IEC 60529 / NEMA 250	IP55 minimum for battery compartment; marine-grade anti-corrosion coating.
SCADA & Dispatch Protocol	IEC 60870-5-104 / DNP3	Fast-response primary frequency response (latency < 100 ms).
Degradation & Warranty	Bankable Performance Bond	Guaranteed capacity retention (≥ 70% at Year 15 or 6,000 cycles).
