LiFePO4 Pouch Cells: Engineering & BESS Design Guide

Quick answer: LiFePO4 pouch cells are lithium iron phosphate battery cells enclosed in flexible aluminium laminated films rather than rigid metal canisters. They offer superior gravimetric energy density (up to 185 Wh/kg) and excellent thermal heat transfer, but require external mechanical compression frames to manage cyclic swelling and maintain electrical contact over a 4,000 to 6,000 cycle lifespan.

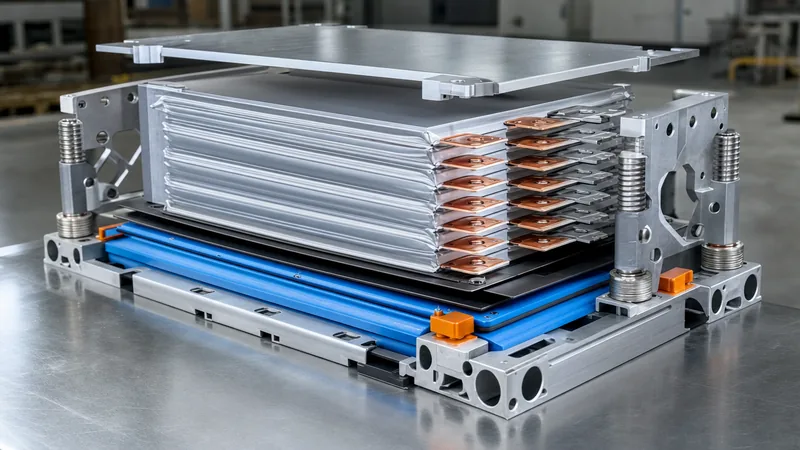

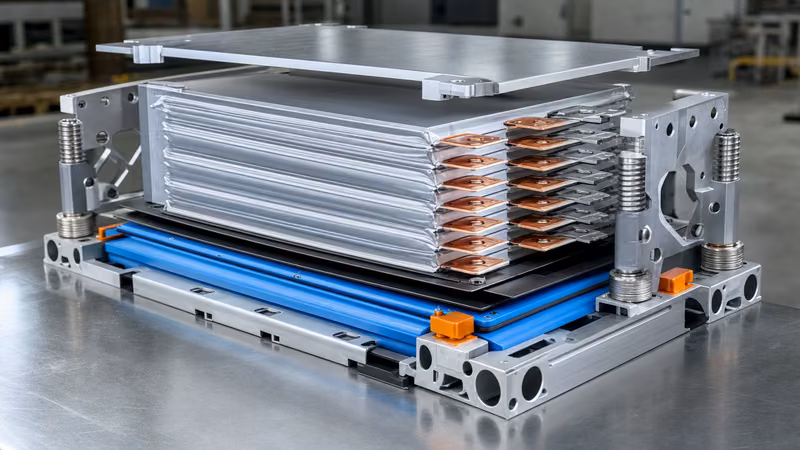

In industrial and utility-scale battery energy storage systems (BESS), cell form factor directly dictates pack architecture, thermal performance, and mechanical structural overhead. While cylindrical and prismatic variants rely on rigid aluminium or steel enclosures, the lifepo4 pouch cells format eliminates unnecessary structural deadweight, achieving higher cell-level specific energy. However, designing battery packs around a flexible lithium ion pouch architecture introduces distinct engineering challenges in compression fixturing, swelling mitigation, and busbar tab joining.

For plant engineers, system integrators, and EPC contractors, choosing between pouch and rigid cells requires understanding how flexible packaging behaves under dynamic cyclic loading. This guide details the mechanical construction, compression calculations, thermal integration methods, and factory acceptance criteria required to deploy lifepo4 pouch cells reliably within commercial energy storage architectures.

Mechanical Anatomy and Construction of LiFePO4 Pouch Cells

LiFePO4 pouch cells use stacked or z-folded internal electrode layers sealed inside a multilayer aluminium laminated film. Unlike wound cylindrical cells, the stacked layer structure of the pouch cell ensures uniform current density across the entire electrode area, which significantly lowers internal impedance. The cell packaging consists of three primary functional layers: an outer protective layer of oriented polyamide (nylon) for puncture resistance, a central aluminium barrier foil (typically 40 to 60 μm thick) that blocks moisture ingress and electrolyte leakage, and an inner heat-sealable polypropylene layer.

Terminal connections extend through the heat-sealed perimeter as flat metal foil tabs: nickel or copper for the negative anode tab and aluminium for the positive cathode tab. Because the soft pouch envelope provides no structural containment, any internal gas generated by parasitic electrolyte oxidation or phase transition directly alters the physical dimensions of the cell. Proper lamination adhesion, regulated under UL 1642 Table 12.1 for casing integrity, is essential to prevent seal delamination when exposed to thermal cycling and organic carbonates.

Engineers must distinguish between standard consumer polymer cells and industrial-grade lithium ion pouch cells. While consumer pouches often use cobalt-rich chemistries detailed in our guide to LiPo battery cells, industrial lifepo4 pouch cells utilise an inherently stable olivine phosphate cathode structure. This chemistry resists oxygen release up to 270 °C, providing exceptional intrinsic safety even when packaged in soft-sided enclosures.

Technical Comparison: LiFePO4 Pouch Cells vs Prismatic Formats

Evaluating lifepo4 pouch cells against rigid formats requires balancing cell-level specific energy against module-level structural overhead. While pouch cells eliminate 20% to 30% of the deadweight associated with heavy aluminium cans, they require external clamping plates, insulating compression pads, and dedicated structural enclosures within the battery module. A detailed comparison between these packaging philosophies appears below:

As demonstrated in the operational specifications, the high surface-area-to-volume ratio of lifepo4 pouch cells allows for superior heat conduction away from the core electrode stack. However, as detailed in our guide to LiFePO4 prismatic cells, prismatic formats provide superior volumetric space efficiency when packed into utility containers, because rigid rectangular cans require minimal external bracing and include integrated safety burst vents.

Swelling Mechanics and Compression Fixture Design

Sustained mechanical compression is mandatory for lifepo4 pouch cells to maintain internal layer contact and prevent premature capacity fade. During cycling, lithium ion insertion and extraction create two distinct swelling mechanisms: a reversible cyclic breathing of 1.5% to 2.5% strain per cycle, and an irreversible end-of-life (EOL) volumetric expansion of 8% to 12% caused by solid electrolyte interphase (SEI) growth and micro-cracking.

Without adequate mechanical constraint, the electrode layers delaminate microscopically, causing a steep rise in equivalent series resistance (ESR) and localised current crowding. Conversely, excessive clamping pressure exceeding 70 kPa damages the separator membrane, induces lithium plating at the anode edges, and increases the risk of micro-short circuits. Industrial modules integrate microcellular polyurethane foams or calibrated disc-spring (Belleville) tie-rod assemblies that maintain clamping pressure strictly between 20 kPa and 40 kPa throughout the entire expansion envelope.

When engineering high-capacity enclosures, as outlined in our lithium battery packs guide, the structural frame must absorb the total cumulative force of the expanding cell stack without exceeding the yield point of the tie rods or buckling the module endplates.

Worked Calculation: Clamping Force and Expansion Envelope

Accurate mechanical sizing prevents module deformation over years of heavy cycling. The following worked calculation determines the required tie-rod spring preload and total dimensional expansion for an industrial 16-cell series (16S) lifepo4 pouch cells module designed for stationary energy storage.

Design Inputs:

• Number of cells in series stack ($n$): 16 cells
• Nominal cell dimensions: Width ($W$) = 0.160 m, Height ($H$) = 0.220 m, Thickness ($t_0$) = 0.012 m (12.0 mm)
• Face area of active cell face ($A$): $0.160 \times 0.220 = 0.0352\text{ m}^2$
• Target continuous compression pressure ($P$): $30\text{ kPa} = 30{,}000\text{ N/m}^2$
• Irreversible EOL thickness expansion ($\epsilon_{irr}$): 10% ($0.10$)
• Reversible cyclic breathing thickness ($\Delta t_{rev}$): 0.25 mm per cell
• Inter-cell foam pad thickness: 1.5 mm uncompressed, nominal 1.0 mm at 30 kPa

Step 1: Calculate the Required Clamping Force ($F$)

The required compression force applied by the module endplates across the active face area is calculated as:

$$F = P \times A = 30{,}000\text{ N/m}^2 \times 0.0352\text{ m}^2 = 1{,}056\text{ N} \text{ (approx. } 1.06\text{ kN)}$$

If the module uses four high-tensile steel tie rods, each tie rod must be pre-tensioned to deliver a minimum axial load of:

$$F_{rod} = \frac{1{,}056\text{ N}}{4} = 264\text{ N}$$

Step 2: Calculate Stack Dimensional Growth at End-of-Life

The cumulative irreversible expansion across all 16 cells is:

$$\Delta L_{irr} = n \times (t_0 \times \epsilon_{irr}) = 16 \times (12.0\text{ mm} \times 0.10) = 19.2\text{ mm}$$

Adding the dynamic reversible breathing of the stack under 100% state of charge (SOC):

$$\Delta L_{rev} = n \times \Delta t_{rev} = 16 \times 0.25\text{ mm} = 4.0\text{ mm}$$

$$\Delta L_{total} = 19.2\text{ mm} + 4.0\text{ mm} = 23.2\text{ mm}$$

Engineering Conclusion: The module retention frame must allow 23.2 mm of linear travel over its service life while maintaining the clamping force within 1.06 kN to 1.41 kN (representing 30 kPa to 40 kPa). Belleville spring stacks with a spring constant matching this displacement range must be integrated into the tie rods to prevent structural failure or over-compression.

Thermal Integration and Cooling Strategies for Pouch Systems

Thermal management in lifepo4 pouch cells relies primarily on conductive surface cooling rather than convective airflow. Because the thickness of a pouch cell is small relative to its surface area, thermal resistance through the flat face is significantly lower than that along the longitudinal axis. The thermal conductivity perpendicular to the electrode layers ($k_{\perp}$) is typically 0.5 to 1.1 W/(m·K), whereas the in-plane conductivity parallel to the current collectors ($k_{\parallel}$) reaches 25 to 35 W/(m·K).

Engineers implement two primary cooling methodologies in pouch modules:

• Dual-surface liquid cooling plates: Interleaved aluminium cold plates placed between cell pairs. As detailed in our engineering analysis of battery cooling systems, liquid plates maintain core temperatures below 35 °C during continuous 1C cycling, keeping inter-cell temperature deltas within 3 °C.
• Tab-lead thermal clamping: Copper cooling clamps affixed directly to the positive and negative cell tabs. Because the copper and aluminium current collectors conduct heat rapidly out of the internal stack, tab cooling provides efficient thermal extraction without placing cooling infrastructure between adjacent cells.

Under IEC 62619 clause 7.3.2, industrial battery assemblies must prevent a thermal runaway event initiated in one cell from propagating to adjacent cells. Inter-cell compression aerogel or ceramic silicone pads serve a dual purpose: they absorb mechanical breathing while acting as an insulating thermal barrier rated to resist 1,000 °C flame exposure for at least 15 minutes.

Quality Inspection and Factory Acceptance Procedures

Procuring lifepo4 pouch cells for high-reliability energy storage projects requires rigorous factory acceptance testing (FAT) to eliminate defective cells prior to pack assembly. Minor pouch sealing defects or tab weld micro-fractures can cause catastrophic electrolyte loss or localized overheating in service. Engineering specifications should enforce the following sequential testing procedure:

1. Helium Mass Spectrometry Leak Detection: Place cells in a vacuum chamber to test hermetic sealing. Leak rates must not exceed $1.0 \times 10^{-6}\text{ mbar}\cdot\text{L/s}$ per UL 1642 Table 12.1.
2. High-Frequency AC Impedance Spectroscopy: Measure internal AC resistance at 1 kHz using four-wire Kelvin probes. Discard cells deviating more than $\pm 5\%$ from the production batch mean to avoid current unbalance in parallel branches.
3. Open Circuit Voltage (OCV) Drop Rate Screening: Store cells at 25 °C $\pm 2$ °C for 14 days following formation. An OCV drop exceeding 1.5 mV per week indicates internal micro-shorting across the separator, mandating cell rejection.
4. Ultrasonic Tab Weld Shear and Peel Testing: Subject sample busbar tab joints to destructive tensile testing in accordance with IEC 62660-2 clause 6.2. Joint peel strength must exceed 45 N/cm without tearing the active foil tab.
5. Dimensional Thickness Verification Under Calibrated Load: Gauge each cell's uncompressed and pre-compressed thickness under an exact 30 kPa surface pressure plate to identify internal stack misalignment.

Implementing this protocol ensures that only mechanically sound, thermally stable cells enter the assembly pipeline for commercial energy storage systems.

Next steps: specifying and sourcing

When preparing an RFQ for lifepo4 pouch cells or integrated pouch-based modules, provide suppliers with your complete operational profile: nominal C-rate requirements, continuous thermal operating envelope, target cycle life, and allowable module dimensional limits. Indicate whether your application demands individual cells or pre-engineered modular sub-assemblies complete with compression endplates and liquid cold plates. Review our pre-engineered liquid-cooled ESS container designs to see how high-capacity cell stacks integrate into utility enclosures. Submit your project requirements, single-line diagrams, and mechanical boundaries via our quotation inquiry page to consult directly with our battery systems engineering team.
