Key takeaways
- A battery module is an integrated sub-assembly of electrochemical cells connected in series-parallel configurations with built-in thermal management and module-level monitoring.
- Standard utility and industrial lithium battery module designs predominantly utilise prismatic Lithium Iron Phosphate (LFP) cells configured as 1P16S or 2P8S blocks operating at nominal 51.2 V.
- Thermal gradient control within any lithium ion module must restrict cell-to-cell delta to under 3 degrees Celsius to prevent accelerated capacity degradation and cell mismatch.
- String voltage sizing dictates rack topology, where 20 series-connected 51.2 V modules typically yield a nominal 1024 V direct-current bus for 1500 V utility-scale systems.
- Compliance with IEC 62619 clause 8.2 and UL 9540A requires that single-cell thermal runaway within a battery module cannot propagate to adjacent cells.
Quick answer: A battery module is an intermediate sub-assembly in an energy storage system that packages individual electrochemical cells into an electrically and mechanically secure unit, typically complete with cell-level monitoring sensors, cell balancing circuitry, and integrated thermal management to deliver a defined voltage and capacity block.
In utility-scale and commercial battery energy storage systems (BESS), the performance, safety, and operational lifespan of the installation depend heavily on module-level mechanical and electrical engineering. Sizing large systems requires linking sub-assemblies cleanly into higher-level strings, connecting through a central power conversion system to interact with the grid. Whether reviewing stationary configurations or assessing repurposing possibilities for retired EV battery modules, evaluating structural architecture, busbar current densities, and thermal gradients under load is essential for ensuring long-term asset reliability.
Anatomy and Core Components of a Modern Battery Module

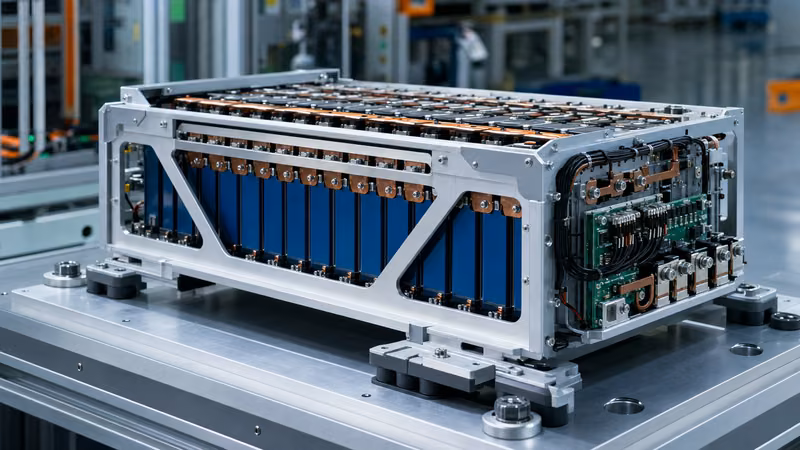

A high-performance stationary battery module consists of five interconnected subsystems designed to preserve electrochemical stability under continuous charge-discharge cycling. The primary structure houses individual cells—typically prismatic or cylindrical—held under precise mechanical compression. Sustained mechanical pressure (commonly 0.1 to 0.3 MPa for prismatic lithium iron phosphate cells) prevents electrode delamination and limits solid electrolyte interphase (SEI) growth over thousands of duty cycles.
Electrically, laser-welded copper or aluminium busbars bridge individual cell terminals. To prevent thermal hotspots, these busbars are sized for current densities below 3 to 4 A/mm² at continuous 1C ratings. Integrating a dedicated module-level slave Battery Management System (BMS) board provides real-time voltage acquisition across every series element alongside discrete negative temperature coefficient (NTC) thermistors. As detailed in our battery monitoring system guide, continuous monitoring of each cell prevents catastrophic overcharge or over-discharge events. Mechanically, the enclosure must provide electrical isolation rated for the maximum string voltage, incorporating phase-barrier insulation materials certified to UL 94 V-0 flame ratings.
Lithium Battery Module Chemistry: LFP vs NMC Trade-Offs
The chemical composition within a lithium battery module determines its energy density, thermal runaway threshold, and total cycle life. Stationary grid-support applications favour Lithium Iron Phosphate (LFP) due to its high thermal runaway onset temperature (approximately 270 °C) and exceptional cycle capability. Conversely, Nickel Manganese Cobalt (NMC) chemistries deliver higher volumetric energy density, which makes them standard in electric vehicle powertrains but demands more aggressive fire suppression and thermal segregation in stationary facilities. A comprehensive comparison is explored in our guide on LFP vs NMC battery chemistries.
| Engineering Metric | Prismatic LFP Module | Pouch NMC Module | Repurposed EV Battery Modules |
|---|---|---|---|
| Cell Nominal Voltage | 3.2 V | 3.7 V | 3.65 V – 3.7 V |
| Thermal Runaway Onset | 250 °C – 270 °C | 160 °C – 180 °C | 160 °C – 210 °C |
| Cycle Life (80% SOH, 1C/1C) | 6,000 – 10,000 cycles | 2,000 – 3,500 cycles | 1,000 – 2,500 remaining |
| Volumetric Energy Density | 220 – 300 Wh/L | 400 – 550 Wh/L | 350 – 480 Wh/L |
| Cooling Architecture | Liquid cold plate / Forced air | Liquid cold plate (interleaved) | Liquid cold plate (OEM profile) |
| Safety Qualification Standard | IEC 62619, UL 1973 | IEC 62619, UL 1973 | UL 1974 |
Thermal Management Inside the Lithium Ion Module
Effective thermal management inside a lithium ion module prevents localized cell degradation, capacity de-rating, and thermal runaway. Lithium-ion internal resistance varies inversely with temperature, meaning cooler cells within an uneven pack carry lower internal impedance, absorb disproportionate current, and cycle unevenly. Engineers must maintain a cell-to-cell thermal delta (ΔT) of under 3 °C across the entire module casing under full continuous C-rate operations.
For stationary industrial storage, module thermal solutions fall into two main categories: liquid bottom-cooling cold plates and forced-air convection across finned cell dividers. Liquid-cooled modules utilise an extruded aluminium chilling plate through which an ethylene-glycol water mixture flows at regulated flow rates (e.g., 4 to 8 litres per minute per rack). As examined in our battery cooling engineering guide, direct liquid cooling lowers thermal gradients significantly compared to air, permitting higher continuous charge currents in compact footprints like a liquid-cooled ESS container. Phase change materials (PCM) and aerogel insulating blankets are inserted between adjacent cells to limit heat transfer if a single cell breaches safe operating limits.
Electrical Sizing Calculation: From Cell to Battery Module to Rack
Designing an industrial energy storage string starts with the cell parameters and scales through series and parallel aggregation to align with the DC bus voltage of the inverter. Below is a practical engineering calculation demonstrating how individual 3.2 V, 280 Ah LFP cells form a complete utility-scale battery module and rack.
- Define Cell Specification: Prismatic LFP, nominal voltage \(V_{cell} = 3.2\text{ V}\), rated capacity \(C_{cell} = 280\text{ Ah}\), lower cut-off \(V_{min} = 2.5\text{ V}\), upper charge cut-off \(V_{max} = 3.65\text{ V}\).
- Configure Module Topology (1P16S): Connect 16 cells in series with no parallel cell pairing:
- Nominal module voltage: \(16 \times 3.2\text{ V} = 51.2\text{ V}\)
- Operating voltage window: \(16 \times 2.5\text{ V} = 40.0\text{ V}\) to \(16 \times 3.65\text{ V} = 58.4\text{ V}\)
- Nominal module capacity: \(280\text{ Ah}\)
- Module energy content: \(51.2\text{ V} \times 280\text{ Ah} = 14.336\text{ kWh}\)
- Aggregate to Rack Level: Target a nominal DC string voltage of approximately 1000 V to interface with a 1500 V class central power converter:
- Number of modules in series: \(\frac{1024\text{ V}}{51.2\text{ V}} = 20\text{ modules}\)
- Total rack operating range: \(20 \times 40.0\text{ V} = 800\text{ V}\) to \(20 \times 58.4\text{ V} = 1168\text{ V}\)
- Nominal rack energy capacity: \(20 \times 14.336\text{ kWh} = 286.72\text{ kWh}\)
- Fault Current Consideration: At maximum operating voltage (1168 V), assume an internal DC resistance of \(0.5\text{ m}\Omega\) per module. Total string DC internal resistance equals \(20 \times 0.5\text{ m}\Omega = 10\text{ m}\Omega\). A bolted short-circuit at module terminals yields an instantaneous theoretical peak current of:\[I_{sc} = \frac{1168\text{ V}}{0.010\,\Omega} = 116.8\text{ kA}\]This prospective fault level requires fast-acting DC pyro-fuses and module-level disconnects rated under IEC 60269-7.
Standards, Safety Testing, and Non-Propagation Rules
A compliant lithium ion battery module must undergo destructive abuse testing to guarantee structural containment and personnel safety. Under IEC 62619 clause 8.2 (thermal runaway propagation test) and UL 9540A, a module is forced into thermal runaway via localized over-heating, needle penetration, or overcharging. The engineering criterion is clear: the resulting thermal runaway event must be contained entirely within the target cell and its immediate chamber without igniting neighbouring cells or projecting hazardous shrapnel.
To fulfill international transport criteria, every production lithium battery module must hold UN 38.3 certification, which subjects the unit to altitude simulation (11.6 kPa), thermal shock (-40 °C to +72 °C), vibration testing, mechanical shock (50g acceleration pulses), and external short circuits at 55 °C. For stationary utility deployment, systems must also satisfy seismic mechanical endurance conforming to IEEE 693 standards, ensuring internal module busbars and laser welds do not crack under earth movement.
Procurement and Factory Acceptance Inspection Checklist
Procuring modules for containerised utility assets or microgrid installations requires structured quality verification during Factory Acceptance Testing (FAT). The following checklist provides specific inspection checkpoints to verify before accepting delivery of production lots.
| Inspection Area | Specific Test Parameter | Acceptance Criteria | Reference Standard |
|---|---|---|---|
| Isolation Resistance | Hi-Pot testing: Positive/Negative terminals to grounded metal enclosure | Resistance > 100 MΩ at 2500 V DC for 60 s; leakage < 1 mA | IEC 62619 clause 7.2 |
| Internal Resistance (ACIR) | 1 kHz AC impedance test across all series cells | Cell-to-cell variance ≤ 3% of batch nominal value | IEC 61960-3 |
| Busbar Weld Integrity | Laser weld pull-strength / micro-ohm contact resistance | Contact resistance < 10 µΩ per joint; mechanical shear > 350 N | Factory Standard / ISO 14324 |
| BMS Sensor Calibration | Module slave board voltage and temperature sensing accuracy | Voltage accuracy ±2 mV; temperature reading accuracy ±1 °C | UL 1973 |
| Helium Leak Detection | Liquid cold plate pressure testing (for liquid-cooled modules) | No pressure drop at 1.5× operating pressure (typically 4.5 bar) for 15 min | ASTM E499 |
| Flame Retardance | Module plastic covers, structural dividers, and internal brackets | UL 94 V-0 or vertical burning test classification | UL 94 / IEC 60695-11-10 |
Next steps: specifying and sourcing
When specifying battery modules for energy storage schemes, prepare your complete duty cycle profile, nominal DC bus limits, and ambient thermal envelope. Identify whether your installation requires air-cooled or liquid-cooled sub-assemblies, and state your target system-level fire certification requirements upfront. Review complete containerized solutions via our energy storage system designs or specify modular sub-assemblies built directly for rack-level installation. If your application integrates dedicated medium-voltage distribution, evaluate matching step-up configurations using a pad-mounted transformer. Contact our engineering team or submit your detailed project electrical single-line diagrams through our quotation inquiry page for complete technical support and manufacturing schedules.
Frequently asked questions
What is the difference between a battery cell, module, and pack?
A battery cell is the fundamental electrochemical unit containing electrodes, separator, and electrolyte. A battery module groups multiple cells in series or parallel within a structural frame featuring monitoring sensors and busbars. A battery pack or rack combines multiple modules with a master BMS, high-voltage disconnect switchgear, and safety protections into a complete operational energy system.
Why is LFP preferred over NMC for a stationary battery module?
LFP is preferred for stationary systems due to its superior chemical stability, lower raw material cost, and significantly higher cycle life (often exceeding 6,000 cycles). Furthermore, LFP exhibits a higher thermal runaway threshold (around 270 °C compared to 160 °C to 180 °C for NMC), greatly reducing fire propagation risks in containerised facilities.
Can retired EV battery modules be used for grid energy storage?
Second-life EV battery modules can be repurposed for grid storage if they undergo strict screening, capacity grading, and safety qualification under UL 1974. However, varying degradation rates, differing internal resistances, and bespoke cooling interfaces frequently introduce balancing challenges that make new stationary LFP modules more cost-effective over long project lifetimes.
What is the standard voltage of an industrial lithium battery module?
The most common nominal voltage for an industrial lithium battery module is 51.2 V, created by connecting 16 LFP cells (each 3.2 V nominal) in series. Modules designed for smaller commercial systems or telecommunication backup may operate at 25.6 V (8S), whereas high-voltage EV sub-packs typically range between 48 V and 96 V.
What causes thermal runaway propagation within a battery module?
Thermal runaway propagation occurs when an internal short-circuit, defect, or thermal fault in one cell releases extreme exothermic heat that rapidly conducts into adjacent cells. If the module lacks adequate thermal insulation blankets, heat sinks, or fire barrier sheets, neighbouring cells reach their critical decomposition temperatures, initiating a cascading chain reaction.
