Key takeaways
- A residential energy storage system balances household generation and demand by buffering solar production through high-density battery cells and an intelligent inverter.
- Lithium Iron Phosphate (LFP) chemistry has become the industry standard for home energy storage solutions due to its intrinsic thermal stability and cycle life exceeding 6,000 cycles at 80% depth of discharge.
- System sizing requires factoring depth of discharge (DoD), round-trip efficiency, and thermal derating factors into total daily kilowatt-hour demand.
- NFPA 855 chapter 15 imposes a strict 20 kWh limit on individual residential units and an aggregate maximum of 40 kWh inside attached garages or utility spaces.
- Commissioning requires verification of insulation resistance exceeding 1 megaohm per kilovolt of nominal DC operating voltage alongside calibrated battery management system communication.
Quick answer: A residential energy storage installation combines electrochemical battery cells, a battery management system (BMS), and a bi-directional power conversion system to capture onsite photovoltaic generation or off-peak utility power. It delivers uninterruptible domestic backup power and self-consumption optimisation while maintaining strict electrical isolation from the distribution grid.
As regional utility tariffs shift towards aggressive time-of-use (TOU) windows and export remuneration rates decline, domestic energy management demands dedicated onsite reserves. Specifying a dependable residential energy storage asset requires an understanding of cell chemistry, inverter coupling topology, round-trip efficiency, and rigorous fire mitigation standards. Selecting suitable energy storage system hardware ensures power reliability during distribution grid anomalies while prolonging cell service life across decades of daily cycling.

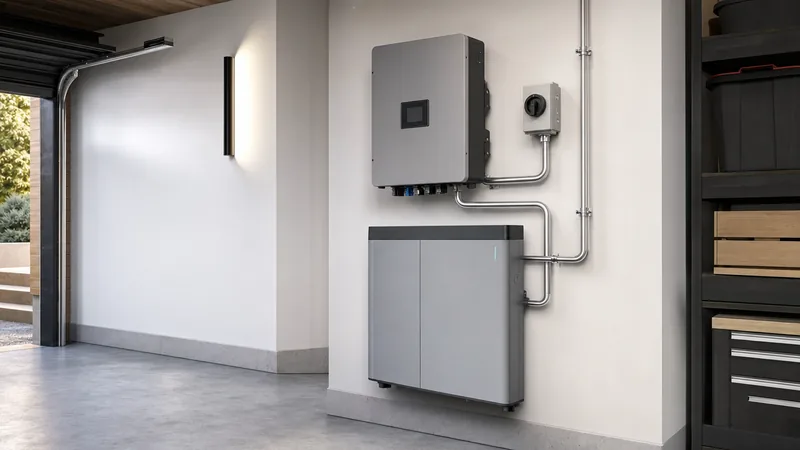

How to Store Electricity at Home: System Architectures
Understanding how to store electricity at home begins with selecting the coupling topology that links generation sources, storage media, and household distribution panels.
Two primary topologies dominate the residential market: DC-coupled systems and AC-coupled systems. In a DC-coupled configuration, rooftop solar photovoltaic (PV) strings route directly into a hybrid inverter via maximum power point tracking (MPPT) charge controllers. The DC power generated by the solar array charges the battery bank directly through internal busbars, avoiding redundant inversion steps. This direct path achieves an overall conversion efficiency often exceeding 95% from array to battery.
In an AC-coupled configuration, the battery bank connects to its own dedicated bidirectional storage inverter, completely separate from existing solar microinverters or string inverters. Power from the solar array converts to standard alternating current (AC) at the distribution board before passing through a second rectification stage to charge the electrochemical cells. Although AC coupling introduces round-trip conversion losses of 3% to 6% compared to native DC systems, it offers superior flexibility for retrofitting existing solar arrays and enables seamless integration with standard HV/LV switchgear and backup distribution boards.
Technical Core of Residential Energy Storage Systems
Modern residential energy storage systems depend on advanced cell chemistries and intelligent protection circuitry to operate safely within occupied dwellings.
While earlier domestic installations occasionally used nickel manganese cobalt (NMC) cells for their volumetric energy density, modern standards universally favour Lithium Iron Phosphate (LFP) cells. As detailed in our technical evaluation of LFP vs NMC battery technologies, the olivine crystal structure of LFP maintains structural integrity at elevated temperatures, resisting oxygen release up to 270°C. This chemical stability suppresses thermal runaway progression even under mechanical puncture or overcharge faults.
Each module contains an integrated battery management system governed by IEC 62619 clause 7.3 requirements. The BMS continuously samples individual cell voltages down to millivolt precision, manages cell balancing during the top-of-charge phase, and monitors ambient and busbar temperatures. When voltage, current, or temperature thresholds breach safe operating envelopes, solid-state contactors isolate the DC bus within 10 milliseconds to safeguard both the hardware and building occupants. For broader design rules, consult our energy storage solutions engineering guide.
Sizing a Residential ESS: Step-by-Step Engineering Calculation
Accurately sizing a residential ESS prevents premature cell degradation from excessive depth-of-discharge and ensures critical circuits maintain power throughout scheduled or unscheduled outages.
Under-sizing results in frequent low-voltage lockouts during emergency operation, whereas over-sizing introduces unnecessary capital expenditures and floor space consumption. Engineers calculate the minimum required nameplate battery capacity by evaluating critical load runtimes, maximum allowable depth of discharge (DoD), system conversion efficiency, and ambient operating temperature derating factors.
Consider a domestic property requiring continuous backup for critical circuits (refrigeration, communication, controls, lighting, and a water pump). The calculation proceeds through four successive steps:
- Determine the daily critical energy demand ($E_{\text{crit}}$): assume a steady average draw of 500 W over a 24-hour baseline period, yielding $12.0\text{ kWh/day}$.
- Define the operational autonomy target ($A$): 1.5 days of independence without solar replenishment, equating to $18.0\text{ kWh}$ of usable output.
- Apply system boundary constraints: maximum operational depth of discharge ($DoD$) set to 90% (0.90) to ensure high cycle life, combined bidirectional inverter and round-trip efficiency ($\eta_{\text{sys}}$) of 88% (0.88), and a winter temperature derating coefficient ($k_{\text{temp}}$) of 0.95 for an installation located in an unheated utility garage.
- Calculate required nominal battery capacity ($C_{\text{nom}}$):
$$C_{\text{nom}} = \frac{E_{\text{crit}} \times A}{DoD \times \eta_{\text{sys}} \times k_{\text{temp}}} = \frac{18.0}{0.90 \times 0.88 \times 0.95} = \frac{18.0}{0.7524} = 23.92\text{ kWh}$$
The specification engineer must select a modular system providing at least 24.0 kWh of nominal storage. This demand is satisfied by combining two factory-tested 12.0 kWh modular battery enclosures connected in parallel through a dedicated balance-of-plant distribution enclosure.
Safety Standards and Regulatory Frameworks
Compliance with internationally harmonised safety standards is essential when integrating high-energy lithium batteries into domestic properties.
The primary benchmark governing stationary domestic storage in North America is UL 9540, which evaluates the entire system—including enclosure, internal BMS, inverter interface, and software interlocking—as an integrated assembly. Component-level cell safety is assessed under UL 1973 or IEC 62619, while thermal runaway propagation risk is evaluated via large-scale fire testing according to UL 9540A.
For installation siting, NFPA 855 (Standard for the Installation of Stationary Energy Storage Systems) establishes specific volumetric and separation rules in chapter 15:
- Individual residential energy storage units must not exceed an energy capacity rating of 20 kWh.
- The maximum aggregate capacity allowed within attached garages, utility rooms, or exterior walls is limited to 40 kWh, provided units maintain a minimum physical clearance of 914 mm (3 feet) from one another.
- Units installed in storage rooms or workshops must integrate local heat and smoke alarms interconnected with the main residence warning system.
- Equipment must maintain an impact protection barrier compliant with local vehicle-impact standards when sited within garage driving pathways.
Adhering to these safety baselines protects residential properties from cascade failures while satisfying strict municipal electrical inspection criteria.
Comparing Home Energy Storage Solutions
Selecting among competing home energy storage solutions requires balancing installation complexity, operating voltage, round-trip efficiency, and capital investment.
Low-voltage (48 V DC nominal) modular racks remain standard for budget-conscious retrofits and off-grid configurations, whereas high-voltage series strings (200 V to 500 V DC) deliver superior round-trip efficiency and reduce conductor cross-sectional requirements. The following decision matrix outlines the technical characteristics across available domestic architectures.
| Engineering Metric | Low-Voltage DC (48 V) | High-Voltage DC (200–500 V) | All-in-One AC-Coupled Enclosure |
|---|---|---|---|
| Nominal System Voltage | 48.0 V to 51.2 V | 192 V to 480 V | 230 V / 400 V AC output |
| Round-Trip Efficiency | 84% – 88% | 90% – 94% | 86% – 89% |
| Busbar Current at 5 kW Output | ~104 A | ~12.5 A (at 400 V) | Internal (Grid standard: 21.7 A) |
| Conductor Cross-Section Required | 35 mm² to 50 mm² | 4 mm² to 6 mm² | 2.5 mm² to 4 mm² |
| Thermal Management Scheme | Passive / Forced convection | Passive / Internal heat sink | Forced air or closed-loop cooling |
| Installation Complexity | Moderate (heavy DC cabling) | Moderate (string polarity rules) | Low (plugs into distribution board) |
| Retrofit Compatibility | High (works with any 48V charger) | Limited to matched hybrid inverters | Universal (connects to any AC panel) |
High-voltage DC systems consistently demonstrate lower internal $I^2R$ resistive heating losses within the wiring harness due to their low operating currents, translating to enhanced system longevity and minimal thermal derating in domestic utility rooms.
Installation, Commissioning, and Inspection Checklist
A methodical commissioning sequence ensures that domestic battery hardware complies with national electrical codes prior to system energisation.
Electrical contractors must execute systematic pre-commissioning checks, verifying grounding continuity, communications protocols, and thermal sensor calibration. Consult our battery monitoring system guide and power conversion system guide for granular calibration criteria. Contractors should document each of the following procedural milestones:
- Structural Verification: Inspect mounting anchors, ensuring wall-hung brackets or floor-mount pads support at least four times the total unit mass in accordance with seismic and static building codes.
- DC Circuit Isolation: Measure open-circuit voltage across each individual battery module string; verify parity within 0.5 V DC prior to bus interconnection.
- Insulation Resistance (Megger Test): Conduct a 500 V DC insulation test between positive/negative conductors and ground; resistance must exceed 1.0 megaohm per 1,000 V of system nominal voltage.
- Torque Audit: Check every DC lug and terminal connection using a calibrated torque wrench against the manufacturer's specified values (typically 8.0 Nm to 12.0 Nm for a standard unit hardware).
- Communication Bus Check: Validate CAN bus or RS485 termination resistors (nominal 120 ohms across differential lines) to prevent packet reflection faults between the BMS and the hybrid inverter.
- Rapid Shutdown and Islanding Validation: Simulate utility loss by opening the main upstream breaker; confirm the microgrid isolation switch disconnects the site from the distribution network in under 100 milliseconds per IEEE 1547-2018 requirements.
Next steps: specifying and sourcing
Specifying the optimal energy storage platform requires rigorous matching between residential load profiles, local utility tariffs, and spatial constraints. When requesting a comprehensive proposal, provide your peak kilowatt demand, daily kilowatt-hour consumption targets, ambient room temperature ranges, and whether the installation represents a new DC-coupled PV project or an existing AC retrofit. Our engineering team designs and manufactures utility-grade energy storage systems, custom-engineered switchgear, and robust balance-of-plant solutions meeting IEC and UL requirements. Submit your project requirements via our request a quote portal or reach out through our contact page to review specifications with a technical specialist.
Frequently asked questions
how to store electricity at home
You store electricity at home by routing electricity from solar panels or the grid into a chemical battery system paired with an inverter. The inverter converts alternating current into direct current to charge the battery, and then converts it back into alternating current whenever household loads require power.
What is the lifespan of a residential energy storage system?
Modern residential systems using Lithium Iron Phosphate (LFP) chemistry typically last between 10 and 15 years. They are rated for 6,000 to 8,000 full charge-discharge cycles before their usable capacity degrades to 70% of initial nameplate capacity under standard ambient operating conditions.
Can a residential ESS run an entire home during an outage?
A residential ESS can power an entire house if the inverter continuous output rating matches the whole-home peak load and total capacity covers the duration. However, most installations isolate critical sub-panels to back up essential loads like refrigeration, lighting, internet, and water pumps to maximize operating runtime.
What is the difference between usable capacity and nominal capacity?
Nominal capacity is the total theoretical energy stored in the battery cells, whereas usable capacity is the actual energy available for household consumption. Battery management systems reserve 5% to 10% of total capacity to prevent destructive over-discharge conditions and prolong cell life.
Are residential energy storage batteries safe inside a home?
Yes, certified residential systems meeting UL 9540 and IEC 62619 standards are safe for indoor placement when installed according to NFPA 855 regulations. Modern Lithium Iron Phosphate chemistry provides high thermal stability, dramatically reducing the risk of thermal runaway compared to older battery formulations.
