Battery Monitoring System Guide: Engineering Specs & Design

Quick answer: A battery monitoring system is an integrated electronic supervisory architecture that continuously acquires, processes, and displays individual cell voltages, internal ohmic resistance, charge/discharge currents, and thermal profiles across stationary battery strings. It delivers predictive warning of thermal runaway, capacity loss, and cell failure in utility and industrial backup installations.

Stationary energy storage installations cannot operate reliably on periodic manual inspections alone. Electrochemical cells undergo irreversible chemical and mechanical changes during cycling and continuous float charging. Variations in manufacturing tolerances, localized ambient thermal gradients, and mechanical connection fatigue cause individual cells within a series string to drift away from the mean operating point. Without automated, continuous oversight, a single underperforming cell can trigger string-wide thermal runaway or collapse DC bus voltage during critical grid disturbances.

Modern engineering standards such as IEEE 1491 (Guide for Selection and Sizing of Battery Monitoring Systems) and IEC 62619 (Safety Requirements for Secondary Lithium Cells) establish strict expectations for automated monitoring. Whether supervising lithium iron phosphate (LFP) containers on solar farms or traditional valve-regulated lead-acid (VRLA) banks powering substation switchgear trip coils, implementing a dedicated monitoring architecture ensures system reliability and extends asset life. For engineers planning comprehensive grid installations, integrating cell telemetry with overarching utility scale energy storage engineering practices is essential for continuous power security.

What is a battery monitoring system and how does it work?

A battery monitoring system functions by digitising real-time electrochemical parameters across every discrete cell or block and relaying those data packets across galvanic isolation barriers to a central supervisory controller. The monitoring hardware sits directly on the battery cells, continuously converting raw analogue voltages and temperatures into digital registers through precision analogue-to-digital converters (ADCs).

The system operates through a hierarchical data pipeline. At the lowest level, sensors capture microvolt-level potential shifts and milliohm-level internal impedance changes. These discrete values pass through optical, magnetic, or capacitive galvanic isolation rated to withstand the maximum system working voltage—frequently 1,000 V to 1,500 V DC in modern battery energy storage systems (BESS)—in compliance with IEC 61010-1 insulation coordination standards.

Once digitised, telemetry packets travel via a local daisy-chain or multi-drop fieldbus—such as an isolated Controller Area Network (CAN 2.0B) or RS485 Modbus loop—to an intermediate string concentration unit. This string controller computes aggregated metrics, including total string potential, net amp-hour throughput, and the highest thermal delta across the bank. Finally, the processed data feeds the plant SCADA (Supervisory Control and Data Acquisition) platform or the local energy management controller, allowing facility operators to supervise battery health alongside other critical plant assets as outlined in our commercial energy storage guide.

Core components: the role of the battery monitoring module

A battery monitoring module is a dedicated printed circuit board assembly mounted directly onto a battery rack or cell group to capture multi-channel voltage, temperature, and bypass shunt measurements. This hardware unit serves as the physical interface between raw electrochemical energy and digital supervisory electronics.

Each module incorporates high-impedance sensing leads designed to draw negligible parasitic current from the monitored cells—typically less than 10 microamperes in sleep mode—to prevent cell imbalance caused by the monitoring equipment itself. The primary functional stages inside an industrial module include:

• Analogue Front End (AFE): A multi-channel differential multiplexer paired with a 16-bit to 24-bit delta-sigma ADC capable of resolving voltage steps down to 0.1 mV across common lithium chemistries (such as LiFePO4 operating between 2.5 V and 3.65 V) or 1 mV across VRLA/flooded lead-acid cells.
• Temperature Sensing Circuits: Precision negative temperature coefficient (NTC) thermistors or platinum resistance temperature detectors (RTDs) fixed directly to negative terminal posts or cell casing surfaces to capture localized thermal spikes.
• Galvanic Isolation Barrier: High-voltage digital isolators providing at least 2.5 kV AC isolation for 60 seconds per UL 1577, preventing high-voltage DC bus transients from migrating to low-voltage processing circuitry.
• Microcontroller Core: An embedded industrial microprocessor running deterministic firmware that performs real-time digital filtering, cyclic redundancy checks (CRC), and sensor diagnostics.

In high-density battery racks, multiple monitoring modules communicate upward to a rack gateway, aggregating data across up to 32 modules on a single serial trunk without signal degradation.

Key parameters measured by an industrial battery health monitoring system

An industrial battery health monitoring system evaluates electrochemical degradation by continuously acquiring individual cell voltage, internal ohmic resistance or conductance, overall string current, and thermal gradients. Tracking these specific physical variables enables predictive maintenance before cells cross manufacturer warranty or safety thresholds.

Terminal voltage indicates the immediate state of individual cells during charge, discharge, and float states. However, terminal voltage alone fails to expose underlying plate sulphation, loss of active material, or dry-out in lead-acid cells, nor does it identify lithium plating in lithium-ion cells. Measuring internal ohmic resistance provides early visibility into these issues. According to IEEE 1188 clause 6, an increase in internal resistance of more than 30% to 50% above the factory baseline confirms significant degradation, requiring cell replacement to avoid string-wide capacity derating.

To evaluate internal ohmic resistance ($R_{int}$), the monitoring system injects a calibrated alternating current signal (impedance method) or applies a momentary resistive load pulse (resistance method), recording the resulting voltage drop:

R_int = ΔV / ΔI

Consider a worked example from a substation battery bank commissioning procedure. A technician configures a monitoring system to evaluate a 2 V, 500 Ah stationary lead-acid cell:

• Baseline factory internal resistance ($R_{baseline}$): 0.22 mΩ
• Applied dynamic current pulse (ΔI): 40.0 A
• Measured instantaneous voltage deviation (ΔV): 14.8 mV
• Calculated current resistance: R_int = 0.0148 V / 40.0 A = 0.00037 Ω (0.37 mΩ)
• Degradation calculation: ((0.37 - 0.22) / 0.22) × 100 = 68.2% increase

Because the resistance rise exceeds the 50% threshold established by IEEE 1188, the monitoring system flags the unit for immediate isolation and replacement, preventing string failure during emergency discharge.

Local interfaces and human-machine displays: configuring the battery screen

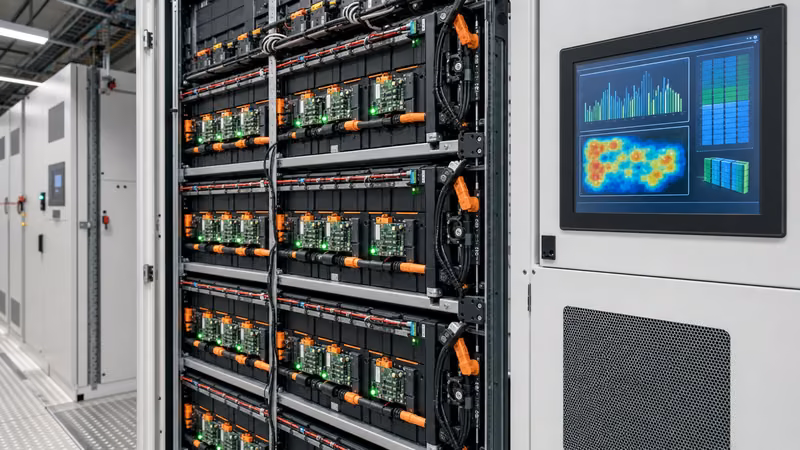

A battery screen provides on-site operators with a visual human-machine interface (HMI) to inspect rack-level state of charge, alarm registers, individual cell deviation curves, and real-time thermal maps. Located on the exterior door of a battery cabinet or on a central control room wall, this display bridges raw telemetry and actionable field diagnostics.

Industrial monitoring screens range from 7-inch to 15-inch industrial touch displays rated to IP65 on the front bezel for dust and moisture ingress protection. The interface firmware displays hierarchical diagnostic layers:

• Top-Level Overview: Displays aggregated DC bus potential, instantaneous string current, overall state of charge (SOC), estimated state of health (SOH), and the general alarm status indicator.
• Cell Matrix View: A graphical bar chart plotting every individual cell voltage in ascending order, visually highlighting the lowest and highest cells along with the maximum delta (ΔV).
• Thermal Distribution Map: A multi-point temperature heat-map derived from module-level thermistors, highlighting hot-spots caused by loose busbar bolting or liquid-cooling circuit restrictions. The physical thermal behaviour of these systems is detailed further in our comparative analysis of liquid-cooled vs air-cooled energy storage cabinets.
• Alarm and Event Logs: A timestamped historical record storing over-voltage, under-voltage, over-temperature, communication fault, and isolation resistance warning flags per IEEE 1491 clause 7.

The display panel links directly to local programmable logic controllers (PLCs) or plant SCADA networks using open communication profiles, notably Modbus TCP, DNP3, and IEC 61850. Operators can calibrate baseline internal resistance setpoints, clear nuisance alerts, and initiate diagnostic discharge cycles directly through authenticated security logins.

Stationary power and substation applications: 12V battery monitoring system design

A 12V battery monitoring system is engineered specifically for strings composed of multi-cell monoblocs, common in substation DC auxiliary supplies, telecommunications DC plants, and industrial uninterruptible power supply (UPS) banks. Unlike utility-scale lithium systems monitoring 3.2 V single prismatic cells, a 12V system supervises blocks that contain six distinct 2 V electrochemical cells sealed inside a single monobloc casing.

Supervising 12V blocks presents distinct electrical challenges. Because the internal inter-cell connectors inside a sealed 12V monobloc are physically inaccessible, individual cell voltages cannot be measured directly. A weak 2 V cell can develop advanced sulphation or short-circuit while the overall 12V terminal potential remains masked by the float voltage of the remaining five healthy internal cells. Therefore, a high-performance 12V monitoring architecture must combine total block voltage monitoring with high-resolution float current measurement and active inter-tier impedance tracking.

In standard substation auxiliary systems—typically configured as 110 V or 220 V DC battery strings to operate protection switchgear trip coils—individual 12V blocks are wired in series. Float current monitoring requires sub-milliampere accuracy, detecting changes from standard float values (typically 1 mA to 3 mA per 100 Ah of capacity) up to several hundred milliamperes, which indicates dry-out, thermal runaway onset, or severe grid corrosion. To learn more about integrating these systems into plant designs, consult our guide on how to specify a containerised battery energy storage system.

Active vs passive cell balancing mechanisms

Cell balancing mechanisms equalise the charge distribution across series-connected cells to prevent weaker units from reaching low-voltage cut-offs prematurely or overcharging during float or bulk phases. Without effective balancing, a battery string capacity collapses to match the capacity of the lowest-performing cell, accelerating overall degradation.

System designers select between two primary balancing methods:

• Passive Balancing: Uses bypass switches (typically low-$R_{DS(on)}$ MOSFETs) paired with power bleed resistors. When a cell voltage exceeds the string target during charging, the bypass switch turns on, dissipating excess energy as heat ($P = I^2 R$). Passive balancing currents usually range between 50 mA and 200 mA. While simple and low-cost, this method generates localized heat that must be rejected from the module enclosure.
• Active Balancing: Transfers energy directly from higher-voltage cells to lower-voltage cells or from the complete string into weaker cells using switched-capacitor, inductive, or isolated bidirectional DC-DC converter topologies. Active balancing currents typically range between 1 A and 5 A, operating during both charge and discharge cycles with energy transfer efficiencies exceeding 85%.

Active balancing is preferred in heavy-cycling grid and industrial applications where high discharge rates would otherwise amplify cell-to-cell capacity divergences. State-of-charge calculation algorithms combine this equalisation data with Coulomb counting and Open Circuit Voltage (OCV) relaxation curves using Extended Kalman Filtering (EKF) to maintain state accuracy within ±2% across thousands of cycles.

Battery monitoring system vs battery management system: key differences

While both architectures supervise energy storage, a battery monitoring system focuses primarily on diagnostics, state estimation, and condition warning, whereas a full battery management system incorporates autonomous high-voltage disconnect switches and dynamic charge/discharge current limits. The distinction dictates where safety liabilities and operational controls reside.

The engineering differences across functionality, authority, and hardware interfaces are detailed below:

In high-capacity utility sites, both architectures frequently operate in tandem: the battery management system provides real-time functional safety and breaker control, while the supervisory monitoring system provides historical trending, impedance degradation analysis, and automated compliance reporting for maintenance teams.

Factory acceptance testing and site commissioning procedure

Commissioning a monitoring installation requires rigorous verification of measurement calibration, isolation integrity, and communication latency before energising the main DC bus. Field engineers must adhere to a structured, auditable procedure to confirm that sensor errors do not mask emerging electrical hazards.

1. Perform pre-energisation galvanic isolation verification: Apply a calibrated 1,000 V DC megohmmeter between all monitoring harness terminals and the chassis ground for 60 seconds per IEC 60364-6. Confirm insulation resistance exceeds 100 MΩ.
2. Verify sensor wiring polarity and physical integrity: Inspect every ring-lug terminal and quick-disconnect harness against the engineering schematic. Verify positive and negative orientation sequentially to avoid destructive reverse-polarity conditions at the front-end multiplexers.
3. Validate communication bus loop impedance: Measure loop resistance across the RS485 or CAN trunk line. Confirm the presence of 120 Ω termination resistors at both physical ends of the line and verify ground shield continuity across every cabinet boundary.
4. Calibrate voltage measurement channels: Connect a calibrated 6.5-digit digital multimeter in parallel with at least five sample monitoring channels across each string. Adjust software calibration registers until channel drift is verified to fall within ±0.1% of actual cell terminal potential.
5. Execute contact resistance testing across terminal shunts: Measure millivolt drop across current-sensing shunts and terminal inter-cell links using a micro-ohmmeter to ensure sensor inputs reflect genuine cell chemistry rather than high-resistance bolted connections.
6. Inject simulated alarm thresholds: Using a secondary DC injection source, simulate over-voltage (e.g. 3.75 V for LFP), under-voltage (e.g. 2.20 V for LFP), and over-temperature (e.g. 60 °C) states. Confirm that local visual indicators, auxiliary trip relays, and network SCADA alarm registers clear and set within specified response times.

Documenting these verification steps ensures compliance with site handover standards and establishes the initial health baseline for future ohmic degradation tracking.

Next steps: specifying and sourcing

When specifying a monitoring installation for utility-scale containers, industrial microgrids, or substation switchgear, compile complete technical specifications before requesting quotations. Essential project data includes exact battery chemistry, cell count per series string, maximum floating DC bus potential, target communication protocols (such as Modbus TCP or IEC 61850), and enclosure environmental ratings.

Our engineering team designs and manufactures certified, containerised energy storage hardware integrated with high-voltage balance-of-plant switchgear. Explore our energy storage system solutions and our advanced liquid-cooled ESS container line to discover our production capabilities. Contact our technical sales division at inquiry@electrical-equipment-factory.com or submit your single-line diagram and functional specifications through our quote request portal to receive detailed technical schedules and budget pricing.
