Solar System for Commercial Building: Sizing & Integration

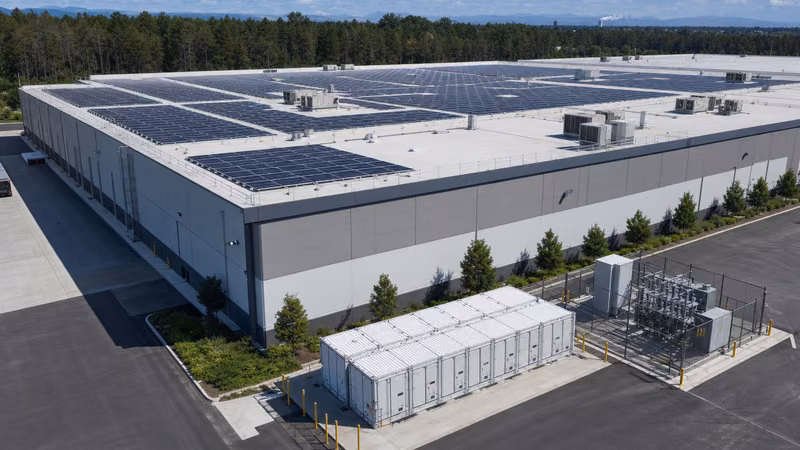

Quick answer: A solar system for commercial building applications combines a rooftop or ground-mounted photovoltaic (PV) array with commercial power conversion units and behind-the-meter battery energy storage. Sized to match building interval load profiles rather than aggregate monthly bills, these systems lower operating expenditure, mitigate utility demand charges, and secure operational resilience during grid outages.

Designing an effective solar system for commercial building installations requires evaluating structural dead loads, medium-voltage (MV) and low-voltage (LV) electrical distribution, and utility tariff structures. Unlike residential micro-systems, commercial installations operate at hundreds of kilowatts to several megawatts. Facilities such as logistics centres, manufacturing facilities, and multi-tenant corporate complexes have dynamic load profiles with significant daytime energy consumption and costly 15-minute demand spikes. Integrating on-site PV with a dedicated commercial energy storage system converts intermittent solar generation into a dispatchable operational resource, preventing curtailment when export capacity is constrained by the local distribution network service provider (DNSP).

Structural Considerations for a Commercial Solar Roof

A commercial solar roof design must balance module layout density with the structural reserve capacity of the building frame and roof deck. Most industrial and commercial properties feature flat or low-slope membrane roofs (such as TPO, PVC, or EPDM) or standing-seam metal roofs. Sizing a solar system for commercial building structures requires calculating dead load, live load, and localized wind uplift forces under local building regulations, such as ASCE 7-16 or Eurocode 1 (EN 1991-1-4).

For flat roofs, ballasted racking avoids penetrations through the waterproofing membrane. Ballasted arrays typically add a dead load of 12 to 20 kg/m² (2.5 to 4.1 lb/ft²). This weight includes concrete ballast blocks, aluminium support rails, clamps, and the PV modules. However, parapet height, building height, and perimeter vortex dynamics dictate whether pure ballast is sufficient. In high wind zones, hybrid ballasted systems with mechanical attachments into structural steel purlins are mandatory to prevent racking displacement. For standing-seam metal roofs, round-point clamping brackets grip the seams without puncturing the metal skin, yielding a lightweight installation of 9 to 13 kg/m².

Engineers must also conduct thermal expansion analysis. Uninterrupted rows of mechanical racking over 30 metres long require thermal expansion breaks to prevent structural shearing of fasteners and degradation of the underlying roofing membrane. In accordance with guidelines in our commercial solar panels engineering guide, clear maintenance walkways of at least 1.2 metres should surround roof hatches, HVAC condenser units, and fall-arrest anchor points to permit access for preventative maintenance.

Electrical Architectures for a Solar System for Commercial Building Facilities

Electrical topologies for commercial PV installations divide into AC-coupled and DC-coupled systems, with the chosen design dictating power conversion efficiency and switchgear complexity. In an AC-coupled architecture, decentralized string inverters convert the DC generation from PV module strings directly to 400 V or 480 V three-phase AC. This AC output ties into a local PV combiner panelboard, which subsequently connects to the main switchboard. When energy storage is integrated, a bi-directional power conversion system (PCS) interfaces the battery bank to the same AC bus.

AC-coupled systems provide modularity, higher string inverter redundancy, and straightforward integration into existing distribution panels. If an individual inverter trips, the remainder of the solar system for commercial building generation continues to operate unaffected. Conversely, DC-coupled architectures channel PV output and battery storage into a shared DC bus managed by a multi-port hybrid central inverter. DC coupling reduces power conversion steps (avoiding DC-to-AC-to-DC conversion losses when charging batteries directly from solar), achieving round-trip efficiency gains of 2 to 4%.

The following table outlines the technical parameters separating AC-coupled and DC-coupled commercial solar-plus-storage topologies:

Sizing Calculation: PV Array and Battery Storage Integration

Sizing an industrial or commercial solar array requires aligning PV production curves with building demand intervals rather than sizing solely to annual kilowatt-hour aggregates. Oversized arrays without energy storage export excess energy back to the grid during midday hours, often at depressed feed-in tariffs or zero-export restrictions imposed by grid operators.

Consider a commercial manufacturing plant with the following baseline operational metrics:

• Average daily energy consumption: 3,200 kWh/day
• Peak demand: 450 kW (occurring between 13:00 and 17:00 due to chiller loads and process machinery)
• Target solar offset: 40% of daily consumption (1,280 kWh/day)
• Site location solar irradiance: 4.2 Peak Sun Hours (PSH) per day
• PV system performance ratio (PR): 0.80 (accounting for soiling, inverter clipping, temperature derating, and cable losses)

First, calculate the required DC PV array capacity ($P_{dc}$):

$$P_{dc} = \frac{E_{target}}{PSH \times PR} = \frac{1,280 \text{ kWh}}{4.2 \text{ h} \times 0.80} = 380.95 \text{ kWp}$$

We specify a 380 kWp DC solar array. Next, assess the commercial building battery storage requirement for demand management. If utility tariff structures impose a £16/kW (or $20/kW) monthly demand penalty for peaks exceeding 300 kW, the BESS must reliably discharge 150 kW continuously over the 2-hour peak demand window (from 14:00 to 16:00).

Calculate the required usable battery capacity ($E_{usable}$):

$$E_{usable} = P_{peak\_reduction} \times t_{window} = 150 \text{ kW} \times 2 \text{ h} = 300 \text{ kWh}$$

Assuming a lithium iron phosphate (LFP) battery chemistry running at an 85% recommended depth of discharge (DoD) and a system round-trip efficiency (RTE) of 90% via our peak shaving battery energy storage guide, the total nominal battery capacity ($C_{nom}$) is:

$$C_{nom} = \frac{E_{usable}}{DoD \times RTE} = \frac{300 \text{ kWh}}{0.85 \times 0.90} = 392.15 \text{ kWh}$$

A standardised 400 kWh / 200 kW utility-grade battery system matches this requirement. To house this equipment reliably on-site, facilities specify an engineered liquid-cooled ESS container or an outdoor-rated energy storage system cabinet, preventing thermal throttling during warm afternoon discharge windows.

Grid Interconnection Standards and Protection Coordination

Connecting a solar system for commercial building sites to utility distribution infrastructure requires adherence to strict protection, safety, and power quality standards. Primary global benchmarks include IEEE 1547-2018 for North American territories and IEC 60364-7-712 alongside EN 50549-1 across Europe and international jurisdictions. These standards mandate automated disconnection, voltage ride-through limits, and frequency stabilization behaviour during grid anomalies.

Under National Electrical Code (NEC) Article 705.12 or local LV switchboard rules (such as IEC 61439-2), point of common coupling (PCC) connections must respect busbar ampacity limitations. The standard 120% rule dictates that the sum of the main service overcurrent protection device (OCPD) rating and 120% of the solar inverter output OCPD rating cannot exceed the ampacity of the busbar. For example, a 1,000 A switchboard busbar fed by an 800 A main circuit breaker can accommodate a maximum solar backfeed breaker rating of:

$$(1,000 \text{ A} \times 1.20) - 800 \text{ A} = 400 \text{ A}$$

If the solar backfeed exceeds this margin, designers must implement a line-side tap (connecting between the service meter and the main disconnecting breaker in compliance with NEC 705.11) or upgrade the main distribution switchgear. For larger installations interconnecting at medium voltage, see our technical analysis on grid integration of renewable energy sources. The protection engineer must install an external, utility-accessible, lockable AC disconnect switch, alongside zero-export power controllers and certified reverse-power relays (ANSI 32R) when the utility prohibits net export.

Step-by-Step Installation and Commissioning Sequence

Commissioning a commercial building PV system requires a verified sequence of mechanical, electrical, and functional safety tests before commercial energisation. Failure to follow structured procedures can result in insulation breakdown, arc flash risks, or voiding equipment warranties.

1. Structural and Mechanical Torque Inspection: Verify all mechanical clamp torque settings on the commercial solar roof against manufacturer specifications using calibrated torque wrenches. Ensure roof drainage channels remain unobstructed and ballast is distributed according to structural engineering layout drawings.
2. DC String Open-Circuit Voltage and Polarity Verification: Measure the open-circuit voltage ($V_{oc}$) and short-circuit current ($I_{sc}$) of each individual string using a calibrated PV tester. Confirm that polarity is uniform across all strings before connecting into combiner boxes or multi-MPPT inverters. Under IEC 62446-1 Clause 6.2, measured $V_{oc}$ should match theoretical string values within a 5% tolerance window.
3. Insulation Resistance (Megger) Testing: Perform DC insulation resistance tests between active conductors and earth (ground) on both the DC string arrays and low-voltage AC feeder cables, applying 1,000 V DC for systems rated up to 1,000 V. Minimum insulation resistance must exceed 1.0 MΩ.
4. Grounding and Equipotential Bonding Continuity: Confirm earth continuity across all module frames, aluminium mounting rails, inverter enclosures, and surge protection devices (SPDs) to the main facility earthing busbar. Resistance must measure under 0.5 Ω.
5. Grid Disconnection and Anti-Islanding Trip Validation: Perform functional testing of the loss-of-mains relay (e.g. RoCoF or vector surge detection). Simulate utility grid loss by opening the main circuit breaker; inverters must de-energise and cease output within 2.0 seconds in accordance with IEEE 1547 Clause 8.1.
6. Inverter and BESS Software Configuration: Configure export limit controllers, active/reactive power modes (volt-VAR / volt-watt curves), and BESS peak-shaving dispatch thresholds. Verify telemetry to the building energy management system (BEMS) via Modbus TCP or BACnet.

Engineering Checklist for Commercial PV System Procurement

Specifying a solar system for commercial building infrastructure requires precise contractual and technical requirements in the request for quotation (RFQ). Omissions at the tendering stage frequently lead to costly change orders during site integration.

Engineers and procurement teams should verify the following parameters across all system subcomponents:

• PV Module Specifications: Specify Tier-1 monocrystalline n-type TOPCon or heterojunction (HJT) modules with nominal power ratings of 550 Wp to 700 Wp, temperature coefficient of $P_{max}$ better than -0.30%/°C, and minimum 25-year linear performance warranties guaranteeing at least 85% output at year 25.
• Racking Certification: Require wind-tunnel test documentation (boundary layer wind tunnel per ASCE 7 or equivalent) and UL 2703 certification for grounding, bonding, and mechanical loading integrity.
• Switchgear and Transformer Compatibility: Verify whether existing transformers can handle bi-directional power flows or if harmonic heating warrants a K-factor rated unit. For large setups, specify modern, containerised HV/LV switchgear and high-efficiency transformer substations suited to distributed generation.
• Fire Safety and Rapid Shutdown: Ensure compliance with NEC 690.12 or local firefighter disconnect rules, mandating reduction of DC string voltage to under 30 V within 30 seconds of system initiation outside the array boundary.
• BESS Thermal and Safety Standards: If incorporating battery storage, demand cell-level and container-level testing documentation meeting UL 9540 and UL 9540A to satisfy local authority having jurisdiction (AHJ) fire separation distances.

Next steps: specifying and sourcing

When specifying a complete solar system for commercial building deployment, start by gathering 12 to 24 months of 15-minute interval electrical load data, existing facility single-line diagrams (SLDs), and roof structural capacity reports. Our factory engineering team specializes in configuring matched medium-voltage equipment, including distribution transformers, compact substations, custom HV/LV switchgear, and scalable energy storage systems designed to integrate seamlessly with commercial PV. Submit your site drawings and load profiles through our online quote portal or contact our technical sales desk via our inquiry page for detailed design review and factory-direct equipment supply.
