Key takeaways
- Peak shaving discharges dedicated energy storage during maximum demand intervals to keep site import beneath a pre-set utility threshold.
- A typical commercial tariff charges between 15 and 35 USD per kilowatt for maximum monthly demand, making power reduction more financially significant than simple kilowatt-hour arbitrage.
- Battery energy storage systems designed for peak reduction require high round-trip efficiency and thermal stability, typically utilising lithium iron phosphate chemistry governed by IEC 62619 standards.
- Calculating required storage capacity requires integrating the area of the load curve above the target power threshold, incorporating a depth of discharge factor and conversion losses.
- Dynamic threshold control algorithms outshine static timer controls by monitoring real-time power at the point of common coupling to avoid false-trigger discharge.
Quick answer: Peak shaving is the practice of reducing electrical power drawn from the utility grid during short periods of maximum demand, typically by discharging an on-site battery storage system or running local generation. This cuts commercial utility demand charges without altering the facility's underlying operational productivity.
For industrial plants, commercial buildings, and distribution networks, electrical bills are split into two primary components: consumption charges calculated in kilowatt-hours (kWh) and demand charges levied on the single highest power spike recorded in kilowatts (kW) or kilovolt-amperes (kVA) across a billing cycle. In many jurisdictions, demand penalties account for 30% to 50% of the entire monthly electricity expenditure. Deploying peak shaving assets allows plant operators to cap this threshold, insulating operations from utility rate spikes while bolstering grid resilience.
Peak Shaving Meaning and Fundamental Principles
The clear peak shaving meaning centres on flattening the electricity load profile of a facility by capping grid import at a designated maximum limit. Unlike load shifting, which mechanically reschedules heavy industrial processes to off-peak hours, a peak shaving battery automatically detects when aggregate consumption approaches a predefined threshold and injects stored electrical energy locally to cover the excess load.
Power utilities measure facility demand using rolling averaging intervals, most commonly 15-minute or 30-minute windows conforming to IEC 62053-22 class 0.2S or ANSI C12.20 standards. If an industrial plant operates steadily at 800 kW but starts several induction motors simultaneously, raising the average draw to 1,500 kW for a single 15-minute window, the utility calculates the demand charge for the entire billing period based on that 1,500 kW peak. Installing peak shaving energy storage intercepts that spike directly at the point of common coupling (PCC), supplying the 700 kW differential from battery cells so the utility meter never registers a draw beyond the 800 kW baseline.
Peak Shaving vs Load Shifting: Technical Distinctions
Peak shaving reduces the absolute capacity required from the utility grid, whereas load shifting moves energy consumption from high-tariff periods to low-tariff periods without necessarily lowering instantaneous peak power demand. Understanding this operational distinction determines whether an engineering team designs an installation for capacity preservation or energy arbitrage.
To evaluate the architectural trade-offs between both strategies, engineers review operational parameters, battery cycling requirements, and system stress profiles:
| Operational Metric | Peak Shaving Mode | Load Shifting Mode |
|---|---|---|
| Primary Objective | Demand charge mitigation (kW / kVA reduction) | Energy arbitrage (kWh price differential capture) |
| Discharge Duration | Short bursts (15 minutes to 2 hours per event) | Sustained discharge (4 hours to 8 hours daily) |
| C-Rate Requirements | High discharge rate: 0.5C to 2C rating | Low to moderate discharge rate: 0.25C to 0.5C |
| Cycles per Day | 0.5 to 1.5 equivalent full cycles | 1 to 2 predictable, scheduled cycles |
| Control Mechanism | High-speed threshold-triggered closed-loop control | Time-of-use (TOU) scheduled dispatch |
| Impact on Infrastructure | Defers substation, transformer, and cable upgrades | Optimises running costs; minimal asset deferral |
Facilities often combine these modes. When peak demand events occur only a few days per month, plant managers use the battery for daily time-of-use arbitrage until the control system detects an approaching demand threshold, at which point peak reduction commands override normal scheduled cycles.
Anatomy of a Peak Shaving Energy Storage System

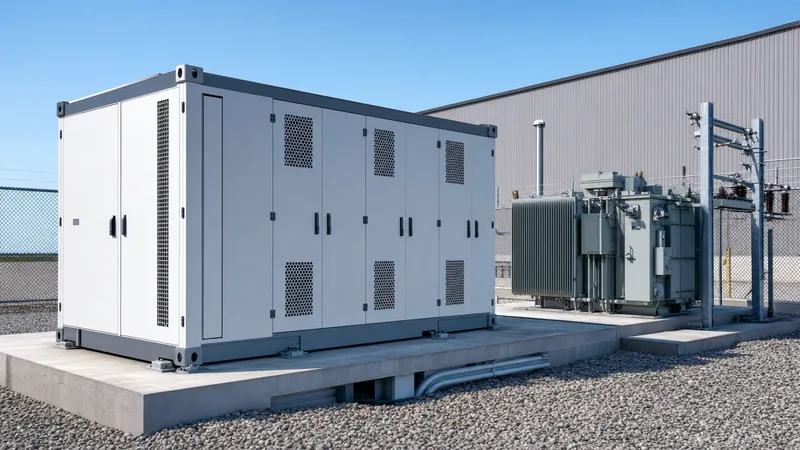

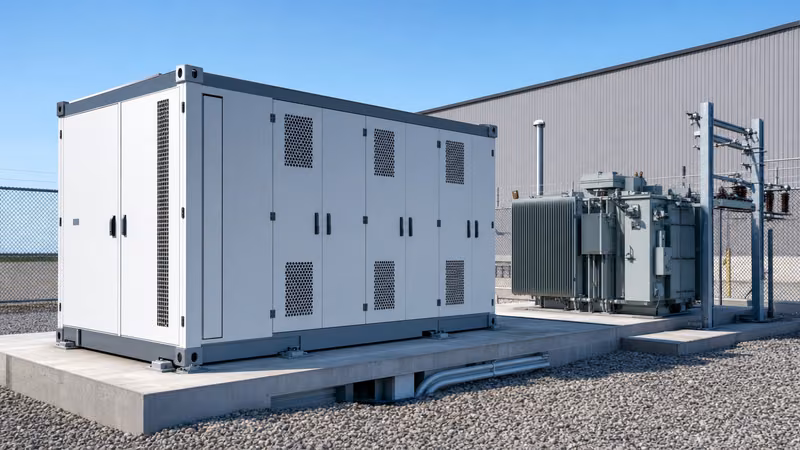

A dedicated peak shaving energy storage installation integrates chemical storage, power electronics, bidirectional metering, and real-time automation controls. Every subsystem must operate with millisecond-level responsiveness to prevent grid import from breaching the target limit during abrupt industrial load steps.
The physical installation contains five vital subsystems:
- Battery Rack Architecture: High-density lithium iron phosphate (LiFePO4 or LFP) cells configured into series-parallel modules and housed inside standardized enclosure racks conforming to UL 9540A and IEC 62619 standards.
- Bidirectional Power Conversion System (PCS): Four-quadrant inverters using insulated-gate bipolar transistors (IGBT) or silicon carbide (SiC) switches that convert alternating current (AC) grid power to direct current (DC) during charging and supply synchronized AC power during discharge.
- Energy Management System (EMS): The central software engine executing predictive load tracking algorithms, monitoring transformer headrooms, and issuing P/Q setpoints to the PCS over Modbus TCP or IEC 61850 protocols.
- High-Speed Power Metering: Class 0.2 revenue-grade power transducers situated directly at the main distribution board busbars, communicating via fast serial or fiber-optic connections to guarantee sample rates under 100 milliseconds.
- Thermal and Safety Systems: Dedicated liquid-cooling circuits maintaining cell temperatures between 20°C and 25°C to minimise degradation, paired with aerosol or clean-agent fire suppression systems designed around NFPA 855 guidelines.
Engineers specifying these assets can evaluate enclosure configurations in our guide on how to specify a containerised battery energy storage system and compare cabinet designs via liquid-cooled vs air-cooled energy storage.
Battery Storage Peak Shaving: Sizing Calculation and Engineering Method
Sizing a battery storage peak shaving system requires calculating two distinct figures: the required continuous power rating in kilowatts (kW) and the usable energy capacity in kilowatt-hours (kWh). Selecting an undersized battery risks breaching the utility threshold, incurring maximum demand fees, while an oversized battery incurs unnecessary capital expenditure.
Consider an actual industrial facility with a continuous baseline load of 600 kW and unmanaged demand spikes reaching 1,100 kW. The plant engineering team targets a maximum grid cap of 750 kW.
- Determine Peak Power Deficit (P_req):
P_req = Peak Load (kW) - Target Grid Threshold (kW)
P_req = 1,100 kW - 750 kW = 350 kW. The PCS must deliver at least 350 kW continuous power. - Calculate Peak Duration and Energy Deficit (E_net):
Reviewing interval load data demonstrates that spikes above 750 kW endure for a maximum of 1.75 hours continuously, forming a trapezoidal load profile with an average spike power of 925 kW during the excursion.
Average excursion power = 925 kW - 750 kW = 175 kW.
E_net = Average Excursion Power (kW) × Duration (h) = 175 kW × 1.75 h = 306.25 kWh. - Apply System Efficiency and Degradation Losses:
The round-trip efficiency (RTE) accounts for battery DC-DC efficiency (η_bat = 0.95), inverter conversion efficiency (η_pcs = 0.97), and auxiliary cooling parasitic loads (η_aux = 0.96).
System Discharge Efficiency (η_sys) = 0.95 × 0.97 × 0.96 = 0.884 (88.4%).
E_delivered = E_net / η_sys = 306.25 kWh / 0.884 = 346.4 kWh. - Account for Depth of Discharge and End-of-Life Capacity:
To maintain cell cycle life per IEC 62620, the usable Depth of Discharge (DoD) is capped at 85%. Furthermore, to preserve performance at year 10 when cells reach 80% State of Health (SoH), apply an end-of-life retention factor of 0.80.
Nameplate Battery Capacity (E_nameplate) = E_delivered / (DoD × SoH)
E_nameplate = 346.4 kWh / (0.85 × 0.80) = 509.4 kWh.
Based on this calculation, the plant requires a peak shaving energy storage installation rated for at least 350 kW continuous output with a minimum nameplate capacity of 510 kWh (or a standard factory enclosure of 400 kW / 550 kWh). For deeper technical layouts on sizing inverters and switchboards, review our commercial energy storage guide.
Control Strategies: Static Thresholds vs Predictive Algorithms
Control strategies for peak demand intervention determine how cleanly a battery discharges against volatile factory loads without exhausting its stored energy prematurely. A poorly programmed controller discharges too early in the day, leaving no capacity when the true operational peak arrives later in the afternoon.
Static threshold algorithms represent the standard legacy method: the EMS triggers discharge whenever monitored power at the point of common coupling exceeds a fixed kilowatt limit. While reliable for facilities with predictable conveyor or furnace schedules, static thresholds struggle when daily peak events are prolonged. If an unexpected facility process shifts a demand spike forward by two hours, a static system may discharge to its minimum reserve, leaving the facility vulnerable when subsequent motor starts trigger grid import penalties.
Modern systems implement dynamic predictive control combining weather forecasts, production ERP scheduling, and machine learning load predictions. These advanced controllers modulate the discharge rate dynamically, smoothing fluctuations and conserving battery capacity strictly for excursions that threaten the historical monthly ceiling. For facilities operating mixed renewable infrastructure, integrating these controls with a microgrid architecture provides full plant stability, as detailed in our battery storage engineering guide.
Grid Constraints, Transformer Headroom, and Substation Integration
Integrating on-site energy storage for peak mitigation directly resolves upstream electrical distribution bottlenecks, deferring major capital expenditure on transformers and switchgear. When industrial sites add electric vehicle (EV) fleet fast chargers or expand manufacturing lines, the local distribution transformer often reaches its thermal limits under IEC 60076-7 or IEEE C57.91 loading guidelines.
Instead of funding utility transformer replacements, upgrading underground medium-voltage cables, and replacing main incoming breakers, facilities install a peak shaving battery downstream of the transformer secondary winding. When the combined plant and charging loads exceed the continuous nameplate kVA rating of the substation transformer, the battery discharges locally. This keeps the apparent power (kVA) handled by the transformer safely below its temperature-rise ratings, preventing premature insulation breakdown.
The bidirectional converter must be integrated with the facility's medium-voltage or low-voltage switchboard via dedicated circuit breakers equipped with electronic trip units (IEC 60947-2). The protection scheme requires coordinated directional overcurrent (ANSI 67) and anti-islanding protection (IEEE 1547 clause 8.1) to ensure the battery instantly disconnects from the facility busbars if upstream grid power drops during maintenance outages.
Factory Specification and Commissioning Checklist for Peak Shaving
Specifying a battery storage system for peak demand mitigation requires rigorous verification during factory acceptance testing (FAT) and on-site commissioning to guarantee reliable performance. Procurement engineers should verify the following parameters before equipment handover:
| Inspection Item | Relevant Standard / Clause | Target Pass Criteria |
|---|---|---|
| Dynamic Response Time | IEC 62933-2-1 Clause 5.2 | Step response from zero to 100% rated active power (kW) in < 100 ms |
| Round-Trip Efficiency | IEC 62933-2-1 Clause 5.4 | AC-to-AC round-trip efficiency ≥ 86% under nominal ambient temperature (25°C) |
| Harmonic Distortion | IEEE 519 Table 2 | Total Harmonic Current Distortion (THDi) < 5% at full discharge rating |
| Emergency Stop & Anti-Islanding | IEEE 1547 Clause 8.1 / UL 1741 | Grid loss detection and converter trip executed within 160 ms |
| Cell Temperature Delta | UL 1973 / IEC 62619 | Maximum temperature variance between hottest and coolest cell ≤ 3°C |
| Insulation Resistance | IEC 60364-6 / IEEE 43 | DC bus insulation resistance to earth > 100 MΩ at 1,000 V test voltage |
| Auxiliary Power Load | Factory Spec / IEC 62933-1 | HVAC and BMS parasitic load ≤ 2.5% of continuous discharge rating |
Commissioning engineers must also verify the accuracy of the current transformers (CTs) installed at the utility revenue meter. Reversed CT polarity or phase mismatches between current and voltage inputs will cause the energy management system to misread grid power, inducing unnecessary discharge cycles or complete control failure during critical peak events.
Next Steps: Specifying and Sourcing
To obtain an accurate technical proposal and budget calculation for a peak shaving installation, your engineering team must provide 12 months of utility electricity bills showing interval demand profiles, alongside site electrical single-line diagrams (SLDs). Specify your preferred medium-voltage or low-voltage connection points, available footprint, and target demand ceilings.
Explore our factory-built energy storage systems, compact liquid-cooled ESS containers, and complete transformer substations designed to streamline grid connection. Send your project single-line diagrams and interval load data directly to our engineering specialists via our request a quote page or get in touch through our contact page to begin system design.
Frequently asked questions
What is the primary benefit of peak shaving?
The primary benefit of peak shaving is the substantial reduction of utility demand charges on commercial and industrial electricity bills. By capping peak power drawn from the grid, facilities lower their monthly charges without reducing operational output or altering industrial schedules.
What is the difference between peak shaving and load shifting?
Peak shaving specifically flattens short-duration power spikes to lower monthly demand charges, whereas load shifting moves large volumes of energy consumption from high-tariff hours to low-tariff hours. Peak shaving targets instantaneous power in kilowatts, while load shifting targets energy volume in kilowatt-hours.
Which battery chemistry is best suited for peak shaving?
Lithium iron phosphate (LiFePO4 or LFP) is the industry standard chemistry for peak shaving applications. LFP offers high continuous discharge rates (up to 1C or 2C), excellent thermal stability, non-combustible safety characteristics conforming to UL 9540A, and cycle lives exceeding 6,000 equivalent cycles.
How fast must a peak shaving battery system respond to load changes?
A peak shaving battery storage system must detect load steps and ramp to full power output within 100 milliseconds to prevent spikes from registering on utility interval meters. Revenue meters aggregate power over 15-minute windows, so rapid inverter response prevents brief transient spikes from elevating the average billing calculation.
Can peak shaving systems also provide backup power during an outage?
Yes, provided the power conversion system includes grid-forming inverter capabilities and an automated transfer switch (ATS) configured to island the facility safely. If utility power fails, the system disconnects from the grid within milliseconds to supply critical factory loads independently.
