Key takeaways
- Commercial transformers merchandise encompasses medium-voltage and low-voltage electrical apparatus, modular sub-assemblies, and critical operational spares.
- Industrial buyers must distinguish between consumer toy novelties and certified electrical distribution goods compliant with IEC 60076 and IEEE C57.12 standards.
- Procurement dossiers for electrical transformer goods require certified routine test reports, loss evaluation formulas, and BIL insulation verification.
- Key interchangeable components such as bushings, de-energised tap changers, and Buchholz relays represent the most frequently stocked utility merchandise.
- Total cost of ownership evaluations must balance initial unit capital expenditure against guaranteed no-load and load loss penalties across a 30-year operational life.
Quick answer: In commercial power systems, transformers merchandise refers to commercially traded electrical power equipment, including distribution units, replacement coils, bushings, tap changers, and protection accessories manufactured to international utility standards. Procuring these assets requires strict verification of factory routine test certificates, losses calculated per IEC 60076-1, and dimensional interchangeability.
While search algorithms frequently conflate this category with consumer pop-culture novelty goods, procurement managers and project engineers require industrial-grade power distribution hardware. Electrical utilities, industrial plants, and balance-of-plant engineering, procurement, and construction (EPC) contractors treat medium-voltage (MV) and high-voltage (HV) apparatus as capital assets and warehouse merchandise. Securing the correct balance between standard off-the-shelf equipment and custom-built units determines the long-term reliability and operating expenditure of secondary distribution networks.
Differentiating Industrial Goods from Transformers Merchandise for Adults
Industrial power equipment purchasers must establish clear technical parameters to separate heavy engineering hardware from consumer novelty products across digital procurement platforms. The phrase transformers merchandise for adults often brings up collectable toys and branded retail apparel in general search engines, yet in technical procurement departments, it describes professional-grade electrical equipment suited for licensed electrical personnel and high-voltage facilities.
Heavy industrial apparatus operates at dangerous voltages ranging from 415 V up to 110 kV and demands stringent physical safety enclosures, tamper-proof padlocking, and arc-resistant switchgear integration. Sourcing teams seeking genuine electrical inventory must specify functional product definitions, including basic impulse level (BIL), continuous current ratings, vector groupings (such as Dyn11 or YNd11), and short-circuit withstand performance per IEC 60076-5. Sourcing certified power units requires consulting technical documentation such as our custom transformer procurement guide rather than consumer retail catalogues.
Core Categories of Electrical Transformers Merchandise
Electrical distribution merchandise spans three distinct asset classes: pre-assembled transformer units, structural sub-assemblies, and field-replaceable operating components. Utilities maintain strategic reserves of these finished goods to minimise unplanned downtime following grid faults or lightning strikes.

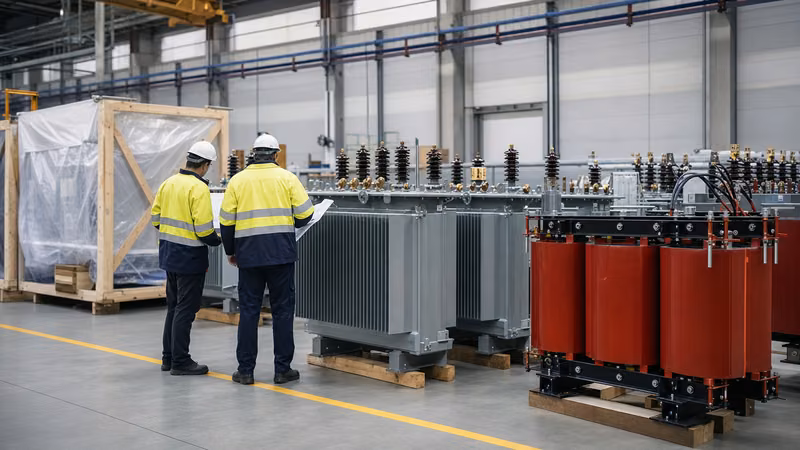

Complete liquid-filled units—such as pole-mounted transformers (16 kVA to 500 kVA) and three-phase ground-mounted distribution units (up to 3,150 kVA)—form the bulk of utility merchandise. For commercial buildings, underground transport systems, and industrial plants where oil fire hazards are prohibited, cast resin units serve as the primary merchandise asset; explore design configurations in our dry-type transformer engineering guide. Beyond complete units, maintenance teams procure critical modular spares, including:
- High-voltage porcelain and polymer bushings conforming to DIN 42531 or IEEE C57.19.01 standards. Detailed selection criteria appear in our transformer bushing engineering guide.
- De-energised tap changers (DETC) with standard off-circuit steps (typically ±2 × 2.5%).
- Protective relays and physical monitoring devices, including double-float Buchholz relays (IEC 60255), oil level gauges with microswitches, and pressure relief valves (PRV) fitted with directional discharge pipes.
- Pre-formed high-conductivity electrolytic copper winding packages (Grade Cu-ETP per EN 13601) treated with thermally upgraded diamond-dotted paper.
Technical Specification Matrix for Industrial Transformer Merchandise
Standardising specifications across commercial transformer purchases ensures interchangeability across utility substations and reduces inventory carrying costs. When evaluating factory-built transformer merchandise, procurement engineers benchmark candidate units against the electrical and thermal thresholds defined in IEC 60076-2 and IEEE C57.12.00.
| Parameter | Standard Distribution Unit | Cast Resin Dry-Type Unit | Substation Power Unit |
|---|---|---|---|
| Power Rating Range | 50 kVA – 2,500 kVA | 100 kVA – 3,150 kVA | 5 MVA – 40 MVA |
| Primary Voltage Classes | 11 kV, 22 kV, 33 kV | 6.6 kV, 11 kV, 22 kV | 33 kV, 66 kV, 110 kV |
| Cooling Designation | ONAN (Mineral Oil or Ester) | AN / AF (Air Natural / Forced) | ONAN / ONAF |
| Winding Material | Copper (Cu-ETP) or Aluminium | Electrolytic Copper or Foil | Continuous Transposed Copper (CTC) |
| Winding Temp Rise Limit | 65 K (oil) / 60 K (winding) | 100 K (Class F) / 125 K (Class H) | 65 K (top oil) / 65 K (winding) |
| Basic Impulse Level (BIL) | 75 kV – 170 kV crest | 60 kV – 125 kV crest | 200 kV – 550 kV crest |
| Short-Circuit Impedance (%Z) | 4.0% – 6.25% | 6.0% – 8.0% | 8.0% – 12.5% |
| Reference Standard | IEC 60076-1 / IEEE C57.12.20 | IEC 60076-11 / IEEE C57.12.01 | IEC 60076-1 / IEEE C57.12.10 |
Capitalised Loss Evaluation in Transformer Procurement
The lowest purchase quote for transformer merchandise rarely represents the most economical investment over an equipment lifespan of 25 to 35 years. Total Owning Cost (TOC) evaluation models place a binding monetary penalty on both core losses (no-load losses, P0) and coil losses (load losses, Pk).
A typical commercial utility procurement tender evaluates bids using the capitalisation formula:
TOC = Purchase Price + (A × P0) + (B × Pk)
Where A represents the present value of continuous no-load core losses per kilowatt (£/kW or $/kW) over the design life, and B represents the present value of load losses evaluated at the rated operating duty factor. Consider a practical comparison between two 1,000 kVA, 11 kV / 415 V distribution units under standard tender conditions where A = £5,200/kW and B = £1,400/kW:
- Supplier A (Standard Core): Purchase price = £14,500; No-load loss (P0) = 1.40 kW; Load loss at 75°C (Pk) = 10.50 kW. TOC = £14,500 + (£5,200 × 1.40) + (£1,400 × 10.50) = £14,500 + £7,280 + £14,700 = £36,480.
- Supplier B (Low-Loss Grain-Oriented Core): Purchase price = £17,200; No-load loss (P0) = 0.85 kW; Load loss at 75°C (Pk) = 8.20 kW. TOC = £17,200 + (£5,200 × 0.85) + (£1,400 × 8.20) = £17,200 + £4,420 + £11,480 = £33,100.
Although Supplier B charges a 18.6% premium on the baseline purchase price, its higher-grade silicon steel and optimised winding geometry generate an overall operational saving of £3,380 per unit over the asset life.
Factory Testing and Acceptance for Commercial Transformer Units
Validating factory acceptance testing ensures that commercial transformers merchandise meets guaranteed nameplate efficiencies and safety standards before leaving the production line. Every batch must undergo routine testing in accordance with IEC 60076-1 clause 10.1 or IEEE C57.12.90.
During witness inspections, procurement inspectors should verify that the manufacturer executes the full sequence of factory routine checks described in our power transformer testing procedures guide. These tests encompass:
- Measurement of winding resistance across all tapping positions on high-voltage and low-voltage phases using a calibrated micro-ohmmeter.
- Verification of voltage ratio and phase displacement (vector group) check across all tap positions.
- Measurement of short-circuit impedance and load loss at rated frequency and current, corrected to reference temperatures (75°C or 120°C depending on insulation class).
- Measurement of no-load loss and magnetising current at 90%, 100%, and 110% of rated voltage to assess core saturation characteristics.
- Separate-source AC withstand voltage testing and short-duration induced AC overvoltage testing (typically 2 × rated voltage for 60 seconds at elevated frequency).
- Insulation resistance measurement (Megger test) between windings and ground, and between individual winding circuits at 2.5 kV or 5.0 kV DC.
Next steps: specifying and sourcing
To request a binding commercial proposal for distribution units, power equipment, or modular substation merchandise, submit your single-line diagram (SLD), required kVA/MVA capacity, primary and secondary voltages, BIL ratings, vector group, and loss evaluation formulas. Our engineering team reviews bespoke and standard configurations for industrial facilities, renewable installations, and utility distribution networks. Explore our range of oil-immersed transformers, inspect our indoor dry-type transformers, or review integrated designs on our compact transformer substation page. For immediate project pricing, dispatch your specifications to our team via the quote request page or contact an engineer directly through our contact page.
Frequently asked questions
What does transformers merchandise mean in electrical procurement?
In commercial power engineering, it refers to standard-inventory distribution transformers, dry-type units, spare bushings, tap changers, and protection equipment traded between manufacturers, utilities, and electrical contractors.
How do buyers distinguish electrical transformer merchandise from toys?
Commercial buyers filter procurement requirements by standard technical identifiers, including voltage class (kV), kVA rating, BIL levels, cooling designations (such as ONAN or AN), and compliance with IEC 60076 or IEEE C57.12.
What components of a transformer are kept as spare merchandise?
Utilities and industrial plants routinely warehouse high-voltage porcelain or polymer bushings, Buchholz relays, de-energised tap changer switches, magnetic oil level gauges, and replacement winding temperature indicators.
Why is total owning cost essential when buying transformer merchandise?
Operating losses accumulated over 30 years often exceed the initial equipment purchase cost. Applying capitalised loss evaluation ensures that energy-efficient units with lower no-load and load losses are prioritised over cheaper, high-loss alternatives.
Which international standards govern commercial transformer goods?
Primary standards include IEC 60076 for international and European utility projects, IEEE C57.12 series across North America, and EN 50588-1 for medium-power distribution applications.
