Key takeaways
- Storing energy in batteries relies on reversible electrochemical intercalation, converting electrical work into chemical potential energy inside cell electrodes.
- A battery system does not store electrical charge directly; it contains chemical potential energy that generates voltage and current only when an external load circuit is completed.
- Utility-scale battery farms operating on lithium iron phosphate (LFP) chemistry deliver an 85% to 88% AC-to-AC round-trip efficiency (RTE) after accounting for inverter, transformer, and thermal management parasitic losses.
- BESS integration in solar generation requires precise sizing of depth-of-discharge (typically 80% to 90%) and thermal operating bands (20°C to 25°C) to restrict capacity fade below 2% annually.
- Compliance with IEC 62933-5-2 and UL 9540A testing governs system-level safety, fault isolation, and deflagration mitigation across containerised battery banks.
Quick answer: Storing energy in batteries is the process of converting electrical energy into reversible chemical potential energy via reduction-oxidation (redox) reactions at the cell electrodes. During discharge, this chemical energy converts back into direct current (DC) electricity to supply grid loads, stabilise renewable output, or provide auxiliary power during generation deficits.
For project engineers and utility operators managing photovoltaic (PV) assets, storing energy in batteries solves the fundamental intermittency of solar irradiance. Solar generation profiles rarely align perfectly with regional demand peaks. Integrating a utility-scale battery energy storage system (BESS) allows balance-of-plant engineers to capture excess midday production, curb grid curtailment, and dispatch firm capacity when export pricing peaks. Achieving predictable performance requires a thorough understanding of electrochemistry, internal impedance, power conversion, and auxiliary thermal loads.
Does a Battery System Have Energy? Electrochemistry and Potential
A battery system does not contain raw electrical charge in the form of loose electrons; it holds chemical potential energy stored within the molecular bonds of its cathode and anode active materials.
When people ask, does a battery system have energy, they are addressing the distinction between static electrical charge and thermodynamic potential. In an uncharged state, the cathode material (such as lithium iron phosphate, LiFePO4) contains mobile metal ions occupying stable lattice positions. During the charging phase, an external power supply or photovoltaic inverter forces electrons out of the cathode and into the anode, compelling positively charged lithium ions (Li+) to migrate through the liquid electrolyte and porous separator to intercalate into the graphitic carbon lattice of the anode.
This migration forces the chemical system into a higher thermodynamic state. The stored energy equals the total chemical potential difference between the two electrodes multiplied by the number of transferred ions. When an external circuit connects to the battery terminals, a spontaneous chemical reaction takes place: electrons travel through the external load to balance electrochemical potentials, while ions migrate back to the cathode. According to Faraday's laws of electrolysis, the theoretical energy content is governed by the relation:
E = Vcell × Q
where Vcell represents the open-circuit cell voltage (nominal 3.2 V for LFP, 3.7 V for NMC) and Q is the capacity in ampere-hours (Ah). When evaluating if a battery system has energy at any given moment, engineers measure the State of Charge (SoC), which reflects the concentration gradient of intercalated ions between the anode and cathode relative to full capacity.
Mechanisms of Storing Energy in Batteries for Utility Applications

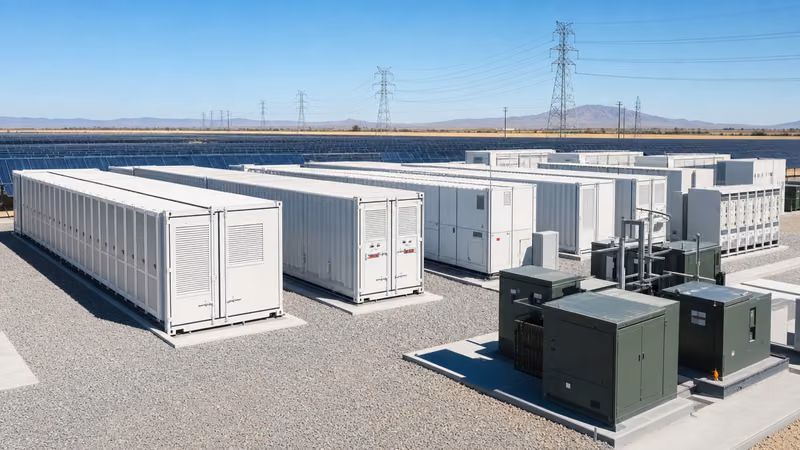

Utility-scale systems store energy in batteries through modular electrochemical racks connected in series and parallel configurations to establish high-voltage DC buses ranging from 1,000 V to 1,500 V DC.
At the cell level, energy density and cycle life are dictated by the active chemistry. In modern grid-tied infrastructure, lithium iron phosphate has largely replaced nickel manganese cobalt (NMC) due to its superior thermal stability (runaway threshold exceeding 270°C vs 210°C for NMC) and exceptional lifespan exceeding 6,000 cycles at 80% Depth of Discharge (DoD). Detailed comparisons of these active materials can be referenced in our technical guide on LFP vs NMC battery technologies.
To build a utility-scale block, individual prismatic cells (typically 280 Ah or 314 Ah) are clamped under mechanical compression to prevent delamination during expansion cycles, then linked via laser-welded busbars into modules. Modules are mounted inside standardized racks containing integrated battery management systems (BMS). Multiple racks feed into a central DC combiner panel protected by high-speed DC fuses rated according to IEC 60269-6. Understanding cell-to-grid aggregation is critical when studying utility-scale energy storage engineering, as line resistance and contact impedance accumulate across thousands of series-connected terminals.
Round-Trip Efficiency and Degradation Calculation
The actual usable yield when storing energy in batteries is always lower than the nameplate DC capacity due to internal cell impedance, power electronic conversion stages, and cooling auxiliary consumption.
A plant's round-trip efficiency (RTE) measures the ratio of AC energy delivered to the grid during discharge to the AC energy absorbed from the grid (or solar array) during charging. This can be evaluated via IEC 62933-2-1 Clause 5.1. Consider a real-world calculation for a 2.5 MW / 5.0 MWh nameplate LFP containerised storage block:
- Nominal Battery DC Storage: 5,000 kWh
- Permissible Operational Depth of Discharge (DoD): 90% (usable DC = 4,500 kWh)
- Cell Coulometric & Ohmic DC-to-DC Efficiency: 94.5% (I2R losses inside cell jelly-rolls and busbars)
- Power Conversion System (PCS) Bi-directional Inverter Efficiency: 98.2% per conversion direction (see the Power Conversion System engineering guide)
- Medium-Voltage Step-Up Transformer Efficiency: 98.8% per direction (0.69 kV to 33 kV)
- Auxiliary HVAC and Liquid Cooling Loads: 180 kWh consumed continuously across a 4-hour cycle
Let us calculate the net AC output versus the gross AC input for one complete 2-hour discharge / 4-hour charge cycle:
- Gross AC Input Required to Charge: Usable DC capacity (4,500 kWh) ÷ (0.982 inverter × 0.988 transformer) = 4,638.4 kWh AC. Adding the 180 kWh auxiliary consumption during charging equals 4,818.4 kWh AC total input.
- Gross DC Discharged: 4,500 kWh × 0.945 (DC-DC battery efficiency) = 4,252.5 kWh DC delivered to PCS terminals.
- Net AC Output Delivered to 33 kV Substation: 4,252.5 kWh × (0.982 × 0.988) = 4,125.8 kWh AC. Subtracting the discharge auxiliary parasitic load (90 kWh over 2 hours) yields 4,035.8 kWh AC net export.
- System AC-to-AC Round-Trip Efficiency: 4,035.8 kWh ÷ 4,818.4 kWh = 83.76%.
Thermal degradation accelerates when cells operate outside their optimum 20°C to 25°C operational window. Arrhenius kinetics dictate that for every 10°C rise in sustained operating temperature, SEI (solid electrolyte interphase) layer growth rates double, prematurely consuming active lithium reserves.
Battery Farms Renewable Energy Integration: Technical Architecture
Large-scale battery farms renewable energy installations connect to the grid using either DC-coupled or AC-coupled electrical architectures, depending on project scale, inverter topology, and retrofit constraints.
In an AC-coupled configuration, the solar PV field and the battery storage system operate through independent inverters. Both feed into a common medium-voltage AC switchboard (typically 11 kV, 22 kV, or 33 kV) via dedicated step-up transformers. This architecture simplifies commissioning and allows the battery farm to be added to existing operational solar plants without altering the installed string inverters. For a comprehensive look at field layouts, read our guide to energy storage systems solar farm integration.
Conversely, in a DC-coupled topology, solar strings and battery racks connect to a shared high-voltage DC link via bi-directional DC-DC buck-boost converters before entering a centralised multi-megawatt inverter. This eliminates one stage of power conversion, delivering 1.5% to 2.5% higher round-trip charging efficiency when storing energy in batteries directly from PV generation. However, short-circuit fault current calculations under IEC 60909 become significantly more complex due to combined DC source contributions.
Engineering Comparison: Electrochemical Storage Technologies
Selecting an electrochemistry for storing energy in batteries requires balancing energy density against cycle endurance, thermal runaway vulnerability, and capital expenditure.
The following engineering decision matrix compares the four primary chemistries evaluated for commercial and utility-scale stationary energy storage applications:
| Engineering Metric | Lithium Iron Phosphate (LFP) | Nickel Manganese Cobalt (NMC) | Vanadium Redox Flow (VRFB) | Sodium-Ion (Na-Ion) |
|---|---|---|---|---|
| Volumetric Energy Density (Wh/L) | 220 – 320 | 400 – 600 | 25 – 40 | 150 – 220 |
| Cell Voltage, Nominal (V) | 3.2 | 3.6 – 3.7 | 1.4 (stack) | 3.0 – 3.1 |
| AC Round-Trip Efficiency (%) | 84 – 88 | 86 – 90 | 68 – 75 | 80 – 85 |
| Cycle Life (at 80% DoD, 25°C) | 6,000 – 10,000 | 3,000 – 4,500 | 15,000 – 20,000 | 3,000 – 5,000 |
| Thermal Runaway Initiation (°C) | 270 | 210 | Non-flammable | 250 |
| Ideal Discharge Duration | 1 – 4 hours | 1 – 2 hours | 6 – 12 hours | 1 – 4 hours |
| Flammability Classification | Low (self-extinguishing vapour) | Severe (oxygen-releasing cathode) | Zero (aqueous electrolyte) | Low |
While vanadium redox flow systems offer practically infinite cycle life for long-duration storage, their lower round-trip efficiency and large footprint make LFP the dominant choice for solar integration up to 4-hour discharge durations.
Safety, Thermal Control, and Compliance Standards
Safety systems for storing energy in batteries must control internal temperatures and detect early off-gas venting before cell anomalies propagate into uncontained thermal runaway events.
Modern utility enclosures use active liquid cooling rather than forced air. Liquid coolant manifolds, circulated directly against cell broad faces, maintain internal temperature deltas under 3°C across an entire 20-foot container. Engineering specifics on chillers and flow balancing are detailed in our battery cooling systems engineering guide.
System specifications must require compliance with strict international codes:
- UL 9540A: Evaluates fire propagation risk from cell level to module, rack, and unit levels. Testing confirms that thermal runaway in one cell will not propagate to adjacent cells.
- IEC 62933-5-2: Defines electrical and functional safety requirements for grid-integrated utility-scale BESS, mandating multi-level insulation monitoring and emergency trip loops.
- NFPA 855: Dictates spatial separation (minimum 3 metres between containers) and maximum allowable stored energy per fire area (typically 600 kWh without engineered deflagration and suppression systems).
- IEC 62619: Specifies industrial lithium cell testing under forced overcharge, internal short-circuit, and high-temperature operating limits.
Next steps: specifying and sourcing
When specifying equipment for a utility-scale battery installation, project developers must furnish detailed electrical single-line diagrams, utility interconnection voltages, export duration requirements, and local ambient extremes. Review our factory-built solutions including the containerised energy storage system, pre-integrated liquid-cooled ESS container, and balance-of-plant transformer substation platforms. Sourcing packages should include full technical data sheets, battery degradation curves under regional thermal conditions, and UL 9540A type test certificates. To discuss project-specific sizing, container layouts, or factory witness testing, visit our dedicated quote request page to connect with our electrical application engineers.
Frequently asked questions
does a battery system have energy
Yes, a battery system possesses energy stored in the form of chemical potential within its electrode active materials. This potential generates electrical current when an external load is connected, allowing ions to migrate across the electrolyte while electrons flow through the external circuit.
How does storing energy in batteries benefit a solar farm?
Storing energy in batteries allows a solar farm to capture peak midday generation that would otherwise be curtailed by grid limits. It enables operators to time-shift export to high-tariff evening hours, stabilise voltage fluctuations, and provide fast frequency response.
What is the typical round-trip efficiency of utility-scale battery farms?
Utility-scale battery farms using lithium iron phosphate (LFP) chemistry typically achieve an AC-to-AC round-trip efficiency between 83% and 88%. This metric accounts for internal cell resistance, bi-directional inverter switching losses, transformer impedance, and parasitic cooling loads.
Why is LFP preferred over NMC for renewable energy storage?
LFP is preferred due to its higher thermal runaway threshold (around 270°C compared to 210°C for NMC), longer cycle life exceeding 6,000 cycles, and lower risk of oxygen release during a cell failure event, making large-scale outdoor storage safer.
What causes degradation when storing energy in batteries?
Degradation is driven by mechanical stress from repetitive ion intercalation, solid electrolyte interphase (SEI) layer growth at the anode, elevated ambient temperatures, and operating at high states of charge or aggressive C-rates, which gradually deplete active lithium reserves.
