Water Suppression System Guide for Battery Energy Storage

Quick answer: A water suppression system for battery energy storage systems (BESS) utilizes controlled water delivery—via deluge sprinklers or high-pressure fine mist—to cool cascading battery cells, strip heat from runaway modules, and prevent fire spread between adjoining racks. Unlike clean gaseous agents, liquid water provides the latent heat of vaporisation (2,260 kJ/kg) required to arrest self-sustaining thermal runaway.

Large-scale grid-scale and commercial lithium-ion facilities present high-energy fire risks that gaseous extinguishing agents cannot reliably defeat alone. Once a single lithium iron phosphate (LFP) or nickel manganese cobalt (NMC) cell enters thermal runaway, internal exothermic reactions generate oxygen and heat independently of ambient atmospheric air. While clean agents extinguish open flaming, they lack the sustained volumetric heat capacity needed to penetrate sealed battery packs and halt ongoing thermal propagation. Integrating an active water fire suppression network inside or above the containerised enclosure ensures rapid cooling of surrounding structural elements and electrical assemblies.

Engineering an effective water mist fire suppression system demands precise coordination between hydraulic supply, container drainage, hazardous gas venting, and electrical isolation. Designing these systems requires understanding standard requirements such as NFPA 855 (Standard for the Installation of Stationary Energy Storage Systems), NFPA 750 (Standard on Water Mist Fire Protection Systems), and regional building codes.

Deluge vs High Pressure Water Mist Fire Suppression in BESS

Choosing between an open deluge sprinkler network and a high pressure water mist installation depends on water availability, containment space, and acceptable collateral water damage to auxiliary electrical components. Conventional water fire suppression systems rely on standard automatic deluge or pre-action sprinkler pipes delivering high volumetric flows (typically 12.2 to 20.4 L/min/m² per NFPA 13 and NFPA 855 Section 4.4.4) with droplet sizes exceeding 1,000 microns. These large droplets penetrate intense thermal updrafts through sheer kinetic momentum, flooding the rack floor and cooling structural steel.

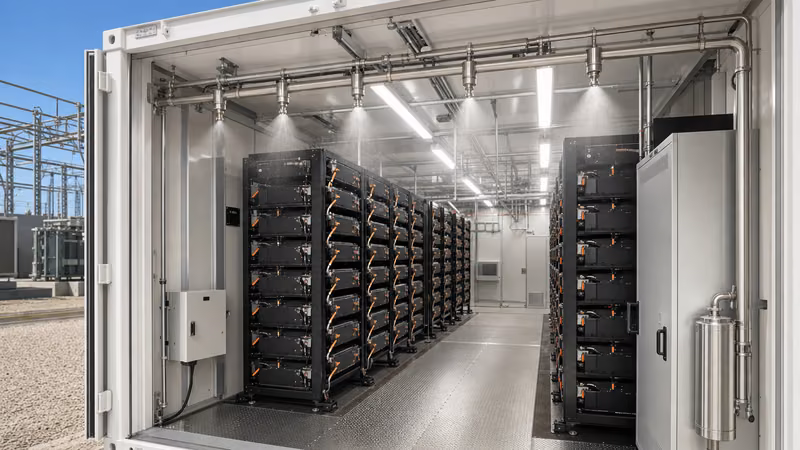

Conversely, a water mist fire suppression layout uses specially designed impingement or swirl nozzles operating at pressures above 70 bar (up to 140 bar) to shear water streams into micro-droplets with an average diameter under 100 microns. When these micro-droplets encounter high-temperature surfaces within the battery enclosure engineering space, they flash instantly into steam, expanding their volume by approximately 1,700 times. This phase transition absorbs 2,260 kJ of energy per kilogram of water while displacing oxygen directly at the flame front without smothering entire compartments below human life-safety thresholds.

For remote renewable sites governed by rigorous environmental siting constraints, managing millions of litres of potentially contaminated fire run-off water poses significant civil engineering challenges. Implementing an engineered mist suppression system reduces total water inventory by 60% to 80% compared to open deluge piping, making compact on-site water storage tanks feasible.

Water Fire Suppression System Design Standards: NFPA 855 and NFPA 750

Compliance with NFPA 855 Section 4.4 and NFPA 750 defines the performance, hydraulic verification, and pipework criteria for stationary energy storage fire protection. NFPA 855 requires automatic water suppression systems for all indoor BESS installations and outdoor modular systems sited within minimum separation distances from exposures, as detailed in our guide to BESS location engineering. The baseline design standard for open deluge or pre-action systems refers directly to NFPA 13 extra hazard group densities, unless full-scale burn testing to UL 9540A proves that a lower density controls propagation.

When deploying an nfpa water mist system, engineers must follow NFPA 750 Table 5.2.2, which classifies water mist equipment into three distinct pressure regimes:

• Low-pressure systems: Distribution piping operates at pressures equal to or less than 12.1 bar (175 psi), typically using standard schedule 40 piping and low-velocity open nozzles.
• Intermediate-pressure systems: Operating pressures range from 12.1 bar to 34.5 bar (175 psi to 500 psi), requiring reinforced fittings and specialised dual-fluid or pressure-assisted spray heads.
• High-pressure systems: Operating pressures exceed 34.5 bar (500 psi), commonly running between 70 bar and 140 bar using cold-drawn AISI 316L stainless steel tubing, compression fittings, and tungsten carbide nozzle orifices.

For containerised energy storage, high-pressure water mist fire extinguishing systems provide superior performance because fine droplets circulate uniformly through dense battery racking without requiring direct line-of-sight hydraulic coverage to every internal cell casing.

Technical Comparison: Water Suppression System Technologies

A direct technical comparison demonstrates how standard deluge systems contrast with intermediate and high-pressure mist fire suppression networks across key operational parameters.

While high-pressure installations involve higher capital expenditure for positive-displacement plunger pumps and stainless steel lines, they eliminate the need for heavy civil retention ponds to collect contaminated fire-fighting run-off.

Hydraulic Sizing Calculation for Containerised Water Mist Fire Protection

Determining the hydraulic parameters for a water mist fire protection system inside a standard 40-foot containerised BESS requires calculating volumetric nozzle delivery and total reservoir capacity. Consider a 12.19 m (L) × 2.44 m (W) × 2.90 m (H) enclosure with an internal footprint area of 29.74 m² and a gross volume of 86.25 m³. The battery racks occupy 45% of the interior volume, leaving a net air volume of 47.44 m³.

According to validated fire test parameters matching NFPA 750 and UL 9540A metrics, the design requires a specific area discharge density of 2.5 L/min/m² across the battery zone floor footprint for a minimum design discharge duration of 30 minutes to prevent thermal runaway re-ignition:

1. Calculate Total System Flow Rate (Q):
   Q = Floor Area × Design Density = 29.74 m² × 2.5 L/min/m² = 74.35 L/min
2. Determine Nozzle Count and Sizing: Selecting a high-pressure water mist sprinkler nozzle with a discharge coefficient of K = 0.85 L/min/bar^0.5 operating at a nozzle base pressure (P) of 100 bar:
   q_nozzle = K × √(P) = 0.85 × √(100) = 8.5 L/min per nozzle
   Number of nozzles required = 74.35 L/min ÷ 8.5 L/min ≈ 8.75 (round up to 9 nozzles, spaced uniformly in a 3 × 3 ceiling grid along the maintenance aisle and rack fascias).
3. Calculate Adjusted Flow Rate (Q_act):
   Q_act = 9 nozzles × 8.5 L/min = 76.5 L/min (1.275 L/s)
4. Calculate Total Water Storage Reservoir (V_storage): Adding a 15% safety margin for pre-discharge line filling and pressure stabilisation over the 30-minute operational envelope:
   V_storage = (76.5 L/min × 30 min) × 1.15 = 2,295 L × 1.15 = 2,639.25 Litres

Compared to a standard deluge system requiring over 18,000 litres of water for the same 30-minute run time, this mist fire sprinkler system calculation demonstrates how high-pressure atomisation fits within compact skid tanks, preserving space for primary battery modules and auxiliary battery cooling systems.

Engineering Integration: Gas Scrubbing, Ventilation, and Electrical Isolation

A water mist fire system provides benefits beyond cooling by actively scrubbing flammable and toxic gases generated during cell decomposition. During a thermal runaway event, lithium-ion cells vent carbon monoxide (CO), hydrogen (H2), methane (CH4), and hydrofluoric acid (HF). The high surface-area-to-volume ratio of micro-droplets emitted by a mist sprinkler system creates intimate contact with the gas phase, absorbing and condensing soluble acid gases such as HF out of the enclosure atmosphere.

However, water suppression systems must be interlocked with the overall plant control architecture to avoid creating secondary electrical fault hazards. The system requires an automatic sequence of operations:

1. Early Stage Detection: Off-gas detection sensors (monitoring H2, CO, and VOCs) signal an alarm before flaming occurs, isolating the offending string via high-voltage DC contactors.
2. HVAC and Vent Shut-down: Enclosure ventilation dampers snap shut to seal the volume for agent concentration or mist saturation, preventing external air ingress.
3. Electrical Trip Confirmation: The container main circuit breaker trips open, isolating the battery banks from the upstream power conversion system (PCS) and auxiliary transformers, similar to protective schemes used in transformer fire protection system installations.
4. Pre-action or Mist Activation: Upon two-stage smoke and heat verification (cross-zoned thermal imaging or aspirating smoke detection), the water mist suppression system discharge valve opens, driving pressurised water through the stainless distribution manifold.

Because deionised or filtered micro-mist presents high dielectric resistance compared to solid water streams, accidental spray into adjacent low-voltage control cabinets does not create severe phase-to-phase short circuits, provided clearances comply with NFPA 750 Table 5.3 electrical breakdown tables.

Specification and Factory Inspection Checklist for BESS Water Suppression Systems

Procurement engineers and EPC contractors should utilize this comprehensive checklist during factory acceptance testing (FAT) and field commissioning of a fire mist system skid.

Conducting pneumatic blast clearing before connecting fine mist nozzles ensures that metal swarf, cutting oils, and installation debris do not foul delicate high-pressure swirl chambers during emergency activation.

Next steps: specifying and sourcing

Specifying a water suppression system for industrial energy storage requires balancing enclosure footprint, hydraulic availability, and electrical isolation clearances. Our engineering team designs factory-integrated fire protection solutions for modular containerised units. Review our utility-scale energy storage system assemblies, explore our turnkey liquid cooled ESS container options, or coordinate matching distribution switchgear via our HV/LV switchgear portfolio. To discuss site layouts, water supply sizing, or custom suppression skids compliant with NFPA 855, send your project single-line drawings and enclosure dimensions to our applications engineers via the quote request page or our contact page.
