Key takeaways
- A standard industrial battery enclosure requires minimum IP55 or NEMA 3R ingress protection for outdoor installations, escalating to NEMA 4X in severe marine environments.
- Structural load calculations for energy storage racking must support cell mass densities exceeding 400 kg/m² while withstanding seismic forces per IEEE 693 High Performance levels.
- Thermal management transitions from forced-air HVAC to closed-loop liquid cooling plates when rack energy densities exceed 100 kWh/m³ to maintain cell temperature deltas under 3°C.
- Mandatory safety integration includes NFPA 855 spatial clearance, UL 9540A unit-level fire test certification, multi-stage gas detection (H2 and CO), and NFPA 69 deflagration panels.
- Factory testing protocols demand IPX5 water ingress verification under IEC 60529 clause 14.2.5, coating salt spray endurance up to 1,440 hours per ISO 12944, and mechanical impact tests to IK10 per IEC 62262.

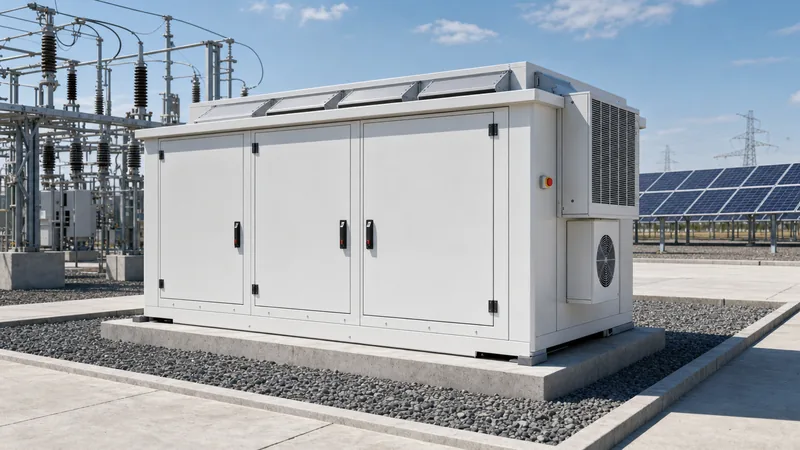

Quick answer: A battery enclosure is a structurally reinforced, environmentally sealed housing engineered to protect electrochemical cells, battery management systems (BMS), and power conversion hardware from environmental extremes, moisture, seismic loads, and thermal runaway propagation. Outdoor models deploy NEMA 3R, NEMA 4X, or IP55/IP66 ingress protection alongside integrated thermal conditioning and automated fire suppression systems.
As commercial, industrial, and utility-scale projects deploy lithium iron phosphate (LFP) and high-density cell formats, housing specifications dictate asset longevity and grid reliability. Selecting an unsuitable battery enclosure exposes sensitive electronics to ambient humidity, particulate contamination, internal hot spots, and structural failure. Whether designing a standalone solar battery enclosure or a multi-megawatt-hour utility array, engineers must balance ingress ratings, thermal loads, structural seismic performance, and stringent fire codes such as NFPA 855 and UL 9540. Discover our complete range of utility and commercial energy storage systems engineered for harsh utility environments.
Ingress Protection Ratings: NEMA and IP Standards for an Outdoor Battery Enclosure
An outdoor battery enclosure requires rigorous ingress protection to prevent moisture, dust, and airborne salts from compromising the high-voltage direct-current (DC) busbars and low-voltage control circuits. Ingress specifications are universally benchmarked against two regulatory frameworks: the international IEC 60529 standard for Ingress Protection (IP) ratings and North American NEMA 250 classifications.
For standard pad-mounted utility and commercial installations, IP55 or NEMA 3R serves as the baseline requirement. An IP55 enclosure prevents the entry of dust in quantities sufficient to interfere with operation (dust-protected) and shields the interior against low-pressure water jets projected from any direction per IEC 60529 clause 14.2.5. In harsh desert environments or coastal installations subjected to wind-driven rain and driving sand, design engineers specify IP65 or IP66 enclosures. These completely eliminate dust entry (dust-tight) and protect against heavy seas or powerful water jets.
NEMA ratings incorporate environmental degradation parameters not covered by IEC 60529, such as internal condensation formation, external ice accretion, and atmospheric corrosion. A NEMA 3R enclosure provides protection against falling dirt, rain, sleet, and snow, incorporating internal drainage paths to prevent liquid pooling. In highly corrosive coastal or industrial environments classified as high or severe marine categories under ISO 12944-2, engineers must step up to NEMA 4X enclosures constructed from 304 or 316L stainless steel, or marine-grade coated aluminium. Gasket integrity is critical; continuous poured-in-place polyurethane (PUR) or ethylene propylene diene monomer (EPDM) gaskets ensure compressive elasticity across continuous thermal cycles from -30°C to +55°C without taking a permanent compression set.
Thermal Management Architectures: HVAC vs Liquid-Cooled Outdoor Battery Cabinet
Thermal management within an outdoor battery cabinet dictates cell degradation rates, operational round-trip efficiency, and system safety. Lithium iron phosphate (LFP) cells operate with optimal electrochemistry between 20°C and 25°C. Continuous operation at temperatures exceeding 35°C accelerates solid electrolyte interphase (SEI) layer growth, degrading capacity, while internal cell temperature gradients exceeding 3°C to 5°C create non-uniform cell aging and premature string degradation.
For low to medium power density enclosures, forced-air HVAC units mounted externally or within enclosure doors provide sensible cooling. Ambient air cooling utilizes a closed-loop system where internal air circulates through a dual-chamber heat exchanger, preventing outside pollutants from entering the enclosure. However, forced-air cooling reaches its practical limit when volumetric energy density exceeds 70 to 90 kWh/m³. Air exhibits a low specific heat capacity (approximately 1.005 kJ/kg·K), necessitating large internal volumetric ducting, high fan parasitics, and substantial internal airflow channels between cell packs to manage localized hotspots.
Modern high-density energy storage relies on closed-loop liquid cooling circuits integrated into individual pack cold plates. Utilizing an ethylene glycol-water mixture (typically 50/50 by volume) circulating through aluminium micro-channel cold plates, liquid systems leverage water's high volumetric heat capacity (approximately 4.184 kJ/kg·K). This enables compact cell packaging, reduces internal temperature deltas across thousands of cells to under 2.5°C, and slashes auxiliary parasitic consumption by up to 30% compared to equivalent air-cooled enclosures. To evaluate detailed cooling designs, review our comparison of liquid-cooled vs air-cooled energy storage cabinets or consult our technical analysis on battery cooling system design.
Structural Engineering and Seismic Load Calculations for Battery Enclosure Box Design
A battery enclosure box must endure massive static loads, dynamic transport vibrations, and localized seismic acceleration forces without structural deflection. Lithium iron phosphate rack assemblies generate high mass concentrations, often exceeding 400 to 600 kg per square metre of enclosure footprint. Structural engineers must calculate static dead loads, wind shear, snow loading, and seismic acceleration using finite element analysis (FEA).
Seismic certification requires compliance with IEEE 693 (Recommended Practice for Seismic Design of Substations) or the International Building Code (IBC). Under IEEE 693 "High Seismic Performance Level", the enclosure frame and its anchoring mechanisms must withstand ground accelerations up to 0.5g without structural failure or dislodgement of battery modules. The base frame typically incorporates cold-formed structural steel channels (such as C-sections or welded hollow structural sections) with a minimum thickness of 3.0 mm to 4.5 mm, anchored to a concrete pad using heavy-duty mechanical expansion bolts or post-installed epoxy adhesive anchors calculated according to ACI 318 Chapter 17.
To calculate overturning moments caused by high wind shear on a pad-mounted outdoor enclosure, apply the following design formula:
M_overturn = F_wind × (H / 2)
Where F_wind = q_z × G × C_f × A_f per ASCE 7-16. Consider a solar battery enclosure outdoor installation with an exposed frontal area (A_f) of 4.5 m², height (H) of 2.2 m, a velocity pressure (q_z) of 1,250 Pa (corresponding to a 160 km/h wind speed), a gust effect factor (G) of 0.85, and a force coefficient (C_f) of 1.3:
F_wind = 1,250 × 0.85 × 1.3 × 4.5 = 6,215.6 N (6.22 kN)
M_overturn = 6,215.6 N × (2.2 m / 2) = 6,837.2 N·m (6.84 kN·m)
The base anchorage configuration must provide a combined resisting moment (accounting for the minimum operating dead weight of the battery enclosure minus vertical seismic uplift) that maintains a factor of safety of at least 1.5 against mechanical overturning.
Fire Mitigation, NFPA 855 Codes, and Explosion Venting in a Solar Enclosure
Fire safety integration is the most heavily regulated aspect of solar enclosure design due to the risk of lithium-ion thermal runaway. The primary regulatory benchmark for stationary energy storage installations is NFPA 855 (Standard for the Installation of Stationary Energy Storage Systems), alongside UL 9540 (System Certification) and UL 9540A (Large-Scale Fire Testing). When an abnormal internal event or external physical stress causes a cell separator to fail, decomposition reactions generate toxic, flammable off-gases—including hydrogen (H2), carbon monoxide (CO), methane (CH4), and ethylene (C2H4).
NFPA 855 mandates a maximum unit capacity of 50 kWh for individual commercial lead-acid or nickel systems, and up to 250 kWh for listed lithium-ion enclosures, requiring minimum separation distances of 0.91 metres (3 feet) between individual enclosures and between enclosures and surrounding walls, unless large-scale fire testing per UL 9540A demonstrates that fire cannot propagate between adjacent units. Advanced industrial enclosures deploy multi-stage detection systems: early-stage off-gas sensors detecting trace hydrogen (at 10-50 ppm) or carbon monoxide before smoke or thermal thresholds are reached, triggering localized BMS disconnection and auxiliary exhaust ventilation.
Explosion protection requires compliance with NFPA 68 (Guide for Venting of Deflagrations) and NFPA 69 (Standard on Explosion Prevention Systems). Enclosure roofs or rear panels incorporate calibrated burst discs, spring-loaded hinged relief hatches, or structural deflagration panels. These mechanical panels are engineered to release at low internal differential pressures (typically between 2 kPa and 5 kPa), safely directing high-pressure blast waves and burning off-gases upward into unoccupied zones and preventing enclosure frame fragmentation. Fire suppression usually incorporates an inert gas clean agent (such as FK-5-1-12) or total flooding aerosol, integrated directly with external fire alarm control panels (FACP). Explore modern utility installations in our guide to utility-scale energy storage design and see our factory liquid-cooled energy storage containers.
Material Selection and Corrosion Protection: Engineering an Outdoor Battery Box Solar Enclosure
Material selection for an outdoor battery box solar deployment determines structural resilience and preventative maintenance cycles over a 20- to 25-year operational lifecycle. Ambient atmospheric conditions, airborne salinity, ultraviolet (UV) radiation, and industrial chemical contaminants cause premature oxidation if base alloys and surface treatment chemistries are incorrectly matched to project coordinates.
Galvannealed steel (such as sheet steel with a zinc-iron alloy coating, ASTM A653 ZF120/ZF180) and hot-dip galvanized carbon steel (minimum G90 coating) represent the cost-effective standard for inland C2 and C3 environments per ISO 12944. Marine installations, salt-mist coastal areas, and petrochemical zones demand marine-grade 5052-H32 aluminium or austenitic 304/316L stainless steel. Aluminium yields a structural weight reduction of approximately 50% compared to carbon steel, while naturally forming a passivating oxide layer that resists aggressive corrosion.
Surface finishing processes require rigorous multi-stage preparation. Carbon steel substrates undergo zinc-phosphate or zirconium conversion pre-treatment, followed by an electrodeposition cathodic epoxy primer (15 to 25 microns) and an electrostatically applied architectural-grade polyester or polyurethane powder coat (60 to 90 microns). This multi-layer finish must achieve a minimum of 1,000 to 1,440 hours of neutral salt spray testing under ASTM B117 or ISO 9227 without blistering or rust creep exceeding 1 mm from an artificial scribe. Exterior coatings must exhibit high Solar Reflectance Index (SRI) values (typically SRI ≥ 78 using pure white RAL 9003 or light grey RAL 7035) to minimize solar thermal loading on internal HVAC and liquid chilling plants.
Technical Comparison: Engineering Specs for Industrial Battery Enclosure Types
Selecting the optimal enclosure configuration requires matching mechanical, thermal, and electrical metrics directly to the target operating environment. The following engineering comparison illustrates the baseline specifications across four standard categories of industrial energy storage enclosures.
| Engineering Parameter | Outdoor Battery Box (Small) | Commercial Outdoor Cabinet | Liquid-Cooled High-Density Cabinet | Walk-in Prefabricated BESS Container |
|---|---|---|---|---|
| Nominal Energy Capacity | 5 kWh – 30 kWh | 50 kWh – 150 kWh | 150 kWh – 400 kWh | 1 MWh – 5 MWh |
| Ingress Protection Rating | IP55 / NEMA 3R | IP55 / NEMA 3R | IP55 / NEMA 4X (Opt.) | IP54 / IP55 |
| Structural Frame Material | 1.5 mm Galvanised Steel | 2.0 mm Powder-Coated Steel | 2.5 mm High-Strength Steel | 4.5 mm Structural Weathering Steel |
| Thermal Control Architecture | Natural Convection / Fan | Split Direct-Expansion HVAC | Liquid Cold Plate Chiller | Redundant Dual HVAC Systems |
| Internal Temp Gradient (ΔT) | < 6.0°C | < 4.0°C | < 2.5°C | < 3.0°C |
| Fire Suppression Agent | Aerosol / Dry Powder | FK-5-1-12 Clean Agent | Pack-Level Direct Aerosol/Water | Clean Agent + Pre-Action Sprinkler |
| Deflagration Relief Standard | Vented Louvres | NFPA 68 Blast Venting | NFPA 68 Panels (<3 kPa) | Roof NFPA 68 Structural Hatches |
| Seismic Qualification Level | IBC Zone 2 | IEEE 693 Moderate | IEEE 693 High Performance | IEEE 693 High Performance |
| Typical Weight Density (kg/m²) | 150 – 250 kg/m² | 300 – 450 kg/m² | 550 – 850 kg/m² | 600 – 900 kg/m² |
For large-scale grid storage architectures that combine multiple enclosures into complete systems, refer to our comprehensive guide on commercial energy storage engineering and technical instructions on how to specify a containerised battery energy storage system.
Cabling, Cable Entry, and Grounding Architecture in an Outdoor Battery Enclosure Box
Electrical cabling and grounding design inside an outdoor battery enclosure box requires rigorous isolation between high-voltage direct current (HVDC) power circuits and low-voltage sensitive control signal lines. Electromagnetic interference (EMI) generated by external power conversion systems (PCS) and high-frequency inverter switching can corrupt CAN bus, Modbus RS485, and Ethernet telemetry channels if routes are shared.
Cable transit frames must maintain the enclosure's overall IP rating. Cable entry is ideally executed through bottom gland plates manufactured from non-ferrous materials (such as aluminium or brass) to prevent eddy current heating induced by alternating or high-ripple DC currents passing through a continuous magnetic steel perimeter. Modular transit frames with elastomeric sealing modules accommodate unstripped cables, delivering certified IP66 sealing, mechanical pull-out strain relief, and firestop resistance tested up to E-120 ratings per EN 1366-3.
Grounding and bonding architectures must comply with IEC 60364-5-54 and IEEE 80. Every individual structural panel, hinged door, equipment rack, and cable tray must be bonded to the central copper protective conductor ground busbar (PE) using tin-plated braided copper bonding straps with a minimum cross-sectional area of 16 mm² to 25 mm². This design ensures low impedance paths during ground-fault events. Doors carrying mounted electrical components (such as HVAC controls, human-machine interfaces, or indicators) require continuous bonding jumpers to the main enclosure frame to eliminate any risk of touch-potential hazard for maintenance technicians. For overall battery protection schematics, study our guide on battery monitoring system design.
Quality Verification: Factory Acceptance Testing and Inspection Checklist
Factory Acceptance Testing (FAT) validates that a newly manufactured enclosure conforms to mechanical, environmental, and safety specifications prior to packaging and dispatch. Quality assurance engineers must inspect both structural dimensional tolerances and active subsystems against verified engineering drawings and international testing procedures.
Follow this standardized five-step sequence during factory quality verification:
- Dimensional and Coating Inspection: Measure frame squareness, diagonal variance (tolerances under ±2.0 mm), and weld seam continuity. Measure dry film thickness (DFT) across at least 20 distributed test points using an electromagnetic gauge per ISO 2808, ensuring compliance with specified coating thicknesses (e.g., minimum 80 μm).
- Mechanical and Enclosure Seal Verification: Verify door closing torque, hinge alignment, multi-point handle locking operation, and continuous compression along PUR/EPDM gaskets. Confirm internal clearances per NFPA 855 and IEEE 693.
- Water Ingress and Pressure Integrity Testing: Execute a water spray test according to IEC 60529 (IPX5 / IPX6) utilizing a calibrated 12.5 mm nozzle delivering 100 litres per minute at 100 kPa from a distance of 2.5 to 3.0 metres for 3 minutes. Inspect all internal seams, cable entry transits, and HVAC interfaces for moisture penetration.
- Dielectric and Insulation Testing: Perform high-voltage insulation resistance testing on integrated auxiliary circuits and ground busbars per IEC 61439-1 clause 10.9, verifying insulation resistance exceeds 100 MΩ at 1,000 V DC.
- Functional Safety and Thermal Verification: Energize the thermal management plant (HVAC or liquid chiller), verifying fan rotations, temperature setpoint responses, pressure alarms, gas detection relay trip outputs, and emergency shutdown (EPO) loop interlocks.
Next Steps: Specifying and Sourcing
When specifying a battery enclosure for commercial, industrial, or microgrid applications, clear documentation prevents costly on-site integration failures. Prepare a comprehensive RFQ dossier detailing: internal battery cell rack mass, target footprint dimensions, maximum thermal dissipation loads (in kW), site ambient temperature limits, seismic acceleration criteria (IEEE 693), required NEMA or IP ingress ratings, and explosion venting compliance per NFPA 68. Review our specialized energy storage systems or submit your technical specifications through our request for quote page. Our engineering group works alongside project managers and consultants to deliver custom-fabricated, fully compliant enclosure hardware tailored to your project requirements.
Frequently asked questions
What is the difference between a NEMA 3R and NEMA 4X battery enclosure?
A NEMA 3R battery enclosure provides standard outdoor protection against falling rain, sleet, snow, and external ice formation, making it suitable for typical inland commercial installations. A NEMA 4X enclosure provides superior ingress protection against windblown dust, driving rain, and continuous splashing water, while also incorporating corrosion-resistant materials such as 304 or 316L stainless steel for harsh coastal, chemical, or marine environments.
Why do high-density battery enclosures require NFPA 68 deflagration panels?
NFPA 68 deflagration panels provide rapid structural pressure relief during an unforeseen lithium-ion thermal runaway event. When battery off-gases like hydrogen and carbon monoxide ignite, deflagration vents release internal blast pressure at low setpoints (typically under 3 to 5 kPa), venting forces safely upward and preventing catastrophic enclosure rupture or lethal shrapnel fragmentation.
How does liquid cooling improve battery enclosure performance compared to HVAC?
Liquid cooling utilizes direct-contact micro-channel cold plates beneath battery cells, providing up to four times the volumetric heat capacity of air cooling systems. This allows enclosures to maintain tighter cell temperature gradients (under 2.5°C), prevents localized hot spots, consumes up to 30% less parasitic auxiliary power, and enables significantly higher volumetric cell packaging densities within the enclosure.
What base material provides the longest lifespan for an outdoor battery box solar system?
Marine-grade 5052-H32 aluminium and 316L stainless steel deliver the longest operating lifespan for outdoor solar battery enclosures, frequently exceeding 25 years without structural degradation. In less aggressive inland environments, heavy-gauge hot-dip galvanized or galvannealed steel treated with a multi-stage cathodic epoxy primer and architectural polyester powder coating provides highly durable, cost-effective corrosion resistance.
What clearances are mandated around an outdoor battery cabinet by NFPA 855?
NFPA 855 mandates a baseline separation clearance of 0.91 metres (3 feet) between individual stationary battery enclosures, as well as between enclosures and adjacent walls or building openings. This clearance can only be reduced if the specific system architecture has undergone full-scale UL 9540A unit-level fire testing verifying that thermal runaway and fire cannot propagate across smaller spatial gaps.
