Key takeaways
- A standard 4kW solar system produces between 12 kWh and 18 kWh of electrical energy per day under typical irradiance conditions of 3.5 to 5.0 peak sun hours.
- Integrating a 4 kWh battery provides approximately one to two hours of full nominal output backup or captures roughly 25% to 35% of surplus daytime generation.
- Derating factors outlined in IEC 61724-1 reduce standard test condition ratings by 18% to 25% across real-world cabling, thermal, and inverter conversion stages.
- A 4kW system operates at low voltage (230V/400V single or three-phase), whereas a 4000 kW solar system requires medium-voltage transformation up to 11 kV to 33 kV.
- Lithium iron phosphate battery chemistry governed by IEC 62619 delivers over 6,000 cycles at 80% depth of discharge for stationary storage applications.
Quick answer: A 4kW solar system consists of approximately 9 to 11 photovoltaic modules rated between 400W and 450W, generating an average of 13 to 17 kWh of direct current electricity per day. Paired with a hybrid inverter and an optional battery energy storage unit, it supplies residential loads or light commercial distribution boards at standard low voltage.
For electrical contractors, facility designers, and solar engineers, sizing a generation asset requires precise evaluation of irradiance, thermal degradation, inverter matching, and storage dispatch. While larger commercial installations scale to MW capacities, understanding the foundational engineering of a 4kW solar system provides the benchmark for small-scale microgrids, modular off-grid infrastructure, and residential feed-in connections. Determining whether this capacity meets operational profiles depends on peak coincident demand, load duration curves, and the balance-of-plant architecture selected during the procurement phase.
Daily Energy Yield and Calculations for a 4kW Solar System
A 4kW solar system produces between 4,200 kWh and 5,800 kWh of alternating current electricity annually, depending on the regional solar resource and installation orientation. Calculating the net yield requires applying derating factors to the nominal nameplate capacity measured at Standard Test Conditions (STC: 1000 W/m² irradiance, 25°C cell temperature, and AM 1.5 spectrum).
Per the performance metrics defined in IEC 61724-1, actual energy delivery is governed by the Performance Ratio (PR), which accounts for thermal losses, soiling, wire resistance, and inverter conversion efficiency. In field conditions where module temperatures reach 45°C to 55°C, a crystalline silicon panel with a temperature coefficient of -0.35%/°C incurs a 7% to 10.5% loss in power. Additional losses include direct-current (DC) cabling drops (1% to 2% according to IEC 60364-7-712), dirt accumulation (2% to 4%), and inverter conversion losses (2% to 3%).
Consider a baseline installation using a 4.0 kW direct-current array installed at a 30-degree tilt:
- Array Nameplate Power ($P_{STC}$): 4.0 kWp
- Site Resource: 4.2 Peak Sun Hours (PSH) per day (equivalent to 4.2 kWh/m²/day)
- System Performance Ratio ($PR$): 0.78 (78% net efficiency)
The daily yield equation yields:
Daily Yield = P_{STC} × PSH × PR = 4.0 kW × 4.2 h × 0.78 = 13.10 kWh/day
Over a full calendar year, this generation profile delivers roughly 4,783 kWh. To establish whether this output satisfies demand, engineers evaluate our guide on what size solar system do I need to align seasonal yield variations with baseline facility metering.
Matching Inverter and Storage: Integrating a 4 kWh Battery

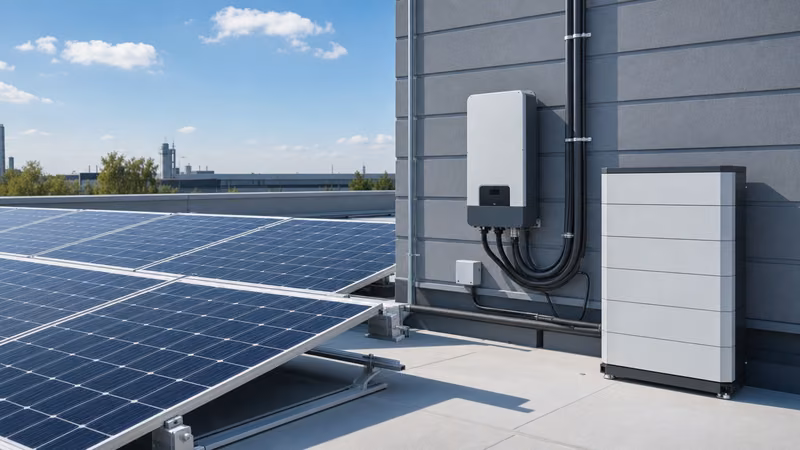

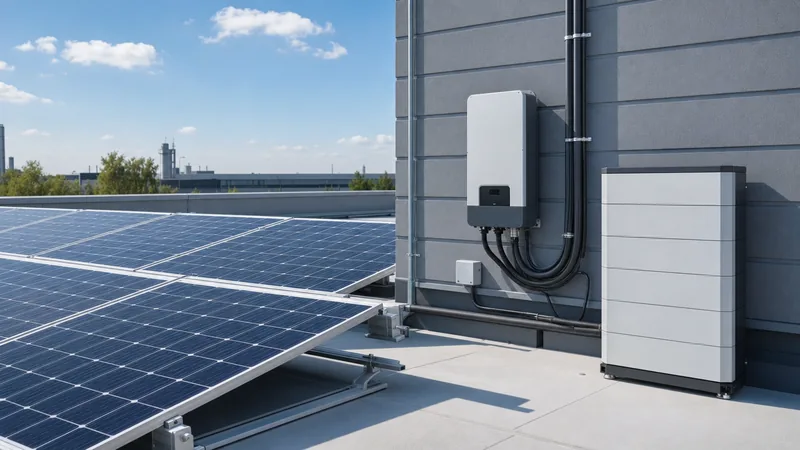

Integrating a 4 kWh battery with a 4kW PV array provides essential buffer capacity for essential single-phase loads during grid outages or high-tariff peak windows. Selecting the energy storage interface requires balancing DC-coupled architectures against AC-coupled configurations to ensure total harmonic distortion (THD) remains below 3% per IEEE 519 standards.
When specifying a 4 kwh battery, storage capacity directly governs usable autonomy. Using modern lithium iron phosphate (LiFePO4) cells conforming to IEC 62619, engineers can safely utilise an 80% to 90% Depth of Discharge (DoD). This delivers approximately 3.2 kWh to 3.6 kWh of usable energy. If a facility draws a sustained critical load of 800W—supporting communications, monitoring, refrigeration, and security circuits—a fully charged 4 kWh pack sustains operations for approximately 4 to 4.5 hours without solar input.
For low-voltage installations, developers often deploy a 48V nominal battery rack connected to a hybrid power conversion unit. Review our technical analysis on the 48V solar battery engineering guide for busbar sizing and short-circuit withstand values. For larger installations requiring dedicated containerised power storage, industrial engineers reference our comprehensive battery storage engineering guide to evaluate cell-level balancing, thermal runaway mitigation, and central supervisory control.
Scale Comparison: 4kW Solar System vs 4000 kW Solar System
A 4kW solar system operates at low voltage for point-of-load consumption, whereas a 4000 kW solar system functions as an industrial utility-scale power plant feeding directly into medium-voltage distribution grids. Understanding the boundary conditions between small-scale arrays and a 4000 kw solar system clarifies how balance-of-plant requirements shift as nominal capacity expands by three orders of magnitude.
At 4 kW, the primary electrical goal is compliance with local micro-generation standards such as IEEE 1547 or EN 50549-1, using direct low-voltage connection at 230V single-phase or 400V three-phase. In contrast, a 4000 kW (4 MW) solar installation requires extensive utility interconnection infrastructure. The combined output of multiple central or string inverters must pass through step-up transformers (typically stepping 600V–800V up to 11 kV, 22 kV, or 33 kV) and medium-voltage switchgear boards equipped with vacuum circuit breakers, numerical relays, and SCADA monitoring.
The physical footprint expands from roughly 20 to 24 square metres for a 4kW installation up to approximately 16,000 to 24,000 square metres (1.6 to 2.4 hectares) for a 4000 kW project, demanding rigorous fault ride-through (FRT) compliance, automated reactive power injection (VAR support), and transformer substation integration.
Technical Specification and Component Selection Matrix
Selecting balance-of-plant components for a 4kW generation system requires balancing efficiency, lifecycle durability, and thermal resilience under harsh ambient conditions. High-efficiency monocrystalline PERC or TOPCon panels paired with Tier-1 power electronics maximise energy harvest across constrained surface areas.
The following engineering matrix outlines the technical specifications for components across a standard 4kw solar system installation incorporating battery energy storage:
| System Parameter | Standard 4kW System Specification | 4kW System with 4 kWh Battery | Industrial Scale (4000 kW Reference) |
|---|---|---|---|
| Array Capacity (STC) | 4.00 kWp – 4.40 kWp | 4.00 kWp – 4.40 kWp | 4,000 kWp (4.0 MWp) |
| Panel Count & Rating | 10 × 410W Monocrystalline | 10 × 410W Monocrystalline | 7,200+ × 550W Bifacial |
| Operating System Voltage | 300V – 500V DC (String) | 300V – 500V DC (String) | 1,000V – 1,500V DC |
| Inverter Configuration | 3.68 kW – 4.0 kW Grid-Tied | 4.0 kW Hybrid Inverter | Multiple 250 kW String / Central |
| Battery Storage Chemistry | N/A | LiFePO4 (LFP) | LFP / Liquid-Cooled Container |
| Nominal Battery Capacity | N/A | 4.0 kWh – 5.12 kWh | 4,000 kWh – 8,000 kWh (BESS) |
| Grid Connection Voltage | 230V 1-Phase / 400V 3-Phase | 230V 1-Phase / 400V 3-Phase | 11 kV – 33 kV via MV Substation |
| Required Footprint | 20 m² – 24 m² | 20 m² (Roof) + 0.5 m² (BESS) | 16,000 m² – 24,000 m² |
| Applicable Standards | IEC 61215, IEC 62109 | IEC 62619, UN 38.3, UL 1973 | IEC 62271-200, IEEE 1547, IEC 60076 |
For operations implementing commercial-grade storage solutions, our analysis of lithium solar batteries covers degradation models, C-rates, and cell balancing architectures required for industrial durability.
Installation, Protection, and Commissioning Steps
Commissioning a 4kW solar system demands adherence to rigorous safety standards, including verification of open-circuit voltages, insulation resistance, and earth fault protection. Failure to execute correct verification protocols introduces fire hazards and premature inverter degradation.
Field technicians should execute the following testing and verification procedure conforming to IEC 62446-1 prior to energising the installation:
- Isolation and Mechanical Inspection: Confirm the structural mounting integrity, torque specifications of module clamps (typically 8 to 10 N·m), and ensure DC disconnect switches are locked in the OFF position.
- Polarity and Open-Circuit Voltage Verification: Measure the open-circuit voltage ($V_{oc}$) of each string using a calibrated digital multimeter rated for CAT III/CAT IV installations. Verify that measured $V_{oc}$ matches calculated design values within a 5% tolerance adjusted for ambient temperature.
- Short-Circuit Current ($I_{sc}$) Testing: Verify string short-circuit current using a suitable PV test instrument or calibrated DC clamp meter to ensure no internal cell faults or reverse polarity diodes exist within the array strings.
- Insulation Resistance Testing: Perform DC insulation resistance tests between active conductors (DC+ and DC-) and ground at test voltages of 500V or 1,000V DC. Resistance must exceed the minimum 1.0 MΩ threshold established in IEC 62446-1 Clause 5.4.3.
- Earth Continuity and Bonding Check: Measure the continuity of protective earthing conductors between the module frames, mounting rail structure, inverter casing, and main earthing terminal (MET). Continuity resistance should remain below 0.5 Ω.
- AC Interconnection and Phase Rotation: Verify line voltage, neutral stability, and correct phase rotation at the AC isolator before engaging the inverter. Confirm residual current device (RCD) ratings meet inverter manufacturer requirements (typically Type B or Type A with 30mA trip threshold).
- Functional Energisation and Battery Commissioning: Close the DC isolators followed by the AC breakers. If integrating a battery storage unit, verify communication protocols (CAN / RS485) between the battery management system (BMS) and the inverter, checking cell temperature and State of Charge (SOC) telemetries.
Next steps: specifying and sourcing
When specifying equipment for a residential or light-commercial 4kW generation system or preparing engineering packages for MW-scale deployments, precise equipment datasheets streamline procurement. Prepare your detailed single-line diagrams (SLD), site irradiance studies, grid interconnection requirements, and storage autonomy expectations.
Our engineering team designs and manufactures certified electrical power solutions, including complete energy storage systems, engineered HV/LV switchgear, and fully integrated transformer substations compliant with IEC, ANSI/IEEE, and CE specifications. To discuss procurement specifications, obtain component sizing models, or request factory direct pricing, submit your project schedule through our quote request page or reach out directly via our contact page.
Frequently asked questions
How much electricity does a 4kW solar system produce per day?
A 4kW solar system generates an average of 12 kWh to 18 kWh of electrical energy per day under standard irradiance conditions. The exact yield varies based on seasonal peak sun hours, panel tilt, ambient operating temperatures, and system derating factors.
How many solar panels are needed for a 4kW solar system?
A 4kW system typically requires 9 to 11 photovoltaic panels when using modern 400W to 450W high-efficiency modules. Using lower wattage panels, such as older 330W modules, increases the required array count to 12 or 13 panels.
Can a 4kW solar system run a house off-grid?
A 4kW solar system can support modest, energy-efficient off-grid homes if paired with adequate battery storage and generator backup. However, running high-draw thermal appliances like central heat pumps or electric water heaters concurrently typically requires larger generation capacity.
What size battery is best for a 4kW solar system?
A battery capacity between 4 kWh and 10 kWh pairs best with a 4kW solar array depending on consumption goals. A 4 kWh battery provides critical evening buffer storage, whereas an 8 kWh to 10 kWh pack captures surplus daylight generation for overnight self-sufficiency.
What is the difference between a 4kW solar system and a 4000 kW solar system?
A 4kW system is a low-voltage installation designed for domestic or small commercial consumption, while a 4000 kW (4 MW) system is a utility-scale power plant. A 4000 kW plant requires medium-voltage step-up substations, dedicated switchgear, and utility grid interconnection.
How much roof space is required for a 4kW solar system?
A 4kW solar system requires approximately 20 to 24 square metres of unshaded roof space. The precise area depends on module wattage, panel dimensions, and necessary maintenance clearance per local electrical codes.
