Key takeaways
- Lithium iron phosphate (LFP) chemistry provides 6,000 or more cycles at 80% depth of discharge with superior thermal runaway resistance compared to nickel manganese cobalt (NMC) formulations.
- AC-coupled battery storage systems integrate on the low-voltage distribution busbar, making them ideal for retrofitting existing photovoltaic arrays without voiding inverter warranties.
- System sizing requires calculating both continuous running energy in kilowatt-hours and instantaneous peak starting demand in kilovolt-amperes to prevent inverter overload during motor starts.
- Compliance with IEC 62619 clause 6.3 and UL 9540A unit-level fire test criteria is mandatory for mitigating thermal runaway risks in enclosed installations.
- Active liquid cooling maintains cell temperatures within an optimal window of 25 degrees Celsius plus or minus 2 degrees, reducing internal cell degradation and extending operational lifespan.
Quick answer: Modern battery storage systems capture electrical energy from photovoltaic arrays or the grid to provide dispatchable power, peak shaving, and emergency backup. Built primarily using lithium iron phosphate (LFP) cells, these systems rely on bidirectional inverters, battery management systems (BMS), and thermal regulation to deliver round-trip efficiencies exceeding 88% over decades of service.
Integrating dedicated stationary energy storage transforms intermittent photovoltaic generation into a predictable, firm generation asset. Whether an electrical engineer designs a residential microgrid, a commercial installation, or an industrial facility, selecting the correct architecture dictates lifecycle profitability and operational safety. This guide examines the electromechanical fundamentals, system sizing methods, safety certifications, and procurement criteria required to specify an enterprise-grade battery storage deployment.

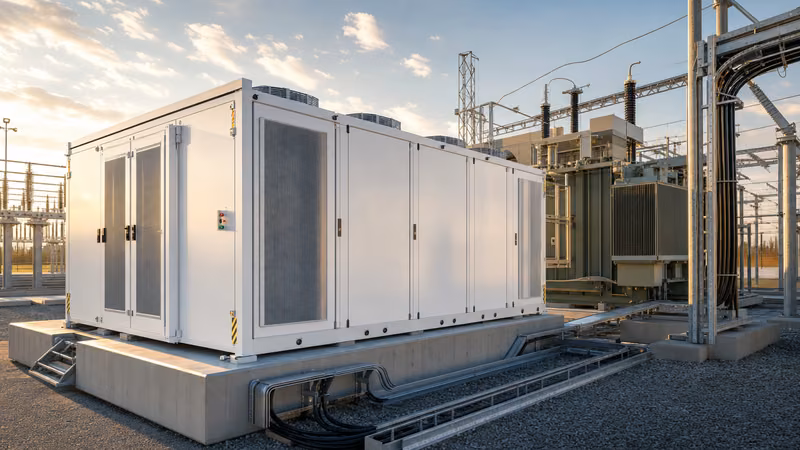

Understanding Battery Storage: Architecture and Operating Modes
A stationary battery storage system functions by converting alternating current (AC) electricity from the distribution board into direct current (DC) electrochemically stored within sealed battery cells, reversing this power conversion whenever loads require dispatch. The core physical assembly consists of individual electrochemical cells arranged in series strings to achieve target DC voltage thresholds, paralleled inside sealed modules, and managed by a multi-tiered BMS.
In standard grid-parallel operation, a solar battery storage system executes three primary operating modes: self-consumption maximisation, scheduled time-of-use tariff arbitrage, and standby grid forming. Self-consumption mode monitors export meters via bidirectional current transformers (CTs) at the point of common coupling (PCC). When solar generation exceeds building baseload, the system directs excess DC power into the solar battery bank. Conversely, when irradiance falls below consumption demand, the inverter draws energy from the battery pack to eliminate import charges from the utility grid.
During a utility outage, an automated transfer switch (ATS) mechanically isolates the installation from the primary grid within 10 to 20 milliseconds, preventing dangerous backfeeding into public infrastructure in accordance with IEEE 1547 anti-islanding regulations. Once isolated, the power conversion system (PCS) transitions from current-source mode to voltage-source mode, establishing a synthetic local reference frequency of 50 Hz or 60 Hz to sustain critical loads. For facility engineers planning centralised generation systems, pairing these systems with dedicated distribution assets requires reviewing our guide to dry-type transformer specifications and sizing.
Chemistry Comparison: Selecting the Right Solar Battery Bank
Selecting an electrochemical chemistry dictates the cycle life, degradation slope, volumetric energy density, and thermal risk profile of any energy installation. While nickel manganese cobalt (NMC) formulations were historically popular due to high gravimetric energy density in transport applications, stationary power storage has shifted almost universally toward lithium iron phosphate (LiFePO4 or LFP) and emerging sodium-ion chemistries.
LFP chemistry features an exceptionally stable olivine crystal structure with strong phosphorus-oxygen covalent bonds. This molecular structure prevents oxygen release under elevated internal temperatures, shifting thermal runaway onset thresholds past 270 degrees Celsius, compared to approximately 210 degrees Celsius for NMC chemistries. Consequently, LFP systems deliver enhanced intrinsic safety under abnormal electrical or physical stress. Furthermore, LFP cells deliver 6,000 to 8,000 cycles to 80% depth of discharge (DoD) under moderate charging rates, whereas NMC degrades toward end-of-life thresholds after 3,000 to 4,000 cycles.
| Parameter | Lithium Iron Phosphate (LFP) | Nickel Manganese Cobalt (NMC) | Lead-Carbon / AGM |
|---|---|---|---|
| Nominal Cell Voltage | 3.2 V | 3.6 V - 3.7 V | 2.0 V |
| Cycle Life (80% DoD, 0.5C) | 6,000 - 8,000 cycles | 3,000 - 4,500 cycles | 1,200 - 1,800 cycles |
| Round-Trip Efficiency | 92% - 95% | 94% - 96% | 80% - 85% |
| Thermal Runaway Onset | 270°C | 210°C | Exothermic dry-out >120°C |
| Depth of Discharge (Usable) | 90% - 100% | 80% - 90% | 50% |
| Cell-Level Energy Density | 140 - 180 Wh/kg | 220 - 260 Wh/kg | 35 - 50 Wh/kg |
For commercial facilities and residential properties evaluating a solar power battery installation, LFP represents the lowest levelised cost of storage (LCOS). Although the initial capital expense of lithium systems exceeds traditional valve-regulated lead-acid (VRLA) banks, the extended cycle longevity and deep discharge capability yield a lifecycle cost per kilowatt-hour delivered that is roughly 60% lower than lead-based chemistry.
AC Coupling vs DC Coupling in a Solar Battery Storage System
The choice between AC coupling and DC coupling determines system conversion efficiency, inverter fault tolerance, and physical installation flexibility. In a DC-coupled architecture, the pv panel battery connection occurs before the inverter stage: high-voltage DC from solar arrays feeds a maximum power point tracker (MPPT) charge controller that charges the battery bank directly along a shared DC link busbar.
DC coupling delivers high efficiency (often exceeding 96%) when directing midday solar irradiance directly into battery chemistry, as the power avoids an intermediate DC-to-AC conversion step. However, DC-coupled topologies present engineering constraints during site expansion. The MPPT voltage window must precisely match string voltages, and partial inverter failure can drop both photovoltaic generation and battery access simultaneously.
In an AC-coupled solar battery backup system, the photovoltaic array and the battery storage each possess dedicated inverters connected directly to the building LV switchboard. Photovoltaic power feeds an on-grid solar inverter, while the battery connects to an independent bidirectional storage inverter. When charging from solar, power travels from DC to AC through the solar inverter, and back from AC to DC through the battery inverter. While this double-conversion incurs a 2% to 4% round-trip penalty, AC coupling offers distinct advantages:
- Complete isolation of failures: a fault in the solar inverter does not impair the battery system from delivering emergency reserve power.
- Effortless retrofit capability: engineers can install a house battery backup without replacing existing solar grid-tie inverters or altering roof string configurations.
- Decoupled sizing: storage capacity and continuous inverter power can scale independently based on site operational demands.
Engineering Calculation: Sizing a Battery Backup for Home and Commercial Loads
Sizing an effective battery storage installation requires calculating the total daily energy requirement in kilowatt-hours (kWh) alongside the maximum peak coincident apparent power demand in kilovolt-amperes (kVA). Sizing purely for average energy consumption leads to inverter shutdown if high-draw motor loads start simultaneously during off-grid mode.
Consider an engineering calculation for a light commercial workshop or extensive residence seeking a whole home battery backup system capable of sustaining operations during an 8-hour grid disruption. The critical load schedule comprises:
- Continuous baseline electronics and controls: 1,200 W (operated 8 hours continuous = 9.6 kWh).
- Refrigeration and chilled storage: average power 800 W (cycling 50% duty over 8 hours = 3.2 kWh; inductive compressor starting power of 4,500 VA).
- Submersible water pumping: 1,500 W running load (operated 2 hours aggregate = 3.0 kWh; inductive starting surge of 6,000 VA for 3 seconds).
- Emergency lighting and security circuits: 600 W (operated 8 hours continuous = 4.8 kWh).
- Air conditioning / heat pump stage 1: 2,200 W (operated 4 hours aggregate = 8.8 kWh; locked rotor amp surge 7,000 VA).
Step 1: Calculate total net energy requirement (E_net):
E_net = 9.6 kWh + 3.2 kWh + 3.0 kWh + 4.8 kWh + 8.8 kWh = 29.4 kWh.
Step 2: Factor in round-trip efficiency (RTE = 90%) and depth of discharge margin (DoD = 85% to preserve long-term battery health):
E_gross = E_net / (RTE × DoD) = 29.4 / (0.90 × 0.85) = 29.4 / 0.765 = 38.43 kWh.
Applying a 10% safety margin for temperature derating yields a specified storage battery capacity of 42.27 kWh (nominal 45 kWh to 50 kWh rack assembly).
Step 3: Calculate continuous and peak inverter ratings. Continuous running load = 1.2 kW + 0.8 kW + 1.5 kW + 0.6 kW + 2.2 kW = 6.3 kW. At a load power factor of 0.85, required continuous inverter capacity = 6.3 / 0.85 = 7.41 kVA. Peak coincident starting load demands adding the single largest motor surge (heat pump 7.0 kVA) to running loads (5.5 kVA remaining running), requiring a momentary surge capacity of 12.5 kVA for at least 5 seconds. To verify electrical network loading and transformer upstream demand during recharge cycles, refer to our transformer sizing calculator guide.
Safety Standards and Thermal Management for Batteries for Solar Power Storage
Thermal management directly governs electrochemical cell degradation rates and catastrophic failure risks in utility-grade and industrial battery storage installations. Operational life degrades prematurely when lithium cells operate continuously outside the 20 to 30 degrees Celsius window; internal resistance spikes below 0 degrees Celsius, inducing lithium plating during charging, while ambient temperatures sustained above 45 degrees Celsius accelerate electrolyte dry-out and solid electrolyte interphase (SEI) growth.
Modern commercial energy storage has moved from legacy forced-air ventilation to closed-loop liquid cooling systems. Liquid glycol-water chillers route coolant channels directly through aluminum cold plates clamped between prismatically arranged LFP cells. Liquid cooling maintains a tight cell-to-cell thermal differential of less than 2.5 degrees Celsius across an entire rack, compared to 8 to 12 degrees Celsius gradients observed in air-cooled enclosures. To review a comprehensive mechanical evaluation of these approaches, read our engineering analysis on liquid-cooled versus air-cooled energy storage enclosures.
Compliance with internationally harmonised safety standards is critical during engineering sign-off:
- IEC 62619 clause 6.3: Validates secondary lithium cells and batteries for industrial applications, focusing on internal short-circuit propagation and mechanical impact resistance.
- UL 9540A: Large-scale fire test methodology evaluating thermal runaway propagation within battery racks. Successful qualification ensures an internal cell failure cannot escalate into an uncontrolled cascade across adjacent modules.
- NFPA 855: Standard for the Installation of Stationary Energy Storage Systems, establishing maximum allowable pack capacities (e.g., 50 kWh residential limit unless specifically rated, and strict separation distances from lot boundaries).
- IEC 62477-1: Safety requirements for power electronic converter systems feeding utility networks.
Operational Strategies: Peak Shaving, Arbitrage, and House Battery Backup
Deploying dedicated energy storage unlocks revenue streams and operational savings through dynamic power flow management across varied tariff structures. For commercial facilities facing steep utility demand charges, peak shaving represents the most lucrative financial function of a solar storage battery.
Demand charges are billed based on the peak apparent power recorded by the utility over 15-minute rolling averages during a monthly billing cycle. By programming the battery management system with automated setpoints, the inverter rapidly discharges when facility demand crosses a predetermined power limit (for instance, 150 kW). The battery injects supplemental active power onto the main busbar, flattening the facility load curve observed by the utility meter. This autonomous discharge saves substantial recurring monthly utility fees without requiring curtailment of industrial equipment.
In deregulated residential and small-business markets, energy arbitrage allows an intelligent home battery backup system to capture value from spot-market price volatility. The system charges from the grid during overnight off-peak or negative-pricing periods and stores power from midday solar generation. When peak afternoon tariffs take effect, the system shifts to serve local consumption or exports energy to the grid under feed-in tariffs. For engineers specifying complete grid-scale implementations, reviewing specifications for containerised utility substations is essential; see our technical guide on how to specify a containerised battery energy storage system.
Engineering Specification Checklist for Solar Batteries for Solar Panels
A precise engineering specification prevents procurement mismatches, communication delays, and commissioning failures when ordering energy storage hardware. Industrial buyers should compile procurement documentation that details environmental constraints, electrical topology, and safety expectations.
| Subsystem Component | Key Specification Parameter | Recommended Engineering Value |
|---|---|---|
| Cell Architecture | Cathode chemistry & form factor | LiFePO4 (LFP), Prismatic welded terminal |
| Operating Lifetime | Cycle endurance to 80% original capacity | ≥ 6,000 cycles at 25°C, 0.5C charge/discharge |
| Enclosure Rating | Ingress protection & corrosion classification | IP55 minimum (outdoor), industrial-grade anti-corrosion coating |
| Thermal System | Thermal dissipation technique | Liquid-cooled with glycol loop & multi-speed compressor |
| Fire Suppression | Multi-tier active suppression & gas detection | Aerosol / Novec 1230 + CO/H2 gas sensor interlocks |
| BMS Protocols | Communications and grid support interfaces | Modbus TCP/IP, CAN 2.0B, IEC 61850, DNP3 |
| Inverter Overload | Short-duration surge capacity | 150% rated kVA for 10 seconds; 110% continuous |
Incorporating these concrete parameters into tender requests ensures that manufacturers deliver an industrial-grade battery to power sensitive building loads without premature capacity fade or field disputes.
Commissioning and Testing Procedures for Solar Power Battery Systems
Commissioning a commercial or residential battery storage installation requires a rigorous sequential testing procedure to certify safety, verify ground continuity, and confirm inverter trip logic prior to energisation. Technicians must conduct commissioning in strict compliance with manufacturer checklists and local electrical codes.
- Visual and Mechanical Enclosure Inspection: Inspect physical anchoring to concrete pads, verify minimum 1-metre service clearances, check torque markings on all high-current DC busbars using a calibrated torque wrench, and confirm gland-plate seal integrity against moisture entry.
- DC Insulation Resistance and Continuity Verification: Isolate the main DC disconnect. Using a 1,000 V DC insulation tester, verify resistance between positive to ground and negative to ground across rack disconnect switches; readings must exceed 100 Megaohms according to IEC 60364-6. Confirm protective bonding continuity to earth is below 0.1 ohms.
- Auxiliary and Safety Subsystem Energisation: Energise internal low-voltage auxiliary feeds. Verify that smoke, combustible gas (hydrogen and carbon monoxide), and thermal runaway sensors report operational status to the central BMS. Test that emergency stop (E-stop) circuits release DC contactors within 100 milliseconds.
- Communication Handshake and Firmware Validation: Establish Ethernet or RS485 communication between the BMS, PCS, and master facility energy management system (EMS). Confirm zero communication packet loss and check that individual cell voltage readings show an offset differential below 15 millivolts across all series-connected blocks.
- Controlled Initial Charge and Thermal Baseline: Execute a low-rate (0.1C to 0.2C) initial charging cycle to 100% state of charge (SoC). Monitor the liquid cooling loop pressure and flow rates, capturing a baseline thermal profile across all busbar terminations with a calibrated infrared thermography camera.
- Functional Black-Start and Load Stepping Test: Disconnect utility main breaker to simulate a grid loss event. Verify the automated transfer switch operates cleanly, the inverter establishes stable voltage and frequency within 20 milliseconds, and inductive loads engage without triggering overcurrent shutdown.
Next steps: specifying and sourcing
When specifying a complete energy storage solution, engineers must balance electrochemical performance, mechanical thermal integration, and grid interconnection compliance. To obtain an actionable manufacturing quotation, prepare your single-line diagram (SLD), site load profile in 15-minute intervals, ambient temperature extremes, and target backup duration. Explore our certified range of integrated energy storage systems and containerised liquid-cooled energy storage cabinets. Contact our engineering design team directly via our quotation inquiry page to discuss custom enclosure designs, transformer matching, and commercial delivery schedules.
Frequently asked questions
What is the lifespan of a solar battery storage system?
A high-quality lithium iron phosphate (LFP) battery storage system typically lasts 15 to 20 years. When operated within standard thermal conditions (20°C to 25°C) and cycled once daily at 80% depth of discharge, LFP cells deliver 6,000 to 8,000 cycles before degrading to 80% of original rated capacity.
Can a home battery backup system power an entire house during an outage?
Yes, a whole home battery backup can power an entire house if both its continuous energy capacity (kWh) and peak surge power output (kVA) match site loads. Heavy inductive loads such as central air conditioners and well pumps require high momentary starting power, often necessitating a system capacity of 20 kWh to 40 kWh with a minimum 10 kW inverter surge rating.
What is the difference between AC-coupled and DC-coupled solar batteries?
AC-coupled systems connect their battery bank through a separate dedicated inverter on the alternating current distribution board, making them simple to retrofit onto existing solar arrays. DC-coupled systems connect the battery directly to a shared direct current busbar prior to the solar inverter, yielding slightly higher round-trip charging efficiency but requiring compatible hybrid inverters.
Why is LFP chemistry preferred over NMC for stationary energy storage?
LFP chemistry provides significantly greater thermal and chemical stability, virtually eliminating thermal runaway risks up to 270°C. Additionally, LFP delivers roughly double the cycle life of NMC at a lower cost per lifetime kilowatt-hour, making it substantially more economical and safer for stationary commercial and residential installations.
Do battery storage systems require liquid cooling?
While small residential systems under 15 kWh often operate safely using natural or forced air convection, high-capacity industrial systems and outdoor enclosures rely on liquid cooling. Liquid cooling maintains cell temperatures within 2°C across dense racks, dramatically reducing premature cell degradation and fire propagation hazards.
