AC Transformer Guide: Operating Principles, Types & Specs

Quick answer: An ac transformer is a static electrical machine that transfers electrical energy between two or more alternating current circuits through electromagnetic induction, stepping voltage up or down while maintaining frequency constant. It functions by converting input electrical potential into alternating magnetic flux within a laminated steel core, which induces a corresponding voltage in secondary windings.

Alternating current systems dominate modern power grids precisely because alternating voltages can be stepped up or down with exceptionally high efficiency. From medium-voltage distribution networks to high-voltage transmission lines, the modern utility grid relies entirely on electromagnetic transformation to deliver bulk power across long distances at low conductor current, drastically reducing resistive ($I^2R$) losses. Understanding how an AC transformer is designed, rated, and tested is critical for electrical consulting engineers, EPC contractors, and plant facility managers seeking reliable, standard-compliant grid assets.

Working Principle: How an AC Transformer Operates

An AC transformer operates on the principle of mutual electromagnetic induction discovered by Michael Faraday, requiring a continuously varying alternating current to establish time-varying magnetic flux. When an alternating primary voltage ($V_p$) is connected across the primary winding, it drives an excitation current that produces a cyclic magnetic flux ($\Phi$) within a closed ferromagnetic core. Because direct current produces a steady, unchanging magnetic field ($d\Phi/dt = 0$), direct current cannot induce an electromotive force (EMF) in a secondary winding, explaining why an a c transformer cannot operate on pure DC without saturating and overheating.

The induced root-mean-square (RMS) electromotive force in any winding is quantified by the standard transformer equation:

E = 4.44 × f × N × Φ_m

where f is the system frequency in Hertz (typically 50 Hz or 60 Hz), N is the number of winding turns, and Φ_m is the peak magnetic flux in Webers. The ideal voltage transformation ratio ($k$) directly correlates with the winding turns ratio:

V_p / V_s = N_p / N_s = I_s / I_p

When stepping voltage up for long-distance transport as explored in our transmission transformer guide, the current decreases proportionally, allowing smaller cross-section conductors. Conversely, industrial distribution requires stepping down transmission levels to utilisation voltages such as 400 V or 480 V, requiring heavy low-voltage busbars to manage high load currents.

Key Types of AC Transformers in Power Distribution

AC transformers are classified by their construction medium, cooling mechanism, and phase configuration to suit diverse operational environments. Selecting the appropriate construction type directly determines fire safety boundaries, enclosure ingress protection (IP ratings), environmental resilience, and civil foundation costs.

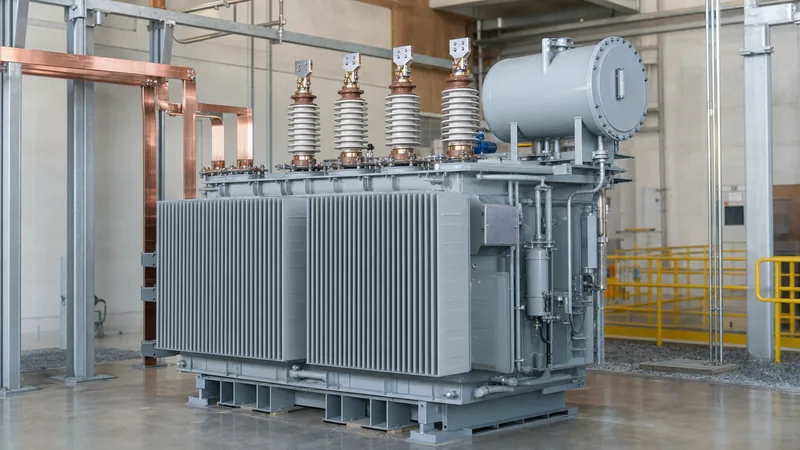

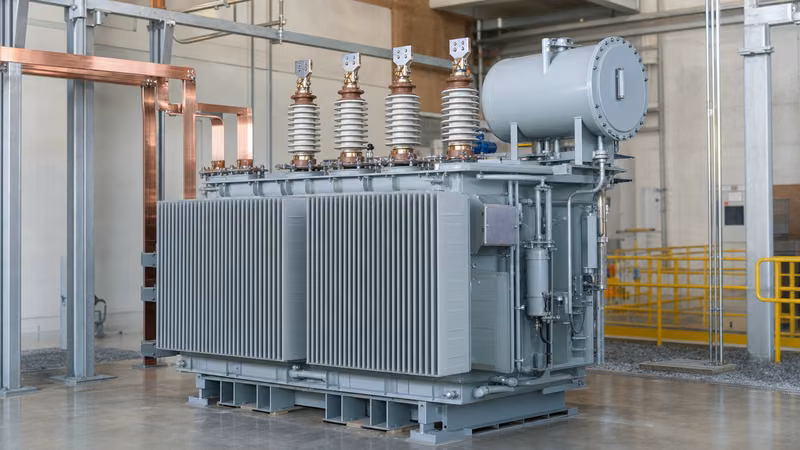

• Oil-Immersed Transformers: The core and coil assemblies are submerged in insulating mineral oil or synthetic ester fluid within a sealed steel tank. Mineral oil provides superior dielectric strength (typically >30 kV across a standard 2.5 mm test gap per IEC 60156) and acts as an efficient convective heat-transfer medium. These units dominate outdoor substation yards and pole-mount applications. For harsh weather or utility installations, explore dedicated oil-immersed transformers built to IEC 60076 and IEEE C57.12.00 standards.
• Cast Resin Dry-Type Transformers: Windings are encapsulated under vacuum in solid epoxy resin containing silica fillers. These self-extinguishing units contain no combustible fluids, eliminating fire and explosion hazards in enclosed industrial basements, commercial towers, underground rail systems, and marine platforms. Detailed selection criteria can be found in our dry type transformer engineering guide, or you can review certified dry-type transformers for zero-halogen specifications.
• Three-Phase vs Single-Phase Configurations: Commercial and industrial grids run primarily on three-phase units using common magnetic cores (three-limb or five-limb configurations), yielding smaller footprints and lower material costs than three individual single-phase units. However, remote single-wire earth return (SWER) networks and North American residential feeds rely heavily on single-phase pole-mount units.

Technical Specifications and Performance Parameters

Specifying an ac transformer requires defining primary electrical, thermal, and mechanical parameters that ensure grid compatibility and long operational life. The table below outlines key technical parameters across common medium-voltage and power-class transformers.

Percent impedance (%Z) represents the percentage of rated primary voltage required to circulate rated full-load current through a short-circuited secondary winding. A lower impedance reduces load-dependent voltage drop, but increases downstream fault levels, requiring higher interrupting capacities for low-voltage circuit breakers. Engineers must balance voltage regulation and short-circuit current limitations as detailed in our guide on transformer losses and total cost of ownership.

Core Construction and Magnetic Circuit Design

Transformer magnetic cores are fabricated from stacked, thin laminations of cold-rolled grain-oriented (CRGO) silicon steel to channel flux with minimal thermal losses. Operating magnetic flux within the core induces two distinct parasitic loss mechanisms: hysteresis losses and eddy current losses.

Hysteresis losses occur due to the molecular friction of magnetic domains continuously reversing direction under an alternating magnetising force. Modern cores use high-grade CRGO steel (e.g., grades M3, M4, or laser-scribed domain-refined steel) with silicon contents around 3% to 3.5%, significantly narrowing the magnetic hysteresis B-H loop. Eddy current losses, caused by circulating currents induced within the bulk conductive metal, are suppressed by dividing the core into thin individual sheets (typically 0.23 mm to 0.30 mm thickness) insulated from one another by inorganic surface coatings (such as C-5 classification).

Modern automated step-lap mitered core joints replace older butt-lap designs, angling the junction cuts at 45 degrees. This ensures the flux path aligns continuously with the rolled grain direction of the silicon steel, reducing core excitation current, lowering no-load loss by up to 20%, and reducing operating acoustic noise levels according to IEC 60076-10 guidelines. For heavy utility applications, consulting an engineer on heavy-duty power transformers ensures optimal core-to-coil clamping force to prevent mechanical distortion during fault events.

Installation and Acceptance Testing for an AC Transformer

Commissioning an AC transformer requires a rigorous, sequentially executed factory acceptance testing (FAT) and site commissioning routine to verify dielectric and structural integrity before energisation. The following procedure represents standard engineering practice under IEC 60076-1 and IEEE C57.12.90:

1. Insulation Resistance and Polarisation Index: Measure insulation resistance between HV-to-LV, HV-to-Earth, and LV-to-Earth using a calibrated 2.5 kV or 5.0 kV DC insulation tester. Record resistance at 1 minute and 10 minutes to verify a Polarisation Index (PI) greater than 1.5, confirming the absence of moisture ingress.
2. Voltage Turns Ratio (TTR) and Phase Displacement: Apply an AC test voltage across each phase to verify that voltage transformation ratios across all tap changer positions match design calculations within a ±0.5% tolerance window, while confirming the declared vector group (e.g., Dyn11).
3. Winding DC Resistance Measurement: Measure winding resistance on all phases using a four-wire Kelvin bridge digital micro-ohmmeter, correcting measured values to a 75°C reference temperature to confirm winding symmetry and proper tap-changer contact resistance.
4. Dielectric Dissipation Factor (Tan Delta): Apply AC excitation up to 10 kV to quantify dielectric loss angle (tan δ) of the winding insulation system and high-voltage bushings, verifying baseline capacitance values prior to field installation.
5. Dielectric Liquid Breakdown Testing: For liquid-filled units, draw bottom-tank oil samples under ASTM D923 or IEC 60475 protocols to verify dielectric breakdown voltage (>40 kV for new oil per IEC 60296) and moisture content (<15 ppm).

Next steps: specifying and sourcing

When specifying an ac transformer for utility distribution, mining, commercial facilities, or renewable plants, project engineering teams must provide clear operational boundaries to ensure accurate factory design. Ensure your procurement inquiry package includes rated kVA capacity, primary and secondary nominal voltages, frequency (50 Hz or 60 Hz), vector group configuration, lightning impulse withstand level (BIL), ambient site temperature, and preferred cooling type (dry-type or liquid-filled). Review our comprehensive portfolio of utility-grade power transformers and medium-voltage dry-type transformers, or submit your single-line diagram (SLD) directly through our engineering team via the transformer quotation portal or our technical contact page for an evaluated engineering proposal.
