BESS Place Guide: Siting a Lithium Battery Storage Facility

Quick answer: A bess place refers to the physical site, footprint, and civil engineering envelope allocated for a Battery Energy Storage System (BESS), rather than a geographic municipality. Proper placement requires strict compliance with NFPA 855 setback distances (minimum 3.05 metres from lot lines and exposures), dedicated medium-voltage grid interconnects, structural plinth foundations, and integrated thermal run-off management.

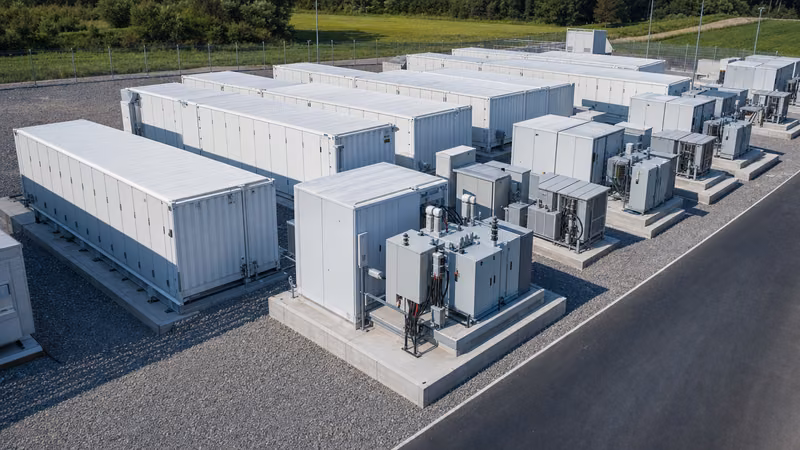

As utilities, commercial microgrids, and industrial facilities transition toward decentralised generation, allocating the optimal parcel for a lithium battery storage facility presents substantial civil, electrical, and regulatory requirements. Siting an energy storage asset involves far more than securing flat terrain. Engineers must account for fault current levels at the point of common coupling (PCC), seismic anchoring, acoustic emissions, stormwater runoff containment, and thermal runaway separation distances. Planning an industrial BESS place demands an integrated approach that harmonises local zoning ordinances with international electrical safety standards.

Is BESS a City or an Electrical Storage Facility?

BESS is not a city or geographical township; it is an engineering acronym for Battery Energy Storage System. Public confusion regarding the term often arises when infrastructure planning notices announce that a "new BESS place" or "new BESS" is entering the development pipeline in regional municipal jurisdictions. Search queries asking is bess a city stem directly from civic planning announcements that treat the acronym as an unfamiliar proper noun.

In municipal records, an energy storage facility is formally categorised under heavy electrical utility infrastructure or light industrial zoning rather than civic real estate. When planning a BESS location engineering design, local permitting boards require environmental impact assessments, hazardous materials business plans (HMBP), and sound-attenuation models rather than residential zoning reviews. Clarifying this terminology helps developers, planning officers, and civic stakeholders communicate technical design specifications accurately during public notice periods.

Engineering Criteria for Siting a BESS Place

Selecting a compliant BESS place requires evaluating electrical grid proximity, geotechnical soil bearing capacity, environmental ambient thresholds, and emergency logistics. The location must accommodate heavy static loads while remaining within economic reach of utility interconnect infrastructure.

Key geotechnical and environmental benchmarks include:

• Soil Bearing Capacity: Reinforced concrete pads must support liquid-cooled battery containers that frequently weigh between 30 and 42 metric tonnes per 20-foot enclosure. Geotechnical surveys must verify an allowable bearing pressure of at least 150 kPa (kilonewtons per square metre) to prevent differential settlement, which can misalign internal busbars and coolant manifolds.
• Hydrological Safety: Installations must sit above the 100-year base flood elevation (BFE) with a minimum additional freeboard clearance of 0.5 metres, conforming to ASCE 24 design criteria for critical infrastructure.
• Thermal Ambient Operating Margins: Liquid-chilled enclosures operate reliably between -30°C and +50°C, but sustained direct solar irradiance raises chiller compressor consumption by 12% to 18%, reducing net round-trip efficiency (RTE). Site layout designs should incorporate sun shields or orient container longitudinal axes north-to-south.
• Grid Interconnection Proximity: Locating the storage compound adjacent to existing medium-voltage (MV) distribution lines (typically 11 kV to 34.5 kV) minimizes cable trenching and reduces underground transmission I²R losses, as detailed in our guide to power conversion system sizing and design.

Clearance and Setback Distances for a Lithium Battery Storage Facility

Clearance dimensions for an outdoor lithium battery storage facility are dictated primarily by NFPA 855 (Standard for the Installation of Stationary Energy Storage Systems) and IEC 62933-5-2. These separation rules protect neighbouring structures and permit clear ingress for emergency responders during a thermal event.

Under NFPA 855 Clause 4.4.2.1, standard stationary battery systems require an absolute minimum clearance of 3.05 metres (10 feet) from lot lines, public pathways, and adjacent buildings. This boundary may only be reduced when enclosures successfully undergo large-scale fire testing in accordance with UL 9540A.

When selecting a battery enclosure engineering system, engineers must verify that cabinet doors can swing open fully to 90 or 110 degrees without encroaching upon the required 0.91-metre working clearance specified under NEC/NFPA 70 Article 110.26.

Siting Challenges: Energy Storage System Orange County Case Example

Developing an energy storage system Orange County project illustrates the acute siting constraints created by dense wildland-urban interfaces (WUI), high property acquisition costs, and stringent municipal fire codes. In Southern California, authorities having jurisdiction (AHJs) frequently enforce fire guidelines that exceed standard national mandates.

Regional frameworks, such as the Orange County Fire Authority (OCFA) Guideline C-03, impose dedicated water supply infrastructure directly onto any stationary battery project. Key engineering demands include:

• Dedicated Hydrant Loop: On-site hydrants capable of delivering a sustained water flow rate of at least 3,785 litres per minute (1,000 gallons per minute) at 138 kPa residual pressure for a minimum duration of two hours.
• Seismic Anchoring under IEEE 693: Due to local fault proximity, structural plinths and internal rack anchors must withstand high seismic qualification spectrums (peak ground acceleration of up to 1.0g).
• Secondary Wastewater Containment: Retention bunds or lined retention basins must capture up to 45,000 litres of potentially contaminated fire suppression and thermal cooling water per container footprint, preventing unmitigated discharge into local storm drainage basins.
• Acoustic Compliance: Suburban property lines frequently enforce maximum sound limits of 45 to 50 dBA during nighttime hours, requiring low-noise variable-speed chiller fans and acoustic barriers around power conversion skids.

Understanding these regional requirements assists EPC contractors in calculating accurate capital budgets, as detailed in our review of commercial battery storage costs.

Spatial Footprint Calculation for a New BESS Battery Project

Calculating the land footprint for a new BESS battery project requires balancing energy density with required safety corridors, medium-voltage switchgear positions, and emergency service access roads. The gross land required is consistently three to five times larger than the physical surface area of the battery enclosures themselves.

Consider a utility-scale installation engineered for a 10 MW / 20 MWh battery project using four standard 20-foot ISO liquid-cooled ESS containers rated at 5.0 MWh each:

• Battery Container Footprint: 4 containers × (6.06 m length × 2.44 m width) = 59.15 m².
• PCS and Transformer Skids: Two 5 MW integrated inverter-transformer skids measuring 6.10 m × 2.20 m = 26.84 m².
• Inter-Container Service Clearances: A 1.5-metre separation between adjacent enclosures and a 2.5-metre frontal door-swing/service corridor = 88.50 m².
• Safety Perimeter Setbacks: Applying the mandatory NFPA 855 3.05-metre perimeter buffer around the electrical compound adds approximately 210 m².
• Fire Tender Access Loop: An internal access roadway with a 6.0-metre width and a minimum 12.0-metre outer turning radius conforming to local fire department vehicle dimensions adds roughly 750 m².
• Stormwater and Bunding Allocation: Containment swales and retention infrastructure account for approximately 100 m².

Summing these components results in a net civil envelope of roughly 1,234.49 m² (approximately 0.123 hectares or 0.305 acres) for a 10 MW / 20 MWh system. Consequently, while the battery hardware occupies under 60 m², the functional BESS place demands over twenty times that footprint to ensure operational accessibility, fire separation, and electrical safety.

Civil and Safety Inspection Checklist for Siting

Executing the physical civil works of a BESS place requires a sequential sign-off protocol before any modular containerised equipment lands on site. Project engineers must confirm each structural and electrical interface against factory tolerances.

1. Geotechnical Survey Verification: Confirm that standard penetration tests (SPT) and soil resistivity measurements (Wenner four-pin method per IEEE 81) validate load limits (>150 kPa) and earthing grid targets (<1.0 ohm).
2. Foundation Tolerance Check: Survey poured reinforced concrete slabs to ensure levelling tolerances stay within ±3 mm across any 3.0-metre diagonal span to avoid structural racking of factory enclosure door seals.
3. Cast-in Conduit and Trench Inspection: Verify placement and water-tight sealing of medium-voltage (MV), low-voltage (LV) auxiliary, and fibre-optic conduits entering the plinth footprint.
4. Containment and Sump Drainage: Inspect epoxy-coated bund floors and oil-water separator interceptors designed to isolate accidental glycol chiller leaks or firefighting deluge runoff.
5. Perimeter Earthing Ring: Ensure buried bare copper earthing conductors (minimum 70 mm² or 2/0 AWG) connect all fence posts, container grounding pads, and skid chassis back to the main substation earth grid.
6. Hydrant and Fire Storz Connection Verification: Pressure-test all local hydrants and verify that fire brigade inlet couplings match the local fire authority thread specifications.

Next steps: specifying and sourcing

When specifying equipment for an upcoming energy storage installation, providing early site parameters accelerates procurement and ensures civil integration success. Prepare your project layout drawings, grid interconnection voltage (11 kV, 22 kV, or 33 kV), soil bearing parameters, and environmental ambient temperature profiles. Our engineering team designs and manufactures complete, factory-integrated energy storage systems, high-efficiency liquid-cooled ESS containers, and skid-mounted prefabricated transformer substations built to IEC and IEEE standards. Submit your single-line diagram (SLD) and site boundary drawings to request a formal quote or contact our technical sales engineers for detailed layout recommendations.
