Long Term Energy Storage in Plants: Industrial Sizing Guide

Quick answer: Implementing long term energy storage in plants involves deploying large-capacity electrical or thermal storage systems capable of continuously discharging rated power for 8 to 24 hours. Sizing requires adjusting nameplate capacity for round-trip conversion efficiency, inverter degradation, cell ageing factors, and medium-voltage transformer losses to ensure uninterrupted industrial operations.

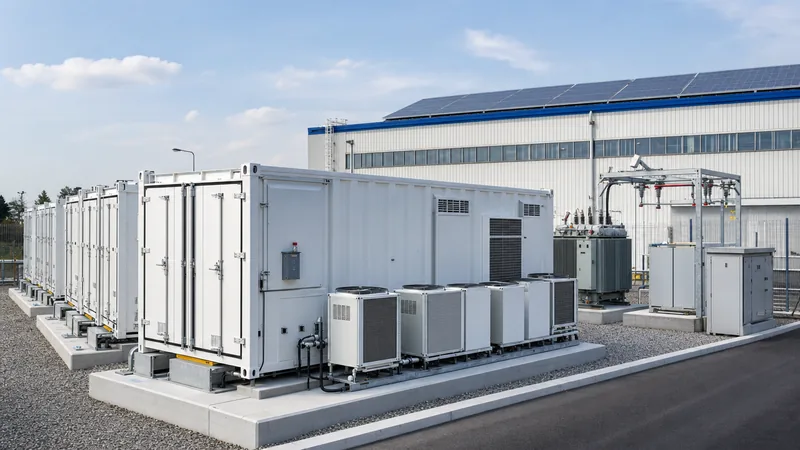

Industrial facilities face rising peak demand tariffs, stringent carbon reduction mandates, and severe downtime costs caused by utility grid outages. While standard commercial installations rely on short-duration systems (1 to 2 hours) for tariff arbitration, process plants such as chemical refineries, metal fabrication works, paper mills, and glass manufacturing lines require sustained multi-hour power to maintain continuous operations during prolonged supply disruptions. Integrating dedicated long duration energy storage systems enables heavy consumers to store massive volumes of on-site solar generation and maintain factory operations through multi-shift schedules without firing diesel gensets.

What Defines Long Term Energy Storage in Plants?

Long term energy storage in plants refers to energy storage configurations engineered to discharge at nominal rating for durations spanning between 8 and 24 hours. Unlike frequency regulation or rapid peak shaving systems that discharge their full capacity in 15 to 60 minutes (a 1C to 4C rate), long-duration plant storage prioritises continuous energy delivery at low discharge rates (0.04C to 0.125C). Industrial electrical architectures require this operational envelope to support critical plant base loads overnight or bridge seasonal reductions in captive renewable generation.

Under IEC 62933-1 (Electrical Energy Storage Systems), long-duration utility-scale and industrial behind-the-meter installations must support continuous active power output while managing reactive power support at the point of common coupling (PCC). In energy-intensive facilities, energy storage for plants acts as an electrical sponge, absorbing high daytime solar PV yields from multi-megawatt arrays and dispatching the power across second and third manufacturing shifts. This decouples the plant's production throughput from daily utility peak tariffs and volatile wholesale spot prices.

Technology Comparison: Energy Storage for Plants

Selecting the optimal storage technology for plant autonomy depends on round-trip efficiency, space constraints, asset lifecycle, and balance-of-plant capital expenditure. The table below compares the four dominant long-duration technologies evaluated for medium-voltage industrial installations.

While vanadium redox flow batteries offer decoupling of energy and power, liquid-cooled lithium iron phosphate (LFP) remains the primary commercial choice for long term energy storage in plants up to 14 hours duration due to its compact footprint and high AC-to-AC round-trip efficiency. Where process heat is required, thermal systems provide exceptional economic returns by bypassing electrical conversion entirely. For facilities evaluating containerised electrochemical setups, pairing high-density battery racks with a dedicated power conversion system provides the precise control needed for industrial load profiles.

Sizing Methodology and Worked Calculation for 12-Hour Plant Autonomy

Determining the required nameplate capacity for long term energy storage in plants demands rigorous accounting of system losses, discharge limits, and end-of-life battery degradation. The following step-by-step sizing calculation models a continuous 2,000 kW process plant critical base load that requires 12 hours of autonomous discharge during grid curtailment or off-peak charging transitions.

1. Determine Net Delivered Energy ($E_{\text{net}}$):
   Multiply base load by required autonomy duration.
   $$E_{\text{net}} = P_{\text{load}} \times t = 2,000\text{ kW} \times 12\text{ h} = 24,000\text{ kWh} = 24.0\text{ MWh}$$
2. Account for Maximum Usable Depth of Discharge (DoD):
   To prevent accelerated chemical degradation, maximum daily cycling depth is limited to 90% (0.90 DoD).
3. Account for AC Discharging Efficiency ($\eta_{\text{dis}}$):
   Discharge path efficiency includes DC battery internal resistance losses, liquid chiller auxiliary loads, inverter conversion, and MV step-up transformer copper and core losses (typical combined value: 92% or 0.92).
4. Account for End-of-Life (EoL) Degradation Factor ($SOH_{\text{EoL}}$):
   Industrial installations specify performance at the end of a 15-year service life, when state-of-health (SOH) retention drops to 70% (0.70).
5. Calculate Required Nameplate DC Storage Capacity ($E_{\text{nameplate}}$):
   $$E_{\text{nameplate}} = \frac{E_{\text{net}}}{\text{DoD} \times \eta_{\text{dis}} \times SOH_{\text{EoL}}} = \frac{24.0\text{ MWh}}{0.90 \times 0.92 \times 0.70} = \frac{24.0}{0.5796} \approx 41.41\text{ MWh}$$
6. Power Conversion System (PCS) and Transformer Sizing:
   The inverter must supply 2,000 kW continuous active power at an assumed industrial operating power factor of 0.85 lagging, operating with an inverter thermal efficiency of 98.5% (0.985):
   $$S_{\text{PCS}} = \frac{P_{\text{load}}}{\text{PF} \times \eta_{\text{inv}}} = \frac{2,000\text{ kW}}{0.85 \times 0.985} \approx 2,388.8\text{ kVA}$$
   Standard practice dictates selecting two 1,250 kVA bidirectional PCS units paired with a 2,500 kVA inverter-duty step-up transformer connected to the plant medium-voltage switchboard.

This calculation demonstrates why specifying engineers must avoid matching nameplate capacity directly to the hourly plant load. Sizing must account for compound losses and long-term degradation; otherwise, an undersized system will fail to provide the required 12-hour operational window within its third year of service. Consult our guide on industrial battery bank design for auxiliary sizing details.

Electrical Balance of Plant and Grid Integration Architecture

Integrating multi-megawatt long term energy storage in plants requires coordinating medium-voltage switchgear, isolation transformers, protection relays, and bidirectional converters. Modern architectures connect multi-megawatt-hour battery strings to bidirectional power conversion units at low voltage (typically 690 V to 800 V AC), which then feed into a step-up transformer stepping up to plant distribution levels (11 kV, 22 kV, or 33 kV).

Because bidirectional inverters introduce non-linear current waveforms, the intermediate transformer must be an inverter-duty unit engineered under IEC 60076-1 and IEEE C57.18.10. These units feature electrostatic shielding between primary and secondary windings to suppress high-frequency transient voltages ($dv/dt$) generated by IGBT or SiC switching circuits. Furthermore, the transformer core must handle harmonic currents (with total harmonic distortion complying with IEEE 519 standards at the plant boundary) without exceeding maximum winding temperature rises.

The medium-voltage switchgear protecting the energy storage system must comply with IEC 62271-200. Circuit breakers require high DC-component breaking capacity to clear close-in faults sustained by the high capacitive filter banks of bidirectional inverters. Integration into the central plant supervisory control and data acquisition (SCADA) system is typically achieved via Modbus TCP or IEC 61850 protocol networks, coordinating storage dispatch with industrial solar engineering systems across fluctuating production schedules.

Safety, Thermal Management, and Fire Protection Compliance

Thermal runaway management and compartment integrity represent the highest engineering priorities for multi-megawatt energy storage for plants. Large-scale battery assemblies cycling continuously over 8 to 24 hours generate sustained heat loads that require closed-loop liquid cooling rather than forced-air convection. Liquid cold plates circulating a water-glycol mixture maintain cell-to-cell temperature differentials below 3 °C, preventing hot spots that trigger degradation or thermal propagation.

Compliance with NFPA 855 (Standard for the Installation of Stationary Energy Storage Systems) and IEC 62933-5-2 requires rigorous safety zoning:

• Spatial Separation: Enclosures must maintain a minimum physical clearance of 3 metres (10 feet) from building walls, site property lines, and other electrical containers, unless fire-rated barrier walls tested under UL 1973/UL 9540A demonstrate containment.
• Deflagration Mitigation: Battery containers must integrate deflagration relief panels or active extraction ventilation under NFPA 68 and NFPA 69 to prevent explosive off-gas concentrations from reaching the lower flammable limit (LFL) if cell venting occurs.
• Gas and Smoke Detection: Early off-gas detection utilizing dual optical smoke detectors, carbon monoxide (CO) electrochemical sensors, and hydrogen ($H_2$) monitoring linked directly to the container fire control panel.
• Fire Suppression: Total flooding clean agent systems (such as FK-5-1-12) provide initial fire knock-down, backed by external water deluge connections configured for continuous cooling under local fire authority requirements.

Specification Checklist for Industrial LDES Procurement

Engineers preparing technical tender specifications for long term energy storage in plants should establish concrete baseline parameters to avoid vendor ambiguity. The checklist below defines mandatory technical criteria for an RFQ schedule.

1. Operating Profile: Define rated continuous real power (kW), required storage capacity (kWh net at EoL), discharge duration (hours), target daily full-equivalent cycles, and anticipated system lifetime (15 or 20 years).
2. Ambient Conditions: State minimum and maximum site temperatures (-25 °C to +50 °C), relative humidity levels, altitude derating above 1,000 metres, seismic zone, and corrosion class (e.g., ISO 12944 C4/C5 for coastal or chemical environments).
3. Grid Integration Standards: Mandate compliance with IEEE 1547-2018 or regional grid codes, specifying fault ride-through (FRT) curves, frequency response droop settings, and harmonic limits under IEEE 519.
4. Battery Enclosure and Ingress Protection: Specify IP55 or NEMA 3R minimum enclosure ratings, integrated structural baseframes for crane rigging, heavy-duty marine-grade anti-corrosion coating, and full compliance with UL 9540.
5. Thermal and Auxiliaries: Require closed-loop liquid-cooled cooling units with variable-speed pumps, specifying maximum parasitic auxiliary power consumption as a percentage of total capacity (typically <2.5%).
6. Factory Acceptance Testing (FAT): Require multi-hour temperature rise tests, round-trip efficiency verification, DC insulation tests, and full safety trip loop simulation before dispatch.

Next steps: specifying and sourcing

Procuring reliable long term energy storage in plants requires aligning cell chemistry selection, liquid thermal architecture, inverter-duty transformers, and protection switchgear into an integrated system. Our engineering team designs and manufactures utility-grade liquid-cooled energy storage containers and complete turnkey energy storage systems engineered to IEC and IEEE standards. When drafting your project schedule or upgrading plant electrical infrastructure, provide your continuous load profile, site grid connection voltage, and available footprint. Submit your engineering single-line diagrams through our quotation inquiry page to receive a comprehensive technical proposal, system efficiency study, and balance-of-plant sizing report.
