Key takeaways
- Lithium iron phosphate (LFP) liquid-cooled containerised enclosures represent the dominant configuration among the best storage systems for energy and utility sectors due to high round-trip efficiency and thermal stability.
- Front-of-the-meter energy storage assets require overbuilding by 20% to 35% at Beginning of Life (BOL) to guarantee rated capacity over a 15-year or 20-year power purchase agreement.
- Liquid cooling reduces inter-cell temperature deltas below 2.5 degrees Celsius, cutting auxiliary parasitics by up to 30% compared to legacy air-cooled BESS containers.
- Grid code compliance under IEEE 2800 and IEC 62933-5-2 dictates sub-100-millisecond four-quadrant active and reactive power response times for synthetic inertia and frequency containment.
- Selecting appropriate renewable energy storage technology requires balancing capital expenditure per kilowatt-hour against lifetime levelised cost of storage (LCOS), cyclic degradation rates, and UL 9540A unit-level fire safety compliance.
Quick answer: The best storage systems for energy and utility sectors are utility-scale, liquid-cooled lithium iron phosphate (LFP) battery energy storage systems (BESS). These modular containerised systems deliver round-trip efficiencies between 86% and 91%, offer 6,000 to 10,000 cycles at 80% depth of discharge, and comply with strict grid stability standards like IEEE 2800 and IEC 62933.
Modern electrical grids face unprecedented operational stress from the rapid integration of intermittent generation. Wind and solar profiles diverge sharply from daily demand curves, driving volatility in transmission voltage and bus frequency. Utility networks, grid operators, and independent power producers require dispatchable, high-power assets capable of sub-second response. Identifying the best storage systems for energy and utility sectors requires assessing chemistry, thermal management architectures, auxiliary parasitic loads, and the true lifetime cost per megawatt-hour throughput.
Selecting and deploying utility-scale energy storage is not simply a matter of purchasing battery cells. Engineering teams must evaluate how battery chemistry, container-level fire suppression, power conversion systems (PCS), and medium-voltage step-up transformers combine to provide firm capacity, synthetic inertia, and black-start capabilities. Consulting engineers often pair utility planning with detailed resources such as our utility scale energy storage guide to align project engineering with utility interconnect agreements.
Comparing Renewable Energy Storage Technology Options for Utilities
Renewable energy storage technology options must be evaluated against continuous charge-discharge performance, safety thresholds, footprint, and capital intensity. While several chemistries and mechanical systems compete for market share, electrochemical storage in modular containers dominates modern utility procurement.
The primary contenders for grid-scale deployment include lithium iron phosphate (LFP), nickel manganese cobalt (NMC), vanadium redox flow batteries (VRFB), and emerging sodium-ion systems. For a comprehensive comparison of lithium chemistries, refer to our detailed analysis on LFP vs NMC battery systems. The table below outlines key operational parameters an engineering team must review when selecting the best storage systems for energy and utility sectors.
| Technology Architecture | AC Round-Trip Efficiency (RTE) (%) | Cycle Life (80% DoD) | Energy Density (kWh/m³) | Discharge Duration (Hours) | Relative Capex per kWh ($/kWh installed) |
|---|---|---|---|---|---|
| Liquid-Cooled LFP Container | 86 – 90% | 6,000 – 10,000 | 180 – 250 | 1 – 6 | Baseline ($180 – $240) |
| Air-Cooled LFP Container | 81 – 85% | 4,500 – 7,000 | 120 – 160 | 1 – 4 | -8% to -12% |
| NMC Lithium-Ion Container | 88 – 92% | 3,500 – 5,000 | 260 – 340 | 1 – 2 | +15% to +25% |
| Vanadium Redox Flow (VRFB) | 68 – 74% | 15,000 – 20,000 | 25 – 40 | 6 – 12+ | +45% to +70% |
| Sodium-Ion Container (Emerging) | 82 – 86% | 3,000 – 5,000 | 100 – 140 | 1 – 4 | -10% to -15% (projected) |
Liquid-cooled LFP enclosures have emerged as the default utility standard. They balance elevated energy density with superior thermal margins, low degradation under 0.5C cycling, and an absence of cobalt and nickel. Vanadium flow systems provide multi-day, long-duration capabilities with zero chemical degradation, yet their lower round-trip efficiency and vast footprint restrict their viability on constrained project sites.
Technical Architecture of Front-of-the-Meter Energy Storage Assets

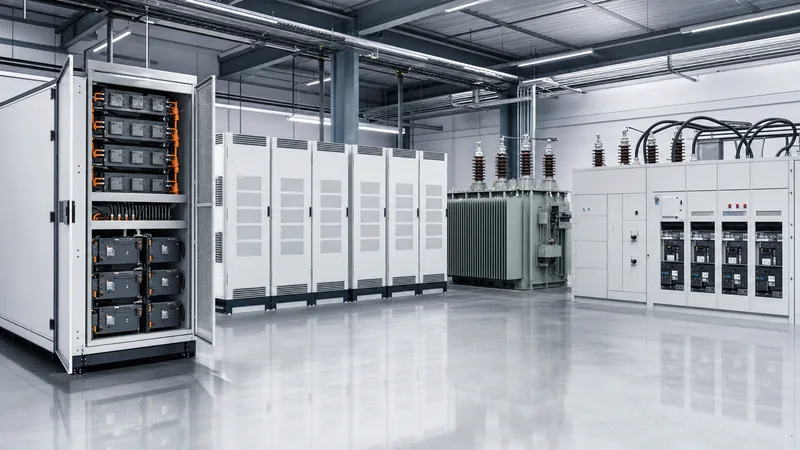

Front-of-the-meter energy storage assets are engineered as complete, integrated power blocks consisting of DC battery racks, thermal regulation circuits, power conversion units, and medium-voltage substations. Each component must integrate through deterministic control loops to avoid capacity curtailment or communication lag.
A modern 20-foot or 40-foot containerised storage unit contains multiple parallel DC strings operating at 1,000 VDC or 1,500 VDC nominal bus voltages. Elevating the DC bus to 1,500 VDC reduces I²R copper losses by roughly 55% compared to legacy 1,000 VDC designs, permitting higher power density through standard cable cross-sections. Centralised or string-level power conversion systems convert this DC output to three-phase AC, as examined in our power conversion system guide.
Thermal management dictates the operational life of utility energy storage assets. Air-cooled architectures suffer from internal temperature variations exceeding 6 to 8 degrees Celsius across a single pack, accelerating cell divergence and forcing early degradation. Modern liquid cooling circulates a 50/50 water-glycol mixture directly across thermal cold plates beneath the battery modules. This keeps cell-to-cell thermal variations under 2.5 degrees Celsius, lowering parasitic HVAC load by 25% to 35% and extending total battery operating life under daily cycling regimes.
Sizing and Degradation Calculation for a 10 MW / 40 MWh Utility Facility
A 10 MW / 40 MWh storage asset requires sizing beyond its nominal rating at Beginning of Life (BOL) to compensate for conversion losses, auxiliary auxiliary parasitic power, and cell capacity degradation over a 15-year operational lifecycle.
The delivered energy at the Point of Common Coupling (PCC) depends on individual component efficiencies and lifetime capacity fade. The following engineering equation defines the required BOL DC installed capacity:
E_BOL = E_Delivered / (RTE_PCS × RTE_TX × (1 - L_aux) × (1 - Fade_total))
Assume the following parameters for a regulated utility project under a 15-year operational contract:
- Required deliverable energy at EOL (Year 15): 40,000 kWh (40 MWh) at the medium-voltage bus (33 kV).
- Power Conversion System (PCS) AC-DC round-trip efficiency (RTE_PCS): 98.2% (0.982).
- Medium-voltage step-up transformer efficiency (RTE_TX): 98.8% (0.988).
- Auxiliary parasitic losses (L_aux) including liquid-chiller pumps and control circuits: 3.5% (0.035).
- Projected cumulative cell degradation at Year 15 based on 1.2 equivalent full cycles per day at 80% Depth of Discharge (DoD): 25.0% capacity loss, yielding an End of Life State of Health (SOH) of 75.0% (1 - Fade_total = 0.75).
Now, calculate the combined electrical path efficiency factor (excluding battery fade):
Efficiency_Factor = 0.982 × 0.988 × (1 - 0.035) = 0.982 × 0.988 × 0.965 = 0.9363 (93.63%)
Apply the degradation retention factor to determine total BOL required DC capacity:
E_BOL = 40,000 kWh / (0.9363 × 0.75) = 40,000 / 0.7022 = 56,964 kWh
The engineering team must specify a minimum installed DC capacity of 57.0 MWh at BOL, or adopt an initial 46.5 MWh installation paired with an augmentation plan at Year 7. Sizing configurations and strategies are detailed further in our overview of large scale battery energy storage.
Engineering Standards and Grid Compliance for Best Storage Systems for Energy and Utility Sectors
Engineering standards and grid codes establish the electrical, structural, and safety criteria required before any energy storage facility can interconnect with high-voltage utility networks. The best storage systems for energy and utility sectors must possess certified compliance across multiple international frameworks to verify grid stability and safety.
Key engineering standards govern utility-grade BESS installations:
- IEC 62933-5-2: Specifies detailed electrical and chemical safety requirements for grid-integrated BESS installations under normal and single-fault conditions.
- IEEE 2800-2022: Dictates technical performance for inverter-based resources (IBR) interconnecting with transmission systems, mandating low-voltage ride-through (LVRT), frequency droop response within 4 seconds, and active reactive-power injection.
- UL 9540 and UL 9540A: UL 9540 certifies the complete system assembly, whereas the UL 9540A test method evaluates thermal runaway propagation at cell, module, unit, and installation levels. Tier-1 utility procurement strictly mandates the provision of full-scale UL 9540A test reports before issuing an interconnection permit.
- NFPA 855: Standard for the Installation of Stationary Energy Storage Systems, governing unit separation distances (minimum 1.5 metres between outdoor units), water supply rates for dedicated deluge systems, and deflagration venting per NFPA 68.
Grid operators also demand dynamic testing for synthetic inertia and fast frequency response (FFR). Modern smart inverters operating in grid-forming (GFM) control modes provide virtual synchronous machine (VSM) capabilities, maintaining synthetic voltage sources that damp grid oscillations during unexpected transmission trips.
Commissioning and Acceptance Testing Procedure for Utility Storage
Acceptance testing procedures confirm that all factory-built energy storage systems achieve their designed electrical capacity, response speed, and safety parameters prior to commercial operation date (COD). Skipping or truncating cold and hot commissioning steps increases the risk of early cell imbalance or catastrophic field flashovers.
- Civil and Mechanical Pre-Check: Verify anchor bolt torque values on equipment plinths, check container earth ground loops (confirming grid resistance under 1.0 Ohm), and inspect the internal coolant loop for correct glycol concentration and absence of air pockets.
- Insulation Resistance and Dielectric Testing: Measure DC positive and negative bus insulation resistance to ground using a 2,500 V calibrated megohmmeter per IEC 60364-6.
