Inside of the Battery: Cell Anatomy & Chemistry Guide

Quick answer: The inside of the battery contains positive and negative electrodes, a micro-porous insulating separator, a liquid or solid electrolyte, and metallic current collectors sealed within a protective housing. Chemical energy converts to electrical energy via lithium or metal ion transport across the electrolyte while electrons flow through external circuits to power industrial loads.

Understanding the internal anatomy and electrochemical composition of storage cells is essential for utility engineers, EPC contractors, and system designers. The physical construction dictates cell capacity, internal impedance, operating voltage, degradation kinetics, and thermal behaviour under extreme duty cycles. Whether configuring utility-scale energy containers or commercial battery rooms, the internal materials directly establish safety thresholds, cycle life, and thermal management demands.

In industrial applications governed by standards like IEC 62619 and UL 1973, component performance relies heavily on how chemical constituents interact under thermal and mechanical stress. Exploring the internal architecture of lithium-ion cells clarifies how electrode microstructures, electrolyte formulations, and internal current paths influence overall system efficiency. For a comprehensive overview of how individual cells integrate into multi-megawatt systems, review our Battery Bank Industrial Systems: Engineering & Sizing Guide.

Inside of the Battery: Core Components and Cell Architecture

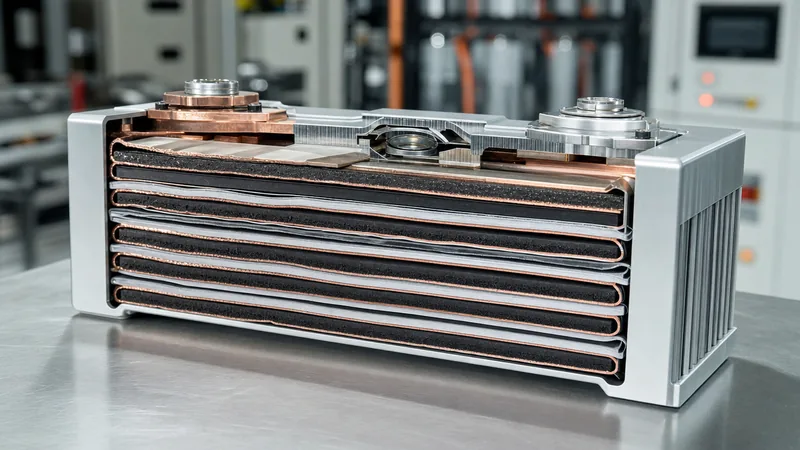

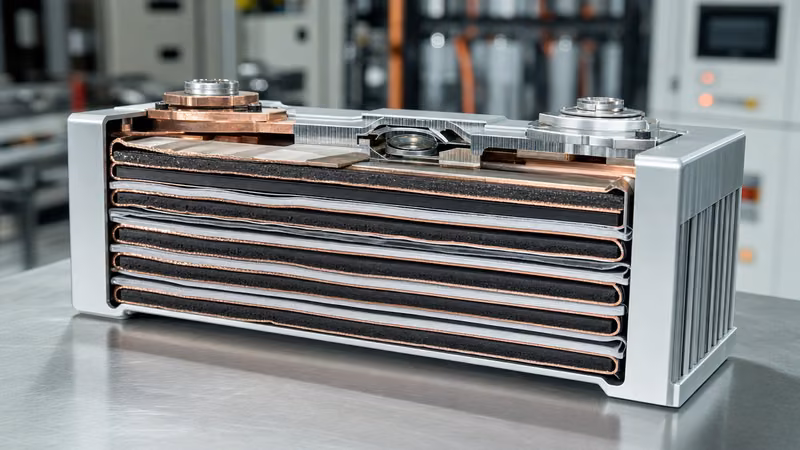

The inside of the battery consists of alternating micro-thin layers of functional materials configured in either a wound (jelly-roll) or planar-stacked arrangement. Every commercial electrochemical cell operates using five indispensable sub-assemblies enclosed within a hermetically sealed casing.

• Cathode (Positive Electrode): Comprises an active metal oxide or phosphate compound slurry coated uniformly onto high-purity aluminium foil (typically 12 to 15 μm thick). The cathode acts as the source and sink of lithium ions during charge and discharge operations.
• Anode (Negative Electrode): Typically constructed from synthetic or natural graphite slurry layered over annealed copper foil (typically 8 to 10 μm thick). The anode hosts intercalated ions during cell charging.
• Separator: A microporous polymeric membrane, usually made from polyethylene (PE) or polypropylene (PP) with a thickness between 12 and 25 μm, positioned physically between the cathode and anode. It prevents physical and electrical short-circuiting while permitting the rapid transport of solvated ions through microscopic pores.
• Electrolyte: A non-aqueous chemical solution containing conductive metal salts dissolved in organic carbonate solvents, wetting the pores of both electrodes and the separator to serve as the ionic conduction pathway.
• Cell Casing and Terminals: Encloses the sub-assembly under vacuum or controlled inert gas pressure, featuring positive and negative external terminals linked internally by ultrasonic or laser-welded conductor tabs.

In large-format prismatic cells common to commercial battery energy storage systems (BESS), manufacturers utilise z-fold stacking or wound flat-plate assemblies. Stacked designs offer superior current distribution, lower equivalent series resistance (ESR), and uniform heat dissipation compared to small cylindrical cells. For systems operating in harsh industrial environments, internal cell architecture directly dictates how thermal energy transfers to external cooling plates, an essential consideration explored in our Battery Cooling: Engineering Guide to Thermal Systems.

What Chemical Is Inside a Battery? Active Materials and Electrolytes

Determining what chemical is inside a battery depends on the specific cell chemistry, but modern stationary energy storage cells rely on transition metal compounds, graphite, and fluorinated lithium salts. Unlike older aqueous technologies, modern high-energy-density cells use organic liquid solutions and complex crystalline active compounds.

For the positive electrode, the predominant industrial chemistry is lithium iron phosphate (LiFePO4), valued for its olivine crystalline structure and strong covalent P-O bonds that resist thermal decomposition up to approximately 270°C. Alternatively, high-density applications utilise layered metal oxides, such as nickel manganese cobalt oxide (LiNiMnCoO2, or NMC). The ratio of transition metals in NMC formulations (e.g., NMC 622 or NMC 811) alters energy density, stability, and raw material cost, as detailed in our analysis of LFP vs NMC Battery: Commercial BESS Chemistry Guide.

The negative active material inside modern cells is almost universally crystalline graphite, occasionally blended with 2% to 5% silicon sub-oxides to elevate volumetric charge capacity. Graphite provides a stable layered matrix into which lithium ions slip between graphene sheets (intercalation) without causing significant lattice expansion.

The liquid electrolyte is formulated with lithium hexafluorophosphate (LiPF6) dissolved at a concentration of 1.0 to 1.2 mol/L inside a mixture of alkyl carbonates, notably ethylene carbonate (EC), dimethyl carbonate (DMC), ethyl methyl carbonate (EMC), and diethyl carbonate (DEC). Additives such as vinylene carbonate (VC) or fluoroethylene carbonate (FEC) are incorporated at 1% to 3% by volume to form and passivate the solid-electrolyte interphase layer during factory commissioning.

Chemical and Electrochemical Comparison of Cell Chemistries

Commercial storage facilities deploy varied internal chemistries depending on duty cycles, safety envelopes, and target operational lifespans. The table below delineates the chemical compounds, active materials, and thermodynamic thresholds found inside common industrial battery cells.

As demonstrated in the table, the thermodynamic stability inside of the battery diverges significantly based on chemical bonds. The phospho-olivine structure of LFP releases negligible oxygen gas when subjected to extreme overcharge, whereas nickel-rich layered oxides shed lattice oxygen at lower temperatures, which can combust with flammable organic carbonate solvents if an internal fault occurs.

Electrochemical Reactions and Degradation Mechanisms Inside the Cell

The chemical reactions occurring inside of the battery encompass both desirable reversible ion exchanges and parasitic irreversible degradations. During normal discharge, lithium ions deintercalate from the graphite lattice, migrate across the liquid electrolyte, pass through the porous separator, and intercalate into the vacant lattice sites of the cathode active material.

The corresponding forward reaction at the cathode for an LFP cell proceeds as follows:

Li(1-x)FePO4 + xLi+ + xe- ↔ LiFePO4

At the graphite anode, the oxidation reaction releases electrons and lithium ions into the system:

Li_x C6 ↔ 6C + xLi+ + xe-

Alongside these reversible reactions, three distinct degradation mechanisms alter the cell interior over calendar time and cyclic operation:

1. Solid-Electrolyte Interphase (SEI) Growth: During initial factory charge cycles (formation), electrolyte solvents reduce on the anode surface, creating a passivation layer of lithium carbonate (Li2CO3), lithium fluoride (LiF), and alkyl carbonates. Continued micro-cracking and SEI thickening permanently consume active lithium inventory, raising internal cell impedance.
2. Lithium Plating: Charging below 5°C or charging at high C-rates can drive the anode potential below 0 V relative to Li/Li+. Metallic lithium then deposits on the outer surface of the graphite rather than intercalating, forming dendritic structures that can penetrate the separator and cause catastrophic internal short circuits.
3. Transition Metal Dissolution: In manganese- or nickel-bearing chemistries, trace moisture generates hydrofluoric acid (HF) via LiPF6 hydrolysis. This acid attacks the cathode surface, leaching transition metal cations that migrate across the separator to poison the anode SEI layer.

To mitigate these degradation vectors, continuous parameter tracking by a robust management architecture is vital. Refer to our Battery Monitoring System Guide: Engineering Specs & Design to understand how modern industrial systems prevent damaging internal overpotentials.

Internal Safety Systems and Cell-Level Protection

Internal safety mechanisms engineered into the cell housing prevent catastrophic failure modes such as internal short-circuits and unmitigated thermal runaway. Modern prismatic and cylindrical cells incorporate passive physical barriers designed to isolate faults before cell-to-cell thermal propagation takes place.

The first line of internal defence is the ceramic-coated separator. Standard polypropylene membranes soften and melt between 130°C and 165°C, leading to total separator collapse and widespread internal shorting. Applying an ultra-thin (2 to 4 μm) coating of aluminium oxide (Al2O3) or boehmite particles to the separator keeps the microporous membrane physically intact beyond 200°C, preserving dimensional stability and ionic isolation under localised hot-spots.

Large prismatic containers feature an engineered pressure relief vent (burst disc) laser-scored into the aluminium cell lid. If an internal fault triggers electrolyte vaporisation and gas production (primarily carbon dioxide, carbon monoxide, hydrogen, and volatile hydrocarbons), the vent ruptures reliably at a predetermined pressure threshold (typically 0.4 to 0.8 MPa). This controlled venting discharges flammable gases into designated exhaust ducts, preventing explosive case rupture.

In cylindrical industrial cells, engineers incorporate a Current Interrupt Device (CID) alongside a Positive Temperature Coefficient (PTC) switch directly below the positive terminal. When internal gas pressure exceeds standard limits, an internal flexible metal diaphragm deflects upward, severing the internal electrical path between the active electrode jelly-roll and the external terminal, permanently halting further charging current.

Factory Teardown and Quality Inspection Checklist

Factory acceptance testing (FAT) for large-scale energy storage projects often includes physical destructive physical analysis (DPA) and post-mortem teardown audits of production samples. Disassembling sample cells inside an argon-filled glove box reveals critical quality indicators on the inside of the battery.

Engineers should apply the following sequential teardown inspection procedure during batch manufacturing audits under IEC 62619 clause 7:

1. Discharge the audit cell to 0.0 V (100% Depth of Discharge) using an external resistive load to neutralise electrochemical energy before physical casing puncture.
2. Transfer the cell to a hermetically sealed glove box maintained with an inert argon atmosphere (moisture < 1 ppm, oxygen < 1 ppm) to prevent spontaneous combustion of residual lithium upon exposure to ambient air.
3. Decap the aluminium casing using a non-sparking, slow-speed rotary milling cutter along the upper weld seam, ensuring no metal swarf enters the internal electrode stack.
4. Extract the wound or stacked core assembly and unroll the alternating layers carefully across an insulated workspace.
5. Inspect the anode surface for signs of grey or silver metallic lithium plating, which indicates improper formation cycling or uneven mechanical pressure across the stack.
6. Measure separator dimensional shrinkage, check for particulate pinholes, and test coating adhesion using an ASTM D3359 cross-hatch tape test.
7. Verify current collector ultrasonic weld integrity at the busbar tabs by measuring peel strength with a calibrated digital tensometer (minimum threshold: > 15 N/cm width).

Next steps: specifying and sourcing

Selecting reliable, long-life storage cells requires a granular understanding of the chemical, thermal, and mechanical systems operating inside the battery housing. When submitting a request for quotation (RFQ), project teams should provide operational duty profiles, minimum design life cycles, ambient site conditions, and thermal thresholds to ensure cells match site demands. Browse our industrial energy storage systems and robust liquid-cooled ESS containers to identify architectures suited to your facility. For comprehensive project appraisals, customized system sizing, or detailed factory testing specifications, consult our engineering team or request a formal quotation at our quote portal.
