Commercial Battery Storage: BESS Engineering & Integration Guide

Quick answer: A commercial battery storage system is an integrated, utility-interconnected assembly comprising electrochemical battery racks, a bi-directional power conversion system (PCS), and energy management software. It stores surplus on-site generation or low-tariff grid energy to perform peak shaving, power factor correction, and critical backup power for industrial and commercial facilities.

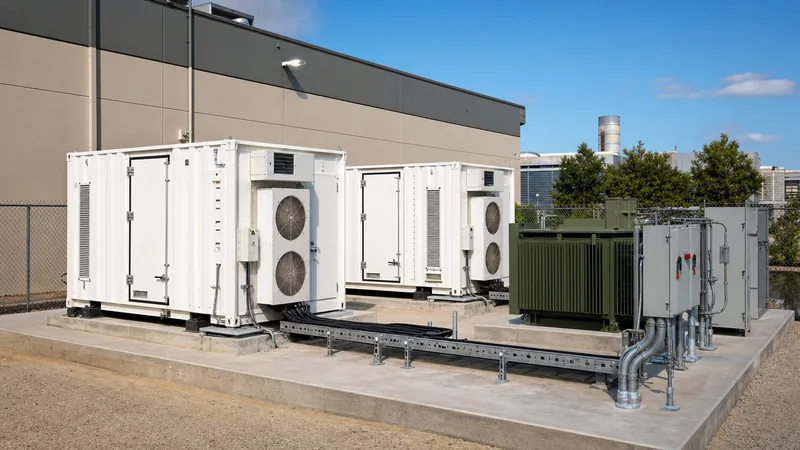

Commercial and industrial facilities face rising demand charges, stringent grid interconnect constraints, and corporate decarbonisation mandates. Modern commercial energy storage systems bridge the gap between intermittent on-site renewables and facility load demands. Whether installed alongside an existing commercial solar array or deployed as standalone behind-the-meter infrastructure, a correctly specified commercial battery storage installation reduces monthly electrical utility demand charges while protecting critical manufacturing processes from voltage sags and momentary power interruptions.

Core Architecture of Commercial Battery Storage Systems

A complete commercial battery energy storage system is comprised of four primary subsystems: the battery pack assembly, the battery management system (BMS), the bi-directional power conversion system (PCS), and the overall energy management system (EMS). In modern industrial battery storage systems, lithium iron phosphate (LFP) cells are wired in series to create modules, which are stacked into high-voltage racks operating between 600 V DC and 1500 V DC. Higher DC bus voltages lower the current flowing through busbars, reducing cabling losses and inverter conduction losses according to Ohm's Law (P = I²R).

The multi-tier BMS monitors individual cell voltages, state of charge (SoC), state of health (SoH), and internal temperatures to prevent thermal runaway in accordance with IEC 62619 clause 8.2. Upstream from the DC disconnect switches, the PCS handles four-quadrant AC-to-DC and DC-to-AC power conversion. This PCS interface synchronises with the main facility switchboard, dynamically managing real power (kW) and reactive power (kVAR) injection. To explore PCS topology and sizing rules in depth, consult our power conversion system guide.

AC vs DC Coupling for Commercial Scale Battery Storage

Choosing between AC-coupled and DC-coupled architectures determines round-trip efficiency, operational flexibility, and system installation complexity. For retrofitting an existing rooftop or ground-mount photovoltaic array, AC coupling is standard because the existing string or central solar inverters remain untouched. For greenfield industrial energy storage systems, DC coupling can yield higher round-trip efficiencies when solar and storage feed a unified DC link, eliminating redundant inverter stages.

For most commercial properties adding energy storage for business operations with pre-installed solar panels, AC-coupled architectures provide faster permitting, simpler maintenance segregation, and compliance flexibility with local utility interconnection standards.

Peak Shaving Sizing Calculation for Industrial Power Storage

Industrial battery systems must be sized to clip peak demand loads without prematurely depleting the battery reserve before the high-tariff billing window concludes. Demand charges often represent 30% to 50% of an industrial electricity bill. The battery capacity calculation must account for the required peak reduction (kW), discharge duration (hours), depth of discharge (DoD), and cumulative inverter-battery round-trip efficiency.

Consider an industrial manufacturing plant with a peak demand of 800 kW occurring between 14:00 and 18:00 (a 4-hour window). The facility engineer aims to shave this peak to 500 kW, requiring a continuous 300 kW discharge over 4 hours. The parameters are:

• Required peak shave power (P_shave): 300 kW
• Discharge window duration (t): 4.0 hours
• Effective energy output needed: 300 kW × 4.0 h = 1,200 kWh
• Selected battery chemistry: Lithium Iron Phosphate (LFP)
• Allowable Depth of Discharge (DoD): 90% (0.90)
• System Round-Trip Conversion & Thermal Efficiency (η): 88% (0.88)
• End-of-Life (EoL) Degradation Safety Margin: 80% remaining capacity (0.80)

The required nameplate battery energy storage capacity is calculated as:

Required Nameplate Capacity = Effective Energy / (DoD × η × EoL Margin)

Required Nameplate Capacity = 1,200 kWh / (0.90 × 0.88 × 0.80) = 1,893.9 kWh

Consequently, the plant specifies a nominal 300 kW / 1,900 kWh to 2,000 kWh commercial battery storage container. For more details on commercial pricing structures and payback modelling, see our analysis of commercial battery storage costs.

Thermal Management: Liquid Cooling vs Air Cooling in Commercial BESS

Thermal regulation directly governs battery degradation rates, safety margins, and round-trip performance in commercial energy storage batteries. Operating an LFP cell at 45 degrees Celsius instead of 25 degrees Celsius accelerates capacity fade by more than 40% over 2,000 equivalent full cycles. Industrial energy storage solutions utilise either forced air cooling or closed-loop liquid cooling plates integrated directly under the cell blocks.

Air-cooled enclosures use rooftop or wall-mounted industrial HVAC units. While mechanically straightforward, air cooling frequently creates temperature gradients of 5 to 8 degrees Celsius across tall battery racks, leading to uneven cell aging and early string imbalance. Conversely, liquid-cooled enclosures circulate an ethylene glycol-water mixture through aluminium cold plates. This configuration maintains cell-to-cell thermal gradients below 2.5 degrees Celsius, reduces auxiliary parasitic power consumption by 20% to 30%, and delivers a footprint reduction of up to 40%, which is critical for space-constrained industrial yards.

Safety, Fire Suppression, and Standards Compliance for Commercial Energy Storage Solutions

Mitigating thermal runaway risks requires a layered safety strategy satisfying NFPA 855, UL 9540, and UL 9540A large-scale fire testing criteria. Commercial battery energy storage systems must include multi-sensor environmental monitoring capable of detecting off-gas emissions prior to actual smoke or open flame development.

1. Off-Gas and Early Detection: The system deploys off-gas detection sensors (detecting hydrogen and carbon monoxide ppm thresholds) alongside optical smoke detectors and thermal sensors, triggering an emergency stop before cell venting escalates.
2. BMS Electrical Disconnection: Upon receiving an off-gas or over-temperature signal, the master BMS trips the shunt-trip DC breaker, isolating the affected battery string within 50 milliseconds.
3. Automated Suppression Release: Enclosures incorporate aerosol extinguishers or clean-agent systems (FK-5-1-12) engineered in accordance with NFPA 2001, supplemented by an internal dry-pipe water deluge system connection for municipal fire department hookup per NFPA 855 Section 4.3.
4. Deflagration Relief: Explosion venting panels calibrated to open at 20 to 50 kPa prevent structural enclosure failure if flammable gases collect, satisfying NFPA 68 and NFPA 69.

For installations connected to utility substations, system integrators must reference the utility scale energy storage guide for coordinated medium-voltage protection and transfer scheme standards.

Step-by-Step Commissioning Procedure for Commercial Battery Systems

Commissioning industrial bess assets requires rigorous verification before tying the system into the facility distribution switchgear. Field engineers must execute testing sequentially to ensure personnel safety and equipment protection.

1. Pre-Power Visual and Torque Verification: Check all busbar torque values against manufacturer specifications using calibrated torque wrenches. Inspect insulation resistance on DC strings using a 1000 V or 1500 V megohmmeter (minimum acceptable insulation resistance is 1,000 ohms per volt DC).
2. Auxiliary Circuit and BMS Validation: Energise the 230/400 V AC auxiliary panel. Confirm operation of enclosure liquid chillers, exhaust ventilation, and emergency trip loops. Verify that every cell voltage and temperature reading registers accurately on the master BMS screen without communication dropouts.
3. Fire Suppression and Interlock Handshake: Mechanically isolate suppression cylinder actuators. Trigger simulated sensor inputs to verify that the BMS disconnects the primary DC contactor, alarms the building management system, and shuts down intake louvres.
4. Cold Inverter Energisation: Close the AC breaker to energise the PCS AC terminal bus. Verify voltage phase sequence, phase angle alignment, and total harmonic distortion (THD under 3% per IEEE 519) before closing the DC bus disconnects.
5. Performance and Dynamic Load Testing: Execute step-response charge and discharge tests at 25%, 50%, 75%, and 100% rated power. Validate automatic peak-shaving dispatch when the primary plant meter CTs detect loads exceeding pre-programmed setpoints.

Next steps: specifying and sourcing

To obtain an engineered commercial battery storage proposal, provide your facility's 15-minute interval utility load profile (CSV format for a 12-month period), single-line diagrams showing main switchboards, existing on-site generation capacities, and physical installation space constraints. Our technical team configures factory-assembled solutions incorporating factory-integrated liquid-cooled energy storage cabinets and integrated transformer stations matching local distribution voltages. Submit your load profile and project electrical single-line diagram to our engineering group via our commercial quotation page to receive a complete balance-of-plant sizing report and interconnection proposal.
