How Much Does a Transformer Weigh? Engineering Weight Guide

Quick answer: A distribution transformer weighs between 150 kg (25 kVA pole-mounted unit) and 6,500 kg (2,500 kVA pad-mounted or substation unit), while medium-power and transmission transformers scale from 15,000 kg (10 MVA) to over 180,000 kg (100 MVA+). Total weight is governed primarily by rated apparent power (kVA/MVA), conductor metallurgy (copper versus aluminium), cooling medium volume, and statutory efficiency regulations.

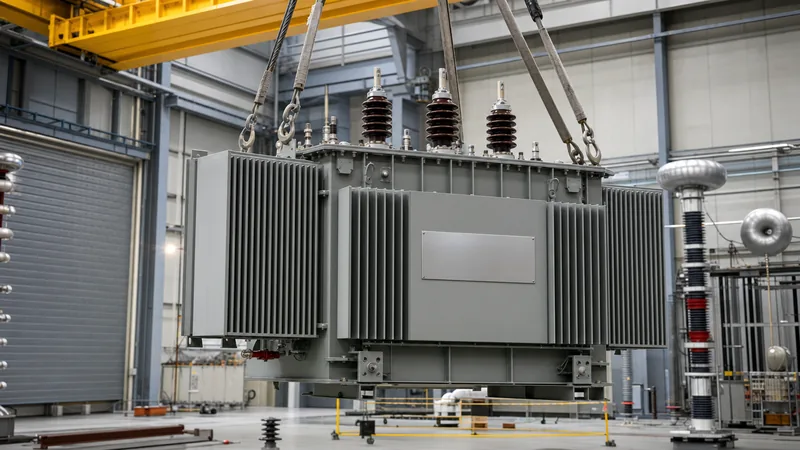

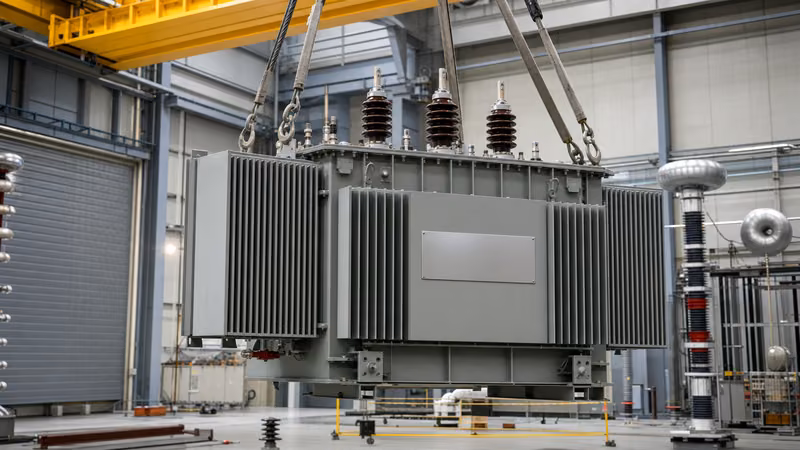

When planning civil foundations, transport logistics, and crane rigging for electrical infrastructure, determining the precise physical weight of a transformer is just as critical as calculating its electrical parameters. Underestimating structural mass can lead to foundation failure, inadequate crane sizing, or transport permitting violations. Understanding the mechanical composition of the active parts and structural components allows project engineers to estimate total mass accurately before final manufacturer submittals are approved.

Key Factors That Determine How Much a Transformer Weighs

A transformer's total mass is determined by its active electromagnetic core, winding conductors, structural frame, cooling dielectric, and external steel enclosure. Electrical engineers evaluating physical dimensions must assess several variables that directly dictate how much a transformer weighs during transport and after commissioning.

The most significant design variables influencing overall mass include:

• Conductor material: Copper has a mass density of 8.96 g/cm³, whereas electrical-grade aluminium has a density of 2.70 g/cm³. Although aluminium requires roughly 1.6 times the cross-sectional area of copper to carry identical current without exceeding thermal limits (as detailed in IEC 60076-2 temperature rise limits), an aluminium-wound coil assembly remains 30% to 45% lighter than a copper-wound equivalent. However, the larger aluminium coil dimensions force manufacturers to enlarge the steel core window, partly offsetting overall weight savings.
• Core steel grade and flux density: Modern high-efficiency cores use Cold-Rolled Grain-Oriented (CRGO) silicon steel or amorphous metal alloys. Lower operating flux densities (e.g., 1.5 to 1.6 Tesla instead of 1.75 Tesla) minimise no-load losses to meet strict standards such as EN 50588-1 or US DOE 2016. Lower flux densities require a larger core cross-sectional area, directly increasing core weight.
• Cooling medium: Liquid-immersed units rely on mineral oil, synthetic ester, or natural ester dielectric fluids. Mineral oil has an average specific gravity of 0.88 kg/L at 20°C. For medium-power transformers containing thousands of litres of fluid, the dielectric liquid alone represents 20% to 30% of the gross filled weight.
• Basic Impulse Insulation Level (BIL): Higher primary system voltages demand thicker solid insulation, wider oil ducts, and greater electrical clearances (IEC 60076-3 clause 5). This increases both overall tank dimensions and the dielectric fluid volume required to submerge the active parts.
• Mechanical enclosures: Pad-mounted compartmental units, sound-attenuating housings, and outdoor tanks with corrugated fins or detachable radiator banks add substantial structural mass compared to basic open-frame indoor units.

Consulting a comprehensive transformer selection chart helps engineers correlate these physical characteristics with electrical performance criteria early in the project design cycle.

Dry-Type vs Oil-Immersed: How Much Does a Transformer Weigh by Rating?

Dry-type transformers and liquid-immersed transformers present fundamentally different mass distributions across standard kVA and MVA ratings. A cast-resin dry-type unit features a heavy encapsulation of epoxy resin around the windings to achieve mechanical strength and climatic withstand, but it requires no liquid oil, oil conservator, or radiator tanks. Conversely, an oil-immersed unit has a lighter bare core-and-coil assembly but adds significant weight once the tank is filled with insulating fluid.

The reference table below shows typical representative weights for three-phase, 50/60 Hz transformers wound with copper conductors operating at standard medium-voltage primary ratings (11 kV to 33 kV class):

For small commercial ratings, such as understanding full-load currents alongside physical requirements, review our detailed guide on 75 kVA transformer amps to see how electrical output balances against mechanical footprint.

Detailed Component Weight Breakdown: Inside the Transformer Tank

The internal mass of a transformer is distributed across four primary sub-assemblies: the laminated magnetic core, the primary and secondary winding assemblies, the structural clamping frame with the steel tank, and the dielectric fluid. Knowing the percentage split of these components allows mechanical engineers to evaluate dynamic structural behaviour and center of gravity coordinates.

In a standard three-phase oil-immersed distribution transformer built to IEC 60076-1 specifications, the component weight breakdown typically falls within the following ratios:

• Magnetic Core (35% to 45% of dry weight): Built from thousands of micro-thin, high-permeability CRGO steel laminations (typically 0.23 mm to 0.27 mm thickness, such as grade 23ZH090). This is the densest single sub-assembly inside the unit.
• Windings and Leads (20% to 30% of dry weight): High-conductivity electrolytic copper conductors wrapped with thermally upgraded kraft paper, Nomex, or diamond-dotted epoxy paper (DDP). The winding mass includes interlayer insulation, phase barriers, and high-current lead busbars.
• Tank, Clamping Frame, and Fittings (15% to 25% of dry weight): Includes internal clamping channels, tie rods that maintain mechanical compression on the coils during short-circuit faults (as required by IEEE C57.12.00 Table 5), the structural mild-steel tank walls, corrugated fins or radiator panels, conservator vessels, and high-voltage porcelain or composite bushings.
• Dielectric Insulating Liquid (20% to 30% of total filled weight): Highly refined mineral oil or ester fluid. This volume fills every internal cavity to provide electrical insulation and convective heat dissipation.

On every certified equipment rating plate, the parameter known as untanking weight (or core-and-coil assembly mass) defines the maximum load lifted when pulling the active parts out of the tank for factory inspection or overhaul. The rated kVA capacity directly shapes these component proportions, a relationship explained in our article on what the term capacity on a transformer nameplate refers to.

Worked Engineering Example: Calculating Rigging Load for a 2,500 kVA Transformer

Calculating total transformer rigging weight requires evaluating the static un-valved equipment weight, dielectric liquid volume, and dynamic crane safety factors. The following worked calculation illustrates the exact steps required to specify a mobile crane and lifting tackle for placing an outdoor 2,500 kVA, 11 kV to 415 V, mineral-oil-immersed distribution transformer.

Step 1: Define baseline component masses from engineering submittals

• Mass of active core assembly ($M_{\text{core}}$): 2,100 kg
• Mass of copper windings and leads ($M_{\text{windings}}$): 1,250 kg
• Mass of clamping frame, tank, conservator, and radiators ($M_{\text{tank}}$): 1,450 kg
• Volume of uninhibited mineral oil ($V_{\text{oil}}$): 1,850 litres
• Density of mineral oil at 20°C ($\rho_{\text{oil}}$): 0.88 kg/L

Step 2: Calculate the mass of the dielectric fluid

$$M_{\text{oil}} = V_{\text{oil}} \times \rho_{\text{oil}} = 1,850\text{ L} \times 0.88\text{ kg/L} = 1,628\text{ kg}$$

Step 3: Calculate total static operational mass ($M_{\text{total}}$)

$$M_{\text{total}} = M_{\text{core}} + M_{\text{windings}} + M_{\text{tank}} + M_{\text{oil}}$$

$$M_{\text{total}} = 2,100\text{ kg} + 1,250\text{ kg} + 1,450\text{ kg} + 1,628\text{ kg} = 6,428\text{ kg}\quad (\approx 6.43\text{ tonnes / 14,171 lbs})$$

Step 4: Apply rigging, tackle, and dynamic hoist allowances

For crane selection, field engineers must account for the spreader beam, synthetic four-leg slings, shackles, and a dynamic load factor ($k_d$) of 1.25 to prevent crane overload during slewing and hoisting operations:

• Weight of rigging accessories ($M_{\text{rigging}}$): 180 kg
• Gross load under hook: $(M_{\text{total}} \times k_d) + M_{\text{rigging}} = (6,428\text{ kg} \times 1.25) + 180\text{ kg} = 8,215\text{ kg}$

The crane operating radius and load chart must therefore accommodate a minimum hook capacity of 8.22 metric tonnes at the placement radius, rather than simply relying on the 6.43-tonne static nameplate rating. Proper coordination with industrial power system installation guidelines prevents unexpected rigging stoppages on site.

Why Does Transformer Weight Vary Between Standards (IEC vs IEEE)?

A transformer built to IEEE C57 standards frequently differs in weight from an IEC 60076 unit of identical kVA capacity due to differing loss evaluation formulas, seismic bracing criteria, and tank construction practices. Regional grid requirements dictate structural steel thickness and core flux density, driving noticeable variations in final equipment weight.

The principal drivers for weight variance between international standards include:

• Loss Capitalisation Formulas (A and B factors): Under IEEE C57.120 and European EN 50588-1, utilities penalise no-load (core) and load (copper) losses via capitalisation figures. When purchasers specify heavy no-load loss penalties (high "A" factor), manufacturers must lower core losses by incorporating thicker core cross-sections with premium-grade CRGO steel or amorphous metal. This can increase core mass by 15% to 25% for an identical kVA rating compared to standard commercial designs.
• Short-Circuit Withstand Requirements: IEEE C57.12.00 Table 11 mandates rigorous mechanical short-circuit proof testing. To withstand extreme radial and axial electromagnetic forces under external fault conditions, transformers designed for heavy industrial or utility service feature heavier structural clamping rings, thicker tie plates, and heavier-gauge tank walls.
• Seismic Qualification: Units rated for high seismic zones (IEEE 693 High Seismic Level) require reinforced anchor channels, internal coil blocking, gusseted conservator supports, and thicker tank base plates, adding 5% to 10% to the overall mechanical steel mass.
• Preservation Systems: European designs often employ sealed corrugated tanks (hermetically sealed) where the flexible fins expand and contract with temperature. American utility substations commonly use rigid radiator banks with nitrogen blanket systems or free-breathing conservator tanks with rubber diaphragms, which involve different structural steel profiles and oil volumes.

Practical Site Checklist: Verifying Transformer Weight Before Crane Lift

Field engineers must verify that verified equipment weight matches civil foundation ratings and lifting equipment capacities before moving the unit from the transport trailer. Incomplete documentation or transport configurations (such as un-filled oil shipments) can lead to hazardous lifting imbalances.

Execute the following step-by-step procedure prior to offloading and setting any transformer:

1. Cross-reference the physical nameplate: Inspect the transformer rating plate (adhering to IEC 60076-1 clause 10). Record three distinct values: total weight filled with oil, untanking weight (core and coil assembly), and the transport/shipping weight.
2. Confirm shipment fluid state: Determine whether the transformer was shipped filled with oil, pre-filled with a nitrogen/dry air holding blanket, or partially filled. A 10 MVA transformer shipped nitrogen-blanketed weighs several tonnes less on the truck than it will once oil is injected on site.
3. Locate the marked Center of Gravity (CoG): Due to the asymmetrical arrangement of internal tap changers, cable termination boxes, and radiator banks, the CoG is rarely in the geometric center. Locate the factory-stamped CoG marks on the tank exterior to configure crane sling lengths correctly.
4. Inspect lifting lugs and trunnions: Ensure lifting slings connect exclusively to the dedicated main tank lifting lugs designed for gross filled weight. Never rig from untanking eyes (located on the cover plate) or radiator lifting tabs.
5. Verify spreader beam geometry: Use a certified spreader beam that ensures lifting slings maintain a 90-degree vertical angle to the lifting lugs. Sling angles shallower than 60 degrees introduce excessive compressive side-forces that can buckle tank walls.

Next steps: specifying and sourcing

When preparing an RFQ for medium-voltage or high-voltage transformers, providing precise site constraints—including maximum crane lifting limits, civil pad loading capacities, and transport bridge limits—enables engineering teams to optimise equipment mass. Specify your preference for copper or aluminium conductors, core loss targets, and fluid types upfront. Browse our production ranges across oil-immersed transformers, dry-type transformers, and high-capacity power transformers, or submit your single-line diagrams directly to our engineering division via our transformer quotation page.
