Transformer Volt Amp Rating: Sizing & Engineering Guide

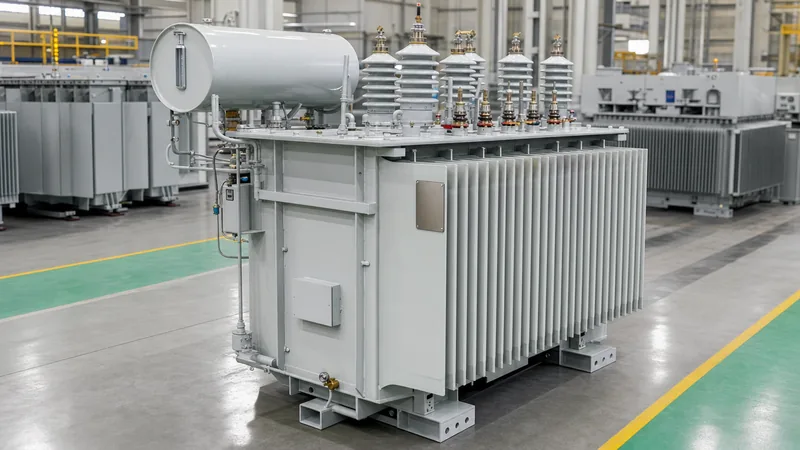

Quick answer: A transformer volt amp rating denotes the maximum apparent power—expressed in volt-amperes (VA), kilovolt-amperes (kVA), or megavolt-amperes (MVA)—that a transformer can continuously deliver at rated secondary voltage and frequency without exceeding its specified winding temperature rise limits.

In alternating current (AC) power distribution, transformers are rated in volt-amperes rather than watts because thermal losses depend on total current and voltage amplitude, regardless of the phase angle between them. Specifying the correct capacity prevents premature insulation breakdown, voltage regulation collapse, and unexpected nuisance tripping across industrial and commercial installations.

What is a Transformer Volt Amp Rating and Apparent Power?

The transformer volt amp rating quantifies the vector combination of active real power and reactive power circulating through the magnetic core and copper or aluminium windings. According to IEC 60076-1 clause 4.1, rated power represents a continuous loading parameter that determines the design dimensions, core cross-section, conductor gauge, and cooling apparatus of the unit.

Transformers experience two primary sources of heat: core losses (iron losses caused by hysteresis and eddy currents, which are voltage-dependent) and copper losses ($I^2R$ winding resistance losses, which are strictly current-dependent). Because current drives resistive heating regardless of whether it performs mechanical work (watts) or supports electromagnetic fields (vars), thermal capacity must be governed by total apparent power ($S$). Whether assessing a compact control transformer rated at 500 VA or a utility-scale unit rated at 40 MVA, understanding how to determine kVA ensures electrical assets operate within their designated thermal class.

Transformer VA Rating vs Watt Rating: The Power Factor Factor

A transformer va rating differs fundamentally from a watt rating because active power represents only the real work-producing component of total power. The mathematical relationship between active power ($P$, measured in watts or kilowatts), apparent power ($S$, measured in volt-amperes or kilovolt-amperes), and reactive power ($Q$, measured in volt-amperes reactive or kVAR) is governed by the operating power factor ($\cos\theta$):

$$P = S \times \cos\theta$$

When an inductive load such as an induction motor operates at a low power factor (for example, 0.70 lagging), a 1,000 kVA transformer can only deliver 700 kW of useful work before its conductors reach their maximum thermal current limit. Supplying 1,000 kW of load at 0.70 power factor would demand 1,428.6 kVA, overloading the windings by roughly 43% and rapidly causing thermal destruction of the winding insulation paper.

The following table illustrates how varying load power factors impact the permissible real power delivery of a standard 1,000 kVA transformer without exceeding its continuous current rating:

How to Calculate Transformer Volt Amp Rating (Formulas)

Calculating the required transformer rating involves determining the maximum full-load current and system line voltage for either single-phase or three-phase systems. Engineers use standardized formulas to translate field current measurements or connected equipment nameplate data into the baseline volt-ampere requirement.

For single-phase installations, apparent power equals the product of nominal secondary voltage and maximum secondary current:

$$S_{(VA)} = V \times I$$

$$S_{(kVA)} = \frac{V \times I}{1,000}$$

For balanced three-phase systems, line-to-line voltage ($V_{LL}$) and phase line current ($I_L$) are related via the square root of three:

$$S_{(VA)} = \sqrt{3} \times V_{LL} \times I_L \approx 1.73205 \times V_{LL} \times I_L$$

$$S_{(kVA)} = \frac{\sqrt{3} \times V_{LL} \times I_L}{1,000}$$

When configuring protection or calculating switchgear trip thresholds, you can verify secondary feeder currents with a full load amps calculator to align protection relays with transformer thermal damage curves under IEEE C57.109.

Step-by-Step Sizing: Worked Engineering Calculation

Sizing an industrial transformer requires vector addition of all active and reactive sub-loads rather than a simple algebraic sum of nameplate kilowatts. Consider a medium-voltage manufacturing facility design scenario:

1. Inventory the electrical loads: The facility operates 320 kW of three-phase electric motors at an average power factor of 0.82 lagging, alongside 60 kW of resistive heating and LED lighting at 1.0 power factor.
2. Calculate active and reactive load components:
   • Motor Active Power ($P_1$) = 320 kW
   • Motor Reactive Power ($Q_1$) = $320 \times \tan(\arccos(0.82)) = 320 \times 0.6984 = 223.50\text{ kVAR}$
   • Lighting Active Power ($P_2$) = 60 kW
   • Lighting Reactive Power ($Q_2$) = 0.0 kVAR
3. Vectorially sum total active and reactive power:
   • Total Active Power ($P_{total}$) = $320 + 60 = 380\text{ kW}$
   • Total Reactive Power ($Q_{total}$) = $223.50 + 0 = 223.50\text{ kVAR}$
4. Determine total uncorrected apparent power demand:

   $$S_{demand} = \sqrt{P_{total}^2 + Q_{total}^2} = \sqrt{380^2 + 223.50^2} = \sqrt{144,400 + 49,952.25} = 440.91\text{ kVA}$$

5. Apply operational safety and future growth margins: Good engineering practice incorporates a minimum 20% future load expansion margin and accounts for continuous duty operation under NFPA 70 (NEC) Article 215.2:

   $$S_{design} = 440.91\text{ kVA} \times 1.20 = 529.09\text{ kVA}$$

6. Select standard manufacturer rating: Comparing the design target against standard transformer sizes governed by ANSI C57.12.00 and IEC 60076, the closest standard unit exceeding 529.09 kVA is a 630 kVA transformer (or a 750 kVA unit under North American ANSI standards). Selecting a 500 kVA transformer would cause steady-state thermal overloading during plant peak production hours.

De-Rating Factors That Affect Transformer VA Rating

A nameplate volt-ampere rating is valid only under standardized operational baselines: an ambient temperature not exceeding 40°C (with a 24-hour average of 30°C) and an installation altitude below 1,000 metres above sea level, as stipulated in IEC 60076-2.

Deviations from these baseline conditions impair internal heat dissipation and require intentional de-rating of the transformer:

• Ambient Temperature Rise: When operating in enclosed switchgear rooms or desert environments where ambient air reaches 50°C, air-cooled dry-type transformers typically require de-rating by 1.0% to 1.5% of rated kVA for every degree Celsius above 40°C. For fluid-filled units, consult IEEE C57.91 for loading guides.
• Altitude De-Rating: At altitudes exceeding 1,000 metres, thinner atmospheric density reduces convection cooling efficiency and reduces the dielectric withstand strength of external air clearances. Air-cooled units require a 0.4% kVA de-rating for every 100 metres above the 1,000-metre threshold unless custom engineered with enlarged cooling radiators.
• Harmonic Current Heating (K-Factor): Non-linear power electronic loads such as variable speed drives (VSDs) and uninterruptible power supply (UPS) rectifiers induce high-frequency eddy current losses in the windings. Supplying non-linear loads with a standard distribution transformer requires either selecting a K-factor rated unit (e.g., K-4, K-13, K-20 per IEEE C57.110) or applying substantial volt-ampere de-rating (often down to 65–75% of nameplate rating) to prevent insulation hot-spot failure.

Specification Checklist for Transformer VA Rating RFQs

When submitting a formal Request for Quotation (RFQ) to an electrical equipment manufacturer, providing complete thermal and electrical boundary criteria prevents delivery mismatches and costly retrofits. Refer to our transformer specification guide for detailed design frameworks.

Ensure your procurement documentation contains the following parameters:

• Continuous Apparent Power: Specify base cooling rating (ONAN or AN) and forced cooling rating (ONAF or AF) in kVA or MVA.
• Nominal System Voltages: Primary high-voltage (HV) and secondary low-voltage (LV) line-to-line ratings (e.g., 11 kV to 415 V, or 13.8 kV to 480 V).
• Winding Temperature Rise Limits: Maximum allowable winding rise over 40°C ambient (e.g., 55K/65K for liquid-filled per IEEE C57.12.00, or 80K/100K/115K/150K for dry-type insulation classes per UL 1561).
• Impedance Percentage (%Z): Required short-circuit impedance percentage (e.g., 4.0% to 6.0%) per IEC 60076-5 to balance fault currents against secondary bus voltage regulation.
• Harmonic Spectrum and K-Factor: Expected total harmonic distortion (THD-I) or specific K-factor if supplying rectifiers, mining machinery, or data centre equipment.
• Environmental Conditions: Site altitude, seismic acceleration zone, indoor IP enclosure rating, or outdoor corrosive atmosphere classification (ISO 12944 moderate to severe marine corrosivity).

Next steps: specifying and sourcing

Selecting the optimal transformer volt amp rating requires balancing initial capital expenditure, operational efficiency, and anticipated facility expansion over a 25- to 30-year lifecycle. Whether your project demands high-efficiency oil-immersed transformers for outdoor substations, cast resin units for indoor switchrooms, or custom integrated transformer substations, our application engineering team can validate your load profiles and impedance constraints. Send your single-line diagrams (SLD) and technical specifications directly to our design team through our request a quote page or connect via our contact page for comprehensive engineering evaluations.
