Transformers Media: Dielectric, Monitoring & Sourcing Guide

Quick answer: In electrical engineering, transformers media encompasses two foundational domains: the physical dielectric and cooling media (such as inhibited mineral oil, natural esters, synthetic hydrocarbons, and epoxy cast resin) and the operational data media (fibre-optic telemetry, SCADA protocols, and digital documentation) required to commission and monitor power apparatus.

While common consumer queries often associate the phrase with entertainment franchises, utility engineers and industrial procurement teams evaluate transformers media to determine dielectric breakdown strength, fire safety ratings, thermal transfer efficiency, and automated monitoring capabilities. Selecting the proper insulating medium directly governs a transformer's lifecycle, footprint, overload headroom, and risk mitigation profile across utility and commercial installations.

Specifying the wrong dielectric fluid or failing to establish robust digital communications media exposes substations to premature thermal degradation, unplanned outages, and severe fire exposure. This technical guide outlines the physical, digital, and procedural media necessary for procuring and maintaining high-voltage distribution and power transformers in industrial systems.

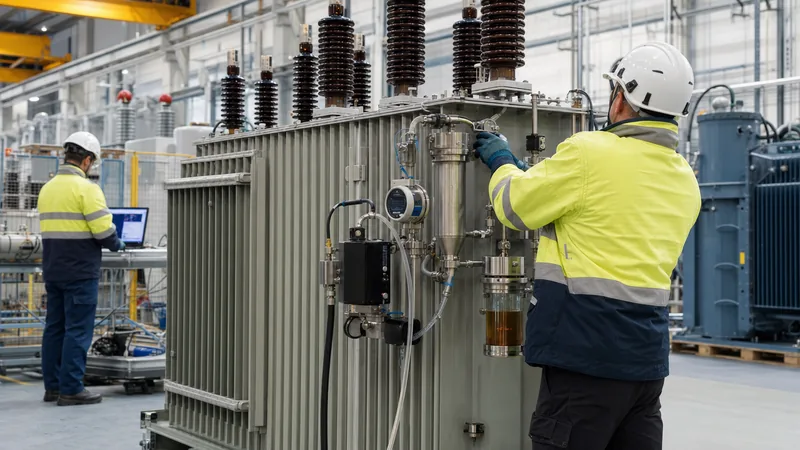

Dielectric and Cooling Transformers Media: Engineering Characteristics

Physical insulating media serve the dual purpose of dielectric insulation and convective heat dissipation. Electrical equipment relies on specific fluid or solid media to withstand high electrical stress across primary and secondary windings while transferring core and coil losses to external tank walls or radiator banks.

Under IEC 60076-2 clause 4, cooling mechanisms are defined by their internal and external media and circulation methods (e.g., ONAN, ONAF, AN, AF). Mineral insulating oil conforming to IEC 60296 has served as the baseline medium for over a century due to its low viscosity and exceptional dielectric breakdown strength. However, high-density industrial facilities and indoor substations increasingly mandate ester-based transformers media or solid dry-type encapsulation to satisfy municipal fire regulations and environmental containment mandates.

Natural esters (derived from seed oils per IEC 62770) and synthetic esters (per IEC 61039) provide fire points well above 300°C, classifying them as K-class fluids under IEC 61039 Table 1. When solid insulation is preferred for underground or moisture-sensitive locations, cast-resin epoxy media provide maintenance-free operation under Class F or Class H thermal endurance limits.

To evaluate these physical transformers media objectively, engineering teams must evaluate physical, thermal, and electrical metrics across each candidate material:

Engineers evaluating these media must balance capital expenditure against containment infrastructure costs. While natural esters incur an initial fluid premium of 15% to 25%, they often eliminate the requirement for expensive deluge systems and blast-rated separation barriers outlined in NFPA 850, as detailed in our guide on transformer fire protection systems.

Communication and Telemetry: Industrial Transformers Media for SCADA Networks

Industrial transformers media also refer to the digital signal channels, communication hardware, and protocol stacks that broadcast asset health metrics to central supervisory control and data acquisition (SCADA) platforms. Modern substations cannot rely on annual offline oil sampling alone; they require continuous telemetry streaming from multi-gas dissolved gas analysis (DGA) sensors, optical fibre winding probes, and electronic pressure relief monitors.

Substation automation environments categorise digital telemetry media into physical copper wiring, multi-mode or single-mode optical fibre, and wireless long-range transceivers. For high-voltage yards exposed to intense electromagnetic fields (EMF) and transient overvoltages, optical fibre conforming to IEC 61850-3 represents the required transmission medium. Fibre-optic connections eliminate inductive ground loops between high-voltage switchyards and the control room, ensuring uncorrupted transmission of GOOSE (Generic Object Oriented Substation Events) and Sampled Values (SV).

Field instrumentation sensors commonly convert physical phenomena into digital or analogue outputs through several media formats:

• Fibre-optic RTDs: Direct contact Gallium Arsenide (GaAs) probes embedded inside winding insulation to measure hot-spot temperatures directly without electromagnetic distortion, as explored in the winding temperature guide.
• Serial Shielded Twisted Pair: Legacy connectivity running Modbus RTU at 9600 to 19200 baud, suitable for local human-machine interfaces (HMIs) inside pad-mounted transformer compartments.
• Industrial Ethernet (RJ45 or LC Fibre): Running DNP3 or IEC 61850-8-1 station bus protocols at 100/1000 Mbps for microsecond-level fault reporting and remote breaker tripping.
• Current Loop (4-20 mA): Point-to-point analogue signals used for standard top-oil temperature indicators and magnetic liquid level gauges.

Clarifying Search Ambiguity: Industrial Engineering vs Popular List of Transformers Shows

Search engine algorithms frequently index queries for transformers media alongside popular entertainment topics, including television series, animated productions, and consumer toy lines. Searchers reviewing a list of transformers shows or animated filmographies encounter media properties spanning from 1984 generation-one broadcasts to contemporary cinematic CGI releases. While these cultural franchises draw significant general consumer volume, industrial power engineers define the term under rigorous international engineering standards.

In industrial electrical infrastructure, transformers media pertains exclusively to functional energy conversion assets, insulating substances, and operational asset performance data. Misinterpreting industrial technical manuals or component specifications as popular culture assets causes administrative confusion during international supply-chain procurement and RFQ routing.

Plant designers, EPC contractors, and project managers must confirm that procurement documents clarify industrial classifications (such as MV/LV distribution units, pad-mounted substations, and dry-type transformers) rather than media-entertainment nomenclature. For a broader examination of functional terminology, consult our overview on the purpose of transformers in modern grid networks.

Factory Acceptance Testing (FAT) Media and Technical Documentation Standards

Factory acceptance testing (FAT) media constitute the formal documentary, radiographic, and audio-visual records required to verify transformer performance before factory dispatch. Major infrastructure owners and EPC clients increasingly mandate comprehensive digital test media to validate compliance with IEEE C57.12.90 and IEC 60076-1.

Digital testing media provide immutable records that protect buyers against latent manufacturing defects. During factory witness testing, manufacturers compile several distinct media records:

1. Oscillographic Waveform Media: High-speed digital capture of lightning impulse tests (1.2/50 µs full wave and chopped wave per IEC 60076-3 clause 13) demonstrating voltage withstand and absence of partial breakdown.
2. Acoustic and Ultrasonic Signature Logs: Digital audio-frequency recordings gathered during no-load loss energisation to verify that sound pressure levels remain below NEMA TR-1 thresholds.
3. High-Definition Video and Thermal Imaging Streams: Recorded radiometric media during temperature-rise heat runs, proving that top-oil and winding temperature gradients stabilise within rated design limits.
4. BIM and 3D CAD Media: Native STEP, IFC, or 3D BIM models showing exact terminal compartment clearances, cable termination depths, and foundation pad anchor bolt coordinates.

Procurement teams should mandate the format and delivery timeline of these technical media assets within the initial purchase contract, as outlined in our detailed analysis of power transformer testing procedures.

Sizing and Specifying Dielectric Transformers Media: Worked Thermal Calculation

Determining the volume and radiator area of liquid transformers media requires calculating the total heat losses generated by the core and winding assemblies. Under IEC 60076-2 clause 6, the cooling system must dissipate no-load losses ($P_0$) and full-load copper losses ($P_k$) without exceeding the specified top-oil temperature rise (typically 60 K) or winding average temperature rise (typically 65 K) above a standard 40°C ambient baseline.

Consider a 2,500 kVA, 22 kV to 400 V, 50 Hz ONAN distribution transformer using inhibited mineral oil conforming to IEC 60296. The guaranteed factory test losses are:

• No-load loss ($P_0$): 2,800 W (2.8 kW)
• Load loss at 75°C ($P_k$): 21,500 W (21.5 kW)
• Total losses ($P_{total}$): $2,800 + 21,500 = 24,300\text{ W}$ ($24.3\text{ kW}$)
• Target top-oil temperature rise limit ($\Delta\theta_{oil}$): $55\text{ K}$

Under natural convection (ONAN) in mineral oil, the tank walls and corrugated fin panels dissipate heat through combined radiation and air convection. An empirical heat dissipation coefficient for modern corrugated steel radiators is approximately $q = 11.5\text{ W/(m}^2\cdot\text{K)}$.

Calculate the required effective radiator cooling surface area ($A_{eff}$):

$$A_{eff} = \frac{P_{total}}{q \times \Delta\theta_{oil}} = \frac{24,300\text{ W}}{11.5\text{ W/(m}^2\cdot\text{K)} \times 55\text{ K}} = \frac{24,300}{632.5} \approx 38.42\text{ m}^2$$

Adding a standard 15% engineering safety margin to account for dust accumulation and solar radiation gain:

$$A_{design} = 38.42 \times 1.15 = 44.18\text{ m}^2$$

Next, determine the required volume of dielectric fluid medium based on a standard specific gravity of 0.88 kg/L and an empirical volumetric rule of 0.45 litres of fluid per kVA for standard sealed corrugated tanks:

$$V_{oil} = 2,500\text{ kVA} \times 0.45\text{ L/kVA} = 1,125\text{ litres}$$

If the design is modified to use natural ester media, the higher kinematic viscosity (33 cSt vs 10 cSt at 40°C) reduces internal fluid velocity across winding cooling ducts. Consequently, the radiator surface area must be scaled upward by approximately 8% to 12% (yielding approximately $49.0\text{ m}^2$) or specified with wider cooling duct channels to maintain equivalent winding hot-spot margins.

Procurement Checklist for Specifying Transformer Media in Tender Documents

Electrical consultants and procurement leads must establish unambiguous criteria for both physical insulating media and digital diagnostic media when issuing requests for quotation (RFQs). Incomplete specifications often lead to delivery of substandard fluids or incompatible communication hardware.

Incorporate the following verification checklist into project technical schedules:

1. Fluid Medium Specification: Specify exact standard designation (e.g., Uninhibited Mineral Oil to IEC 60296 Table 2, or Natural Ester to IEC 62770). Ban re-refined or recycled base oils unless explicitly certified with virgin oxidation stability limits.
2. Dielectric Acceptance Thresholds: Require delivery testing verifying moisture content under 15 ppm, breakdown voltage greater than 60 kV across a 2.5 mm gap (IEC 60156), and dielectric dissipation factor ($\tan\delta$) under 0.005 at 90°C.
3. Dry-Type Encapsulation Media: For cast-resin units, require Class F ($155^\circ\text{C}$) or Class H ($180^\circ\text{C}$) epoxy resin loaded with silica flour or aluminium trihydrate under vacuum casting pressure, verified against our dry-type transformer guide.
4. Digital Interface Architecture: Mandate serial Modbus or dual-redundant LC fibre-optic Ethernet ports running native IEC 61850 data models for integration into plant distribution automation.
5. FAT Data Package: Stipulate that final delivery documentation must include digital PDF test reports, high-resolution internal inspection photographs prior to tanking, and native software calibration files for all electronic monitoring gauges.

Next steps: specifying and sourcing

Optimising transformers media requirements demands balancing dielectric longevity, environmental containment, and automated telemetry integration. If you are preparing tender documentation or replacing aging distribution units, submit your single-line diagrams, ambient operating parameters, and preferred dielectric criteria to our engineering team. Explore our certified range of oil-immersed transformers, solid-cast dry-type transformers, and packaged compact transformer substations designed to IEC and IEEE standards. Visit our transformer quotation page or contact our technical sales desk directly to review full product specifications, test certificates, and factory lead times.
