Hybrid Generator Battery Systems: Sizing & Engineering Guide

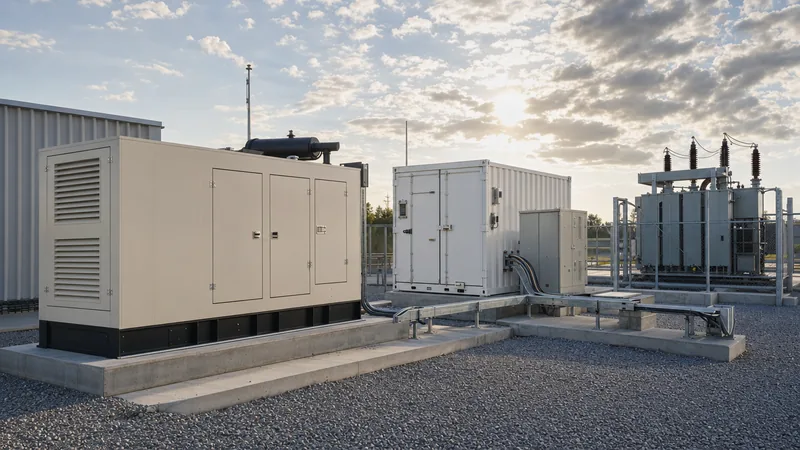

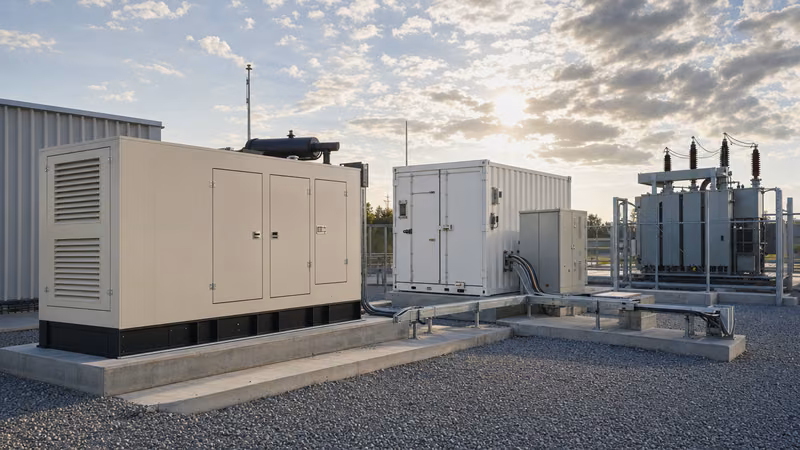

Quick answer: Hybrid generator battery systems combine reciprocating internal combustion engines with a battery energy storage system (BESS) and bidirectional power conversion system (PCS) under a unified microgrid controller. This integration enables the generator to run purely at peak thermal efficiency or switch off entirely, slashing fuel consumption by 30% to 60% and eliminating low-load wet-stacking.

Off-grid industrial facilities, mining compounds, remote microgrids, and critical infrastructure traditionally rely on diesel or heavy fuel oil (HFO) generator sets to meet base and peak demand. However, thermal generators suffer severe thermodynamic and mechanical penalties when tracking dynamic loads or operating at partial capacity. Sizing a reciprocating generator for peak demand forces the unit to operate frequently at light loads—often below 30% of its continuous rating—leading to incomplete combustion, carbon fouling, and excessive fuel burn.

By integrating containerised energy storage systems with traditional generation assets, engineers can decouple instantaneous electrical demand from engine dispatch. The resulting hybrid topologies leverage the rapid response of lithium-ion chemistries alongside the energy security of synchronous generators, cutting lifecycle costs while meeting modern emissions targets.

What are hybrid generator battery systems and how do they operate?

Hybrid generator battery systems are integrated power generation architectures that combine synchronous reciprocating generator sets with electrochemical energy storage and digital microgrid controls. Rather than forcing diesel or gas generators to modulate output second-by-second to match fluctuating plant loads, the battery system serves as an instantaneous energy buffer.

In standard configurations, the system operates across four primary operational regimes managed by a programmable logic controller (PLC) or energy management system (EMS):

• Genset-off battery support: Under minimum load conditions (such as night-time baseline loads), the engine is stopped, and a grid-forming PCS supplies 100% of the active and reactive power, drawing from the battery bank.
• Peak shaving and dynamic load injection: When large inductive loads start—such as ball mills or submersible pumps—the battery injects active power within milliseconds, suppressing frequency dips and preventing generator under-frequency tripping.
• Optimal engine loading: When the battery state of charge (SoC) drops to a predetermined lower threshold, the engine starts, synchronises, and ramps immediately to its optimal fuel curve (typically 75% to 85% of rated continuous power). Output in excess of the load charges the battery.
• Spinning reserve displacement: The high-speed discharge capability of the storage system replaces the requirement to run multiple unladen generators purely for N+1 redundancy, as detailed in our guide to industrial battery backup systems.

The battery chemistry of choice for commercial and industrial hybrid systems is Lithium Iron Phosphate (LFP) due to its high cycle life, chemical stability, and lower degradation under partial state-of-charge (PSOC) cycling. For detailed chemistry trade-offs, consult our analysis on LFP vs NMC battery technology.

Fuel savings and efficiency: a worked engineering calculation

Engine fuel efficiency improves dramatically when a generator is shifted from variable low-load operation to a cyclic, high-load charging schedule. Reciprocating diesel engines exhibit a non-linear Brake Specific Fuel Consumption (BSFC) curve, consuming significantly more fuel per kilowatt-hour produced when operating under light load conditions.

Consider an off-grid processing plant with a 24-hour variable load profile exhibiting an average demand of 150 kW, peaking at 400 kW for 4 hours daily, and dropping to 60 kW for 8 hours overnight. The facility operates an un-hybridised 500 kVA (400 kW prime) diesel generator running continuously.

• Continuous genset baseline: At 150 kW average output (37.5% load factor), typical BSFC is approximately 280 g/kWh (0.333 L/kWh). Total daily fuel consumption equates to 150 kW × 24 h × 0.333 L/kWh = 1,198.8 litres per day. Over 365 days, consumption reaches 437,562 litres, with the engine logging 8,760 operating hours annually.
• Hybridised operation: The plant installs a 250 kW / 500 kWh liquid-cooled ESS container alongside the genset. The EMS enforces a strategy where the engine runs only between 75% and 85% capacity (320 kW) to power plant loads and charge the BESS simultaneously at up to 0.5C. At 80% load, the engine BSFC improves to 215 g/kWh (0.255 L/kWh).

Under this hybrid strategy, daily energy consumption is 3,600 kWh. Accounting for an 88% round-trip efficiency (RTE) on the battery cycle for roughly 1,400 kWh routed through storage, total generated engine energy is approximately 3,790 kWh. Delivered at an optimal 320 kW, the generator runs for only 11.8 hours per day instead of 24 hours.

Daily fuel consumption drops to: 3,790 kWh × 0.255 L/kWh = 966.5 litres per day. This yields an immediate daily saving of 232.3 litres (84,790 litres annually, a 19.4% direct fuel reduction across the entire year). More significantly, during the 8-hour nocturnal trough (60 kW load), running solely on the battery avoids 480 kWh of low-load generation where fuel burn rates exceed 0.420 L/kWh, completely preventing engine cylinder glazing and wet-stacking.

System architectures: AC-coupled vs DC-coupled hybrid generator battery storage

System topology determines how the internal combustion engine, battery storage, and local distribution switchgear interact electrically. Selecting between AC-coupled and DC-coupled architectures hinges on existing assets, fault level constraints, and switchgear design.

In an AC-coupled hybrid topology, the generator and the battery energy storage system connect to a common alternating current busbar, typically at 400 V, 480 V, or medium voltage (e.g., 11 kV or 33 kV). The BESS utilises a bidirectional power conversion system with its own dedicated isolation transformer. This architecture represents the industry standard for industrial retrofits because it preserves existing synchronous generator switchgear, allows independent maintenance, and decouples the generation assets. Engineering guidelines for configuring the bidirectional inverter are covered in our power conversion system guide.

In a DC-coupled hybrid topology, distributed generation sources such as solar photovoltaic strings, small variable-speed DC generators, and battery modules connect to a regulated direct current busbar. A centralised central inverter conditions the combined power before exporting it to the AC loads. DC coupling eliminates phase synchronisation complexities between multiple assets, reduces conversion stages for co-located solar PV, and allows variable-speed engine operation. However, fault currents on DC busbars require specialised high-speed DC circuit breakers, and standardising AC generation additions at larger scale becomes cost-prohibitive beyond 500 kW.

For installations scaling above 1 MVA, AC coupling through standard metal-enclosed HV/LV switchgear remains the preferred engineering method, facilitating compliance with IEC 61439-2 assembly requirements and straightforward integration into existing protection schemes.

Comparison: conventional genset vs hybrid generator battery storage

Integrating battery storage fundamentally alters key operational, economic, and electrical parameters compared to traditional open-cycle reciprocating generation. The comparative metrics below reflect a nominal 1 MVA industrial site installation.

These operating characteristics translate directly into reduced levelised cost of electricity (LCOE), especially when fuel logistics to remote or islanded locations add substantial transport premiums to base commodity prices. System engineers planning large infrastructure should also reference our utility-scale battery storage guide for broader network-level considerations.

Control strategies: grid-forming inverters and load following

A hybrid generator battery system relies on high-speed industrial controllers executing sophisticated control loops to maintain power quality and system stability. The foundational stability of an islanded hybrid microgrid depends on whether the BESS inverter operates in grid-following (GFL) or grid-forming (GFM) mode.

In grid-following mode, the PCS relies on a phase-locked loop (PLL) to detect the voltage angle and frequency established by the synchronous generator's alternator. The inverter then behaves as a controlled current source. While simple to implement, grid-following systems cannot operate when the generator is switched off, defeating the primary fuel-saving objective of zero-engine running periods.

In grid-forming mode, the PCS controls its output as a pure voltage source, establishing microgrid frequency ($f$) and voltage magnitude ($V$) independently using active power-frequency droop ($P-f$) and reactive power-voltage droop ($Q-V$) algorithms:

f − f₀ = −k_p(P − P₀)
V − V₀ = −k_q(Q − Q₀)

When load changes occur, the grid-forming inverter provides immediate power exchange without waiting for communications signals, mimicking the damping power of physical synchronous mass. When the generator starts, it synchronises against the frequency and voltage established by the BESS. The microgrid controller manages the soft transition of load between the assets, ensuring seamless operation compliant with IEEE 1547.4 guidelines for islanded power systems.

Commissioning and testing checklist for hybrid installations

Commissioning an integrated hybrid generation system requires rigorous verification of control handshakes, reverse power protection, and thermal transitions. Field engineers should follow a structured sequence prior to commercial energisation:

1. Dead-bus energisation and black start: Verify the grid-forming PCS can establish a stable 50/60 Hz voltage on the switchboard busbar from an unpowered state without tripping on inrush currents of downstream auxiliary transformers.
2. BMS and EMS safety interlock validation: Confirm that hardwired Emergency Power Off (EPO) loops and communication-loss fail-safes immediately trip the main vacuum contactors or air circuit breakers in compliance with IEC 62933-5-2.
3. Automated generator auto-start/stop sequencing: Test programmable start signals dispatched by the EMS across various battery state-of-charge thresholds (e.g., crank initiated at 20% SoC, synchronisation at 22%, engine ramp to 80% load, engine shutdown at 90% SoC).
4. Reverse power relay calibration: Ensure directional power relays (ANSI device code 32R) on the generator breaker are calibrated to prevent current backfeeding into the alternator during sudden load rejection or aggressive BESS ramp rates.
5. Transient step-load acceptance: Apply 50% to 100% block loads using a resistive-inductive load bank; measure frequency deviation (maximum allowable ±2%) and recovery time to confirm the PCS catches the transient before the engine governor reacts.
6. Synchronisation and seamless islanding: Execute hot transfer tests where the engine synchronises, takes load, and disconnects without exceeding transient voltage limits defined under IEC 60034-22 Class G3.

Next steps: specifying and sourcing

Designing an effective hybrid generator battery system requires precise site data, including single-line diagrams, transient load steps, fuel supply costs, and local ambient thermal constraints. A properly matched system balances power conversion ratings with energy capacity to achieve maximum engine displacement while maintaining robust fault-clearing capabilities.

Our engineering team designs and manufactures containerised LFP battery systems, liquid-cooled energy storage cabinets, and medium-voltage switchgear assemblies engineered to IEC, IEEE, and local grid standards. Review our complete line of energy storage systems and custom transformer substations to configure your balance of plant. To discuss your project load profile or request an engineering review, visit our contact page or submit single-line diagrams directly through our quotation request portal.
