Large Power Transformers: Engineering Specs & Sourcing Guide

Quick answer: Large power transformers are critical grid assets rated from 100 MVA to over 1,000 MVA and operating at high-voltage transmission levels between 110 kV and 765 kV. They step transmission voltages up or down to minimise line losses across transmission interconnectors, bulk substations, and generation tie-ins.

As electrical grids transition to accommodate bulk renewable integration, industrial electrification, and regional interconnectors, large electrical transformers serve as the backbone of transmission infrastructure. Siting, specifying, and manufacturing these immense units requires rigorous engineering compliance with international standards such as IEC 60076 and IEEE C57.12.00. Sourcing engineers and power utility planners must evaluate thermal limits, electromagnetic geometries, internal insulation systems, and transport logistics to guarantee 40-plus years of reliable service under dynamic grid loading.

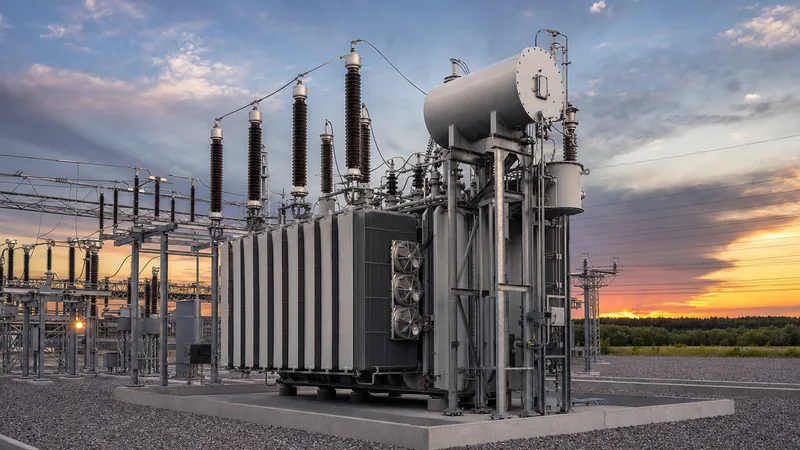

What Defines Large Power Transformers in Modern Grids?

A large power transformer is defined by international utility standards as an oil-immersed transmission-class transformer with three-phase ratings typically exceeding 100 MVA or operating at system voltages of 110 kV and higher. In contrast to distribution units, these big electrical transformers interface directly between transmission networks and utility bulk power substations, managing immense continuous energy throughput.

These units are deployed in three primary operational environments:

• Generator Step-Up (GSU) transformers: Positioned at thermal, hydro, nuclear, or large-scale utility solar installations to raise generation voltages (11 kV to 25 kV) to extra-high transmission levels (220 kV to 500 kV). Detailed requirements for these interfaces can be explored in the power plant transformer engineering guide.
• Transmission auto-transformers: Interconnecting two disparate transmission voltage networks (for example, 400 kV to 220 kV or 500 kV to 230 kV) using a common shared winding to reduce physical frame weight and electrical losses, as outlined in our comprehensive transmission transformer guide.
• Bulk transmission receiving stations: Stepping transmission lines down to sub-transmission or regional distribution voltages (such as 110 kV, 66 kV, or 33 kV) at primary city gates and heavy industrial centres. Further siting insights are detailed in the substation transformer engineering guide.

Because transmission interconnects experience extreme system disturbances, every unit must withstand transient overvoltages, switching surges, and extreme dynamic short-circuit electrodynamic forces without structural displacement of the active core and winding assembly.

Core and Winding Architecture in Large Electrical Transformers

The core and winding structure of large electrical transformers constitutes the active part, engineered to transfer gigawatt-scale power while keeping hysteresis, eddy-current, and copper losses within stringent contractual guarantees. The magnetic circuit is assembled using high-grade, laser-scribed, cold-rolled grain-oriented (CRGO) silicon steel laminations with thicknesses typically between 0.23 mm and 0.27 mm. These laminations exhibit low specific core loss (often below 0.85 W/kg at 1.7 Tesla, 50 Hz).

Core design prioritises circular cross-sections built with multi-stepped packets and step-lap mitered corner joints. This step-lap stacking geometry minimises magnetic flux deviations at the yoke-limb junctions, achieving lower excitation current, reduced no-load losses, and decreased acoustic sound pressure levels to satisfy environmental noise limits (often under 75 dBA at rated flux).

Windings in high-capacity units are configured according to voltage class and dielectric stress:

• Continuous disc windings: Widely employed for medium and high-voltage sections, offering superior mechanical rigidity against axial short-circuit forces.
• Interleaved or shielded disc windings: Utilised on extra-high-voltage (EHV) stages (220 kV to 765 kV) to linearise internal voltage distribution during high-frequency lightning impulses. Interleaving interleaves consecutive turns to increase series capacitance, thereby dampening non-linear voltage gradients along the winding stack.
• Helical windings: Applied on low-voltage, high-current tertiary or secondary windings where radial mechanical stability and low eddy-current losses from transposed conductors are paramount. Manufacturers utilise continuously transposed conductor (CTC) cables treated with epoxy bonding to counteract dynamic magnetic hoop stress during external short-circuits.

Cooling Regimes and Thermal Sizing for Big Electrical Transformers

Cooling regimes dictate the continuous MVA capability and operational lifespan of big electrical transformers by preventing mineral oil degradation and cellulosic insulation embrittlement. Standard ratings are dictated by the four-letter cooling designation codified under IEC 60076-2 (e.g., ONAN, ONAF, OFAF, ODAF).

Standard transformer life calculations assume an operational winding hotspot temperature limit of 98 °C for normal non-thermally upgraded paper, or 110 °C for thermally upgraded cellulose paper. When cooling mechanisms fail to evacuate heat efficiently, thermal degradation accelerates exponentially: every 6 K to 8 K increase beyond rated limits cuts the paper insulation's mechanical tensile strength in half, drastically foreshortening transformer operating life.

In directed oil flow configurations (ODAF), non-conductive baffles within the winding insulation force cooled transformer oil directly through the winding ducts rather than allowing it to bypass the active elements through the clearance between tank wall and core. This targeted circulation suppresses hotspot temperature rises by 15 K to 20 K compared to non-directed natural convective paths.

Key Specifications: Impedance, Insulation Levels, and Tap Changers

Specifying large power transformers requires balancing short-circuit impedance percentage (%Z), basic lightning impulse insulation levels (BIL), and voltage regulation topology to match the host transmission grid characteristics. The short-circuit impedance governs the fault current flowing into downstream switchgear and limits reactive voltage drop under full load.

Typical percentage impedance values range from 10% to 18% for transmission transformers between 100 MVA and 500 MVA. An impedance specified too low results in catastrophic fault currents that overstress downstream circuit breakers, whereas an excessively high impedance leads to poor voltage regulation and high reactive power consumption across the network.

Insulation co-ordination requires verified Basic Lightning Impulse Levels (BIL) and Switching Impulse Levels (SIL) per IEC 60076-3. For a 400 kV system, a common specification is 1,425 kV BIL with a power-frequency withstand voltage of 630 kV for one minute. High-voltage bushings must incorporate capacitive grading (oil-impregnated paper or resin-impregnated synthetic RIP/RIS) with dedicated test taps for continuous power factor (tan delta) monitoring.

Voltage regulation is executed via tap changers:

• On-Load Tap Changers (OLTC): Critical for grid-intertie and substation transformers where voltage adjustments must happen dynamically under load without interrupting consumer power. Vacuum-type OLTCs are favoured to eliminate oil carbonisation and extend mechanical maintenance intervals past 300,000 operations. Regulation ranges generally span +/-10% to +/-15% in steps of 1.25% to 1.67%.
• De-Energised Tap Changers (DETC): Typically installed on GSU transformers or dedicated high-voltage auto-transformers where system voltage shifts are seasonal, requiring the active part to be completely isolated from the grid before physical tap adjustments are performed.

Comprehensive system coordination also necessitates integration with modern multi-function protective relays, as documented in our guide to substation transformer protection.

Factory Acceptance Testing and Commissioning Procedures

Factory Acceptance Testing (FAT) for large power transformers verifies design calculations, structural assembly, dielectric integrity, and contractual loss guarantees prior to field shipment. Testing regimes are structured systematically under IEC 60076-1 and IEEE C57.12.90 into routine, type, and special tests.

1. Insulation resistance and winding resistance measurement: Performed across all tap positions using four-wire DC Kelvin bridge techniques to confirm winding integrity and calculate precise I²R copper losses.
2. Voltage ratio and vector group verification: Ensures exact winding turns counts and correct phase displacement angles across high, low, and tertiary windings.
3. No-load loss and excitation current test: Measures core losses at 90%, 100%, and 110% of rated voltage using high-precision power analysers to verify core steel performance.
4. Load loss and short-circuit impedance test: Conducted by short-circuiting the secondary side while driving rated current through the primary, determining stray load losses and exact %Z values.
5. Dielectric withstand tests: Subjecting windings and bushings to applied separate-source AC overvoltages, induced AC overvoltage testing with partial discharge (PD) monitoring (ensuring PD remains below 100 pC at 1.5 Um/√3), and full-wave/chopped-wave lightning impulse tests. Detailed procedures can be found in our guide on transformer testing methods.
6. Temperature rise heat run: Utilises the short-circuit method with total losses injected until the oil top temperature, average oil, and winding resistance stabilise, verifying that cooling circuits satisfy contractually guaranteed hotspot limits.
7. Frequency Response Analysis (FRA): Establishes a definitive baseline signature of the active core-and-coil geometry before the unit leaves the factory floor. This baseline is re-evaluated upon site arrival to confirm zero mechanical transit damage.

Logistics, Siting, and Environmental Safeguards

Transporting and installing a large electrical transformer weighing between 150 and 450 metric tonnes requires rigorous civil and logistic preparations well in advance of delivery. Because railway and road bridge load classifications rarely accommodate fully assembled units, these transformers are stripped for transport: oil is drained, external radiators, conservator tanks, and bushings are removed, and the main tank is backfilled with dry nitrogen or synthetic air at positive pressure.

Impact recorders tracking 3-axis G-forces (longitudinal, transverse, and vertical) are rigidly affixed to the transport frame. Any shock acceleration exceeding 3G during rail or multi-axle hydraulic platform transit triggers internal inspection protocols to detect displaced winding blocks or fractured core clamping structures.

On-site installation involves placement on a reinforced concrete slab surrounded by an oil containment bund engineered to capture 110% of the transformer's total dielectric liquid volume in compliance with IEEE 980 and local environmental regulations. Automated fire suppression systems (such as high-velocity water spray deluges or compressed air foam systems) along with blast-resistant firewall barriers are situated between adjacent phases or parallel units to prevent cascading substation disasters during catastrophic tank rupture events.

Next steps: specifying and sourcing

Procuring large power transformers requires an unambiguous technical requisition file. Ensure your engineering procurement package details the rated base and peak MVA, primary and secondary operational voltages, system fault level, Basic Impulse Level (BIL), impedance targets (%Z), sound level thresholds, and vacuum OLTC parameters. Review our engineering portfolio of utility-grade power transformers and heavy-duty oil-immersed transformers built to IEC and IEEE standards. Submit your single-line diagrams, substation layout dimensions, and technical loss evaluation formulas directly through our transformer quotation portal to receive complete design proposals, dimensional outline drawings, and manufacturing schedules from our senior engineering team.
