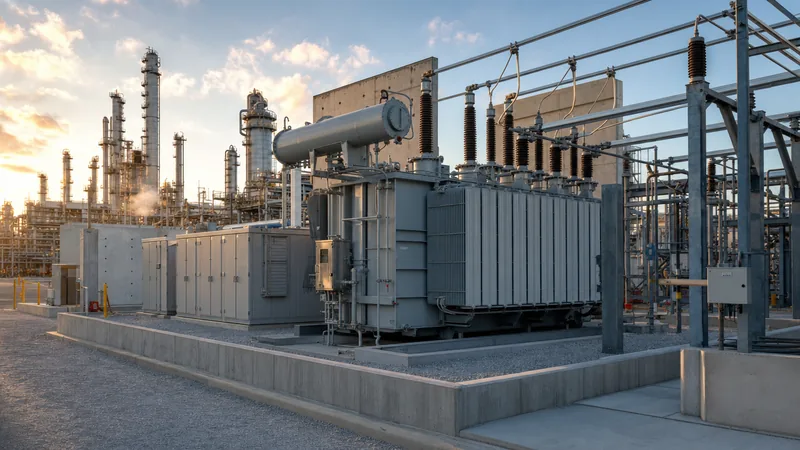

Power Electronics US Transformer Oil Refinery Location Guide

Quick answer: Selecting a power electronics us transformer oil refinery location requires balancing hazardous area zoning (NEC Class I, Division 2), severe harmonic thermal derating, and strict environmental containment. Liquid-filled transformers serving heavy industrial rectifiers, drives, and power conversion systems must comply with NFPA 70, NFPA 850 fire setback envelopes, and EPA Spill Prevention, Control, and Countermeasure (SPCC) regulations.

Refining complexes in major US petrochemical corridors—such as the Texas Gulf Coast and Louisiana petrochemical belt—impose harsh operational demands on power distribution apparatus. High ambient temperatures, airborne corrosive sulphides, and continuous non-linear process loads generate severe stresses. Placing liquid-filled transformers adjacent to high-power rectifiers, variable frequency drives (VFDs), and motor control centres demands rigorous coordination between civil siting, thermal engineering, and dielectric fluid selection.

Understanding the interplay between dielectric liquid properties, harmonic dissipation, and spatial zoning ensures electrical assets withstand the rigorous duty cycles typical of hydrotreating, catalytic cracking, and electrochemical processing units without compromising facility safety.

Power Electronics US Transformer Oil Refinery Location Requirements and Hazardous Zones

Locating electrical conversion assets in a refinery begins with Class I, Division 1 and Division 2 boundary assessments under NFPA 70 (National Electrical Code, Articles 500–505). Standard oil-immersed transformers cannot be placed inside Class I, Division 1 areas due to the ignition risk posed by arcing tap changers, terminal connections, and tank rupture potentials under internal fault conditions.

Refinery engineers place primary substation units within unclassified or Class I, Division 2 perimeter zones. When solid-state power conversion systems and rectifiers must interface directly with step-down distribution units in processing zones, designers utilise pressurised control rooms or blast-resistant modular buildings (BRMBs). Under NFPA 496, positive-pressure purge systems maintain indoor areas at an elevated differential pressure (minimum 25 Pa or 0.1 inch water column), keeping volatile hydrocarbon vapours from entering the power electronics hall.

When addressing a power electronics us transformer oil refinery location, site civil teams must also coordinate physical setbacks from active hydrocarbon processing lines. If an installation is planned within 15 metres (50 feet) of process columns, fired heaters, or alkylation vessels, physical blast-deflection barriers and hydrocarbon vapour monitoring sensors must be integrated into the substation layout. This physical separation prevents vapour migration toward transformer bushings while shielding transformers from external thermal radiation during emergency flaring or plant upsets.

Transformer Oil Selection: Mineral Oil vs Synthetic Esters in Petrochemical Sites

Dielectric fluid choice directly dictates civil footprint constraints, fire wall engineering, and operational longevity in refinery substations. Conventional mineral oil refined to ASTM D3487 Type II specifications provides excellent dielectric strength and heat transfer, but its low fire point (typically 160 °C to 170 °C) categorises it as a Class IIIB combustible liquid, triggering stringent spatial separation requirements.

Synthetic and natural esters meeting ASTM D6871 and IEC 61099 have emerged as the standard alternative for dense refinery installations. With fire points exceeding 300 °C, ester fluids qualify as "less-flammable" liquids under NEC Section 450.23, permitting transformers to sit closer to buildings, power conversion enclosures, and adjacent equipment without mandatory water-spray deluge systems or 3-hour fire barriers. For a detailed breakdown of chemical properties and dielectric breakdown thresholds, refer to our insulating oil transformer guide.

While natural esters provide superior fire safety and environmental ratings, their higher kinematic viscosity requires factory verification of cooling duct dimensions within the transformer windings. In forced-oil or radiator-cooled systems, the higher fluid resistance can increase winding hot-spot differentials if not matched with appropriately rated pump velocities and radiator fin spacing.

Harmonic Thermal Derating for Converter and Rectifier Transformers

Non-linear currents from power conversion systems increase transformer winding and core eddy-current losses, necessitating rigorous thermal derating per IEEE C57.110. Rectifiers and variable speed drives generate harmonic spectra (5th, 7th, 11th, 13th orders and higher) that cause elevated stray magnetic fields, localised hot spots in core clamping steel, and accelerated thermal ageing of dielectric oil.

Total winding eddy-current losses ($P_{EC}$) scale quadratically with the product of harmonic current amplitude and harmonic order. To prevent the winding hot-spot temperature from exceeding the thermal class limit (typically 110 °C for standard insulation systems or 130 °C for thermally upgraded paper in oil), engineers calculate the transformer harmonic loss factor ($F_{HL}$):

$$F_{HL} = \frac{\sum_{h=1}^{h_{max}} I_h^2 h^2}{\sum_{h=1}^{h_{max}} I_h^2}$$

Consider a practical engineering calculation for a 2,500 kVA, 13.8 kV to 480 V converter transformer deployed in a refinery hydrogen compression facility:

• Rated fundamental current ($I_1$): 1.000 pu
• 5th harmonic current ($I_5$): 0.180 pu
• 7th harmonic current ($I_7$): 0.110 pu
• 11th harmonic current ($I_{11}$): 0.065 pu
• 13th harmonic current ($I_{13}$): 0.045 pu
• Design winding eddy-current loss at fundamental ($P_{EC-R}$): 8.5% of full-load $I^2R$ loss

Evaluating the harmonic summation:

$$\sum I_h^2 = 1.000^2 + 0.180^2 + 0.110^2 + 0.065^2 + 0.045^2 = 1.000 + 0.0324 + 0.0121 + 0.0042 + 0.0020 = 1.0507$$

$$\sum [I_h^2 \times h^2] = 1.000 + (0.0324 \times 25) + (0.0121 \times 49) + (0.0042 \times 121) + (0.0020 \times 169) = 1.000 + 0.810 + 0.593 + 0.508 + 0.338 = 3.249$$

$$F_{HL} = \frac{3.249}{1.0507} \approx 3.092$$

With $F_{HL} = 3.092$, the winding eddy losses triple relative to pure sinusoidal operation. If a standard transformer without harmonic reinforcement were installed at this power electronics us location transformer oil installation, the dielectric fluid in the upper tank plenum would exceed maximum top-oil temperature limits (65 °C rise over ambient per IEEE C57.12.00 Table 5). The equipment must either be specified with a K-factor rating of K-9 minimum or derated to roughly 78% of continuous nameplate capacity under natural cooling.

Siting and Fire Separation Rules for US Refinery Substation Environments

Siting outdoor oil-filled transformers adjacent to power electronics enclosures requires compliance with NFPA 850 (Recommended Practice for Fire Protection for Electric Generating Plants and High Voltage Direct Current Converter Stations) and local insurance standards. The proximity of equipment dictates whether physical separation distances, firewall barriers, or water deluge networks are mandatory.

For units filled with combustible mineral oil, the standard horizontal setback to combustible building walls or adjacent electrical gear is 7.6 to 15 metres (25 to 50 feet), depending on oil volume. If fluid volume exceeds 1,893 litres (500 US gallons), secondary containment is required under US federal regulation 40 CFR 112 (SPCC rule). Containment bunds must hold 100% of the transformer fluid volume plus the precipitation volume from a 25-year, 24-hour storm event.

Where congested refinery plots prevent adequate physical clearance between the step-down unit and the converter enclosure, engineers construct reinforced masonry or pre-cast concrete firewalls designed per NFPA 850 Section 5.1.4. The barrier must provide a minimum 2-hour fire-resistance rating, extend 0.3 metres (1 foot) above the highest point of the tank, bushings, and conservator, and extend 0.6 metres (2 feet) horizontally past the equipment footprint. Detailed design metrics for passive and active systems can be reviewed in our transformer fire protection system guide.

Dielectric Fluid Maintenance and Dissolved Gas Analysis (DGA) Protocol

High-frequency electrical switching transients from solid-state power conversion systems accelerate dielectric degradation, making periodic sampling vital for fleet reliability. Inverters and phase-controlled rectifiers generate steep rate-of-rise voltage spikes ($dv/dt$) that stress turn-to-turn paper insulation and oil channels, generating micro-arcing and thermal breakdown gasses earlier than seen in standard transmission duty.

To maintain dielectric performance and detect fault conditions before catastrophic failure occurs, refinery operations teams follow this step-by-step diagnostic procedure:

1. Sample extraction: Collect insulating liquid samples in gas-tight, amber glass syringes equipped with Teflon three-way stopcocks in accordance with ASTM D923. Avoid turbulent flow to prevent bubble entrapment or ambient gas absorption.
2. DGA testing: Run dissolved gas extraction and gas chromatography per ASTM D3612 or IEC 60567 to establish concentrations in parts per million (ppm) for hydrogen ($H_2$), methane ($CH_4$), acetylene ($C_2H_2$), ethylene ($C_2H_4$), ethane ($C_2H_6$), carbon monoxide ($CO$), and carbon dioxide ($CO_2$).
3. Ratio diagnostic interpretation: Apply Duval Triangle 1, Duval Pentagon, or Roger's Gas Ratios per IEEE C57.104. For transformers subjected to power electronics loading, pay critical attention to acetylene ($C_2H_2$) levels above 1 ppm, which indicate high-energy electrical arcing, and ethylene ($C_2H_4$) spikes, which indicate thermal overheating ($> 700$ °C) of winding conductors.
4. Dielectric and physical testing: Measure dielectric breakdown voltage (ASTM D1816 with a 1.0 mm or 2.0 mm gap), interfacial tension (ASTM D971), and moisture content via Karl Fischer coulometric titration (ASTM D1533). Moisture in refinery mineral oil must remain below 15 ppm at 25 °C to prevent rapid dielectric drop.
5. Furan profiling: Conduct high-performance liquid chromatography (HPLC) for 2-furaldehyde (2-FAL) content per ASTM D5837. This quantifies mechanical degradation of the cellulose insulation lining the copper coils without de-tanking.

Implementing regular diagnostic cycles forms the foundation of preventative maintenance. For comprehensive testing intervals and acceptance limits, refer to our transformer maintenance guide.

Next steps: specifying and sourcing

When preparing an RFQ for substation transformers operating alongside heavy power electronics in refinery locations, specify the exact harmonic current spectrum up to the 49th order, expected ambient site conditions, containment constraints, and preferred dielectric fluid. Reviewing high-voltage and medium-voltage assets across power transformers, heavy-duty oil-immersed transformers, and integrated prefabricated transformer substations ensures your plant obtains equipment built to handle non-linear electrical stresses and rigorous petrochemical safety codes. Submit project schedules, one-line diagrams, and detailed site containment parameters through our quotation inquiry portal or reach out directly via our technical contact page to consult our application engineering group.
