Lithium Battery Bank Sizing, Architecture, and BESS Design

Quick answer: A commercial or utility-scale lithium battery bank is an engineered assembly of series and parallel electrochemical cells—typically lithium iron phosphate (LiFePO4)—configured with a multi-tier battery management system (BMS) to store and discharge bulk direct current (DC) electrical energy safely at voltages ranging from 48 V to 1,500 V.

As commercial facilities, microgrids, and industrial plants transition toward high-density stationary storage, selecting the proper electrochemical storage architecture is a fundamental design decision. While the consumer market refers casually to any portable charger as a lithium ion power bank, utility and industrial power engineers treat a stationary lithium battery bank as a critical medium-voltage or low-voltage DC power source. It requires precise fault current coordination, thermal modelling, and rigorous lifecycle calculation to integrate successfully with a power conversion system and local switchgear.

What is an Industrial Lithium Battery Bank?

An industrial lithium battery bank is a stationary, multi-module energy storage installation engineered to deliver continuous power or fast dynamic response to grid anomalies.

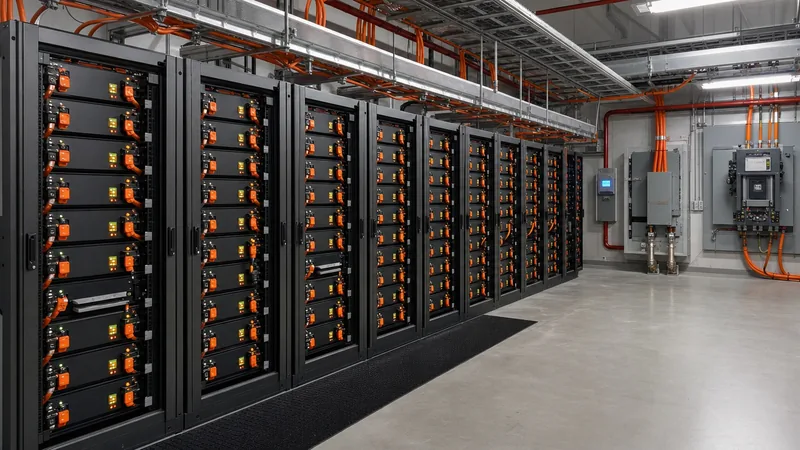

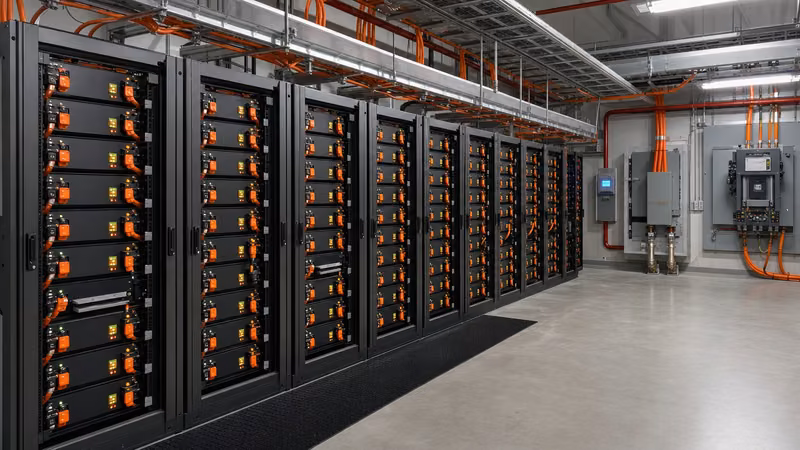

Unlike small consumer-grade devices like a handheld lithium battery power bank, an industrial installation aggregates dozens or hundreds of series-connected LiFePO4 prismatic cells into standardized 19-inch or 23-inch rack-mountable modules. These modules are connected in series strings to achieve high nominal DC voltages—typically 768 V, 1024 V, or up to 1500 V DC—thereby minimizing I²R copper losses during high-rate discharge.

At the apex of each string sits a Battery Control Unit (BCU) or High Voltage Box containing contactors, pre-charge resistors, shunt current sensors, and high-speed semiconductor fuses. Multiple strings are paralleled onto a common DC collection busbar that routes directly into bidirectional inverters or containerised systems such as a liquid-cooled energy storage container. The system provides grid services, uninterruptible power supply (UPS) bridging, and behind-the-meter demand mitigation under rigorous operational limits governed by IEC 62619 clause 8.2.

LiFePO4 vs Alternative Chemistries for Stationary Storage

Lithium iron phosphate (LFP) serves as the industry benchmark chemistry for stationary battery banks due to its structural stability and extended cycle life.

While nickel manganese cobalt (NMC) formulations offer higher volumetric energy densities often favoured in mobile electric transport, stationary projects prioritise round-trip efficiency, degradation rates, and thermal runaway thresholds. As evaluated in our comparison of LFP vs NMC battery technologies, LFP's phospho-olivine crystal structure prevents oxygen release under internal short-circuit conditions, with thermal runaway onset occurring above 270 °C compared to 210 °C for conventional NMC cells.

For behind-the-meter commercial shaving and microgrid support, a LiFePO4-based lithium battery bank delivers the lowest levelised cost of storage (LCOS), operating reliably over a 15-year horizon when paired with a purpose-built industrial battery bank enclosure.

Sizing a Lithium Battery Bank: Worked Engineering Calculation

Sizing an industrial lithium battery bank requires calculating the net required capacity, incorporating inverter efficiency, depth of discharge, and degradation reserves.

Consider an industrial manufacturing facility requiring peak shaving and backup power with a target load of 250 kW for 4 hours (1,000 kWh AC delivered energy). The battery rack operates on an 800 V nominal DC bus. The design must account for the following engineering constants:

• Required AC output: 1,000 kWh
• Power Conversion System (PCS) inverter efficiency (η_inv): 96.5% (0.965)
• Maximum allowable Depth of Discharge (DoD): 90% (0.90)
• End-of-Life (EOL) capacity retention threshold: 75% (0.75)
• Battery DC round-trip coulombic efficiency (η_batt): 98% (0.98)

The calculation sequence determines the nameplate Begin-of-Life (BOL) energy capacity needed to guarantee the 1,000 kWh payload at year 10:

1. Calculate required DC input at PCS terminals:
   E_{DC_req} = E_AC / η_inv = 1,000 kWh / 0.965 = 1,036.27 kWh
2. Account for operational Depth of Discharge:
   E_{usable_DC} = E_{DC_req} / DoD = 1,036.27 kWh / 0.90 = 1,151.41 kWh
3. Account for End-of-Life capacity fading margin:
   E_{BOL_nameplate} = E_{usable_DC} / EOL = 1,151.41 kWh / 0.75 = 1,535.21 kWh
4. Determine total string capacity and count:
   Selecting a standard 280 Ah, 3.2 V LFP prismatic cell in a 1P240S configuration yields a string voltage of 240 × 3.2 V = 768 V nominal and a string capacity of 768 V × 280 Ah = 215.04 kWh.
   Number of parallel strings = 1,535.21 kWh / 215.04 kWh = 7.14 strings (round up to 8 parallel strings).

Consequently, the actual installed system comprises 8 parallel racks, delivering an installed BOL capacity of 1,720.32 kWh at 768 V DC nominal, ensuring compliance with commercial battery storage performance guarantees over the entire operational lifecycle.

BMS Architecture, DC Protection, and Safety Standards

A high-voltage lithium battery bank requires a three-tier Battery Management System (BMS) topology to guarantee cell balancing, continuous state tracking, and fast fault isolation.

At Tier 1, Cell Monitoring Units (CMUs) wired directly to cell terminals measure individual cell potentials (target resolution ±2 mV) and surface temperatures via NTC thermistors. At Tier 2, the Rack Management Unit (RMU) aggregates cell telemetry, calculates State of Charge (SoC) using Coulomb counting integrated with extended Kalman filtering, and directs active or passive cell balancing. At Tier 3, a System BMS coordinates multiple strings, interfacing via Modbus TCP or CANbus 2.0B with the plant-level energy management controller and upstream HV/LV switchgear.

Protection coordination must be rigorously engineered. DC prospective short-circuit currents on a large lithium battery bank can exceed 25 kA with time constants (L/R) under 10 ms. Engineers must specify ultra-rapid semiconductor fuses (aR class) rated according to IEC 60269-4, paired with high-voltage DC moulded case circuit breakers (MCCB) or DC air circuit breakers possessing bidirectional magnetic arc-chutes. System safety must comply with UL 1973 (batteries for stationary use) and undergo full-scale unit fire testing under UL 9540A to confirm thermal runaway cannot propagate beyond a single module.

Thermal Management and Enclosure Design

Maintaining uniform cell operating temperatures between 15 °C and 35 °C is the primary factor in preventing premature capacity degradation and internal resistance mismatch.

Cell degradation rates accelerate exponentially when operating above 40 °C, while low-temperature charging below 0 °C induces lithium plating on the graphite anode, permanently lowering capacity and elevating internal short-circuit risks. For compact high-power applications, forced-air HVAC cooling often fails to prevent hot spots, exhibiting thermal gradients up to 8 °C between the front and rear of the rack.

Modern stationary energy storage specifications increasingly demand liquid-cooled cold plates integrated directly beneath or between cell groupings within the rack. Utilizing a 50/50 water-glycol mixture, a closed-loop liquid thermal distribution system constrains inter-cell temperature deltas to less than 3 °C across the entire battery bank. This temperature uniformity ensures even impedance across parallel strings, preventing circulating currents and extending the usable lifespan of the stationary system.

Commissioning and Site Acceptance Testing Procedures

Site acceptance testing (SAT) of a stationary lithium battery bank verifies dielectric integrity, BMS communication, and dynamic load response prior to grid synchronization.

1. Visual and Mechanical Verification: Torque-check all high-current DC busbar connections with calibrated tools to manufacturer-specified values (typically 8–12 Nm for standard copper terminals) and apply torque-seal lacquer.
2. Insulation Resistance Testing: Perform DC megohmmeter testing between the positive bus, negative bus, and protective earth (PE) at 1,000 V DC or 2,500 V DC in accordance with IEEE 43 and IEC 62477-1; minimum allowable resistance is 1,000 Ω/V.
3. BMS Loop and Trip Validation: Simulate high-voltage (e.g., 3.65 V/cell), low-voltage (2.50 V/cell), over-temperature (55 °C), and communication loss conditions to verify that string contactors open in less than 20 ms.
4. Controlled Initial Charge and Balancing: Energize the pre-charge circuit to limit inrush current into PCS DC-link capacitors, followed by a controlled 0.1C constant-current charge up to float voltage while observing passive balancing across all series cells.
5. Full-Load Capacity Discharge Test: Discharge the bank through a calibrated DC load bank or through the PCS into the local plant bus at rated C-rate (e.g., 0.5C) to 100% depth of discharge to confirm delivered capacity against nameplate ratings.

Next steps: specifying and sourcing

Specifying a high-reliability lithium battery bank requires a detailed single-line diagram, target duty cycles, maximum fault current envelopes, and site ambient temperature profiles. Whether your project calls for modular indoor racks or complete turnkey outdoor enclosures, explore our pre-engineered energy storage systems to review mechanical layouts and liquid-cooling schematics. Contact our technical team or submit your load profile directly through our online quote request page to receive a comprehensive sizing calculation, DC protection schematic, and budgetary proposal tailored to your grid or facility requirements.
