Key takeaways
- Watt batteries specify the instantaneous power output rate (kW/MW) of a system, whereas watt-hours measure total energy storage capacity over time.
- Grid ancillary services such as Fast Frequency Response (FFR) require sub-second discharge with high C-rates, prioritising peak wattage over total runtime.
- A standard watt lithium battery cell engineered for power applications operates at continuous discharge ratings between 1C and 4C without exceeding IEC 62619 thermal thresholds.
- Proper battery sizing requires factoring in round-trip efficiency, inverter conversion losses, and auxiliary loads to ensure delivered active power meets grid connection agreements.
- Liquid cooling architectures maintain individual cell temperatures within a plus-or-minus 2 degrees Celsius delta across high-wattage charge and discharge cycles.
Quick answer: In commercial and industrial electrical engineering, watt batteries refer to battery energy storage systems characterised by their active discharge power rating (measured in watts, kilowatts, or megawatts) alongside their sustained energy capacity (watt-hours). Selecting the correct power rating ensures the battery system can deliver instantaneous grid services, such as frequency response and peak shaving, without thermal overload.
Industrial operators frequently confuse power output (watts) with stored energy capacity (watt-hours). When engineering battery systems for utility and commercial facilities, this distinction dictates whether an installation successfully qualifies for rapid grid response contracts or provides multi-hour backup power. Integrating a commercial energy storage system requires a rigorous evaluation of C-rates, thermal dissipation, and internal conversion efficiencies across both the DC battery rack and the grid-tied inverter.
Watt Batteries vs Watt-Hours: The Engineering Distinction
The distinction between watts and watt-hours represents the fundamental boundary between instantaneous electrical power transfer and cumulative electrical energy stored. Watts (W) represent the rate of electrical work, calculated as instantaneous voltage multiplied by instantaneous current (P = V × I). Conversely, watt-hours (Wh) quantify the total work performed or energy delivered over a designated period, represented as the integral of power over time.
When specifying watt batteries for grid support, power determines the size of the conductors, busbars, power conversion systems (PCS), and circuit protection. For example, a system rated at 1 MW can momentarily balance sudden grid frequency deviations, but its operational duration depends strictly on its megawatt-hour (MWh) storage volume. Understanding this dynamic prevents costly over-specification of battery cells when only short-duration active power is required. To explore how module architectures manage these physical limits, see our guide on battery storage engineering and solar BESS sizing.
Sizing Power and Energy: Worked Grid-Support Calculation
To demonstrate how electrical engineers calculate required wattage and energy capacity for grid services, consider an industrial facility seeking to participate in a local distribution network operator's Fast Frequency Response (FFR) programme.
The network connection agreement specifies the following technical parameters:
- Required active power delivery: 500 kW at the 400 V point of common coupling (PCC)
- Full-power duration: 30 minutes (0.5 hours)
- Minimum terminal voltage response time: under 500 milliseconds
- System round-trip efficiency (RTE) derating: 88% overall DC-to-AC line efficiency
- Maximum operating depth of discharge (DoD): 80% to preserve cell lifecycle
- End-of-life (EOL) capacity retention allowance: 80%
The mathematical sizing sequence proceeds as follows:
- Calculate net delivered AC energy: 500 kW × 0.5 h = 250 kWh delivered at the low-voltage switchboard.
- Calculate required gross DC energy capacity: Divide the delivered energy by the system efficiency, allowable DoD, and lifecycle degradation factor: Gross DC Energy = 250 kWh / (0.88 × 0.80 × 0.80) = 443.8 kWh.
- Calculate required DC discharge wattage: Incorporating inverter efficiency (assume 96.5% according to IEEE 1547.1 testing): Required DC Power = 500 kW / 0.965 = 518.13 kW.
- Establish the operating discharge C-rate: Discharge C-rate = 518.13 kW / 443.8 kWh = 1.17C.
This calculation demonstrates that specifying a generic 500 kWh battery pack without addressing continuous discharge wattage would lead to operational failure. The cells and thermal management system must safely support a sustained 1.17C discharge profile while maintaining cell surface temperatures within the manufacturer limits set by IEC 62619 clause 8.2.
Discharge Rates and Watt Lithium Battery Chemistry
A watt lithium battery designed for high discharge capability relies on low internal DC resistance (ESR) and stable lithium iron phosphate (LFP) chemistry to sustain elevated continuous currents. Lithium iron phosphate cells provide intrinsically safe operating margins under high-rate cycling, with an onset temperature for thermal runaway typically exceeding 270 degrees Celsius, compared to approximately 210 degrees Celsius for nickel manganese cobalt (NMC) chemistries.
The instantaneous wattage a battery rack can source is restricted by its internal impedance and resulting joule heating (P_loss = I^2 × R_int). High-rate LFP cells utilise nano-phosphate cathode coatings and laser-welded copper tab connections to achieve cell internal resistances under 0.5 milliohms. Maintaining low cell impedance reduces voltage sag during sudden multi-megawatt load steps. As detailed in our analysis of power conversion system engineering, matching the DC operating voltage range of the battery strings to the DC input window of the inverter prevents thermal throttling during high-current discharge regimes.
Power-to-Energy Ratios for Commercial and Utility BESS
Selecting the optimal power-to-energy (P/E) ratio dictates the capital expenditure and physical footprint of any battery project. Industrial installations categorise installations into high-power short-duration systems, balanced commercial peak-shaving systems, and long-duration bulk energy storage.
| Application Profile | Typical P/E Ratio | Continuous C-Rate | Target Services | Thermal Architecture |
|---|---|---|---|---|
| Fast Frequency Response (FFR) | 2:1 to 4:1 | 2C to 4C | Grid stability, synthetic inertia | Direct liquid cooling |
| Commercial Peak Shaving | 1:1 to 1:2 | 0.5C to 1C | Demand charge reduction | Liquid or HVAC air cooling |
| Renewable Energy Arbitrage | 1:4 to 1:8 | 0.125C to 0.25C | Wholesale energy shifting | Standard HVAC air cooling |
| Microgrid Black Start | 1:1 | 1C peak | Transformer inrush, UPS | Direct liquid cooling |

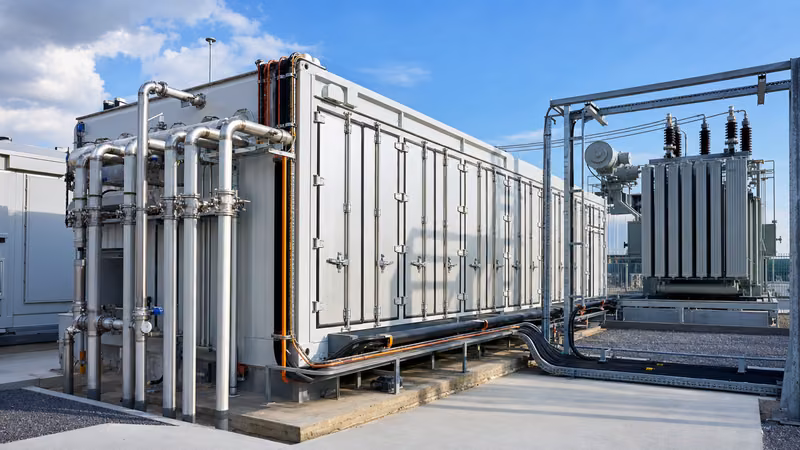

As indicated in the table, high-power grid services mandate low P/E ratios and aggressive thermal controls. For systems deployed in enclosed substations or utility yards, modern installations utilise a liquid-cooled energy storage container to extract heat directly from the cell terminals. Proper thermal uniformity ensures that cell aging remains homogeneous across series-connected strings.
Engineering Grid Services: Active Power, Frequency and Peak Shaving
Delivering grid ancillary services requires precise control over active power injection (watts) and absorption in accordance with regional grid codes, such as IEEE 2030.2.1 and EN 50549-2. When network frequency drops below nominal setpoints (e.g., 50 Hz in IEC jurisdictions or 60 Hz in ANSI regions), the battery system must switch from standby to maximum rated active discharge within milliseconds.
For peak shaving applications, the control scheme prioritises flattening building demand curves to avoid distribution tariff penalties. In such scenarios, integration with high-speed digital power meters over Modbus TCP or IEC 61850 protocol ensures that load steps originating from heavy inductive loads, such as large motor starts or industrial arc welders, are instantly offset by the battery. Engineers must coordinate the battery protection relays with the facility's main switchgear. Using advanced battery monitoring systems ensures that string-level voltages and temperatures are continuously verified prior to delivering maximum active power.
Factory Testing and Acceptance Checklist for High-Wattage Batteries
To ensure high-power battery storage systems perform safely under maximum discharge conditions, procurement teams and commissioning engineers should enforce the following factory acceptance testing (FAT) checklist prior to site dispatch:
- Internal DC Resistance Verification: Measure and record internal resistance (ESR) across 100% of individual cells using a calibrated 1 kHz AC milliohm meter to identify outlier cells with high contact resistance.
- Continuous Full-Power Thermal Run: Execute a full 1.0C continuous discharge cycle inside the factory test bay while monitoring temperature telemetry across all module sensors to confirm compliance with IEC 62619 thermal gradient limits (≤ 3 degrees Celsius variation across modules).
- Dynamic Load Step Response: Perform a 0% to 100% active power step-load test using a grid simulator to measure inverter rise time, settling time, and DC bus voltage sag, verifying total response times under 200 milliseconds.
- BMS High-Current Trip Validation: Verify secondary overcurrent and short-circuit trip curves per IEC 60947-2, ensuring safety isolation switches clear prospective DC fault currents without arc propagation.
- Insulation and Dielectric Withstand: Complete DC high-potential (Hi-Pot) testing between battery rack live conductors and chassis ground in accordance with UL 1973 clause 27 or IEC 62477-1 Table 7.
Enforcing these five quality criteria prevents on-site delays, nuisance tripping, and accelerated capacity loss during commercial operation. Sizing mistakes and build defects uncovered during site acceptance tests (SAT) cost up to five times more to rectify than those caught on the factory line, as detailed in our guide on commercial battery storage costs and sizing parameters.
Next steps: specifying and sourcing
When specifying high-wattage battery storage systems for industrial microgrids, grid support, or demand management, comprehensive project documentation ensures optimal procurement. Submit your single-line diagrams, required peak active discharge wattage, duty cycle profiles, and site environmental conditions directly through our quotation inquiry page. Our engineering specialists will determine the optimal power-to-energy configuration, DC bus architecture, and matching step-up transformer sizing. For detailed specifications on turnkey liquid-cooled battery containers and switchgear integration, contact our technical team via our contact page.
Frequently asked questions
What is the difference between battery watts and watt-hours?
Battery watts measure the instantaneous rate of power output or input, indicating how fast the system can deliver energy at any given second. Watt-hours represent the total cumulative energy stored inside the battery pack, determining how long that power output can be maintained.
How many watts does a utility-scale lithium battery produce?
Utility-scale lithium battery systems typically deliver between 500 kW and several hundred megawatts of active electrical power. The exact power rating is governed by the power conversion system capacity and the continuous discharge C-rate rating of the interconnected lithium cells.
Can a high-watt battery deliver full power continuously?
A high-watt battery can only deliver its rated maximum power continuously for the duration determined by its total energy capacity and thermal limits. For instance, a 1 MW, 2 MWh battery can sustain its 1 MW maximum continuous output for precisely two hours under ideal operating conditions.
What C-rate is required for grid fast frequency response?
Grid fast frequency response applications typically demand discharge C-rates between 1C and 4C to inject high active power into the network within sub-second timescales. This requires battery cells engineered with low internal resistance and specialised liquid-cooled thermal management.
How does ambient temperature affect battery wattage output?
Extreme ambient temperatures significantly increase internal cell impedance at low temperatures and trigger thermal protection derating at elevated temperatures. Battery management systems throttle allowable discharge wattage whenever internal core temperatures fall below 10 degrees Celsius or exceed 45 degrees Celsius.
