Lithium BMS Guide: Engineering Architecture & Selection

Quick answer: A lithium bms (battery management system) is an electronic supervisory control assembly that monitors individual cell voltages, pack currents, and module temperatures to maintain a lithium-based battery within its safe operating area. It prevents catastrophic failures such as thermal runaway, executes cell balancing, calculates state-of-charge and state-of-health, and transmits telemetry to higher-level power conversion systems.

Unlike lead-acid chemistries, which tolerate modest float charging and self-balance through controlled overcharge, lithium chemistries have no inherent tolerance for overvoltage or overtemperature. Operating outside narrow physical limits causes lithium plating, internal dendritic shorts, or aggressive thermal runaway. Consequently, a dedicated bms battery management architecture is not a passive accessory; it serves as the primary safety barrier and operational brain of every commercial and utility-scale energy storage installation. For comprehensive pack-level system integration, engineers should cross-reference this with our Li Ion Battery Engineering Guide.

What Is a BMS and How Does It Function in Lithium Systems?

To answer the fundamental question of what is a bms: it is an embedded hardware and firmware architecture designed to measure, compute, protect, and communicate the internal operational state of an electrochemical accumulator. A bms for lithium ion battery systems continuously samples cell-level electrical and thermal parameters against programmed threshold maps. When a single parameter breaches an engineered tolerance, the system transitions through graded responses, from issuing software alarms to tripping high-voltage contactors via galvanic isolation circuits.

The system performs four fundamental tasks simultaneously: precise telemetry acquisition (cell voltages, string current, ambient and busbar temperatures), state estimation (State of Charge [SOC], State of Health [SOH], and Depth of Discharge [DOD]), active thermal/switching control, and bidirectional communication with local microgrid controllers or energy management systems (EMS). For a wider structural overview of how monitoring integrates into industrial plants, refer to our Battery Monitoring System Guide.

Hardware Topology: From Battery BMS Board to Multi-Tier Systems

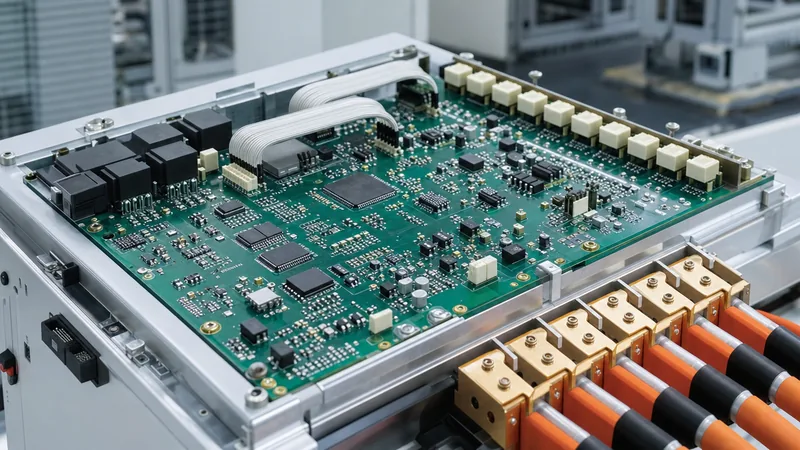

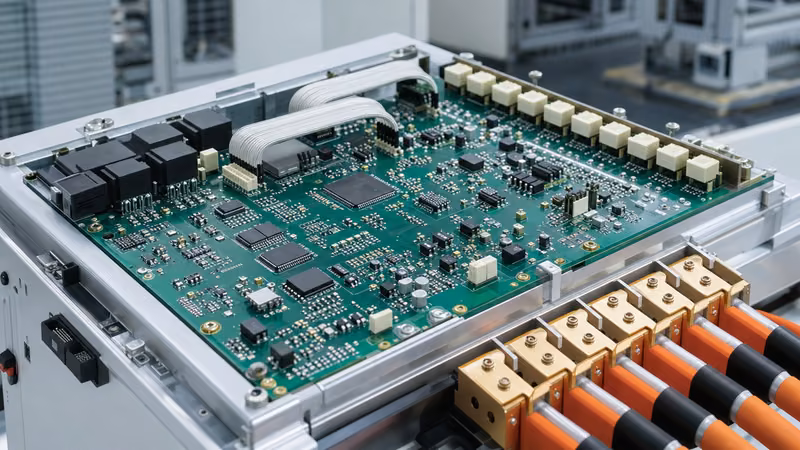

System scale dictates whether management is implemented on a single printed circuit board or across a synchronised multi-tiered hierarchy. Small industrial appliances rely on a monolithic battery bms board that mounts directly to the battery module. In this format, analogue front-end (AFE) integrated circuits sample up to 16 or 24 series cells on a single substrate, switching low-side or high-side power field-effect transistors (FETs) to interrupt current during fault conditions.

Large commercial and industrial (C&I) or utility grid installations require a distributed three-tier architecture to control strings operating at 800 V to 1,500 V DC:

• Tier 1: Cell Monitoring Unit (CMU) / Slave Board: Mechanically integrated onto each cell module, measuring 8 to 24 individual cell voltages and local thermistor inputs. These units convert analogue voltages to digital packets and transmit them across galvanically isolated daisy-chain buses.
• Tier 2: Battery Management Unit (BMU) / String Master: Aggregates CMU data, measures total string voltage and string current via Hall-effect transducers or precision shunts, and commands the high-voltage string contactors, pre-charge resistors, and pyrotechnic fuses. Explore the controller-level mechanics in our guide on What Is a Battery Control Module.
• Tier 3: Battery Array Manager (BAM) / Master Controller: Coordinates multiple parallel strings, balances inter-string circulating currents, executes system-level insulation monitoring, and interfaces with the Power Conversion System (PCS) via industrial protocols such as Modbus TCP or Ethernet/IP.

Core Protection Functions of a BMS for Lithium Ion Battery

Safety parameters for a lithium bms are dictated by international standards such as IEC 62619 clause 8.2 and UL 1973. A high-voltage system requires strict hardware-level fault isolation within defined response times. The management system monitors four primary operating regimes to avoid hardware damage:

1. Overvoltage Protection (OVP): If an individual cell exceeds the upper limit (e.g., 3.65 V for Lithium Iron Phosphate [LFP], or 4.20 V for Nickel Manganese Cobalt [NMC]), the system derates charging current before tripping the main charge switch within 10 to 50 milliseconds. Chemistry differences significantly affect these cut-offs, as detailed in our guide on LFP vs NMC Battery chemistries.
2. Undervoltage Protection (UVP): Copper dissolution occurs when cells are discharged below critical thresholds (e.g., 2.50 V for LFP, 2.80 V for NMC). The controller trips the discharge contactor to prevent irrecoverable internal short circuits.
3. Thermal Runaway Mitigation: Multi-point thermistor networks track cell surfaces, busbar terminals, and ambient air. Thresholds typically initiate active cooling (fans or chillers) at 45 °C, derate current at 50 °C, and initiate an emergency stop (E-stop) shutdown if any sensor registers over 55 °C or a rate of temperature rise exceeding 1 °C/second.
4. Short-Circuit and Overcurrent Protection: Utilises hardware-triggered desaturation or high-speed comparator circuits capable of commanding pyrotechnic disconnectors or opening high-DC-rated contactors in under 10 microseconds during dead-short scenarios.

Cell Balancing: Active vs Passive Balancing Engineering Calculations

Cell balancing is required because manufacturing variances, chemical ageing differences, and thermal gradients cause series cells to drift in internal resistance and capacity. Left unchecked, the lowest-capacity cell determines the discharge cut-off, while the highest-capacity cell limits the charging cycle, prematurely choking the usable capacity of the entire string.

The two primary balancing methodologies represent different engineering trade-offs regarding cost, thermal overhead, and speed.

To evaluate passive balancing thermal impact, consider an LFP cell module undergoing balancing at a top-of-charge voltage $V_{cell} = 3.60\text{ V}$. Using a common surface-mount shunt resistor configuration of $R_{bleed} = 36\ \Omega$ and an internal switching FET on-resistance $R_{ds(on)} = 0.5\ \Omega$:

Total branch resistance:

$$R_{total} = 36\ \Omega + 0.5\ \Omega = 36.5\ \Omega$$

Balancing discharge current:

$$I_{balance} = \frac{3.60\text{ V}}{36.5\ \Omega} = 0.0986\text{ A}\ (98.6\text{ mA})$$

Power dissipated as heat per active channel:

$$P_{dissipated} = I^2 \times R_{bleed} = (0.0986\text{ A})^2 \times 36\ \Omega = 0.350\text{ W}$$

If 16 adjacent cells on a 16-channel slave board trigger balancing concurrently, the board must continuously shed $16 \times 0.350\text{ W} = 5.6\text{ W}$ of pure thermal power. Without appropriate copper thermal planes, heat dissipation into the battery enclosure will raise local cell temperatures, accelerating ageing and inducing the very cell drift the circuitry was installed to cure.

Built in BMS vs External Industrial Racks

A built in bms integrates the measurement circuitry, protection FETs, and communications transceivers inside the sealed housing of a single low-voltage (12 V, 24 V, or 48 V) battery block. This plug-and-play format suits small-scale off-grid arrays, telecommunications backup shelters, and light industrial uninterruptible power supply (UPS) systems where low installation complexity is paramount. However, internal thermal throttling often limits these units to continuous charge/discharge C-rates of 0.5C to 1C.

Conversely, utility and large industrial installations require external, rack-mounted supervisory enclosures. External control arrangements separate the logic processing from the cell chemistry enclosures, protecting the processing electronics from operational thermal stresses. Furthermore, external systems provide industrial galvanic isolation (typically 2.5 kV to 5 kV AC dielectric withstand per IEC 60664-1), allow dual-redundant power supplies, integrate insulation resistance monitors (megohm detection across positive and negative rails to earth), and permit modular replacement of supervisory control boards without decommissioning the battery cells.

Technical Specification Checklist for Procurement & Factory Acceptance

Procurement teams and consulting engineers must enforce clear technical parameters when specifying battery management hardware for integration into an energy storage system or a high-capacity liquid-cooled ESS container. The following parameters should form the core of an RFQ schedule:

1. Voltage Measurement Precision: Voltage acquisition accuracy must be equal to or better than ±1.5 mV across the operating temperature band of -20 °C to +60 °C to ensure reliable SOC tracking in flat-discharge LFP chemistries.
2. Galvanic Isolation Barrier: Optical or capacitive isolation barriers must meet IEC 60747-5-5, withstanding high common-mode transient immunity (CMTI) ≥ 50 kV/μs to prevent false trips during high-speed PCS inverter switching.
3. Insulation Monitoring: Integrated continuous ground-fault detection measuring total system leakage impedance, flagging warnings at ≤ 500 Ω/V and tripping alarms at ≤ 100 Ω/V to ground.
4. Sampling Rate & Communications Latency: Cell voltage conversion updates within ≤ 10 ms per module; BMU-to-BAM communication update intervals ≤ 100 ms via isolated dual-CAN 2.0B or Modbus TCP.
5. Safety Integrity Compliance: BMS hardware and firmware architecture designed and third-party certified to IEC 61508 SIL-2 or ISO 26262 ASIL-C functional safety standards.
6. Dry Contact Relay Outputs: At least 4 assignable high-voltage auxiliary digital relay outputs for direct interlock control with shunt-trip circuit breakers, fire suppression systems, and thermal purge blowers.

Next steps: specifying and sourcing

Configuring the right lithium bms requires an aligned understanding of cell chemistry limits, high-voltage rack topologies, and upstream power conversion protocols. To prepare an RFQ or initiate a design review with our engineering department, compile your project’s system DC voltage requirements (e.g., 750 V vs 1500 V), nominal string ampacity, communication interface constraints, and balancing preferences. Visit our energy storage systems page to evaluate our pre-engineered modular solutions, or submit your single-line diagrams directly through our request a quote page to receive a detailed system layout, thermal model, and compliance review.
