Quick answer: A battery control module is an embedded electronic controller that governs the operation, safety, and longevity of electrochemical cell assemblies within an energy storage installation. Operating as the operational intelligence of a battery management system, the module continuously monitors individual cell voltages, pack temperatures, and string currents to execute safety isolation, thermal control, and charge balancing.

In both utility-scale battery energy storage systems (BESS) and electric transport platforms, electrochemical cells cannot operate reliably without active electronic supervision. A lithium battery operates within a narrow electrochemical stability window; deviating beyond specified voltage, current, or thermal boundaries risks accelerated capacity degradation or thermal runaway. Engineers deploying battery assets must grasp precisely what is a battery control module, how it interfaces with broader power conversion apparatus, and the criteria required to specify hardware for high-reliability industrial operations.

Understanding the hardware topology of a battery monitoring system guide reveals that modern control electronics do not merely log telemetry. They actively calculate complex mathematical algorithms for state of charge (SOC) and state of health (SOH), command high-voltage direct-current (DC) contactors, and interface with higher-tier site supervisory control and data acquisition (SCADA) platforms to maintain stable grid-interconnection parameters.

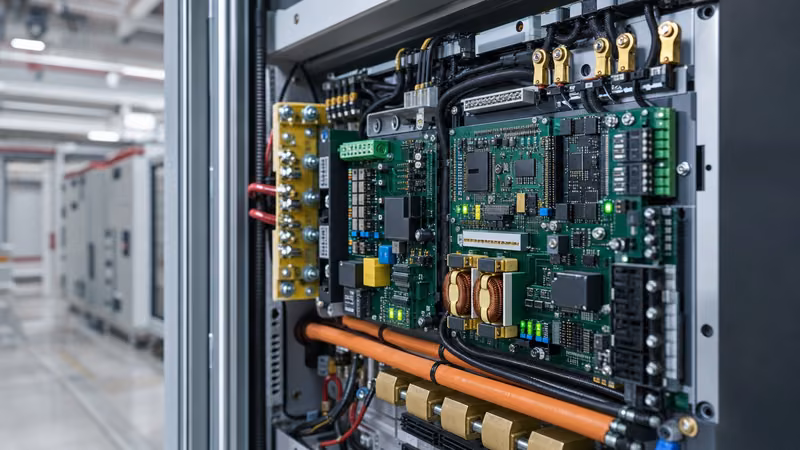

What is a battery control module in industrial and automotive energy storage?

A battery control module (BCM)—frequently termed a battery management unit (BMU) or battery control unit (BCU)—is the dedicated hardware-software assembly responsible for low-latency decision-making within a battery pack. While informal trade discussions treat the phrases interchangeably, engineers distinguish the physical module from the overarching battery management system (BMS), where the BCM represents the physical processing core and peripheral interface board within the system architecture.

The module integrates high-voltage analog front-end (AFE) application-specific integrated circuits (ASICs), galvanic isolation barriers, microcontrollers, and gate drivers. In high-capacity installations, this controller executes several mandatory functions defined by international safety codes:

• Galvanic telemetry acquisition: Sampling serial cell voltages at millivolt-level accuracy, pack currents via precision shunt resistors or Hall-effect transducers, and temperature distributions across busbars and cell casings.
• State estimation algorithms: Calculating internal state of charge (SOC), state of health (SOH), and state of power (SOP) dynamic limits through Kalman filtering and Coulomb counting techniques.
• Safety interlock execution: Monitoring analogue signals against safety boundaries outlined in IEC 62619 clause 8.2, triggering primary and secondary disconnect contactors whenever limits are breached.
• Thermal and balancing regulation: Managing active or passive cell balancing switches and modulating liquid-cooling pumps or forced-air circulation systems to equalise internal thermal gradients.

Without an autonomous, hardware-supervised battery control system, individual manufacturing discrepancies among cells—such as slight variances in internal resistance ($R_i$) or self-discharge rates—compound during repetitive cycling, leading to premature string capacity loss or localized cell venting.

How does a BMS work across hierarchical architectures?

A modern bms battery management system functions through a distributed multi-tier hierarchy designed to split high-voltage safety monitoring from centralised system telemetry. Industrial energy storage facilities operating from 800 V to 1,500 V DC avoid routing hundreds of discrete cell-sensing wires directly to a central cabinet. Instead, they implement a structured three-tier architecture.

1. Tier 1: Cell Supervisory Circuit (CSC / Slave BMU): Mounted directly onto individual battery modules, this bms board integrates multi-channel sensing ICs that capture individual voltages from 12 to 24 cells in series alongside 4 to 8 local thermistor readings. The slave converts analogue signals to digital packets and transmits them over an isolated internal serial bus (such as isolated SPI or CAN-FD).
2. Tier 2: Rack-Level Battery Control Module (BCU / Master BCM): Positioned at the top of an individual rack or container segment, this unit aggregates data from 10 to 20 slave CSCs. It monitors the entire string voltage, total string current, insulation resistance to ground, and commands the high-voltage direct-current contactors and pyro-fuses. It communicates rack status upstream using industrial Ethernet protocols such as Modbus TCP or CANopen.
3. Tier 3: System-Level Master Controller (Central BESS Controller): At the plant or container level, this supervisory layer aggregates data from dozens of rack BCMs. It interfaces directly with power conversion units to regulate aggregate charge and discharge ramp rates, adhering to grid commands and scheduling logic.

Coordinating this three-tier topology ensures deterministic response times. If an individual cell experiences an immediate short-circuit or thermal excursion, the local tier-2 battery control module opens the rack DC contactors within 10 to 20 milliseconds, isolating the faulted rack without awaiting commands from plant-level networks. This functional segregation aligns with the system safety requirements established in UL 1973 clause 7.

Core functional subsystems: from BMS chip sensing to contactor actuation

Every industrial-grade lithium battery bms relies on tightly coupled hardware stages that translate raw physical voltages into deterministic safety actions. At the core of the measurement engine sits the specialized bms chip, designed to withstand common-mode voltages exceeding 1,000 V while maintaining continuous measurement accuracy within $\pm 1.5\text{ mV}$ across an operating range of $-40^\circ\text{C}$ to $+85^\circ\text{C}$.

Understanding the internal construction of a high-reliability control module clarifies how hardware and firmware interact to preserve cell integrity:

• Precision Analog Front-End (AFE): Converts differential voltages across series-connected cells into digital words using high-resolution delta-sigma analog-to-digital converters (ADCs), supported by on-chip low-pass filters that reject high-frequency switching noise emitted by external inverters.
• Microcontroller Unit (MCU): A dual-core lockstep processor executing firmware compliant with IEC 61508 or ISO 26262 standards. The MCU processes lookup tables for open-circuit voltage (OCV) curves, computes electro-thermal models, and checks cyclic redundancy checks (CRC) on all internal data streams.
• Galvanic Isolation Subsystem: Employs capacitive or magnetic digital isolators providing dielectric isolation up to 5,000 V RMS between high-voltage battery domains and low-voltage external communication networks, protecting upstream SCADA equipment from catastrophic ground faults.
• Insulation Monitoring Circuitry: Continuously measures resistance between positive/negative DC rails and earth chassis. Standards such as IEC 61557-8 mandate that industrial controllers issue a critical fault warning if insulation drops below $100\ \Omega/\text{V}$.
• Contactor Driver & High-Side Switches: Solid-state MOSFET or relay stages capable of driving inductive coil loads for high-voltage DC contactors, incorporating economiser circuits to cut steady-state coil power consumption.

For applications pairing cells with advanced power systems, integrating the BCM with an external power conversion system ensures fast bi-directional handshakes. When the BCM detects an impending cell overvoltage limit, it signals the inverter to taper charging current before protective mechanical contactors open under full load.

Automotive vs stationary BESS: what does BMS mean on a car compared to grid storage?

A car battery management system shares foundational sensing principles with stationary grid controllers, but their mechanical packaging, functional safety standards, and communication profiles differ significantly. In an electric vehicle (EV), space and mass restrictions demand tightly integrated electronic architectures, whereas utility-scale energy storage systems prioritize serviceability, continuous runtime, and multi-decade service life.

In automotive engineering, the bms car application focuses heavily on ISO 26262 Automotive Safety Integrity Level (ASIL) standards, typically targeting ASIL-C or ASIL-D for traction battery disconnect pathways. Dynamic load profiles in a vehicle fluctuate wildly due to regenerative braking and rapid acceleration spikes lasting seconds. Therefore, an automotive vehicle battery management system calculates highly responsive short-term state-of-power limits to protect cells against aggressive dynamic cycling.

Stationary BESS installations, such as those found in utility peak-shaving plants, adhere instead to IEC 62619, IEC 62477-1, and UL 9540. These systems experience stable, predictable cycling regimes (e.g., 0.5C to 1C charge and discharge rates spanning 2 to 4 hours). Grid-connected systems operate at elevated DC voltages—frequently 1,500 V DC compared to 400 V or 800 V DC in road vehicles—demanding greater creepage and clearance distances, higher insulation ratings, and hot-swappable module maintenance capabilities.

The following comparison details the core technical divergences between automotive and stationary grid architectures:

To evaluate cell formats best matched to these topologies, consult our guide on battery cell engineering and selection, which details how prismatic and pouch formats behave under differing mechanical and electrical constraints.

Engineering design checklist: specifying a battery control system

Specifying a battery control system requires clear, quantified parameters to ensure electrical safety, thermal stability, and smooth communication with supervisory networks. Procurement teams and engineering consultants should use the following structured specification checklist within their request for quotation (RFQ) documentation:

1. Voltage Measurement Precision: Demand cell voltage measurement accuracy within $\pm 2\text{ mV}$ over the operating temperature range of $-20^\circ\text{C}$ to $+60^\circ\text{C}$. For lithium iron phosphate (LFP) chemistry, where the open-circuit voltage curve remains flat across the 20% to 80% SOC region, inadequate voltage resolution compromises SOC estimation algorithms.
2. Temperature Channel Distribution: Specify a minimum ratio of one temperature sensor for every four series cells, with dedicated sensors mechanically coupled to high-current terminal busbars to detect localized contact resistance hotspots.
3. Balancing Capability: Define passive balancing current per channel (typically 50 mA to 200 mA for stationary packs up to 300 Ah) or specify active inductive/capacitive balancing if large commercial round-trip efficiency targets require non-dissipative charge redistribution.
4. Galvanic Isolation Rating: Require working isolation voltages of at least 1,500 V DC continuous and dielectric withstand testing verified up to 3,750 V AC for 60 seconds according to IEC 60664-1.
5. Fault Response Time: Mandate hardwired analogue trip circuits for overcurrent protection that disconnect contactors within less than 15 microseconds during short-circuit events, bypassing microprocessor software loops.
6. Cybersecurity and Diagnostics: Mandate secure boot firmware, access-level password hierarchies, and comprehensive non-volatile event logging capable of storing a minimum of 10,000 timestamped fault entries (black-box functionality).

Worked engineering calculation: passive vs active balancing sizing

A critical engineering task in configuring a battery management system for lithium ion batteries is sizing the cell-balancing circuit. Balancing mitigates state-of-charge divergence caused by micro-variances in cell self-discharge rates, ensuring that the weakest cell does not prematurely terminate the charge or discharge cycle of the entire string.

Consider an industrial stationary rack utilizing 280 Ah lithium iron phosphate (LFP) cells. Factory capacity screening identifies a maximum self-discharge variance ($\Delta Q$) between cells of $0.15\%$ of nominal capacity per month. To prevent progressive unbalance, the balancing circuit must restore this delta within a single 2-hour float charging cycle conducted each week.

First, calculate the charge divergence accumulated per week ($t_{week} = 7\text{ days}$):

If the bms board engages passive dissipative balancing during the final 2 hours ($t_{bal} = 2\text{ h}$) of absorption charging when cell voltage sits at $V_{cell} = 3.45\text{ V}$, the minimum balancing current ($I_{bal}$) required is:

Next, determine the required ohmic value of the on-board surface-mount passive bleeder resistor ($R_{bal}$), accounting for internal switching transistor resistance ($R_{switch} \approx 1.5\ \Omega$):

Finally, calculate the thermal power dissipation ($P_{diss}$) that the printed circuit board must evacuate per active balancing channel:

If a 16-cell module activates balancing on 8 adjacent channels simultaneously, the local control board must dissipate $8 \times 0.163\text{ W} = 1.304\text{ W}$ of heat. Without adequate copper thermal pours and ventilation spacing, this localized heating will distort adjacent thermistor measurements, misleading the temperature protection logic. For higher mismatch tolerances or rapid dynamic balancing demands exceeding 500 mA, engineers must migrate from passive dissipative resistors to active bidirectional inductive DC-DC balancing topologies.

Next steps: specifying and sourcing

Selecting the optimal control module architecture requires aligning electrochemical cell characteristics, DC bus voltages, and site communication protocols. Whether you are engineering utility-scale storage or commercial peak-shaving facilities, our engineering team supplies fully integrated solutions—including factory-tested energy storage systems and multi-megawatt liquid-cooled ESS containers built to IEC and UL safety requirements.

To obtain engineering support or request pricing for battery racks, control enclosures, and power distribution switchgear, submit your single-line diagram (SLD), cell chemistry parameters, and control architecture requirements directly through our online quote request portal.
