Voltage Changer Adaptor Guide: Sizing, Types & Specs

Quick answer: A voltage changer adaptor is an electrical device designed to step up or step down AC supply voltage to match the nominal operating rating of connected equipment. Across commercial, manufacturing, and industrial facilities, these units resolve voltage incompatibility—such as operating 400 V European machinery on a 480 V North American grid—using autotransformers, dual-winding isolation transformers, or electronic power converters.

Voltage discrepancies present immediate operational risks to imported machinery, commercial loads, and distribution networks. Operating an induction motor or precision computer numerical control (CNC) system at an incorrect supply voltage causes severe thermal overstress, nuisance protection tripping, or instantaneous dielectric breakdown. Selecting the right voltage changer adaptor requires an engineering assessment of load characteristics, grounding architecture, harmonic distortion, and thermal dissipation limits governed by IEC 60076-1 and IEEE C57.12.00.

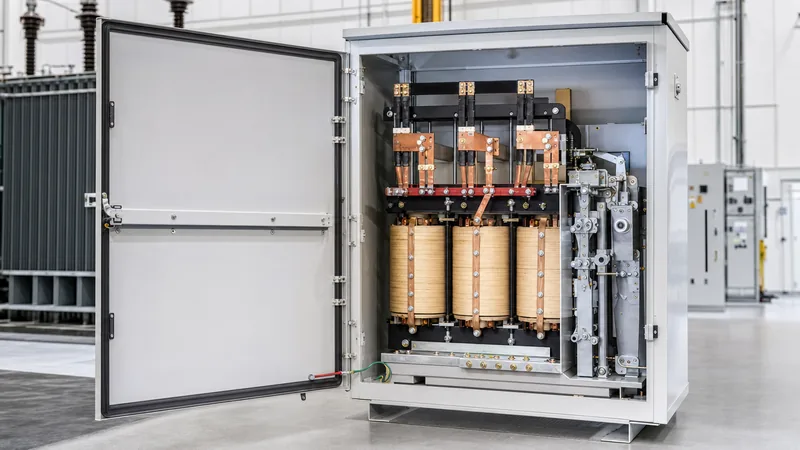

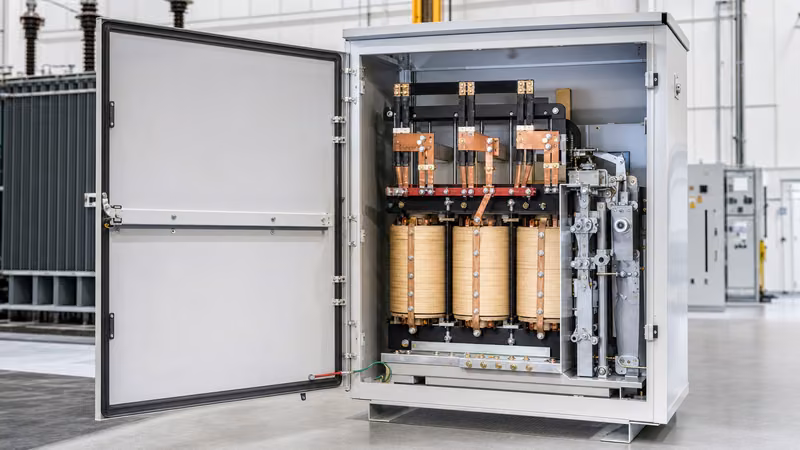

How a Voltage Changer Adaptor Operates Across Grid Voltages

A voltage changer adaptor functions by converting incoming system potential to a required load voltage through electromagnetic induction across magnetically coupled windings. The primary winding draws electrical power from the local utility grid, establishing an alternating magnetic flux in the laminated silicon-steel core, which subsequently induces a proportional electromotive force in the secondary winding according to Faraday’s law of induction.

In three-phase commercial and industrial settings, grid mismatches are common. For example, North American industrial facilities primarily distribute 480 V three-phase power at 60 Hz, whereas European, Asian, and Australasian systems standardise on 400 V three-phase power at 50 Hz. A step-down voltage changer adaptor bridges this gap by altering the winding turn ratio ($N_p / N_s = V_p / V_s$). Depending on client requirements, these units are manufactured either as two-winding galvanically isolated transformers or as single-winding autotransformers governed by IEC 61558-2-13.

Where frequency conversion is not strictly required—such as for purely resistive heating elements or motor drives that internally rectify incoming AC power into a DC bus—a magnetic voltage changer adaptor provides a simple, passive solution. If system isolation or ground separation is necessary, engineers specify a dual-winding unit with an electrostatic shield, as detailed in our guide to industrial power system installation.

Autotransformer vs Isolation Transformer Adaptors

Choosing between an autotransformer and a double-wound isolation transformer depends entirely on voltage ratio proximity, earthing requirements, and safety isolation standards. An autotransformer shares a common winding between the primary and secondary circuits, meaning the unit transfers a substantial portion of power conductively rather than purely inductively.

Because autotransformers only transform the 'differential' power between supply and load voltages, their physical core and copper cross-sections are significantly smaller than equivalent isolation units. For instance, stepping down 480 V to 400 V involves a voltage difference of only 80 V. An autotransformer sized for this duty has an equivalent physical frame size of roughly one-sixth that of a full isolation transformer delivering the same output kVA. However, autotransformers offer no galvanic separation, meaning line-side electrical transients, harmonics, and neutral-to-earth faults propagate directly through to the secondary load.

The following technical comparison outlines the core operational trade-offs between configuration types:

Sizing Calculation for a Three-Phase Voltage Changer Adaptor

Accurate sizing of a voltage changer adaptor prevents core saturation, winding thermal degradation, and excessive voltage drops during continuous full-load operation. Sizing must account for total continuous apparent power (kVA), expected power factor ($\cos\phi$), motor inrush current factors, and a safety margin defined under IEEE C57.96.

Consider an industrial injection moulding machine imported from Germany requiring 400 V three-phase supply, drawing a rated continuous current of 135 A at a power factor of 0.85 lagging, installed in an American plant with a 480 V, 60 Hz utility feed.

1. Calculate Base Apparent Power ($S_{load}$):
   $$S_{load} = \frac{\sqrt{3} \times V_{line} \times I_{line}}{1000} = \frac{1.732 \times 400\text{ V} \times 135\text{ A}}{1000} = 93.53\text{ kVA}$$
2. Apply Load Profile and Thermal Overhead Margin:
   To accommodate motor starting cycles and thermal rise limits under continuous duty (IEC 60076-2), apply a standard engineering service factor ($k_s$) of 1.25:
   $$S_{rated} = S_{load} \times 1.25 = 93.53\text{ kVA} \times 1.25 = 116.91\text{ kVA}$$
3. Select Nearest Standard Transformer kVA Rating:
   Standard commercial manufacturing ratings dictate selecting a 125 kVA or 150 kVA dry-type unit. A standard 150 kVA unit provides adequate headroom if future servo-drive expansions occur.
4. Calculate Primary Line Current ($I_{primary}$ at 480 V):
   $$I_{primary} = \frac{150,000\text{ VA}}{\sqrt{3} \times 480\text{ V}} = \frac{150,000}{831.38} = 180.42\text{ A}$$

For facilities deploying single-phase auxiliary equipment, refer to our comprehensive review on single phase transformer design to avoid unbalancing three-phase supply lines with uneven neutral currents.

Industrial Tap Changing and Voltage Adaptation Systems

Modern distribution-class voltage adaptors incorporate tap changing mechanisms to maintain stable secondary voltages despite ongoing utility line fluctuations. When incoming supply shifts due to variable substation loading or long feeder runs, fixed-ratio adaptors deliver off-nominal voltage that harms sensitive electronic sub-assemblies.

De-energised tap changers (DETC) provide nominal adjustment steps—typically $\pm 2 \times 2.5\%$ (five switch positions: $+5\%$, $+2.5\%$, $0\%$, $-2.5\%$, $-5\%$)—allowing plant engineers to manually set the turns ratio during scheduled shutdowns. For dynamic sites subject to high network volatility, large manufacturing facilities install transformers equipped with on-load tap changers (OLTC) that alter turns ratios dynamically under full operating current without interrupting downstream loads. Detailed mechanical and electrical switching sequences for these mechanisms are covered in our load tap changer engineering guide.

Where dynamic utility shifts interact with heavy industrial equipment, automatic voltage regulators (AVR) integrated into custom dry-type transformers or pad-mounted substations ensure secondary voltages remain within the $\pm 1.5\%$ band prescribed by EN 50160 power quality standards.

Sourcing a Voltage Converter Nearby vs Specifying Factory-Direct Transformers

Deciding between finding an off-the-shelf voltage converter nearby or ordering a custom-engineered transformer direct from a factory depends directly on load criticality, delivery timelines, and technical requirements. Sourcing a stock voltage converter nearby from a local electrical distributor is ideal for low-capacity, low-voltage commercial loads under 15 kVA, such as retail refrigeration or small laboratory appliances requiring immediate commissioning.

However, industrial projects with continuous duty cycles, harmonic currents from variable frequency drives (VFDs), or medium-voltage interfaces require factory-direct engineering. Local supply houses rarely stock high-kVA autotransformers with custom vector groups (such as Dyn11 or Dzn0), specialized thermal classes (Class H 180°C insulation), or ingress protection ratings like IP54 for harsh environments. Direct procurement from a specialized manufacturer enables exact impedance (%Z) specification, minimising short-circuit currents on downstream circuit breakers as mandated by IEC 60947-2.

For facilities managing medium-voltage utility step-downs, pairing a factory-built oil-immersed transformer or complete transformer substation with an engineered low-voltage distribution board delivers significantly better lifecycle reliability than assembling multiple mismatched off-the-shelf conversion devices.

Engineering Checklist for Voltage Changer Adaptor Procurement

A complete engineering specification ensures that your voltage changer adaptor satisfies both immediate operating parameters and site-specific safety regulations. Use the following inspection and procurement checklist prior to issuing a Request for Quotation (RFQ):

• Input & Output Voltage Characteristics: Document exact primary line-to-line voltage, required secondary voltage, phase count (three-phase 3-wire vs three-phase 4-wire with neutral), and operational frequency (50 Hz, 60 Hz, or universal).
• Load Profile & Inrush Assessment: State the continuous kVA rating, peak intermittent loading periods, load power factor, and whether non-linear harmonic loads (K-factor requirement: K-4, K-13, or K-20) are present.
• Topology Selection: Specify autotransformer for non-isolated, high-efficiency, cost-effective duty, or isolation transformer where system earthing must be re-established or common-mode noise attenuated.
• Tap Range Configuration: Specify required de-energised tap steps (e.g., $\pm 2 \times 2.5\%$) or automatic on-load regulation requirements for volatile grids.
• Dielectric and Thermal Ratings: Define insulation class (Class F 155°C or Class H 180°C), temperature rise limit (typically 80°C or 115°C over 40°C ambient), and basic lightning impulse insulation level (BIL).
• Enclosure & Environment: Indicate indoor (a standard unit 1) or outdoor/dust-tight (a standard unit 3R/4) enclosure, ambient operating temperature extremes, and seismic bracing compliance under local building codes.
• Compliance & Factory Testing: Require routine test reports per IEC 60076-1 (winding resistance, voltage ratio, phase displacement, no-load loss, load loss, and short-circuit impedance).

Next steps: specifying and sourcing

When specifying a voltage changer adaptor or large-scale transformation unit for commercial and industrial facilities, having clear electrical data ensures optimal system performance. Prepare your system single-line diagrams, incoming grid voltage variations, expected maximum load currents, and site environmental constraints. Explore our engineered line of high-efficiency dry-type transformers and heavy-duty oil-immersed transformers to identify the right design for your project. To submit specifications or request a competitive, engineering-backed manufacturing tender, visit our direct quotation page or reach out through our technical contact portal.
