Renewable Energy Power Plant: Electrical Design & Sizing

Quick answer: A renewable energy power plant is an industrial-scale electrical facility that converts natural resources—such as solar irradiance or wind kinetic energy—into transmission-compliant electricity. Sizing and engineering such a facility requires matching generator capacity to medium-voltage collection systems, power conversion systems, battery storage, and high-voltage step-up substations.

As utilities retire fossil generation, a renewable energy power plant serves as a critical long term energy source for decarbonising regional networks. Unlike conventional thermal units with heavy rotating inertia, modern green energy generation relies on inverter-based resources (IBRs) that require careful balance-of-plant (BoP) engineering. Integrating battery storage directly into the collection network resolves natural resource intermittency, enabling utility-scale plants to provide synthetic inertia, active power reserve, and black-start capabilities under strict international grid codes.

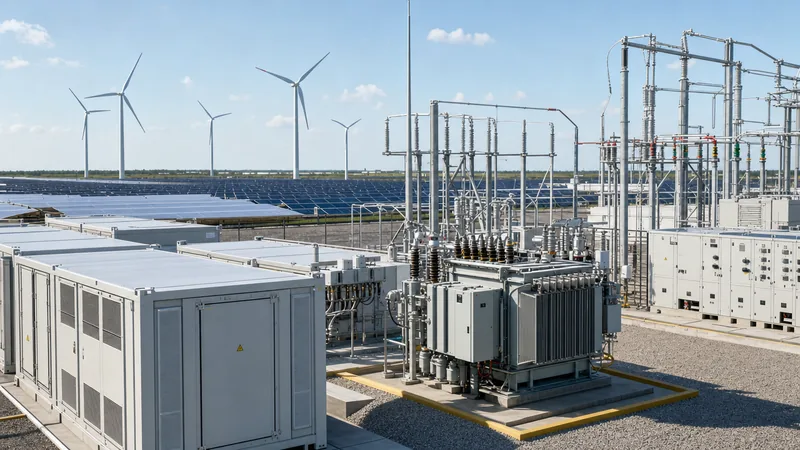

Renewable Energy Power Plant: Core Electrical Architecture

The core electrical architecture of a renewable energy power plant comprises three distinct stages: generation and inversion, medium-voltage collection, and high-voltage transmission interconnect.

In photovoltaic facilities, low-voltage direct current (DC) produced by solar arrays passes to central or string inverters that output alternating current (AC) at typical levels of 600 V to 800 V. Skid-mounted step-up transformers immediately elevate this voltage to a standardised medium-voltage (MV) collector level, typically 22 kV or 33 kV per IEC 60038. Wind power stations follow an equivalent path, where individual turbines contain internal or pad-mounted step-up units connected in daisy-chain radial strings.

Collector circuits converge at a centralised switching station where MV switchgear sections house vacuum circuit breakers, disconnector switches, and digital protection relays. This collector busbar feeds the main power step-up transformer (GSU), which elevates voltage to transmission thresholds between 66 kV and 400 kV. Designing these networks requires careful calculation of reactive power impedance to avoid resonant overvoltages induced by long underground cable runs.

Role of Battery Energy Storage in Renewable Power Generation

Battery energy storage stabilizes renewable power generation by buffering intermittent generation peaks and supplying stored megawatt-hours during low-resource periods.

Modern renewable energy power stations deploy containerised lithium iron phosphate (LFP) systems to provide four primary utility services: capacity firming, curtailment mitigation, frequency response, and peak shaving. Engineers can review detailed chemistry trade-offs in our guide on renewable energy storage engineering. Operating with bi-directional power conversion systems (PCS), these battery systems switch from charging to discharging in under 40 milliseconds when frequency deviations breach deadbands defined by ENTSO-E or NERC standards.

Liquid-cooled battery enclosures maintain cell-to-cell thermal gradients below 3 degrees Celsius, extending operational asset lifespans beyond 6,000 cycles at 80% depth of discharge (DoD). By deploying pre-engineered liquid-cooled ESS containers, engineering, procurement, and construction (EPC) contractors reduce onsite commissioning timelines while meeting NFPA 855 fire protection and UL 9540A safety criteria.

AC vs DC Coupling Topology in Green Energy Power Plant Design

Selecting between AC-coupled and DC-coupled architectures determines the efficiency, operational flexibility, and expansion costs of hybrid renewable energy plants.

DC-coupled systems tie battery arrays directly to the solar DC bus upstream of a shared central inverter via bi-directional DC-DC buck-boost converters. This topology captures clipped energy when solar panels generate output exceeding the inverter rating. Conversely, AC-coupled systems place battery racks and dedicated bidirectional inverters on an independent MV branch alongside the renewable power plant collection circuits. While AC coupling incurs a slight two-way conversion loss, it allows entirely independent control, simpler brownfield retrofits, and non-constrained storage dispatch.

Worked Engineering Calculation: Transformer Sizing and Fault Duty

Sizing step-up equipment for a green energy generation facility requires accounting for reactive power injection and thermal derating under peak irradiation.

Consider a 50 MWac solar and storage plant designed to interconnect at a 132 kV transmission bus, with a collector voltage of 33 kV. According to grid interconnection mandates such as IEEE 2800-2022 clause 5.2, the facility must supply a continuous power factor (PF) of 0.95 leading or lagging at the point of common coupling (PCC).

1. Calculate Apparent Power Demand (MVA):
   Using the fundamental power equation: $$S = \frac{P}{\cos\phi} = \frac{50\text{ MW}}{0.95} = 52.63\text{ MVA}$$To avoid continuous operation at thermal limits and accommodate harmonic heating from inverters (per IEEE C57.110), select an oil-immersed main step-up transformer rated at 50/65 MVA ONAN/ONAF (Oil Natural Air Natural / Oil Natural Air Forced) compliant with IEC 60076-1.
2. Determine Rated Nominal Current on 33 kV Bus:
   $$I_n = \frac{S}{\sqrt{3} \times V_{LL}} = \frac{52,630\text{ kVA}}{1.732 \times 33\text{ kV}} = 920.8\text{ A}$$
3. Calculate Prospective Symmetrical Short-Circuit Current ($I_{sc}$):
   With a specified transformer impedance ($Z_{\%}$) of 10.5% on a 52.63 MVA base, the through-fault contribution from the grid is:$$I_{sc} = \frac{I_n}{Z_{pu}} = \frac{920.8\text{ A}}{0.105} = 8,770\text{ A} = 8.77\text{ kA}$$
4. Add Collector Feeder Inverter Contribution:
   Modern IBRs typically contribute 1.15 times rated current to a bus fault before crowbar firing or gating shutdown (within 150 ms per IEC 60909-0):$$I_{sc(inverters)} = 1.15 \times 920.8\text{ A} = 1.06\text{ kA}$$
5. Total Prospective Collector Fault Level:
   $$I_{sc(total)} = 8.77\text{ kA} + 1.06\text{ kA} = 9.83\text{ kA}$$

Consequently, specifying standard 33 kV switchgear rated for 25 kA or 31.5 kA for 3 seconds guarantees an adequate safety margin for future expansion of the battery storage system.

Grid Interconnection and Compliance for Renewable Energy Power Stations

Grid code compliance requires renewable energy power stations to support grid frequency and voltage stability through coordinated plant controllers.

Transmission system operators (TSOs) enforce strict technical requirements before issuing operational notification permits. These criteria are codified under international standards such as IEEE 2800, IEC 61400-21, and EN 50549-2. Facilities must implement low-voltage ride-through (LVRT) controls, retaining synchronisation when network voltage plunges to zero volts for up to 150 milliseconds. For more technical background on utility requirements, refer to our analysis on grid integration of renewable energy sources.

Furthermore, plants must provide dynamic frequency response. When system frequency rises above nominal thresholds (e.g., 50.2 Hz in European 50 Hz networks), plant supervisory control and data acquisition (SCADA) systems must curtail active power at a droop slope adjustable between 2% and 12%. Integrating a central power-plant controller (PPC) ensures that combined solar, wind, and storage assets act as a unified, compliant generator at the transmission interface.

Switchgear and Substation Protection Schemes

Substation protection schemes in a renewable energy power plant isolate internal electrical faults within cycles to prevent cascading equipment damage.

Because inverter-based sources provide low short-circuit current compared to traditional synchronous generators, conventional overcurrent protection (ANSI 50/51) on collector lines may fail to pick up high-impedance faults reliably. Engineers deploy modern digital numerical relays executing directional overcurrent (67), rate-of-change-of-frequency (81R), and transformer differential protection (87T) per IEEE C37.91.

Arc-flash mitigation is equally vital. MV switchboards must incorporate optical arc-sensor loops paired with ultra-fast arc-quenching or instantaneous breaker trip logic compliant with IEC 62271-200 Annex AA. This equipment guarantees clearing times under 50 milliseconds, limiting thermal incident energy and safeguarding operating personnel during routine maintenance.

Next steps: specifying and sourcing

Developing a dependable renewable energy power plant requires coordinated balance-of-plant design, from collector switchboards to battery storage enclosures and step-up power substations. When preparing procurement specifications or request-for-quotation (RFQ) packages, compile single-line diagrams, site seismic and thermal profiles, grid-code reactive power envelopes, and anticipated fault currents. Review our prefabricated transformer substation assemblies and power transformer solutions to find equipment tailored to utility-scale environments. Contact our electrical engineering specialists at our quote enquiry page to review single-line diagrams, verify fault-duty ratings, and receive detailed balance-of-plant equipment pricing.
