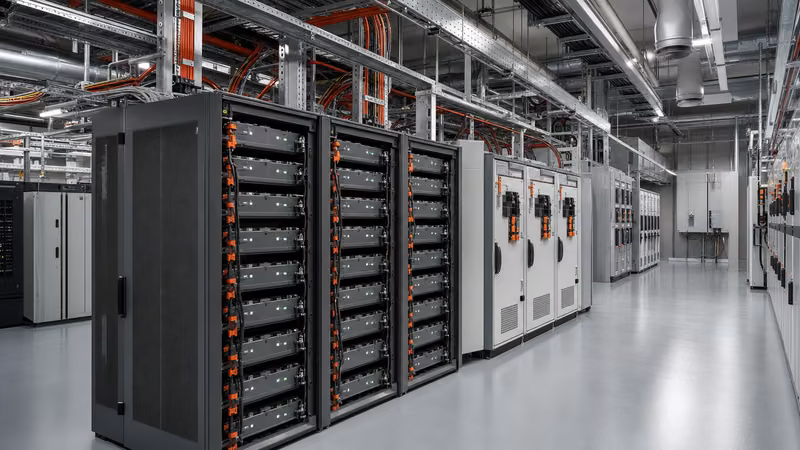

Lithium Battery Backup: Engineering Sizing & Design Guide

Quick answer: A lithium battery backup is a stationary electrical energy storage system that supplies instant, uninterrupted power to critical loads during grid failures. Engineered with lithium-ion cells—principally lithium iron phosphate (LFP)—these systems deliver higher energy density, longer cycle life (3,500–6,000 cycles), and faster recharge rates than legacy lead-acid batteries, operating in tandem with a power conversion system and automated transfer switchgear.

Mission-critical operations including tier-rated data centres, hospital wings, process manufacturing plants, and continuous automated assembly lines cannot tolerate voltage sags or transfer delays. While standby diesel generators traditionally cover extended outages, they require 10 to 15 seconds to reach rated frequency and synchronize. A stationary lithium battery backup system bridges this critical window with sub-cycle transfer speeds (under 20 milliseconds), eliminating equipment trips and data loss. As industrial facilities increasingly combine resilience with grid services like peak shaving and demand response, high-performance battery banks have become central to modern electrical architecture.

Lithium Ion Battery Backup Chemistry: LFP vs NMC Architecture

Cell chemistry defines the thermal threshold, lifecycle degradation, and safety footprint of any lithium ion battery backup installation. In stationary utility and industrial backup infrastructure, two lithium-ion formulations predominate: Lithium Iron Phosphate (LiFePO4 or LFP) and Nickel Manganese Cobalt (LiNiMnCoO2 or NMC).

LFP has established itself as the baseline standard for stationary backup systems. The chemical structure of LFP contains strong covalent phosphorus-oxygen bonds that resist oxygen release under thermal stress. The onset of thermal runaway in an LFP cell occurs at approximately 270°C, whereas NMC cells initiate exothermic breakdown between 210°C and 220°C. Once thermal runaway begins, LFP releases substantially lower self-heating rates and total heat energy (around 1.5 kJ/Wh compared to 3.5–4.5 kJ/Wh for NMC).

For projects requiring deep technical evaluation between these two chemistries, our engineering analysis on LFP vs NMC battery systems breaks down specific thermal degradation models. While NMC provides superior gravimetric energy density (up to 250 Wh/kg versus 160–180 Wh/kg for LFP), stationary applications are rarely weight-constrained. The exceptional cycle durability of LFP—delivering 4,000 to 6,000 cycles at 80% Depth of Discharge (DoD) versus 1,500 to 2,500 cycles for NMC—makes it the standard choice for facilities seeking a 15-year operational lifespan without mid-life battery augmentation.

Sizing Methodology for an Industrial Lithium Battery Backup

Sizing a lithium battery backup demands rigorous calculation of peak active power, target backup duration, inverter conversion losses, depth-of-discharge limits, and end-of-life cell degradation.

Calculating usable DC capacity relies on the standard IEEE 485 sizing approach adapted for lithium electrochemical performance. The minimum required nominal DC battery capacity ($E_{nominal}$) in kilowatt-hours is calculated via the following formula:

Formula: E_nominal = (P_load × t) / (η_inv × DoD × SOH × η_cable)

• P_load: Total critical active power demand in kilowatts (kW).
• t: Required autonomy or backup duration in hours (h).
• η_inv: Power conversion system (inverter) efficiency at rated power (typically 0.95–0.97).
• DoD: Maximum allowable depth of discharge (typically 0.85–0.90 to preserve cycle life).
• SOH: State of health factor at end of life (standard practice specifies 0.80, representing 20% degradation).
• η_cable: DC distribution and cable efficiency factor (typically 0.98).

Engineers specifying systems can review the step-by-step procedure below when preparing sizing sheets for capital expenditure approval:

1. Tabulate the load profile by classifying loads into continuous, intermittent, and motor-starting surge categories.
2. Determine the maximum real power (kW) and apparent power (kVA) demand, taking power factor (PF) into account (typically 0.85 to 0.95 for industrial facilities).
3. Define the required autonomy window (for example, 15 minutes for generator bridging, or 2 to 4 hours for standalone outage protection).
4. Apply the efficiency and degradation derating factors outlined in the formula above.
5. Select a standard rack-and-string voltage configuration that matches the DC input window of the power conversion system.
6. Verify fault current contributions: calculate peak prospective DC short-circuit current per IEC 61660-1 to size DC disconnect fuses and circuit breakers appropriately.

Worked Engineering Calculation:

Consider an industrial cleanroom facility with a steady-state critical load of 450 kW at 0.90 PF (500 kVA). The facility requires 2 hours of autonomy during utility blackouts before orderly shutdown sequences commence. System parameters include an inverter operating efficiency ($\eta_{inv}$) of 96% (0.96), maximum programmed DoD of 90% (0.90), an end-of-life SOH allowance of 80% (0.80), and DC bus wiring efficiency ($\eta_{cable}$) of 99% (0.99).

Plugging these values into the sizing equation:

E_nominal = (450 kW × 2 h) / (0.96 × 0.90 × 0.80 × 0.99)

E_nominal = 900 kWh / 0.6843 = 1,315.2 kWh

The engineering team must specify a nominal energy storage system rating of at least 1,320 kWh. If deploying standard 768 V DC nominal battery racks rated at 280 Ah (215.04 kWh per rack), the project requires 7 parallel racks, delivering 1,505 kWh nominal capacity. This provides a safety margin against unexpected load steps while operating within the safe voltage range of 672 V to 852 V DC.

Lithium Battery Backup vs VRLA Lead-Acid Systems

A direct performance and lifecycle comparison shows why industrial sites are replacing valve-regulated lead-acid (VRLA) batteries with lithium ion battery backup systems.

VRLA has historically served as the low-capex choice for uninterruptible power supplies. However, lead-acid technology exhibits severe limitations under high discharge rates, operational temperatures above 25°C, and cyclic operation. The Peukert effect significantly degrades lead-acid capacity when discharged over 15 to 30 minutes, whereas lithium cells exhibit minimal Peukert loss, maintaining practically constant capacity across discharge rates ranging from 0.2C to 2C.

Detailed engineering trade-offs between both technologies are detailed in the comparative evaluation table below:

To examine broader system configurations and total cost of ownership across industrial facilities, review our detailed guide on battery backup systems.

Safety, Thermal Management, and NFPA 855 Compliance

Safety certification according to UL 9540A and strict adherence to NFPA 855 standards are non-negotiable requirements for permitting indoor or containerised lithium battery backup installations.

NFPA 855 (Standard for the Installation of Stationary Energy Storage Systems) imposes strict constraints on system capacity, fire suppression, and physical separation. Clause 4.3 limits individual lithium-ion battery groupings to a maximum of 50 kWh unless the manufacturer has completed UL 9540A large-scale fire testing demonstrating that fire cannot propagate from cell to cell or module to module. Where UL 9540A test reports prove non-propagation, authority having jurisdiction (AHJ) approval can be obtained for combined rack capacities exceeding 250 kWh without physical spatial separation.

Essential technical requirements for code-compliant installations include:

• Fire Separation Distances: A minimum clearance of 3 feet (0.91 m) between individual battery enclosures and between battery racks and adjoining structural walls, per NFPA 855 Table 4.4.
• Thermal Runaway Exhaust: Continuous deflagration venting or mechanical exhaust ventilation designed per NFPA 69 and NFPA 68, sized to maintain combustible gas mixtures below 25% of the lower flammability limit (LFL).
• Suppression Infrastructure: NFPA 13-compliant wet-pipe sprinkler systems with a minimum design density of 0.3 gpm/ft² (12.2 L/min/m²) over the entire hazard area, combined with clean-agent suppression (e.g., FK-5-1-12) for primary suppression.
• BMS Interlocks: Multi-tier Battery Management Systems engineered in compliance with IEC 62619 clause 8.2, featuring independent hardwired emergency stops, shunt-trip contactors, and cell-level voltage and temperature monitoring.

For high-capacity deployments, modular container solutions with integrated liquid cooling optimize cell-to-cell thermal consistency within ±2°C. This level of control minimizes cell divergence and prevents hotspot development that leads to localized degradation. Further technical analysis on life safety and container engineering can be found in our comprehensive analysis of emergency energy storage.

Integration with Power Conversion Systems and Switchgear

A high-capacity lithium battery backup operates through closely coordinated electrical integration with medium-voltage (MV) or low-voltage (LV) switchgear, automatic transfer switches, and bidirectional power conversion systems.

In standard data center or industrial setups, the DC battery bank links to the DC busbar of a bidirectional power conversion system (PCS) or uninterruptible power supply (UPS) inverter. The PCS inverter continuously synchronizes with the AC utility grid via a phase-locked loop (PLL). When the grid voltage collapses or deviates beyond limits defined by IEEE 1547 or IEC 62040-3, the static transfer switch (STS) opens within 2 to 4 milliseconds, isolating the facility from the grid and switching the PCS into islanded grid-forming (voltage source) mode.

Upstream protection must account for high short-circuit currents delivered by lithium systems. The DC short-circuit current of an LFP battery system depends on cell internal resistance ($R_i$), which is significantly lower than that of lead-acid cells. A typical 1 MWh LFP battery bank with an internal DC bus impedance under 30 mΩ can deliver peak prospective fault currents exceeding 25 kA. DC protection schemes must deploy high-speed semiconductor fuses (Class aR or gR) or specialized DC molded-case circuit breakers (MCCB) rated to interrupt prospective faults at voltages up to 1,000 V or 1,500 V DC within 10 milliseconds, preventing switchgear busbar warping.

Procurement and Factory Acceptance Testing Checklist

Factory acceptance testing (FAT) for industrial lithium battery systems verifies electrical ratings, safety trip points, and BMS communication protocols before equipment leaves the factory floor.

Project engineers should specify the following testing regime in their procurement specifications to prevent site commissioning delays:

1. Insulation Resistance and Dielectric Withstand: Measure DC insulation resistance between positive/negative poles and chassis ground at 1,000 V DC (must exceed 10 MΩ per IEC 62619). Perform AC dielectric testing at 2 × U_nominal + 1,000 V for 60 seconds.
2. Full-Cycle Capacity Discharge Test: Charge the battery bank to 100% state of charge, followed by a continuous discharge at the contract-specified C-rate (e.g., 0.5C or 1.0C) down to cut-off voltage at 25°C ± 2°C per IEC 62620 clause 6.3. Delivered capacity must meet or exceed 100% of contract rating.
3. BMS Protection Setpoint Verification: Artificially simulate fault parameters to confirm automated disconnection thresholds for cell overvoltage (typically 3.65 V for LFP), cell undervoltage (typically 2.50 V), overtemperature warning (55°C), and high-temperature trip (65°C). Verify trip times occur within 100 milliseconds.
4. Communication and SCADA Polling: Verify Modbus TCP/IP, DNP3, or IEC 61850 communications map out telemetry points correctly to the plant supervisory system, including string currents, cell-level voltages, battery health metrics, and alarms.
5. BMS Shunt Trip Interlock Test: Trigger the master emergency power off (EPO) interface to ensure all motorized DC disconnect breakers open reliably under zero and full-load states.

Next steps: specifying and sourcing

When preparing an RFQ for a commercial or industrial lithium battery backup, compile your site load curves, target backup runtime, available three-phase connection voltages, and physical plant footprint constraints. Our engineering team assists consultants, EPCs, and plant engineers in performing detailed capacity simulations, fault level studies, and thermal load modeling. Explore our factory-engineered energy storage system platforms, integrate complete turnkey power packages with our liquid-cooled ESS container units, or view our integrated HV/LV switchgear lineup. Submit your single-line diagrams and system specifications through our request a quote portal to receive a tailored engineering proposal and sizing schedule.
