Home Generator Battery Guide: Cranking & Hybrid Storage

Quick answer: A home generator battery serves two primary engineering roles: a high-rate 12V or 24V starter battery designed to crank an internal combustion engine during mains failure, or an integrated stationary energy storage system operating alongside an engine generator to bridge transfer switch lag and eliminate transient outages.

In standby power architecture, the starting accumulator represents the single most common failure point during utility outages. When mains power drops, an automatic transfer switch (ATS) signals the generator control unit to commence cranking. If the home generator battery fails to deliver the required breakaway torque within 500 milliseconds, the control panel locks out on an over-crank fault, leaving critical circuits unpowered. Modern residential and light-commercial installations increasingly combine conventional reciprocating generators with dedicated stationary storage. Understanding the distinction between a dedicated starter battery and an integrated emergency energy storage system is vital for specifying reliable backup power infrastructure.

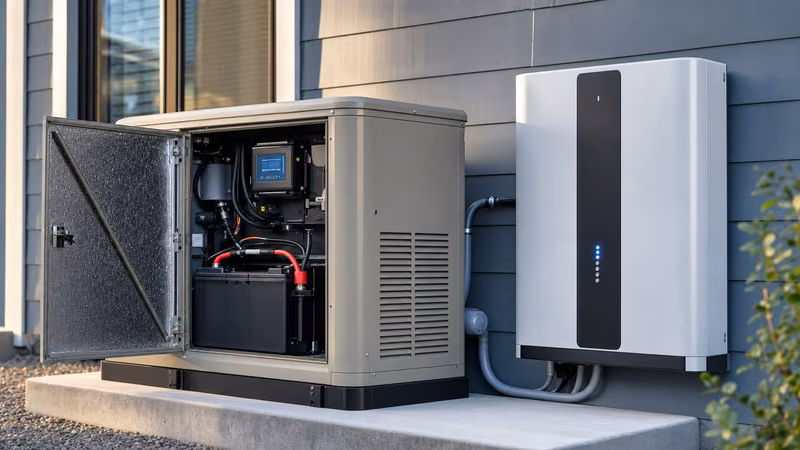

Home Generator Battery Roles: Starter Units vs Hybrid Energy Storage

A critical engineering distinction exists between an internal engine starter battery and an integrated residential battery energy storage system (BESS). An engine-cranking unit—often referred to in field documentation as a gen battery—is an auxiliary component engineered solely to energise the starter motor, fuel solenoid, and electronic control module (ECM). These batteries supply heavy burst currents (typically 150 A to 600 A) for durations of less than 10 seconds, operating under SAE J537 cranking profiles without supplying domestic loads directly.

Conversely, a stationary residential energy storage installation acts as a primary or parallel power source. When utility voltage collapses, a hybrid inverter or power conversion system draws power from an energy storage bank to maintain building sub-panels within 16 to 20 milliseconds, bridging the mechanical startup window of the engine. In this hybrid topology, the generator operates intermittently at its optimal fuel-efficiency band (between 70% and 85% of rated prime capacity) to recharge the main battery bank rather than running continuously under light loads. This operational profile eliminates engine wet-stacking—the accumulation of unburned fuel in the exhaust system caused by low cylinder temperatures.

Technical Sizing and Cranking Calculations for a Gen Battery

Sizing an engine starter battery requires calculating the breakaway current and rolling current demands of the engine displacement across worst-case low ambient temperatures. Cold temperatures drastically depress electrochemical reaction rates while increasing engine oil viscosity, doubling the mechanical torque required to reach ignition speed.

NFPA 110 (Standard for Emergency and Standby Power Systems) Clause 5.6.4 dictates that battery starting systems must provide sufficient energy for a complete cranking cycle without replenishing charge. For an emergency standby generator, a typical cranking sequence comprises three to continuous six crank cycles of 10 to 15 seconds interleaved with rest intervals. To size the starter battery correctly, apply the following calculation:

Assume a residential 22 kW liquid-cooled standby generator driven by a 1.8-litre, 4-cylinder petrol/gas engine installed in an unheated enclosure with an ambient design temperature of -15°C.

1. Determine mechanical breakaway current ($I_{break}$): The starter motor initial inrush is $I_{break} = 450\text{ A}$ for 100 ms.
2. Determine continuous rolling current ($I_{roll}$): The running cranking current is $I_{roll} = 180\text{ A}$ for an aggregate cranking time of $t = 60\text{ s}$ (four 15-second attempts).
3. Calculate cable voltage drop ($\Delta V$): Using 35 mm² (2 AWG) copper conductor over a 2.5-metre circuit (conductor resistance $R_c = 0.524\text{ m}\Omega/\text{m}$ at 20°C):
   $$\Delta V = I_{break} \times (2.5\text{ m} \times 0.000524\, \Omega/\text{m}) = 450 \times 0.00131 = 0.59\text{ V}$$
   This satisfies the design limit of less than 5% nominal voltage drop on a 12 V bus (maximum allowable drop = 0.60 V).
4. Establish temperature derating: Lead-acid chemistries lose approximately 35% of their effective Cold Cranking Amperes (CCA) at -18°C relative to their standard 0°C rating per SAE J537.
5. Calculate minimum required CCA rating:
   $$\text{Required CCA} = \frac{I_{break}}{\text{Derate Factor}} = \frac{450\text{ A}}{0.65} = 692.3\text{ A}$$

Consequently, an engineer must specify a minimum 12V 700 CCA battery (BCI Group 24 or Group 34) rather than relying on standard automotive ratings. Parasitic drain from digital controllers (usually 80 mA to 150 mA continuous) will deplete this battery within 14 days without an autonomous multi-stage trickle charger powered from the utility distribution board.

Comparative Engineering Matrix: Starter Chemistries and Hybrid Cells

Selecting electrochemical systems for generator auxiliary systems or hybrid backup demands careful evaluation of discharge rates, thermal stability, and maintenance profiles.

While flooded lead-acid cells remain common due to initial capital costs, sealed AGM and specialised LFP chemistries dominate critical applications because they eliminate hydrogen outgassing risks and plate sulfation during prolonged float stages.

Hybrid Architecture: Integrating Generators with Battery Systems

Integrating an engine-driven generator with a residential lithium battery backup system requires clear electrical topology segmentation. The system architecture depends on the physical location of the automatic transfer switch relative to the hybrid storage inverter.

Under IEEE 1547.4 (Guide for Design, Operation, and Integration of Distributed Resource Island Systems), hybrid microgrids employ two primary connection strategies: AC coupling and DC coupling. In an AC-coupled configuration, the generator supplies the input of an external ATS alongside the grid. The ATS switches the input of the main distribution switchboard between utility supply and generator supply. When grid failure occurs, the hybrid inverter's internal transfer relay forms an islanded AC microgrid in under 20 milliseconds, supplying essential loads from the battery storage bank. If the battery State of Charge (SOC) drops below a programmed threshold (typically 20% to 30%), a dry-contact closure triggers the generator remote start cycle. Once the generator reaches synchronous frequency (50 Hz ± 0.2 Hz or 60 Hz ± 0.2 Hz) and voltage stability (within ±2% per IEC 60034-22), the ATS switches the charging and house loads to the generator bus.

Engineers must implement electrical and software interlocking to prevent the hybrid inverter from back-feeding energy into the generator alternator windings. Synchronous generators cannot absorb reverse active power; reverse power flow of merely 5% to 10% of generator capacity will trip the reverse power relay (ANSI Device 32) or cause engine overspeed failure.

Factory Testing, Commissioning, and Maintenance Protocols

Maintaining high starting reliability requires rigorous factory acceptance and on-site testing protocols compliant with international standards.

1. Open-Circuit Voltage and State of Charge Verification: Measure cell open-circuit voltage (OCV) using a calibrated 4.5-digit multimeter after resting the battery disconnected for at least 4 hours. A 12V AGM unit displaying less than 12.60 V (2.10 V/cell) indicates undercharging or internal cell degradation.
2. Dynamic Internal Resistance / Conductance Testing: Implement testing per IEEE 1188 (Recommended Practice for Maintenance, Testing, and Replacement of Valve-Regulated Lead-Acid Batteries). Measure baseline ohmic values using an AC conductance meter. A 30% increase in internal resistance ($R_i$) or a 20% decrease in conductance against the factory baseline indicates end-of-life status, mandating cell replacement regardless of cranking performance.
3. Automated Load-Bank Cranking Profiling: Subject the starter battery to an automated Carbon Pile load test at 50% of its rated CCA for 15 seconds. Terminal voltage must remain strictly above 9.60 V (for a 12V system) at 21°C throughout the discharge pulse.
4. Charger Output and Ripple Voltage Measurement: Check the continuous float charge output. Alternator or static charger AC ripple voltage must not exceed 1.5% RMS of the DC bus voltage (less than 200 mV RMS on a 13.8 V float float charge), as high AC ripple accelerates positive grid corrosion. Advanced setups incorporate a dedicated battery monitoring system to log these parameters continuously.
5. Terminal Connection Torque: Inspect terminal hardware using an insulated torque wrench calibrated to manufacturer specifications (typically 8 Nm to 12 Nm for standard threaded insert terminals) to prevent high-resistance hot spots during inrush events.
