Shelf Life of Batteries: Engineering Calendar Aging Guide

Quick answer: The shelf life of batteries refers to the maximum duration a cell or battery bank can be stored unenergised before suffering irreversible capacity loss or functional failure, typically ranging from 3 to 10 years for lithium-ion and 12 to 24 months for lead-acid systems under controlled environments.

For project engineers, balance-of-plant designers, and procurement managers deploying commercial and industrial Battery Energy Storage Systems (BESS), inventory holding time represents an unmonitored reliability risk. From factory acceptance testing (FAT) to marine transit and prolonged onsite staging during substation construction, cells undergo chemical degradation long before commissioning. Understanding the boundary limits of battery storage life ensures assets maintain their warranted nameplate capacity upon initial commercial operation.

What Governs the Shelf Life of Batteries?

Calendar aging—the irreversible degradation of electrochemically active materials independent of charge-discharge cycles—dictates the operational storage threshold of secondary batteries. When cells reside in static storage, chemical side reactions continue at the interfaces between electrodes and the liquid electrolyte.

Three dominant operational variables govern this process:

• Ambient Storage Temperature: Parasitic reaction rates accelerate with thermal excitation. Elevated temperatures accelerate active material consumption and increase the internal impedance across both negative and positive plates.
• State of Charge (SOC) at Rest: Maintaining cells at 100% SOC elevates cathode potential, promoting electrolyte oxidation and accelerating transition metal dissolution. Storing cells at an intermediate 30% to 50% SOC significantly suppresses chemical stress.
• Passivation Layer Growth: In lithium cells, the solid electrolyte interphase (SEI) film continually thickens on the graphite anode over time, consuming active cyclable lithium ions and permanently reducing discharge capacity.

When assessing long-term asset availability, comparing cycle durability against calendar losses provides a realistic baseline for facility design, as covered in our Battery Power Cycle Guide.

Lithium Ion Shelf Life vs Traditional Chemistries

A direct comparison of chemistry characteristics reveals that lithium ion shelf life far exceeds that of historical lead-acid and nickel-cadmium technologies under equal thermal baselines. The mechanical degradation observed in static lead-acid storage stems from lead sulphate crystallisation (sulphation), which coats the negative plates within weeks if left at low states of charge. Conversely, lithium-ion formulations lose capacity primarily through internal parasitic resistance rather than mechanical plate passivation.

The table below provides engineering benchmarks for common industrial energy storage chemistries kept under recommended environmental storage regimes (15°C to 25°C, non-condensing relative humidity below 65%):

As detailed in our comparative analysis of LFP vs NMC battery systems, LFP chemistry displays superior thermal stability and lower calendar loss rates, making it the preferred candidate when protracted project delivery schedules or remote logistics delay on-site energisation. To review traditional chemistry retention characteristics, consult our guide on lead-acid battery lifespan.

Chemical Degradation Mechanisms During Inactive Storage

Electrochemical cells undergo distinct degradation mechanisms depending on whether energy is passing through the terminals or resting in an open-circuit state. During prolonged storage, thermodynamic instability drives non-faradaic and parasitic faradaic reactions across cell components.

Key degradation phenomena include:

• Continuous SEI Passivation: On the negative graphite electrode, electrolyte solvents reduce continuously over time, consuming active lithium inventory. While this SEI film acts as a mechanical barrier against rapid self-discharge, its ongoing expansion increases the internal direct current resistance (DCR) of the cell.
• Transition Metal Dissolution: In layered oxide cathodes, trace moisture and acidic impurities (such as hydrofluoric acid derived from LiPF6 salt breakdown) leach manganese, cobalt, or nickel ions into the electrolyte. These dissolved ions migrate to the anode, destabilising the SEI and causing accelerated loss of cyclable lithium.
• Copper Current Collector Dissolution: If a cell self-discharges below its critical low-voltage limit (typically 1.5 V to 2.0 V for lithium-ion), the negative copper foil current collector undergoes electrochemical dissolution. Upon subsequent recharge, dissolved copper precipitates into sharp metallic dendrites, inducing micro-shorts or complete internal cell breakdown.
• Electrolyte Decomposition and Gassing: High ambient temperatures oxidise organic carbonate solvents against the delithiated cathode, generating trace hydrocarbons, CO2, and gaseous species that elevate internal pressure inside hermetically sealed prismatic or pouch cells.

Real-time parameter tracking remains crucial to mitigate these risks prior to commercial operations, as explored in the Battery Monitoring System Guide.

Calculation: Estimating Capacity Loss During Extended Storage

Engineers can approximate the calendar capacity loss of lithium-ion systems across extended staging periods by applying an Arrhenius-based semi-empirical aging formulation. Capacity loss from calendar aging follows a sub-linear dependency on time, typically scaling with the square root of resting days.

The standard model for calendar capacity loss is formulated as:

Q_loss = A · exp(-E_a / (R · T)) · t^z

Where:

• Q_loss: Fractional capacity loss (p.u.)
• A: Pre-exponential kinetic factor (dependent on cell chemistry and resting SOC; typically 1,200 day^(-z) for LFP at 50% SOC)
• E_a: Apparent activation energy for calendar degradation (~31,500 J/mol)
• R: Universal gas constant (8.314 J/(mol·K))
• T: Absolute storage temperature in Kelvin (K)
• t: Storage duration in days
• z: Time exponent factor (empirically derived, commonly 0.5 for diffusion-limited SEI growth)

Worked Example: A 100 Ah LFP prismatic cell is stored at 50% SOC under two different site warehouse conditions for 365 days:

Condition 1: Controlled Climate Storage at 20°C (293.15 K)

Thermal factor: exp(-31,500 / (8.314 · 293.15)) = exp(-12.923) = 2.441 × 10^(-6)

Time factor: 365^0.5 = 19.105

Q_loss = 1,200 · (2.441 × 10^(-6)) · 19.105 = 0.0559 (5.59% capacity loss)

Condition 2: Unconditioned Field Staging at 35°C (308.15 K)

Thermal factor: exp(-31,500 / (8.314 · 308.15)) = exp(-12.294) = 4.578 × 10^(-6)

Time factor: 365^0.5 = 19.105

Q_loss = 1,200 · (4.578 × 10^(-6)) · 19.105 = 0.1049 (10.49% capacity loss)

The worked calculation proves that an uncontrolled 15°C temperature rise nearly doubles calendar capacity loss over a one-year staging window, directly shortening the effective shelf life of batteries prior to commissioning.

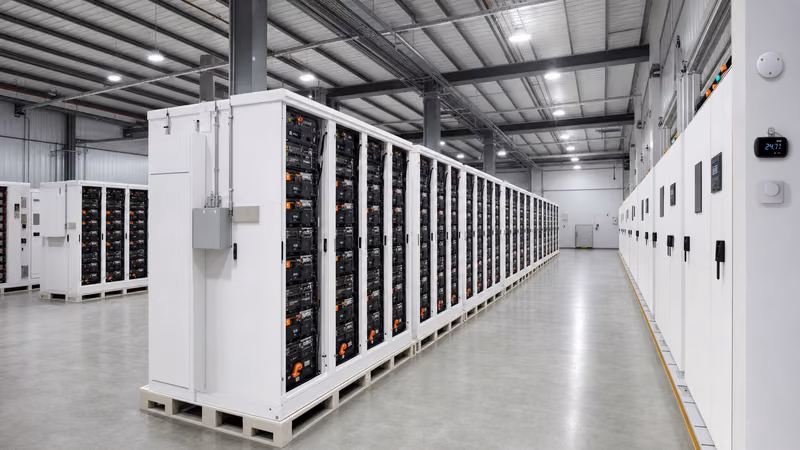

Warehouse and Pre-Commissioning Storage Protocols

Engineering procurement specifications must enforce structured preservation routines to maintain the valid shelf life of batteries during warehouse staging and site civil preparation. Failure to maintain cell voltages above shutdown thresholds can void original equipment warranties under standard factory supply terms.

Adhere to the following storage management sequence:

1. Inbound Goods Verification: Measure open-circuit voltage (OCV) and internal AC impedance (1 kHz) on a 5% statistical sample of incoming modules. Verify compliance with the manufacturer batch acceptance criteria per IEC 62620 clause 6.3.
2. Environmental Climate Control: Maintain warehouse temperatures between 15°C and 25°C. Avoid direct thermal radiation, roof heat buildup, and cyclic condensation. Keep relative humidity non-condensing under 60%.
3. Auxiliary BMS Isolation: Verify that internal Battery Management System (BMS) slave boards or local sensing harnesses are mechanically isolated via transport disconnect switches. Quiescent parasitic draw from monitoring microchips can deplete cell racks down to zero volts within four to six months.
4. Periodic Inspection Cadence: Record OCV every 90 days. For LFP racks, if average cell voltage drops below 3.15 V per cell, program a maintenance charge cycle.
5. Refresh Charging Protocol: Energise modules using a controlled constant-current, constant-voltage (CCCV) power supply. Recharge cells back to 30% to 50% SOC at a conservative C-rate (maximum 0.2C), ensuring ambient cell skin temperatures remain between 20°C and 25°C throughout charging.
6. Logistics Compliance Check: Confirm shipments comply with UN 38.3 transport recommendations and IEC 62619 safety criteria regarding maximum transport SOC limits prior to road or container movement.

Next steps: specifying and sourcing

Mitigating capacity loss during extended construction timelines requires clear warehouse preservation guidelines and robust manufacturing standards. When drafting procurement documentation for utility-scale or industrial installations, specify baseline storage state of charge, onboard disconnect provisions, and maximum allowable calendar aging rates under defined staging temperatures. Explore our high-integrity energy storage systems and modular liquid-cooled ESS containers built to IEC and ANSI standards. Submit project specifications, single-line diagrams, and storage scheduling requirements through our quotation inquiry page to collaborate with our engineering team.
