How Long Does a Lead Acid Battery Last? Lifespan Guide

Quick answer: A lead acid battery typically lasts between 3 and 5 years in standard float service, 200 to 500 cycles under heavy daily discharge, and up to 12 to 20 years in premium industrial stationary installations using flooded tubular plates. Actual service duration depends directly on ambient temperature, depth of discharge (DoD), and charging regime discipline.

For plant engineers, electrical contractors, and facility managers, determining exactly how long does a lead acid battery last is critical for capital planning and avoiding unexpected plant shutdowns. While manufacturers frequently publish nominal design lives of 10 or 12 years for valve-regulated lead-acid (VRLA) models, field conditions rarely match clean laboratory test environments. Operating temperatures, discharge profiles, ripple currents from rectifiers, and maintenance schedules dictate actual field endurance. Evaluating the distinct chemical variations of lead acid technology, identifying core failure mechanisms, and applying empirical degradation calculations ensures system reliability across industrial DC control systems, telecommunications power plants, and uninterrupted power supply (UPS) banks.

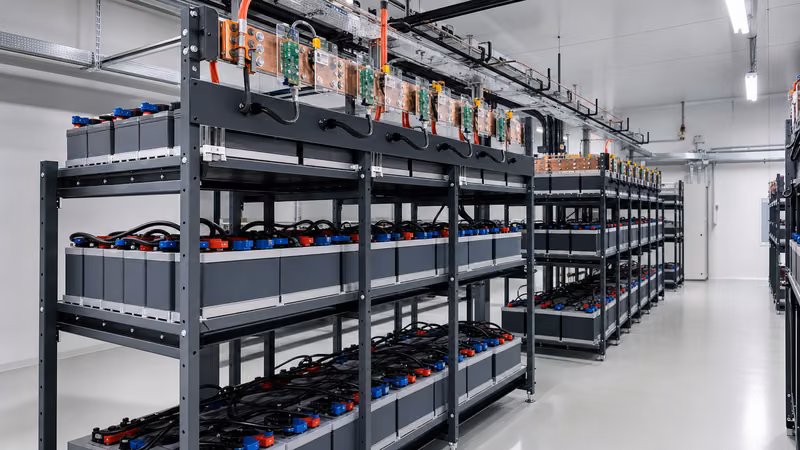

How Long Does a Lead Acid Battery Last: Lifespan by Chemistry and Construction

A lead acid battery's service duration is primarily governed by its mechanical design, plate alloy composition, and physical electrolyte state. Industrial secondary lead-acid cells are broadly categorized into vented lead-acid (VLA or flooded) and valve-regulated lead-acid (VRLA), which includes absorbed glass mat (AGM) and gelled electrolyte (Gel) formats.

Flooded flat-plate cells, governed by IEEE 450 maintenance guidelines, provide an operational life span of lead acid battery banks around 5 to 10 years. In contrast, vented tubular cells (DIN standard OPzS) feature positive plates enclosed in porous woven gauntlets that prevent active material shedding during cycling. This mechanical containment enables OPzS systems to achieve a 15- to 20-year service life in float standby applications. Sealed VRLA cells, manufactured to IEC 60896-21/22 specifications, immobilize sulphuric acid in micro-porous glass separators (AGM) or fumed silica matrices (Gel). Standard commercial AGM blocks deliver a typical lead acid battery lifespan of 3 to 5 years, whereas thick-plate front-terminal telecom cells can operate reliably for 8 to 10 years when maintained strictly at 20°C to 25°C.

The table below provides typical calendar and cycle ratings for major industrial lead-acid technologies:

Critical Factors That Dictate Lead Acid Battery Lifespan

Operating temperature is the single most destructive variable affecting stationary lead acid battery lifetime. The chemical degradation of lead alloy grids follows the Arrhenius equation, meaning that for every 8°C to 10°C rise in continuous operating temperature above the baseline 25°C, positive plate corrosion rates double, effectively slashing calendar longevity by 50%. A battery bank rated for 10 years at 25°C will typically last less than 5 years if operated continuously in an unconditioned enclosure at 35°C.

Depth of discharge (DoD) exerts equal control over cumulative energy throughput. When a cell discharges, lead dioxide ($PbO_2$) at the positive plate and spongy lead ($Pb$) at the negative plate convert into lead sulfate ($PbSO_4$). Deeper discharges produce larger molar volume changes, generating mechanical mechanical stresses within the active material matrix. Discharging down to 80% DoD on a daily schedule degrades cells up to four times faster than operating within a shallow 20% to 30% DoD window. For applications requiring frequent high-energy cycling, reviewing our Battery Power Cycle Guide provides detailed calculations on matching duty cycles to cell degradation.

Float charge voltage regulation also determines operating endurance. If the rectifier voltage is set too low, the battery resides in an undercharged state, promoting irreversible sulfate crystallization (sulfation). Conversely, excessive float voltage causes grid over-oxidation, elevated internal gas generation, water loss, and potential thermal runaway. In three-phase utility installations, DC ripple current from switch-mode power supplies or silicon-controlled rectifiers (SCR) must be constrained below 5 A RMS per 100 Ah of battery rating to prevent destructive internal heating.

Internal Failure Modes Ending Lead Acid Battery Life

The chemical demise of a lead-acid cell is inevitable due to thermodynamic instability under high cell potentials. Understanding the primary failure modes enables plant technicians to anticipate the end of functional lead acid battery life before a catastrophic loss of substation control power occurs.

• Positive Grid Corrosion: The lead grid structure supporting the positive active material ($PbO_2$) oxidizes over time into lead oxide compounds. This reaction reduces structural cross-section, increases internal resistance, and causes mechanical expansion (grid growth) that can fracture the cell container or sever internal plate lugs.
• Plate Sulfation: If a battery remains discharged or undercharged for extended intervals, the small, amorphous lead sulfate crystals recrystallize into coarse, insoluble structures. These large crystals cannot be converted back to lead and sulphuric acid during normal recharge cycles, permanently robbing the cell of active capacity and escalating internal impedance.
• Acid Stratification: Prevalent in flooded batteries subjected to repeated shallow cycling without regular equalizing charges, heavy sulfuric acid ($1.84 \text{ g/cm}^3$ pure) settles to the bottom of the container. The concentrated acid at the base accelerates local grid corrosion, while the diluted electrolyte at the top promotes negative plate sulfation and reduces top-plate capacity.
• Dry-Out and Recombinant Thermal Runaway: In sealed VRLA cells, water loss through venting valves—caused by prolonged overcharging or elevated temperatures—dries out the micro-glass fiber matting. The reduced internal resistance causes elevated float currents, raising internal core temperatures until the cell enters a self-sustaining, destructive thermal runaway cycle.

Worked Engineering Calculation: Estimating Usable Lifespan Under Thermal Stress

Field installations rarely provide ideal thermal management, requiring engineers to de-rate the manufacturer baseline float life according to site-specific environmental conditions. Consider an emergency power system utilizing high-performance VRLA front-terminal battery strings specified with a nominal 10-year design life at a standard 25°C rating. The battery rack is located inside an unconditioned industrial electrical room where summer temperatures average 35°C for 6 months of the year, and 25°C for the remaining 6 months.

To evaluate the thermal degradation acceleration factor ($f_T$), engineers apply the standard Arrhenius acceleration relationship for lead acid chemistry, expressed as:

$$f_T = 2^{\frac{T_{op} - T_{ref}}{\Delta T}}$$

Where $T_{ref} = 25^\circ\text{C}$, $\Delta T = 8.3^\circ\text{C}$ (standard empirical activation constant for antimony-free VRLA grid corrosion), and $T_{op}$ is the actual operating temperature.

Step 1: Calculate the aging factor at 35°C:

$$f_{T(35)} = 2^{\frac{35 - 25}{8.3}} = 2^{1.205} \approx 2.305$$

Operating at 35°C causes the battery to age 2.305 times faster than at baseline.

Step 2: Calculate the effective annual degradation rate:

For six months (0.5 year) at 25°C ($f_T = 1.0$) and six months (0.5 year) at 35°C ($f_T = 2.305$):

$$\text{Effective Equivalent Years Consumed per Calendar Year} = (0.5 \times 1.0) + (0.5 \times 2.305) = 0.5 + 1.1525 = 1.6525 \text{ years}$$

Step 3: Calculate real-world expected calendar life:

$$\text{Expected Lifespan} = \frac{\text{Design Life}}{\text{Annual Aging Rate}} = \frac{10 \text{ years}}{1.6525} \approx 6.05 \text{ years}$$

The calculation reveals that exposure to 35°C for half the year reduces the actual operational service life from 10 years to approximately 6 years. For large-scale substation designs, pairing batteries with thermal isolation or integrating intelligent environmental sensors outlined in our Battery Monitoring System Guide preserves capital assets.

Field Testing and Replacement Criteria Under IEEE Standards

A battery does not need to deliver zero amp-hours to be considered dead; rather, international safety standards define end of life well before total physical failure occurs. According to IEEE 450 (clause 6) for vented cells and IEEE 1188 (clause 5.2) for VRLA units, a battery string reaches retirement when its delivered capacity falls below 80% of its rated nameplate value.

Field engineers verify operating health and predict remaining life span of lead acid battery assets using four primary diagnostic procedures:

1. Timed Discharge Capacity Testing: The definitive test requires disconnecting the string from the rectifier and loading the bank using an external load bank at the manufacturer-specified discharge rate (e.g., 3-hour or 8-hour rate) down to the specified cut-off cell voltage (typically 1.75 or 1.80 Vpc). If the duration to end-voltage multiplied by discharge current yields less than 80% of rated Ah capacity, the entire bank must be scheduled for replacement.
2. Ohmic Measurement (Impedance / Conductance): Quarterly measurements using calibrated AC impedance or micro-Siemens conductance meters identify deteriorating individual cells. A rise in internal cell impedance greater than 30% to 50% above baseline commissioning values indicates severe plate sulfation, dry-out, or internal hardware loosening.
3. Float Voltage and Open-Circuit Voltage Checks: Individual cell float voltages must remain within tight tolerances (typically $\pm 0.05 \text{ V}$ per cell for flooded units and $\pm 0.09 \text{ V}$ for VRLA). Cells consistently floating low indicate internal shorting across separators, while cells floating unusually high indicate severe drying out.
4. Specific Gravity Checks (Flooded Units Only): Hydrometer measurements of electrolyte specific gravity directly measure state of charge and chemical health. A variation exceeding 0.015 between cells across a string indicates chronic stratification or cell degradation that equalizing charges cannot resolve.

For mission-critical utility switchgear and telecom infrastructure, failure to replace degraded strings below the 80% capacity threshold risks total voltage collapse during high-current breaker trips, as detailed in our guide on Battery Bank Industrial Systems.

Lead Acid vs Lithium Iron Phosphate: Lifecycle and Replacement Realities

When modernizing substation DC systems, uninterruptible facilities, and energy storage enclosures, evaluating the total lifecycle economics between legacy lead-acid and modern lithium iron phosphate ($LiFePO_4$ or LFP) chemistries is standard practice. While lead-acid systems offer lower initial capital expenditure (CAPEX), their lifetime operational costs often exceed alternatives when factoring in replacement cycles and room conditioning requirements.

A utility-grade lead acid battery installation under typical industrial ambient cycling profiles requires full replacement every 3 to 7 years. Conversely, commercial-grade LFP chemistries engineered into modern LFP systems easily sustain 4,000 to 8,000 full cycles at 80% DoD, providing 15 to 20 years of calendar life even under ambient temperatures reaching 30°C to 35°C without accelerated thermal degradation.

Furthermore, lead-acid systems suffer from pronounced Peukert losses—where high-rate discharge significantly reduces usable capacity—alongside a low round-trip energy efficiency of 70% to 80%. Modern lithium installations operate at greater than 92% to 96% round-trip efficiency, do not generate flammable hydrogen gas during normal cycling, and do not require periodic equalizing or routine acid maintenance. Where facility footprint and maintenance labor costs are heavily scrutinized, engineers increasingly deploy integrated lithium solutions such as those examined in our analysis of emergency energy storage.

Next steps: specifying and sourcing

When specifying battery replacement banks or designing new DC power systems, defining the duty profile, ambient temperature boundaries, and required runtime under worst-case end-of-life conditions prevents undersizing. For projects transitioning to high-density, low-maintenance energy infrastructure, reviewing containerized energy storage systems or specialized liquid-cooled ESS containers provides a modular footprint with advanced thermal management. Our engineering team assists with battery room layouts, seismic rack calculations, and sizing DC auxiliary power supplies to IEEE standards. To discuss technical specifications or obtain engineering quotations for your next substation or commercial storage build, submit your project single-line diagram and load schedule through our quote request page or contact our technical team at contact our engineers.
