Key takeaways
- A transformer grounding system provides two distinct functions: system grounding to stabilise phase-to-ground voltages and equipment bonding to safely clear phase-to-chassis fault currents.
- For separately derived systems under NEC Article 250.30 and IEC 60364, the system bonding jumper must never be installed at both the transformer enclosure and the downstream switchgear, as dual bonding creates circulating neutral currents.
- Solid neutral grounding is preferred for low-voltage systems under 1 kV to ensure rapid breaker tripping, whereas medium-voltage systems (3.3 kV to 33 kV) typically use resistance grounding to limit ground-fault currents to between 10 A and 400 A.
- Earthing conductor cross-sectional area is calculated according to IEC 60364-5-54 and IEEE 80 using the adiabatic thermal equation based on fault current magnitude, fault duration, and material constant k.
- Maximum permissible substation grid resistance must remain below 1.0 ohm (and often below 0.5 ohms for major transmission substations) to suppress touch and step potentials within IEEE 80 safety thresholds.

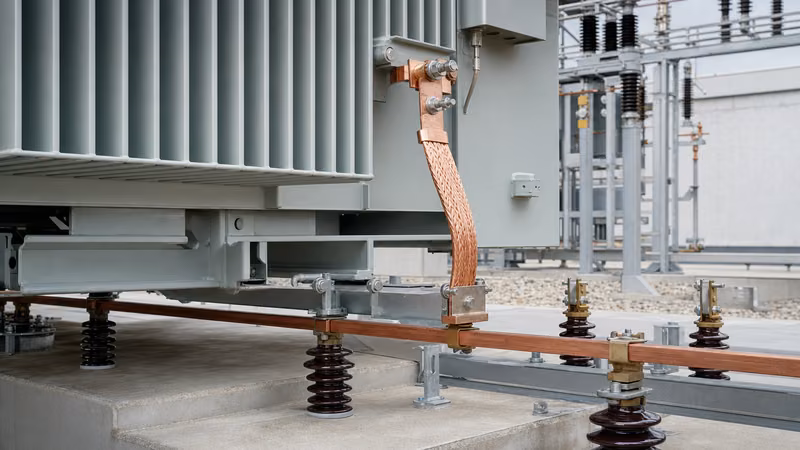

Quick answer: A transformer grounding system connects the transformer neutral point and conductive enclosures to an earth electrode network to stabilise phase-to-earth voltage, limit transient overvoltages, and provide a low-impedance path to trip protective devices during phase-to-ground faults.
In electrical distribution and transmission networks, design engineers must distinguish between system earthing (the intentional connection of the neutral point to earth) and equipment earthing (the bonding of non-current-carrying metallic tanks, core frames, and cable armouring). Misunderstanding the interface between these two functions compromises protection coordination, damages winding insulation, and generates fatal touch potentials during insulation breakdown. Whether configuring an outdoor distribution substation or integrating an indoor dry-type unit, proper design and sizing of the grounding system is critical.
