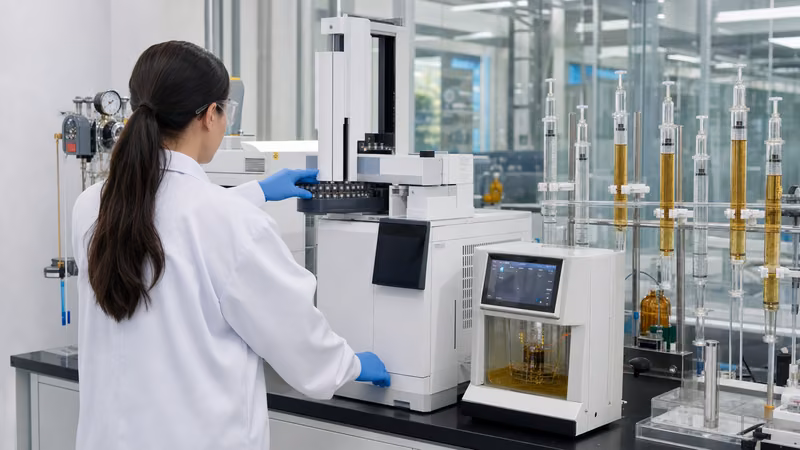

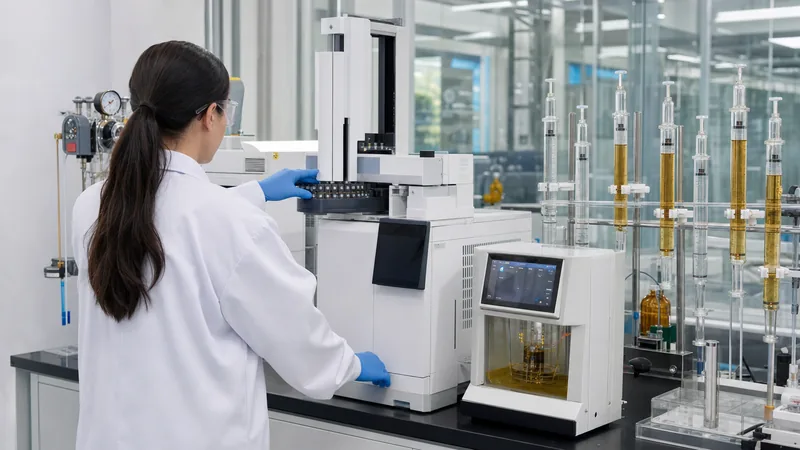

Key takeaways
- Transformer oil testing evaluates dielectric breakdown voltage, moisture content, acidity, and dissolved gases to determine fluid health and internal asset condition.
- Dissolved gas analysis (DGA) according to IEC 60567 or IEEE C57.104 identifies incipient thermal, arcing, and partial discharge faults inside electrical transformers before catastrophic failure occurs.
- Standard dielectric breakdown voltage for new mineral insulating oil must exceed 30 kV under ASTM D877 or 60 kV across a 2.5 mm gap per IEC 60156.
- Moisture content in operating oil for high-voltage units above 69 kV should strictly remain below 15 to 20 parts per million (ppm) to preserve solid cellulosic paper insulation.
- Laboratory testing protocols require specialised airtight glass syringes or stainless steel cylinders to prevent atmospheric gas ingress and particulate contamination during sampling.
Quick answer: Transformer oil testing is the routine laboratory and field assessment of insulating fluid to evaluate dielectric integrity, chemical degradation, and incipient mechanical or electrical faults within liquid-immersed transformers. Key parameters include dielectric breakdown voltage, moisture content, interfacial tension, and dissolved gas analysis (DGA) tested against IEC 60422 or IEEE C57.106 standards.
Insulating mineral oil serves a dual purpose in power and distribution apparatus: it provides primary electrical insulation between energized windings and the grounded tank, and it serves as the liquid heat-transfer medium to dissipate thermal energy. Over decades of operational service, thermal cycling, electrical stress, ambient humidity, and oxygen exposure degrade both the mineral liquid and solid kraft paper insulation. By implementing a systematic programme of transformer oil analysis, asset managers can identify overheating, arcing, cellulose decomposition, and moisture ingress before an unpredicted substation outage occurs. Correlating laboratory fluid results with wider electrical diagnostics outlined in our guide on how to test a transformer ensures comprehensive asset lifecycle protection.
Why is transformer oil analysis critical for asset reliability?
Transformer oil analysis detects microscopic thermal and electrical degradation long before protective relays trip or physical damage becomes externally visible. Within an energized tank, cellulose paper and mineral hydrocarbons break down under operational stress, releasing soluble degradation byproducts, free moisture, and chemical gases directly into the fluid medium. Monitoring these compounds provides an internal diagnostic fingerprint of the active core and winding assembly.
Ignoring fluid monitoring leads directly to accelerated solid paper aging, which is an irreversible thermal reaction. While contaminated fluid can be reconditioned via processes detailed in our guide to transformer oil purification, damaged cellulose paper windings cannot be restored without complete factory rewinding. Furthermore, elevated moisture levels drastically lower the dielectric breakdown voltage of the oil, increasing the vulnerability of high-voltage bushings and winding insulation to switching surges or lightning impulses. Integrating scheduled laboratory testing with electrical screening such as checking insulation resistance protects multi-million-pound assets against abrupt catastrophic failure.
Key transformer oil testing standards: IEC vs IEEE
International testing protocols are governed primarily by two standardisation bodies: the International Electrotechnical Commission (IEC) and the Institute of Electrical and Electronics Engineers (IEEE). Selecting the appropriate standard depends on regional regulatory mandates, utility specifications, and plant engineering design standards.
The two governing standards define acceptance limits for new oil commissioning, routine operational maintenance, and end-of-life reclamation. While test methodologies yield comparable insights, their electrode geometries, test cell dimensions, and diagnostic thresholds differ substantially. The table below compares the core test parameters across both standards for operating mineral oils used in transformers rated up to 69 kV and above.
| Test Parameter | IEC Standard & Limit | IEEE / ASTM Standard & Limit | Engineering Significance |
|---|---|---|---|
| Dielectric Breakdown Voltage | IEC 60156: >50 kV (2.5 mm gap) | ASTM D1816: >35 kV (1.0 mm gap) | Indicates fluid resistance to electrical flashover under voltage stress. |
| Moisture Content (Water in Oil) | IEC 60814: <15–20 mg/kg (ppm) | ASTM D1533: <20–25 mg/kg (ppm) | Controls dielectric loss; excessive moisture degrades cellulose paper. |
| Dissolved Gas Analysis (DGA) | IEC 60567 / IEC 60422 | IEEE C57.104 (Condition 1–4) | Quantifies fault gases (H2, CH4, C2H2, C2H4, C2H6, CO, CO2). |
| Acidity / Neutralisation Number | IEC 62021-1: <0.10 mg KOH/g | ASTM D974: <0.15 mg KOH/g | Measures organic acid accumulation from oxidation and oil aging. |
| Interfacial Tension (IFT) | ISO 6295: >25 mN/m | ASTM D971: >25 mN/m | Detects hydrophilic polar contaminants and sludge precursors. |
| Dielectric Dissipation Factor (Tan Delta) | IEC 60247: <0.05 at 90°C | ASTM D924: <0.5% at 25°C | Measures power losses due to conducting ions and soluble impurities. |
| Furanic Compounds (2-FAL) | IEC 61198: <1.0 mg/kg | ASTM D5837: <1.0 mg/kg | Direct metric of solid paper degree of polymerisation (DP). |
Dissolved Gas Analysis (DGA): identifying internal faults
Dissolved gas analysis isolates and measures specific combustible hydrocarbons and carbon oxides to diagnose thermal hot spots, partial discharges, and high-energy arcing inside the tank. As electrical and thermal faults stress hydrocarbon molecules, covalent bonds rupture to form diagnostic gases at characteristic temperature zones.
A qualified transformer oil testing laboratory uses gas chromatography following extraction per ASTM D3612 or IEC 60567 to quantify seven critical fault gases:
- Hydrogen (H2): Generated by corona discharges, low-energy electrical sparks, and chemical interaction with water at temperatures above 150°C.
- Methane (CH4) and Ethane (C2H6): Indicate low-to-medium thermal faults in oil ranging between 150°C and 300°C.
- Ethylene (C2H4): Produced under severe thermal overheating exceeding 350°C, typically indicating localized core hot spots, bad contact crimps, or circulating tank currents.
- Acetylene (C2H2): The definitive signature of high-energy arcing, electrical flashover, or active tap-changer sparking, forming only at extreme temperatures exceeding 700°C.
- Carbon Monoxide (CO) and Carbon Dioxide (CO2): Released through the thermal decomposition of kraft paper insulation; a carbon dioxide to carbon monoxide ratio below 3 indicates serious cellulose degradation.
Diagnostic evaluation relies on standardized ratio schemes, such as the IEC 60599 basic gas ratios or the Duval Triangle methods (Duval Triangles 1, 4, and 5). Duval Triangle 1 plots the relative percentages of methane, ethylene, and acetylene on triangular coordinates to classify faults into distinct zones: PD (Partial Discharge), T1 (Thermal fault <300°C), T2 (300°C–700°C), T3 (>700°C), D1 (Low energy discharge), and D2 (High energy discharge). Integrating DGA trend tracking with automated substation protection systems, as covered in our transformer protection engineering guide, ensures rapid isolation before tank rupture.
Physical and chemical screening tests for oil degradation
Physical and chemical tests assess fluid aging, oxidation rates, and contamination levels to determine whether oil requires dehydration, degasification, reclamation, or full replacement. Unlike DGA, which monitors structural faults, physical-chemical profiling focuses directly on the operational lifespan of the fluid.
Three primary parameters govern routine condition monitoring:
- Acidity and Sludge Formation: As mineral oil oxidises in the presence of dissolved oxygen and warm copper conductors, organic peroxides convert to soluble naphthenic acids. Acid values above 0.20 mg KOH/g attack the structural integrity of kraft paper and deposit insoluble bituminous sludge on core radiators, impeding cooling efficiency.
- Interfacial Tension (IFT): Measured in millinewtons per metre (mN/m), IFT reflects the molecular attraction between the mineral oil and distilled water. Fresh oil exhibits an IFT of 40–50 mN/m. Polar oxidation products lower this tension; readings dropping below 22 mN/m indicate advanced degradation and impending sludge precipitation inside the windings.
- Dielectric Dissipation Factor (Tan Delta): This parameter measures dielectric power loss caused by leakage current passing through conducting polar species and suspended colloids. High dissipation at 90°C signals accelerated paper breakdown, fine particulate ingress, or moisture contamination.
How to sample transformer oil: step-by-step procedure
A reliable laboratory test report depends entirely on proper sampling technique, as improper procedures introduce airborne moisture, ambient dust, and atmospheric gases that distort analysis. Field engineers and technicians must strictly adhere to IEC 60475 or ASTM D923 protocols when drawing samples from operational units.
- Inspect ambient conditions and hardware: Verify that the transformer is at positive internal gauge pressure and that ambient relative humidity is below 75%. Never draw oil samples outdoors during rain, fog, or dust storms.
- Purge sampling drain valve: Clean the bottom sampling port with a lint-free cloth and technical solvent. Drain and discard at least 2 to 4 litres of stagnant oil into a waste container to clear pipe sediment, rust particles, and trapped moisture.
- Connect dedicated sampling apparatus: For DGA analysis, connect an airtight, precision-ground borosilicate glass syringe (50 ml or 100 ml) using clean, non-reactive fluoropolymer (PTFE) tubing. Ensure zero bubbles enter the syringe barrel.
- Fill syringe without headspace: Position the glass syringe vertically, nozzle down. Allow system oil pressure to gently push the plunger outwards without drawing air. Rotate the three-way stopcock to vent initial bubbles, flush twice, and lock the valve airtight.
- Collect physical-chemical bulk sample: Draw oil into an amber glass or high-density polyethylene (HDPE) bottle for dielectric breakdown and moisture tests. Rinse the bottle three times with transformer fluid before filling to 95% capacity, leaving minimal expansion headspace.
- Label, document, and package: Record exact transformer serial number, operating fluid temperature, ambient temperature, top-oil gauge reading, and sampling timestamp. Protect glass syringes from UV light and thermal shocks during transit to the transformer oil testing lab.
How to select a qualified transformer oil testing laboratory
A reliable analytical laboratory must hold formal accreditation under ISO/IEC 17025 to guarantee technical competence, precision instrumentation, and defensible test results. Commercial transformer oil testing companies vary widely in analytical capability, calibration rigor, and diagnostic interpretation.
When auditing prospective partners or commissioning an independent transformer oil analysis laboratory, procurement and asset engineers should review four key credentials:
- ISO/IEC 17025 Scope of Accreditation: Confirm that specific oil standards—including ASTM D3612/IEC 60567 for DGA, ASTM D1533/IEC 60814 for Karl Fischer moisture, and ASTM D1816/IEC 60156 for dielectric breakdown—are formally listed on the laboratory schedule of accreditation.
- Automated Gas Chromatography Rigor: Inquire whether the facility utilizes headspace sampling or vacuum extraction systems, and review their inter-laboratory round-robin participation (such as ASTM or IEEE proficiency testing programmes).
- Emergency Turnaround Capabilities: Substation alarms triggered by Buchholz relays or pressure relief devices require rapid DGA verification. Verify that the transformer oil testing laboratory offers 4-hour or 24-hour expedited testing tiers for high-priority fault gases.
- Engineering Diagnostic Support: Superior service providers deliver more than raw parts-per-million data; their reports should include Duval Triangle plots, Rogers Ratio assessments, and concrete recommendations for degasification, drying, or winding inspection.
Next steps: specifying and sourcing
Establishing a proactive dielectric fluid monitoring strategy prevents unexpected substation downtime and extends the operational service life of critical electrical equipment. If your facility is planning substation upgrades or requires new distribution or generation assets, submit your project specifications including rated voltage, kVA capacity, vector group, and ambient requirements directly through our quote request page. Our engineering team designs and manufactures high-efficiency oil-immersed transformers, high-voltage power transformers, and turnkey transformer substations compliant with IEC, IEEE, and ANSI international standards. For technical consultations on oil testing specifications or custom substation engineering, contact our specialists via the contact page.
Frequently asked questions
How often should transformer oil testing be performed?
Transformer oil testing should be conducted annually for critical power transformers and every two to three years for standard industrial distribution units. Transformers exhibiting gas generation trends, elevated operating temperatures, or heavy cyclic loading require quarterly or bi-annual DGA screening.
What is an acceptable dielectric breakdown voltage for transformer oil?
Acceptable dielectric breakdown voltage for in-service mineral insulating oil in high-voltage transformers above 69 kV is a minimum of 30 kV under ASTM D877 or 50 kV across a 2.5 mm spherical gap under IEC 60156. New or vacuum-processed oil should exceed 60 kV.
What does acetylene gas indicate in a transformer oil analysis?
Acetylene (C2H2) indicates high-energy electrical arcing or sustained spark discharges inside the transformer tank at temperatures exceeding 700°C. Even small quantities above 1 to 2 ppm warrant immediate investigation, load curtailment, and electrical isolation to prevent explosive tank failure.
What is the difference between ASTM D877 and ASTM D1816 breakdown tests?
ASTM D877 uses flat disc electrodes with a 2.54 mm gap and is sensitive primarily to gross water and heavy particulate matter in commercial oils. ASTM D1816 uses spherical VDE electrodes with motorized stirring across a 1.0 mm or 2.0 mm gap, offering far higher sensitivity to microscopic moisture and fine suspended fibers.
Can transformer oil analysis measure solid insulation degradation?
Yes, transformer oil analysis measures solid paper degradation by quantifying dissolved furanic compounds (specifically 2-furfuraldehyde or 2-FAL) using high-performance liquid chromatography (HPLC) per IEC 61198. Furan concentrations correlate directly with the mechanical tensile strength and degree of polymerisation (DP) of kraft paper windings.
Why is moisture in transformer oil dangerous for high-voltage equipment?
Moisture in transformer oil drastically reduces dielectric breakdown strength, increases dielectric dissipation factor (tan delta), and accelerates thermal breakdown of solid cellulose insulation. Under sudden load changes or temperature spikes, excessive moisture can bubble out of paper windings, creating vapor pockets that trigger catastrophic dielectric flashover.
