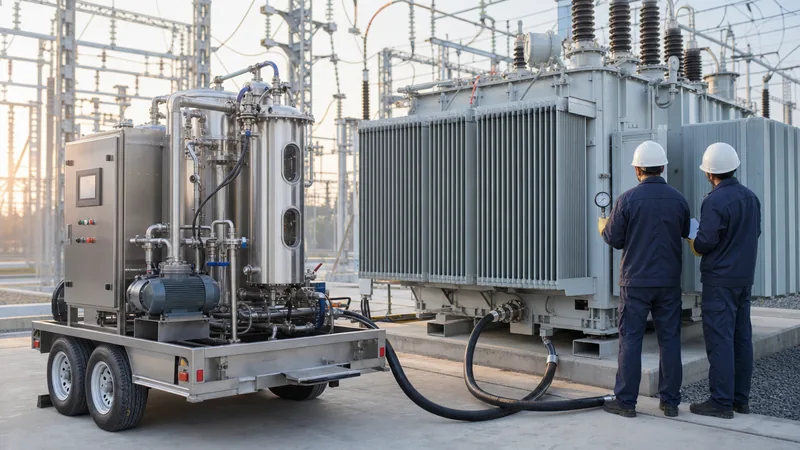

Transformer Oil Purification: Filtration Process & System Guide

Quick answer: Transformer oil purification is an electro-mechanical conditioning process that removes water, dissolved gases, sludge, and solid particulates from dielectric insulating oil. By combining mechanical micro-filtration, indirect heating, and high-vacuum degassing, an industrial oil purifier restores breakdown voltage above 60 kV, limits moisture below 10 ppm, and protects solid winding insulation from irreversible thermal and chemical decay.

Mineral insulating oil serves two irreplaceable functions inside high-voltage electrical equipment: it provides primary dielectric insulation between phase windings and circulates via natural or forced convection to dissipate core and coil thermal losses. During prolonged service under elevated operating temperatures and electrical stress, insulating oil undergoes oxidative degradation. Atmospheric moisture ingress via breathers, particulate shedding from aging cellulose pressboard, and internal arcing generate harmful contaminants. When moisture and suspended carbon accumulate, dielectric breakdown voltage drops precipitously, accelerating dielectric paper breakdown and dramatically increasing the risk of catastrophic phase-to-ground flashovers.

To maintain absolute grid reliability across transmission networks, industrial facilities, and utility-scale battery energy storage system (BESS) substations, asset owners deploy a dedicated transformer oil purification regime. Operating either online on energised units or offline during scheduled outages, modern conditioning plants strip hazardous micro-particles, dissolved moisture, and volatile combustible gases. Understanding the technical mechanics of a transformer oil filtration system enables electrical plant managers and commissioning engineers to select appropriate plant capacities, prevent premature transformer failure, and uphold the international operational standards mandated by IEC 60422 and IEEE C57.106.

Why Transformer Oil Purification Is Essential for High-Voltage Assets

Transformer oil purification is essential because degraded dielectric fluid directly compromises transformer internal insulation, leading to dielectric breakdown, thermal runaway, and premature winding failure.

Within any liquid-immersed electrical asset, the dielectric fluid works in continuous physical equilibrium with solid kraft paper insulation. Water is an aggressive polar contaminant: as insulating oil degrades through oxidation, peroxides, low-molecular-weight acids, and sludge precipitate out. Moisture partitions preferentially into the cellulose insulation rather than remaining in the hydrocarbon fluid. A moisture concentration increase in paper from 1% to 3% cuts the mechanical tensile strength and expected operating life of the paper by more than 75%. As explored in our technical breakdown of transformers internal components, winding paper cannot be replaced on-site without a complete core rewind; therefore, preserving the oil's moisture-scavenging capacity is the single most effective way to extend asset longevity.

Furthermore, oxidation creates suspended colloidal carbon and acidic by-products that lower the fluid's interfacial tension (IFT) and elevate its dielectric dissipation factor (tan delta / DDF). When the dissipation factor increases beyond 0.05 at 90°C according to IEC 60247, dielectric losses generate internal heating within the fluid, forming a dangerous feedback loop. Regular treatment using a mobile or stationary transformer oil purifier arrests this degradation cycle. For engineers weighing fluid maintenance strategies against maintenance-free equipment, reviewing the operational demands in our comparison of oil-immersed vs dry-type transformers highlights why fluid quality management remains paramount across liquid-filled fleets.

The Multi-Stage Process of Transformer Oil Filtration Explained

The process of transformer oil filtration operates as a thermodynamic, closed-loop treatment cycle comprising bulk particulate pre-filtration, controlled indirect thermal heating, thin-film vacuum dehydration, and sub-micron polishing.

Understanding each distinct phase within the process of transformer oil filtration ensures operators do not compromise fluid chemistry during on-site processing. The treatment sequence follows four critical, tightly controlled physical stages:

1. Primary Intake and Coarse Straining: Raw, contaminated oil is drawn from the bottom drain valve of the transformer via an internal low-shear positive displacement pump. The fluid passes through a magnetic strainer and a washable stainless steel mesh filter (typically 50 to 80 microns) to trap metallic shavings, coarse rust flakes, and large environmental debris before reaching the primary heater elements.
2. Indirect Controlled Heating: The strained oil enters an indirect electrical heating vessel. The fluid temperature is raised gradually to an optimal treatment window of 60°C to 65°C. Heating elements must maintain a low surface watt density—never exceeding 1.0 to 1.5 W/cm²—to eliminate the risk of local fluid cracking, carbonisation, or thermal scorching of delicate hydrocarbon chains.
3. High-Vacuum Degassing and Dehydration: Heated oil enters a specialised vacuum chamber operating at deep absolute pressures between 0.05 and 1.0 mbar (5 to 100 Pa). Inside the chamber, the fluid is dispersed through high-surface-area coalescing rings, raschig rings, or rotary atomising nozzles. This mechanical dispersion creates a micro-thin liquid film, enabling rapid phase transformation: dissolved water, emulsified moisture, and dissolved fault gases (such as hydrogen, methane, and ethylene) vaporise below atmospheric boiling thresholds and are evacuated by the vacuum pump package.
4. Final Micro-Filtration and Polishing: Clean, dehydrated oil collects in the chamber sump and is pumped out by a dedicated discharge pump through a series of progressively finer cartridge filters. The final polishing stage employs sub-micron micro-glass fiber media (typically rated at 0.5 to 1.0 micron absolute) to eliminate microscopic carbon particles, fibers, and colloidal sludge before the oil returns to the transformer tank.

Executing this cycle across three to five full tank volume turnovers restores dielectric properties to near-virgin manufacturing thresholds, protecting high-voltage windings during continuous grid operation.

Core Technologies in a Modern Transformer Oil Purification Machine

A modern transformer oil purification machine incorporates high-vacuum pumping groups, low-wattage multi-stage heaters, vacuum separation columns, and absolute particulate filters to achieve high-throughput moisture and gas extraction.

The operational capability of an advanced transformer oil purification machine depends directly on the engineering synergy of its subsystem components:

• Dual-Stage Vacuum Pumping System: While basic industrial filters rely on single rotary vane pumps, high-specification purification units pair a primary mechanical rotary vane backing pump with a high-capacity Roots blower (booster pump). This dual-stage assembly achieves high volumetric flow rates at pressures below 0.1 mbar, allowing the system to achieve residual moisture levels below 5 ppm and total dissolved gas content (TDG) below 0.1% by volume.
• Thin-Film Coalescence Chambers: Modern degassing columns feature internal structural packing made from electropolished stainless steel. As oil cascades downward, the surface tension of water droplets is disrupted, accelerating the release of both free and dissolved volatile compounds without requiring damaging operating temperatures above 70°C.
• Multi-Stage Cartridge Filtration: Quality purification units avoid paper or cellulose filter cartridges, which saturate quickly and can introduce loose fibers. Instead, they utilise inorganic micro-fiberglass filter elements with high beta-ratios (βx ≥ 1000 at 1 micron). These elements deliver particulate cleanliness matching ISO 4406 Class 14/12/9.
• Automated Safety and Process Controls: State-of-the-art machines incorporate programmable logic controllers (PLCs) interfaced with digital vacuum transmitters, thermal safety cut-offs, optical foam sensors, inlet/outlet pressure switches, and inline dielectric breakdown voltage testers. If oil foam rises dangerously near the vacuum port or if line pressure spikes due to filter saturation, the system automatically recirculates fluid and alarms the operator.

For high-capacity installations such as those detailed in our transmission transformer engineering guide, high-efficiency equipment processing between 6,000 and 12,000 litres per hour (LPH) is standard practice to minimise system outage windows.

Selecting the Right Transformer Oil Purification System: Key Parameters

Selecting the optimal transformer oil purification system requires matching the plant processing capacity, vacuum depth, heater density, and mobility options to the specific oil volume and voltage class of the transformer fleet.

Procurement teams and asset engineers must evaluate clear mechanical and electrical specifications before purchasing or leasing a transformer oil purification system. The required processing flow rate (measured in LPH) should equal approximately 20% to 33% of the total oil volume of the largest transformer on site, ensuring a complete 3-pass purification cycle can finish within a standard 24-hour maintenance shift.

The table below outlines standard performance specifications across small distribution, medium transmission, and extra-high-voltage (EHV) substation applications:

Specifying oversized heaters without adequate flow or selecting high watt-density elements causes localized thermal decomposition. This produces dissolved fault gases that skew routine Dissolved Gas Analysis (DGA) monitoring following maintenance.

Operating a Transformer Oil Purifier: Step-by-Step Field Procedure

Operating a transformer oil purifier involves establishing secure mechanical connections, equalising chamber temperatures, controlling vacuum pressures, and monitoring fluid dielectric properties throughout the treatment cycle.

Field technicians must follow a rigorous, standardized operating procedure to prevent oil spills, air ingress, or accidental equipment tripping. When commissioning an oil processor on site, execute the following procedural sequence:

1. Site Verification and Containment: Verify that the transformer is completely isolated, locked out, and tagged out (LOTO) unless performing qualified hot-line online conditioning. Position fluid containment berms beneath all oil hoses, fittings, and the mobile processing trailer. Ensure all system grounds are bonded to the substation earth grid.
2. Hose Evacuation and Connection: Connect the suction line to the transformer bottom drain valve and the discharge line to the top filter valve or conservator tank. Before opening the transformer isolation valves, seal the hoses and pull a vacuum through the oil processor to ensure no atmospheric air, dust, or residual flush fluids are drawn into the transformer core.
3. System Priming and Cold Recirculation: Open the transformer valves and start the positive displacement feed pump. Circulate oil through the primary filter stage in bypass mode without heat or vacuum to confirm hydraulic integrity, verify that all mechanical couplings are leak-free, and ensure stable fluid flow.
4. Gradual Thermal Ramp-Up: Energise the multi-stage indirect electric heaters in stepped increments. Maintain a maximum heating rate of 10°C to 15°C per hour until the circulating oil enters the ideal 60°C to 65°C processing envelope. Avoid rapid thermal cycling.
5. Vacuum Chamber Commissioning: Start the primary vacuum pump followed by the mechanical Roots booster. Adjust the vacuum regulating valve to draw the degassing chamber down to its specified operating setpoint (typically below 1 mbar). Monitor the sight glass and optical foam level sensors; adjust the anti-foam injection or vacuum bypass valve if excessive foaming occurs due to high dissolved moisture or volatile contaminants.
6. Continuous Cycle Processing: Maintain continuous circulation through the multi-stage filter cartridges and vacuum column. The treatment must run until a minimum of 3 to 4 complete oil volume passes have been processed through the unit.
7. Field Quality Verification: Extract oil samples from the sample port on the purifier discharge line in accordance with IEC 60470 / ASTM D923 sampling protocols. Verify that breakdown voltage exceeds target site limits using an automated field BDV tester before securing the plant.
8. System Shutdown and Restoration: De-energise heater stages while maintaining oil circulation until the bulk fluid cools below 45°C. Close the transformer isolation valves, break the machine vacuum using dry industrial nitrogen or dehydrated air, drain the external hoses into safe waste receptacles, and seal all transformer connection flanges with blind gaskets.

Diagnostic Testing and Oil Quality Standards (IEC 60296 & IEEE C57.106)

Transformer oil quality and purification benchmarks are governed by international standards, predominantly IEC 60422 for in-service mineral oils and IEEE C57.106 for operational fluid verification.

Determining whether a transformer requires immediate treatment or confirming the efficacy of a completed purification project demands rigorous diagnostic testing. Testing must adhere to the parameters established in field manuals such as our guide on how to test a transformer. Key analytical parameters include:

• Dielectric Breakdown Voltage (IEC 60156 / ASTM D1816): Measures the fluid's ability to withstand electrical stress without arcing. Using spherical or VDE electrodes with a 2.0 mm or 2.5 mm gap, untreated or degraded oil often falls below 30 kV. Post-purification oil should consistently withstand ≥60 kV for transmission apparatus and ≥70 kV for extra-high-voltage systems.
• Moisture Content by Karl Fischer Titration (IEC 60814 / ASTM D1533): Quantifies total dissolved and free water in parts per million (ppm). In-service limits mandate moisture levels below 20 to 30 ppm depending on voltage class; however, a high-vacuum purification pass should consistently reduce moisture to ≤10 ppm for standard assets and ≤5 ppm for transmission-grade transformers.
• Dielectric Dissipation Factor / Tan Delta (IEC 60247 / ASTM D924): Evaluates dielectric losses under an AC electrical field, typically measured at 90°C. An elevated tan delta indicates the presence of soluble polar contaminants, aging peroxides, or colloidal carbon. Purification combined with micro-filtration brings tan delta back below 0.005 to 0.01.
• Interfacial Tension (ASTM D971 / ISO 6295): Measures the surface tension between mineral oil and distilled water in millinewtons per meter (mN/m). Clean oil registers between 40 and 50 mN/m. When IFT drops below 22 mN/m, oil is severely sludging, requiring not merely mechanical purification, but full clay-adsorption chemical regeneration.

Correlating these electrical and physical parameters ensures that plant engineers do not mistake particulate contamination for chemical oxidation, allowing for accurate targeting of mechanical filtration versus full chemical regeneration.

Purifying Oil in Substation Transformers for Battery Energy Storage Systems (BESS)

Purifying oil in substation transformers dedicated to utility-scale battery energy storage systems requires tailored operational scheduling to counteract the unique thermal cycling and harmonics induced by multi-megawatt inverter banks.

Modern utility-scale energy storage assets rely on heavy-duty step-up transformers to bridge low-voltage battery inverter outputs (typically 600 V to 800 V AC) up to medium- or high-voltage collector buses (11 kV, 33 kV, or 132 kV). Unlike conventional baseload power transformers that operate under relatively stable thermal conditions, energy storage transformers experience rapid, bidirectional power swings. During peak renewable charging and grid-support discharging cycles, core and winding temperatures fluctuate rapidly. This dynamic thermal expansion draws moisture past tank gaskets and breathers at accelerated rates.

In addition, pulse-width modulated (PWM) switching frequencies from large-scale battery inverters inject high-frequency harmonic currents into the low-voltage windings. These harmonic currents increase eddy-current losses and generate localized hot spots within the core laminations. Over time, localized hotspots thermally crack adjacent insulating oil molecules, forming micro-particulate carbon and dissolved combustible gases at rates up to three times faster than typical distribution equipment. Implementing systematic transformer oil filtration schedules ensures that dynamic inverter duty cycles do not cause premature dielectric breakdown or lead to unplanned battery plant downtime.

Mobile vs Stationary Oil Processor Configurations for Industrial Sites

Mobile and stationary oil processor configurations differ in structural enclosure, throughput capacity, and deployment flexibility, with mobile trailer units serving distributed fleets and stationary systems supporting dedicated high-risk switchyards.

Plant engineers must choose between two primary mechanical form factors when procuring oil conditioning assets:

• Mobile Trailer-Mounted Systems: Housed within weatherproof, heavy-duty tandem-axle trailers or standard shipping containers, mobile oil purifiers are designed for regional transport between remote utility substations, mining facilities, and solar farms. They feature integrated diesel generator tie-ins, hydraulic hose reels, all-weather interior lighting, and air-suspension running gear to protect delicate vacuum components and electrical control panels across rugged terrain.
• Stationary Plant-Mounted Systems: Fixed permanently within a concrete bund or indoor oil storage building, stationary processors are hard-piped to oil storage tanks, de-energised spare transformers, or critical high-voltage transmission bays. These systems usually offer larger vacuum column diameters, extensive pipe manifolds, and higher flow throughputs (up to 15,000 to 20,000 LPH). They are ideal for high-throughput maintenance shops, transformer assembly factories, and centralized utility maintenance depots.

For distributed industrial complexes and modular renewable facilities, enclosed mobile configurations deliver the best balance between capital investment and cross-asset operational utility.

Next steps: specifying and sourcing

When specifying a transformer oil purification plant or planning on-site conditioning services, compile your fleet details: total oil volumes, equipment voltage classes, target dielectric values, and site power availability. Our engineering team assists utilities, EPC contractors, and industrial operators in engineering high-performance oil treatment machinery and robust electrical assets. Explore our field-proven power transformers, explore high-efficiency oil-immersed distribution units, or evaluate integrated utility-scale energy storage systems. Contact our application engineering desk today or submit your technical specifications directly through our transformer quote portal to receive detailed performance sizing, system layouts, and comprehensive commercial quotations.
