Windowless Room Fire Suppression Systems: BESS Design Guide

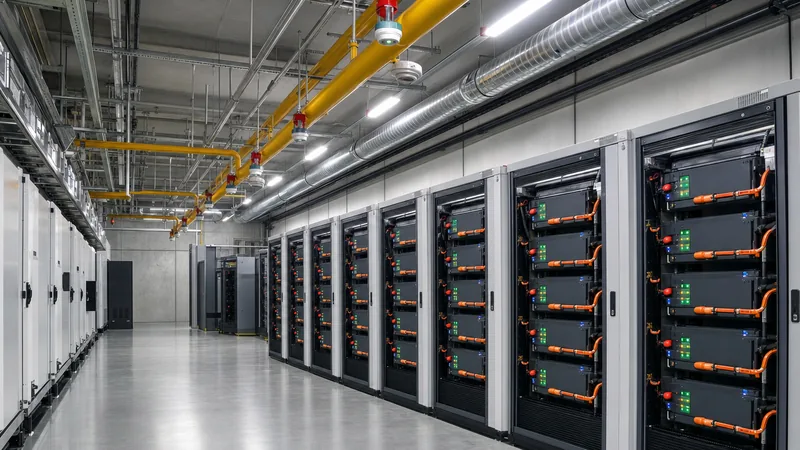

Quick answer: Windowless room fire suppression systems are automated, total-flooding or targeted active protection installations engineered to suppress fire, control thermal propagation, and purge combustible gases within sealed architectural enclosures where manual intervention and natural ventilation are impossible.

Subterranean electrical vaults, basement energy storage rooms, and interior switchgear compartments present profound firefighting challenges. The total absence of exterior windows or direct exterior wall access prevents manual venting, accelerates flashover by trapping radiant thermal energy, and allows flammable battery off-gases (such as hydrogen, carbon monoxide, and methane) to rapidly reach their Lower Flammable Limit (LFL). Siting battery systems in these confined environments demands a rigorous approach to system selection, as outlined in our BESS location engineering guide. For consulting engineers, plant designers, and engineering, procurement, and construction (EPC) contractors, specifying windowless room fire suppression systems requires an integrated strategy that couples rapid gaseous extinguishing or water cooling with mechanical smoke purge and structural pressure management.

Hazards of Enclosed Electrical and Battery Enclosures

The core hazard in a windowless envelope is the thermodynamic containment of heat and gas. When an electrical fault or thermal runaway event initiates inside a sealed room, the room functions as a pressure vessel, accelerating the degradation of adjacent insulation and cell chemistry.

Without natural relief paths, a fire involving low-voltage or medium-voltage gear can cause temperatures to spike beyond 800°C in under four minutes. In energy storage rooms using lithium iron phosphate (LFP) or nickel manganese cobalt (NMC) chemistries, failing cells release volatile organic compounds and hydrogen. In unvented rooms, these gases concentrate along ceilings and service trenches. To mitigate propagation at the module level, engineers must design internal equipment enclosures to withstand severe heat, a topic detailed in our battery enclosure engineering guide. Critical hazards include:

• Rapid smoke obscuration: Visibility drops to zero within 60 seconds, preventing manual egress or targeted firefighting with portable extinguishers.
• Toxic atmospheric persistence: Dense hydrogen fluoride (HF), carbon monoxide (CO), and cyanide compounds remain trapped indefinitely until mechanical extraction runs.
• Explosion risk: Accumulated combustible off-gas mixtures can ignite upon contact with delayed arcs or hot surfaces, causing secondary deflagration.
• Thermal soaking: Heat trapped by heavy masonry or fire-rated drywalls radiates back into uncompromised racks, initiating cascading cell runaway.

Mandatory Codes: NFPA 855, NFPA 2001, and Building Standards

Compliance for windowless room fire safety equipment is governed by overlapping fire, electrical, and structural codes that eliminate reliance on external manual suppression.

According to NFPA 855 (Standard for the Installation of Stationary Energy Storage Systems), Clause 4.4 mandates an automatic fire suppression system designed in accordance with NFPA 13, NFPA 2001, or NFPA 15 for indoor installations. Where the room qualifies as a windowless story or basement under International Building Code (IBC) Section 903.2.11.1, automatic sprinkler protection is non-negotiable for commercial occupancies over 140 square metres (1,500 square feet), or where travel distance to an exit discharge exceeds 23 metres.

For gaseous systems, NFPA 2001 (Standard on Clean Agent Fire Extinguishing Systems) dictates minimum design concentrations, discharge duration limits (typically ≤ 10 seconds for chemical clean agents, ≤ 60 seconds for inert gases), and minimum agent hold times (at least 10 minutes). Where batteries are present, UL 9540A large-scale fire testing data must be submitted to the Authority Having Jurisdiction (AHJ) to prove that the selected windowless room fire suppression equipment prevents cell-to-cell and rack-to-rack propagation under zero-ventilation containment.

Selecting Windowless Room Fire Suppression Equipment

Selecting suppression media for enclosed spaces involves balancing dielectric protection, cooling capacity, and collateral residue. Industrial facilities typically evaluate clean synthetic chemical agents, inert gas systems, high-pressure water mist, and hybrid installations.

For high-density battery energy storage, pure gaseous extinguishing agents extinguish open flames rapidly but provide limited cooling to prevent re-ignition within internally shorted cells. Detailed comparisons on battery-specific suppression can be found in our lithium battery fire suppression guide. Combining clean agents with localized water pre-action systems offers a balanced approach for windowless rooms housing switchgear and BESS simultaneously.

To inspect broader system topologies across industrial settings, reference our technical overview on industrial fire suppression systems.

Calculation: Clean Agent Sizing for a Sealed Enclosure

Calculating agent mass for a windowless room fire suppression system relies on precise volumetric measurement and NFPA 2001 thermodynamic equations.

Under NFPA 2001 (Clause 5.5), the mass of synthetic clean agent FK-5-1-12 (dodecafluoro-2-methylpentan-3-one) required for total flooding is calculated using the following formula:

W = (V / s) × [C / (100 - C)]

Where:

• W: Weight of clean agent required (kg).
• V: Net volume of the hazard room (m³), calculated by gross volume minus solid, non-permeable permanent structures.
• s: Specific vapour volume of the agent at design temperature T (°C), calculated as: s = 0.0664 + 0.000274 × T.
• C: Design concentration (% by volume). Class C electrical hazards require a minimum 4.5% extinguishing concentration plus an NFPA safety factor of 1.35, resulting in a minimum design concentration of 5.85%. For battery rooms with thermal runaway off-gas risks, engineering practice dictates 6.0% to 6.5%.

Worked Example:

1. Room Dimensions: Length = 12.0 m, Width = 8.0 m, Height = 3.8 m. Gross Volume = 364.8 m³.
2. Deductions: Battery racks and concrete plinths displace 24.8 m³. Net hazard volume (V) = 340.0 m³.
3. Design Temperature: Minimum ambient temperature T = 15°C.
4. Specific Volume Calculation: s = 0.0664 + (0.000274 × 15) = 0.07051 m³/kg.
5. Design Concentration (C): 6.0%.
6. Calculation: W = (340.0 / 0.07051) × [6.0 / (100 - 6.0)] = 4,822.01 × 0.06383 = 307.8 kg.

To account for enclosure leakage through cable transits and room pressure relief dampers, a safety margin of 5% is added, specifying a total bottle charge of 323.2 kg of agent.

Emergency Ventilation, Deflagration, and Pressure Relief

Because windowless enclosures cannot vent through broken glazing or outdoor louvres, dedicated HVAC purge systems and structural pressure venting are mandatory.

A critical engineering failure in windowless room fire safety equipment design is neglecting discharge overpressure. Gaseous suppression discharge injects high-density gas into an airtight room in under 10 seconds, generating pressures exceeding 1,200 Pa, which can rupture standard drywall partitions or blow open egress doors. Bidirectional pressure relief dampers calibrated to open at 100 to 150 Pa must be installed through outer structural walls to maintain room integrity during clean agent deployment.

Post-event ventilation must be separated from normal building air-handling units to avoid pumping toxic off-gases into occupied corridors. In accordance with NFPA 855 Clause 4.12.1.2, emergency exhaust must deliver continuous mechanical ventilation at a rate of not less than 0.3 m³/min per square metre of floor area (1 cfm/ft²), constructed with negative-pressure ductwork, intrinsically safe fan motors rated for ATEX / IECEx Zone 2 combustible gas atmospheres, and dedicated discharge terminating at a safe outdoor location.

Engineering Specification Checklist for Windowless Enclosures

Consulting engineers preparing an RFQ for windowless room fire suppression systems should utilize the following checklist to ensure full statutory and operational compliance:

1. Enclosure Boundary Rating: Minimum 2-hour fire-resistance-rated perimeter walls, ceiling, and floor slabs per ASTM E119 or ISO 834.
2. Penetration Sealing: All cable trays, bus ducts, and conduits sealed using UL 1479 / EN 1366-3 firestop systems with equivalent F-Ratings and T-Ratings.
3. Door Hardware: Self-closing, latching fire doors rated for 90 or 120 minutes with positive seals to prevent gaseous agent bypass.
4. Early Detection Array: Dual-criteria detection incorporating off-gas monitoring (CO, H2 detectors linked via 4-20 mA analogue to PLC) combined with aspirating smoke detection systems.
5. Enclosure Integrity: Door fan testing conducted per NFPA 2001 Annex C to confirm a minimum hold time of 10 minutes before descending to the 85% height level.
6. Overpressure Venting: Gravity-operated or counter-balanced pressure relief dampers sized precisely to the peak mass flow rate of the gaseous suppression agent.
7. Purge System Interlocks: Automatic interlocks configured to shut down normal comfort HVAC, seal motorized isolation dampers on release, and lock out purge extraction until suppression hold time is completed.
