Technical specifications
| Parameter | Value |
|---|---|
| Product Type | Low Voltage Switchgear Panel |

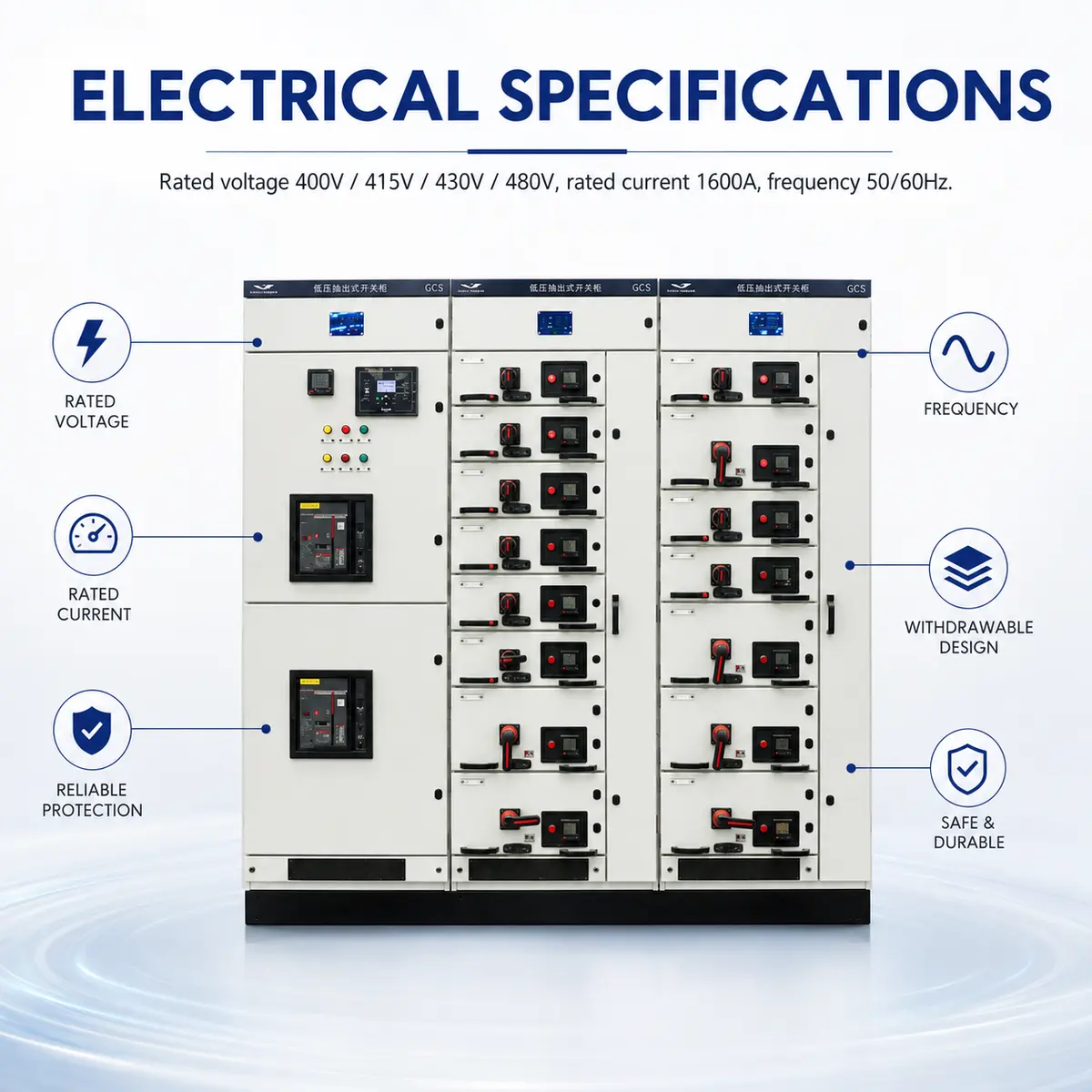

| Rated Voltage | 400V / 415V / 430V / 480V |
| Rated Current | 1600 A |
| Frequency | 50 / 60 Hz |
| Protection Level | IP65 (IP30 / IP32 / IP40 / IP66 optional) |
| Material | Galvanized Steel |
| Application | Indoor / Outdoor, Power Distribution |
| Feature | Energy Saving |
| Color | Customized |
| Certification | ISO9001, Test Report |
| Warranty | 2 Years |
| Packing | Wooden Case |
| Package Size | 180 × 85 × 120 cm |
| Gross Weight | 60 kg |
Specifications are based on the standard configuration. Final ratings, dimensions, materials and packaging are confirmed on the approved drawing and order confirmation.

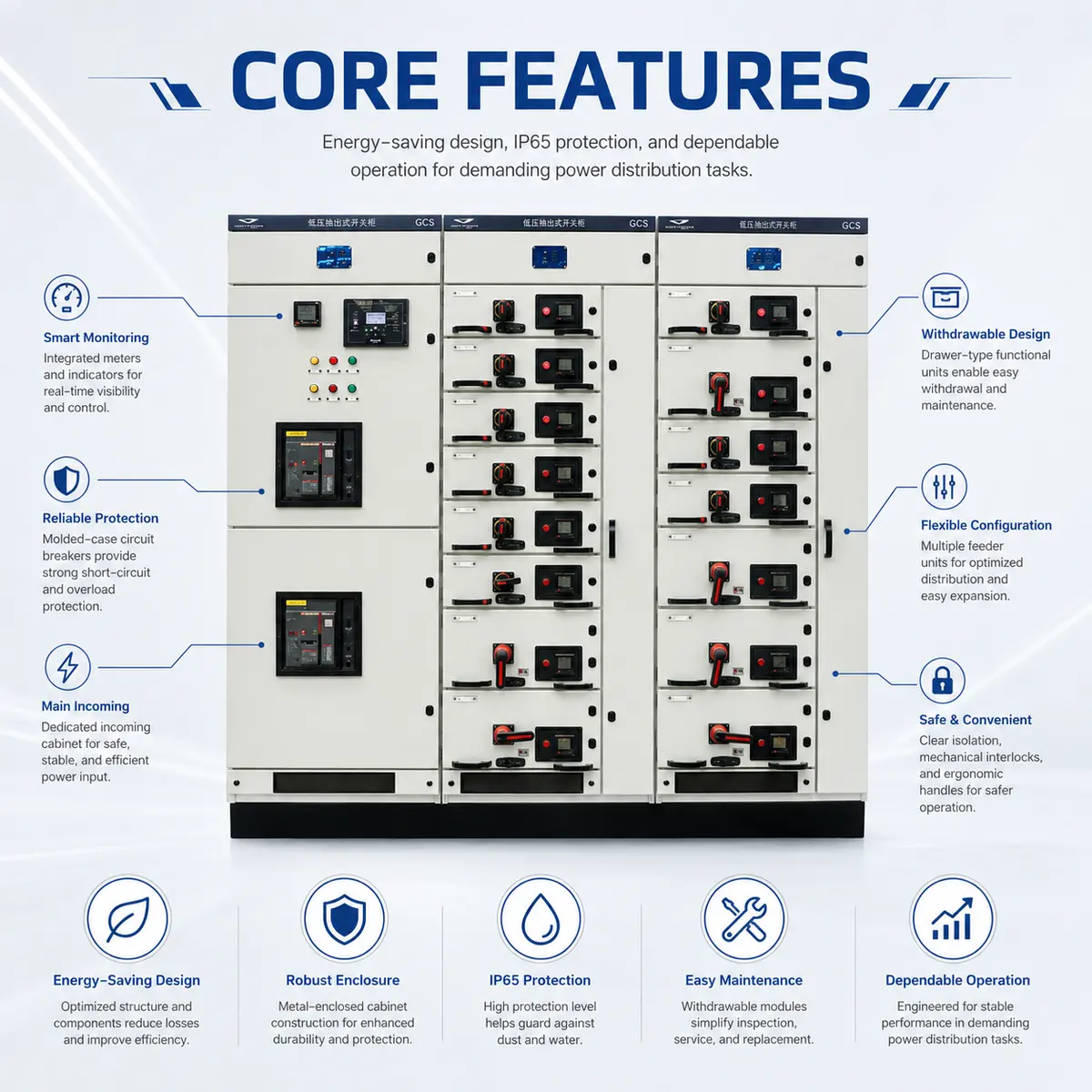

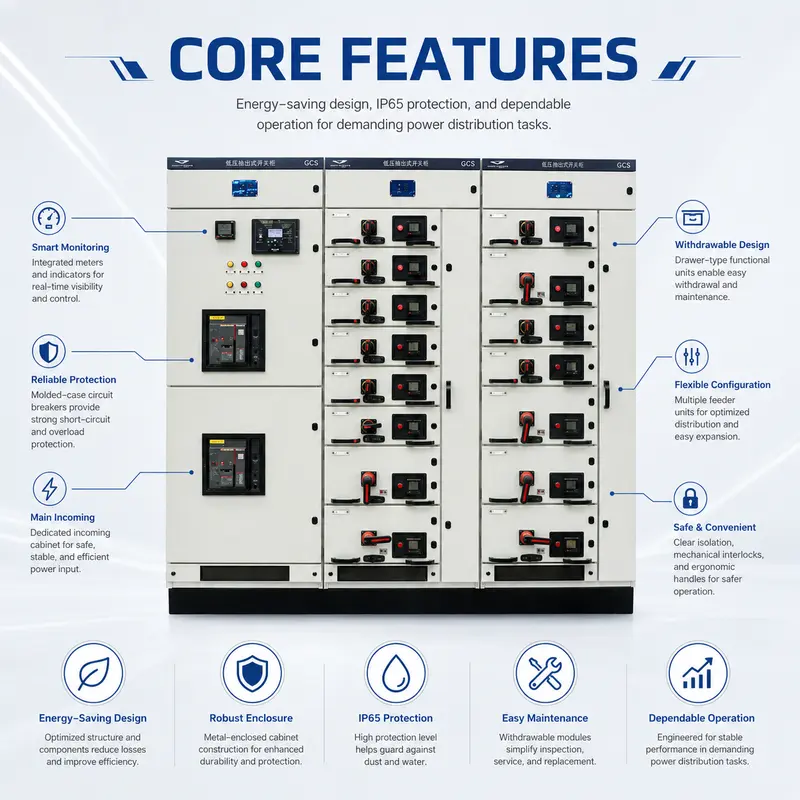

Features and construction

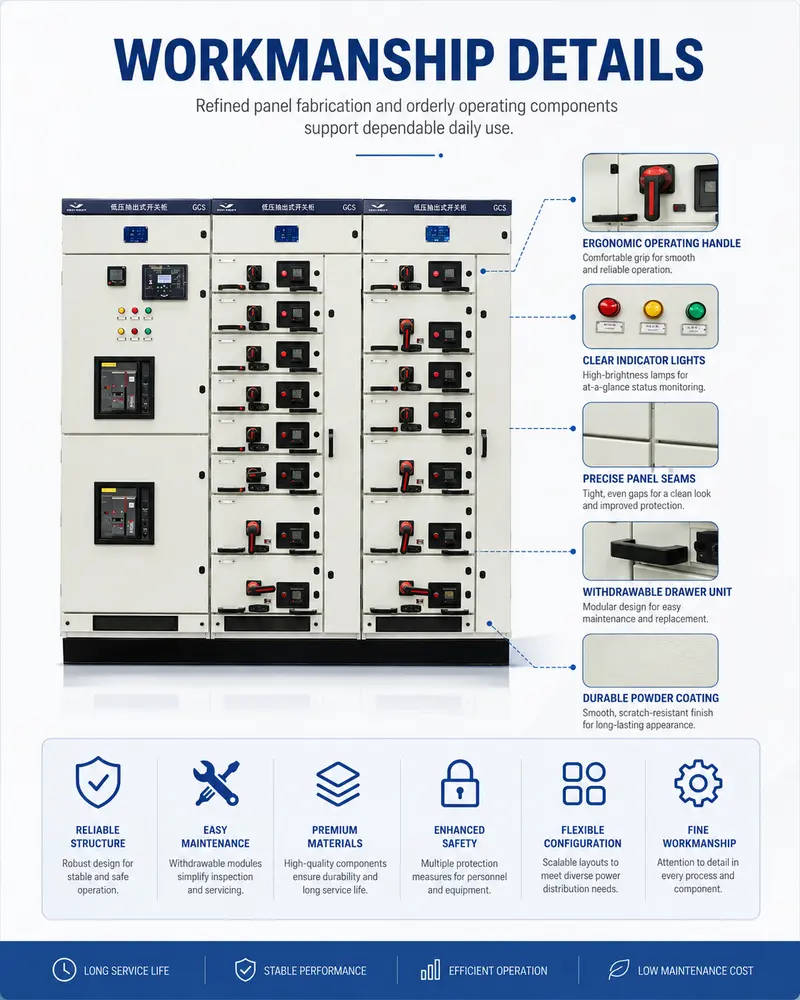

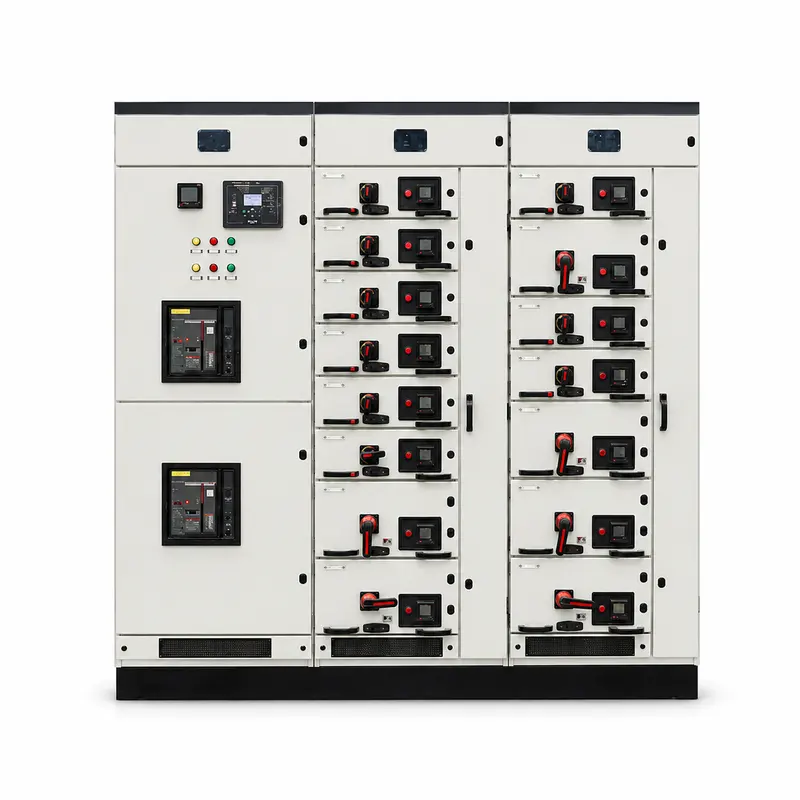

- Multi-column metal-enclosed lineup with incoming and feeder cabinets
- Incoming panel with instruments, indicator lights and molded-case circuit breakers

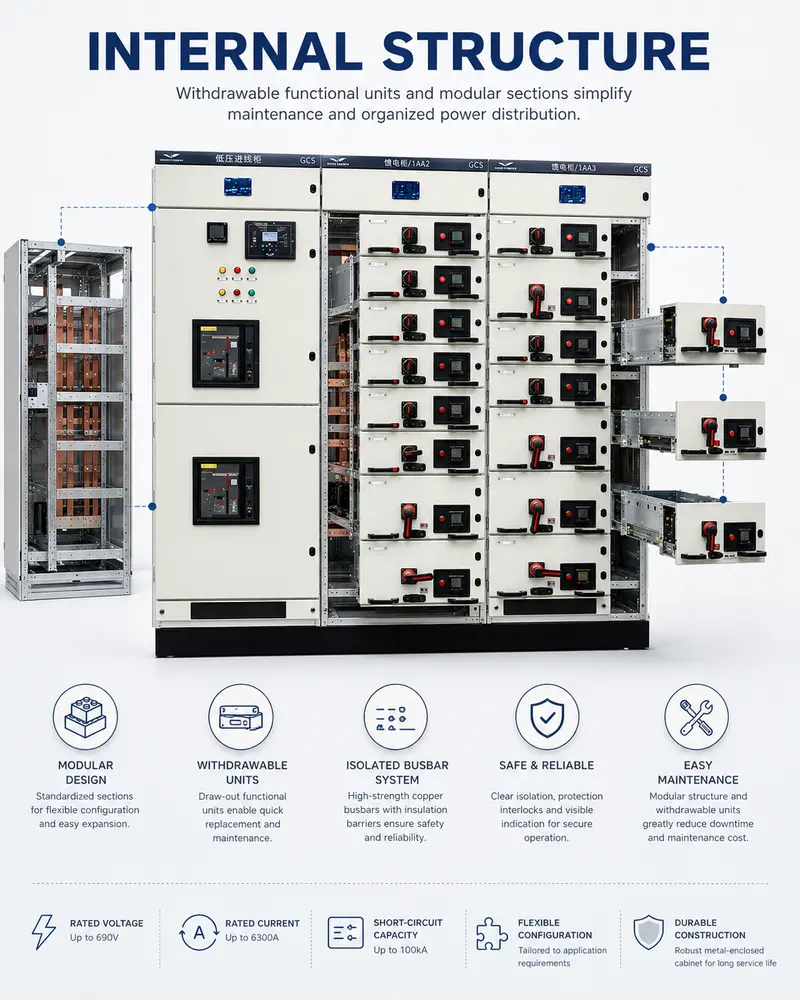

- Feeder columns with rows of withdrawable functional units and red operating handles
- Segregated compartments for operational safety and maintenance access

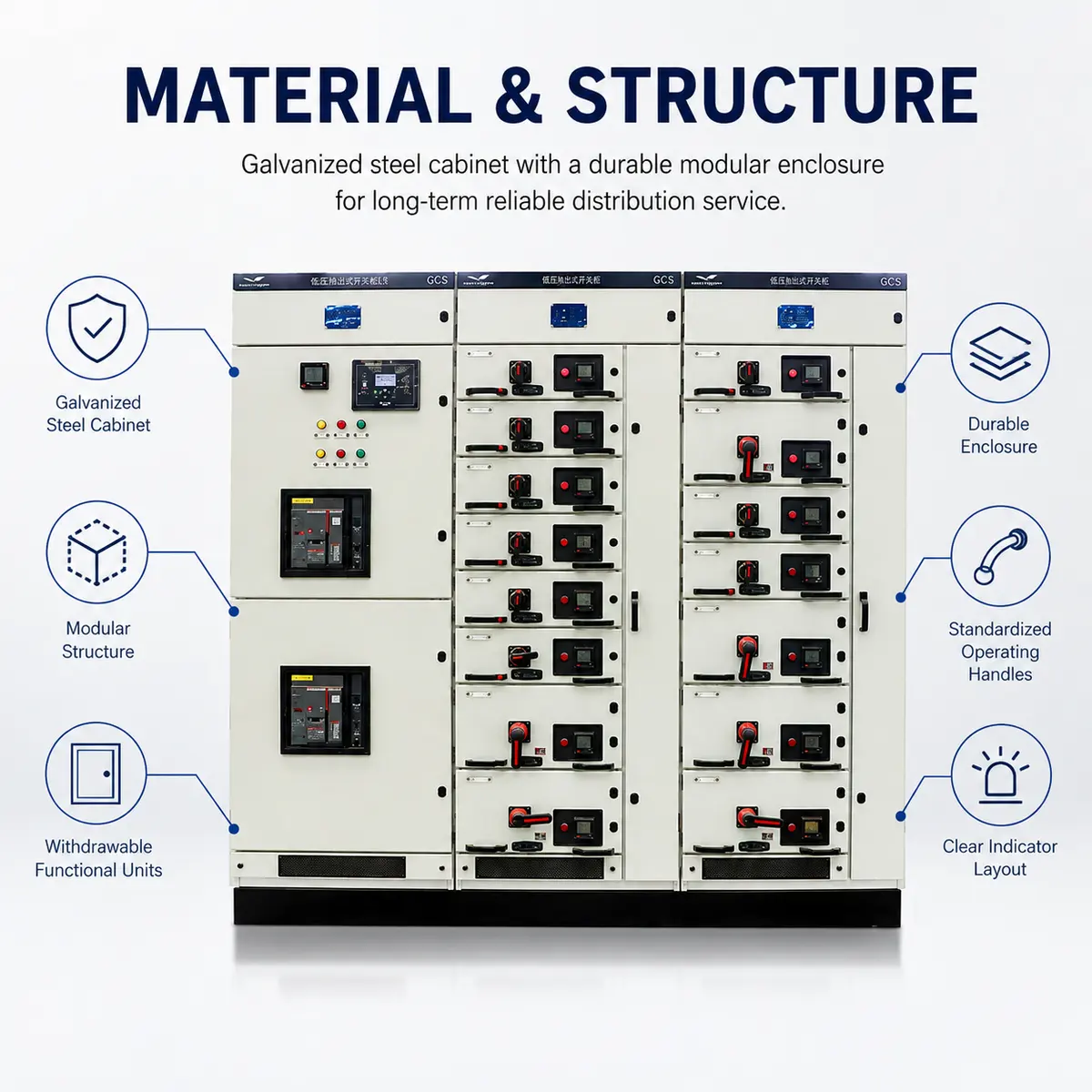

- Galvanized steel body on a sturdy plinth base

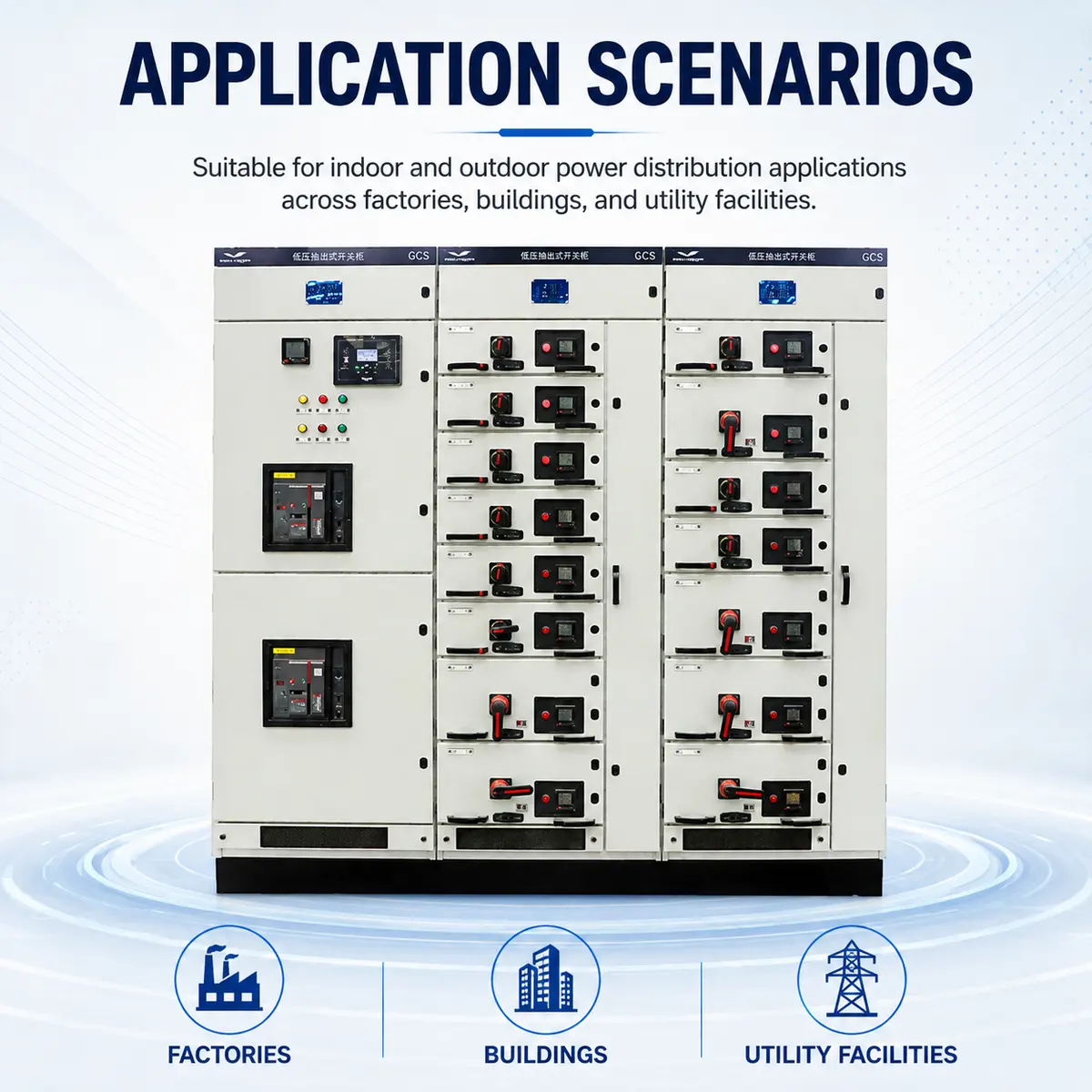

Typical applications

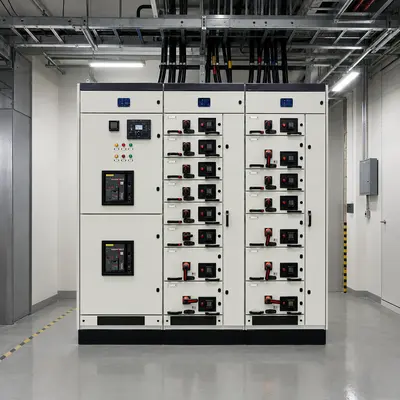

Ideal for substations, industrial power supply, and indoor/outdoor power distribution requiring safe and reconfigurable low-voltage distribution.

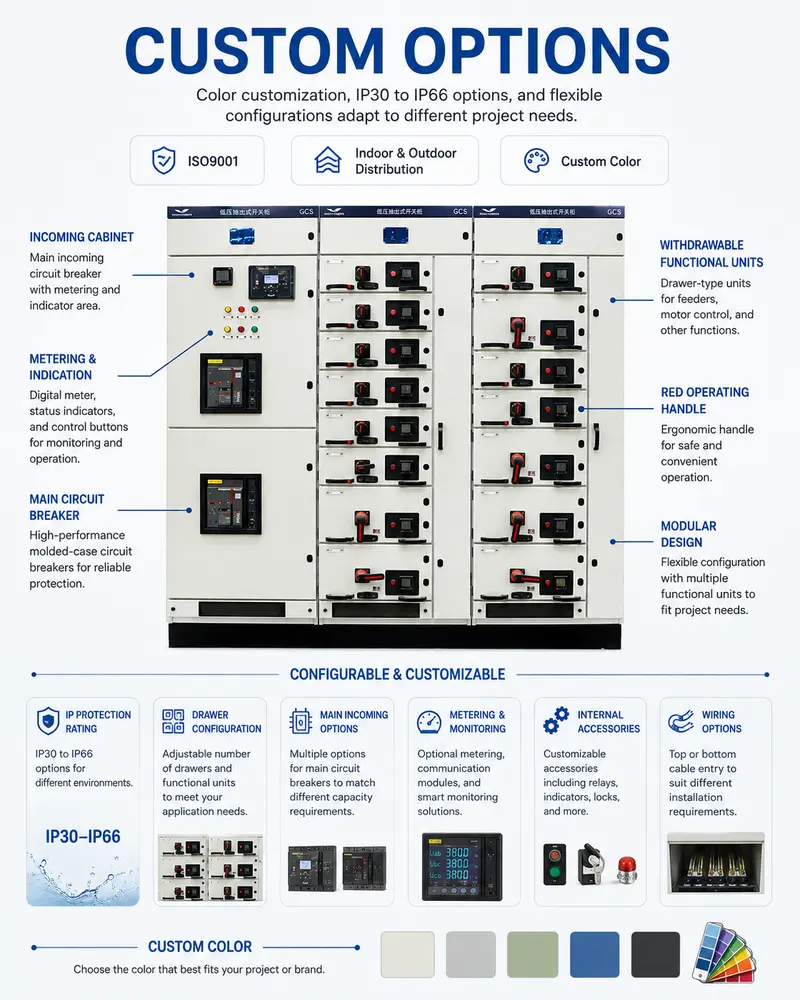

Customisation options
Protection level (IP30–IP66), cabinet color, functional unit configuration, and rated current arrangement can be tailored to project requirements.
Ordering information
Please confirm rated voltage, rated current, protection level, and functional unit configuration when ordering.
Specifications are based on the supplied product data. Final dimensions, materials, colors, and packaging are subject to the confirmed sample and order confirmation.
Standards and quality
Manufactured under an ISO 9001, ISO 14001 and ISO 45001 certified management system. Designs follow the IEC 60076 / IEC 62271 series as applicable, with ANSI/IEEE, GB and GOST variants available. Every unit passes routine testing before dispatch; type tests and customer or third-party witnessed factory acceptance tests can be arranged.
Frequently asked questions
What voltage ratio is available?
The standard unit is 400V / 415V / 430V / 480V input. Voltage ratio, tapping range and vector group can be adjusted to your network; 50 Hz and 60 Hz designs are available.
Which standards and certifications apply?
The product is designed to ISO9001, Test Report. MARS operates an ISO 9001 / 14001 / 45001 certified factory and holds CE (ECM), UDEM, EAC and CQC approvals; every unit is routine-tested before dispatch and type or witnessed tests can be arranged.
Can this product be customised?
Protection level (IP30–IP66), cabinet color, functional unit configuration, and rated current arrangement can be tailored to project requirements.
What is the lead time and how is it shipped?
Packed in wooden case. Typical lead time is 25–45 days after drawing approval for distribution equipment and 60–90 days for power transformers and containerised systems. Shipment is by sea from Shanghai on EXW, FOB, CIF or DAP terms with a full document pack.
Enquire about this product
Tell us the rating, voltage ratio, frequency, quantity and destination. A MARS engineer replies with a technical proposal and quotation within one working day.
