10kWh Battery Guide: Sizing, Costs & Backup Engineering

Quick answer: A 10kWh battery delivers roughly 8.5 to 9.2 kWh of net usable electricity, which powers essential household circuits—such as refrigeration, LED lighting, networking, and water circulation—for 10 to 18 hours during a power disruption. When paired with residential solar, it captures daytime surplus energy to eliminate peak-tariff consumption.

As power grid stability declines and time-of-use (TOU) tariffs become standard across international utilities, the 10kwh battery has emerged as the global benchmark capacity for residential and small commercial energy storage. Specifying an energy storage system requires examining beyond nominal nameplate values. Electrical contractors and system designers must evaluate usable capacity, discharge power limits, system voltage topology, and battery cell chemistry to ensure dependable operation under fault conditions.

Understanding 10kWh Battery Capacity vs Power Ratings (kW vs kWh)

A 10kWh battery specifies total stored energy, whereas power ratings (measured in kW) define the rate at which that energy can be supplied to connected loads.

A common error during procurement is conflating a 10kw solar battery with a 10kWh storage unit. The kilowatt (kW) rating defines instantaneous output capability, whereas the kilowatt-hour (kWh) figure represents sustained volumetric energy. For example, a 10kWh battery pack paired with a 5 kW power conversion system can deliver 5 kW continuously for approximately 1.8 hours before reaching its low-voltage cut-off. Conversely, an identical battery equipped with a 3 kW inverter runs for roughly 3 hours under full design load.

Standard stationary batteries deploy lithium iron phosphate (LFP vs NMC battery chemistry) cells arranged in either low-voltage (48V to 51.2V DC) or high-voltage (200V to 400V DC) series-parallel configurations. In a low-voltage 51.2V system, delivering 5 kW of continuous power requires a current draw of almost 100 A (5,000 W / 51.2 V = 97.6 A). This high current demands large-gauge DC conductors (typically 35 mm² to 50 mm²) to limit resistive heat losses below the maximum 1% threshold outlined in BS 7671. High-voltage architectures drop operating currents below 25 A, lowering thermal stress on internal busbars and improving overall round-trip efficiency (RTE).

10kwh Battery Backup Runtime: Worked Engineering Calculation

The operational runtime of a 10kwh battery backup system depends directly on depth of discharge limits, inverter efficiency, and steady-state critical load profiles.

To evaluate how long a 10kwh battery backup sustains an essential services distribution board, engineers apply derating factors for nominal cell capacity. Most modern LFP batteries operate at a recommended 90% depth of discharge (DoD) to extend cyclic life beyond 6,000 cycles, coupled with an average bidirectional inverter conversion efficiency of 92% as tested under IEC 62109-1.

Consider an essential services circuit with the following continuous loads:

• Inverter-driven refrigerator/freezer: 120 W average (cycling load)
• Lighting circuits (LED throughout dwelling): 150 W
• Internet router, security cameras, and home automation hub: 80 W
• Gas boiler electronic controls and central heating pump: 180 W
• Auxiliary loads (laptops, device charging, standby electronics): 120 W

Total continuous design load: 650 W (0.65 kW).

The engineering formula to calculate practical backup autonomy is:

Operational Runtime (hours) = [Nominal Capacity (kWh) × DoD (%) × Inverter Efficiency (%)] / Average Load (kW)

Applying nominal values:

Usable Energy = 10.0 kWh × 0.90 × 0.92 = 8.28 kWh (8,280 Wh)

Runtime = 8.28 kWh / 0.65 kW = 12.74 hours

If the household introduces an intermittent heavy inductive load, such as a 1.2 kW domestic water pressure pump with an operating duty cycle of 25% (adding an effective 300 W average load), total demand increases to 0.95 kW. In this case, runtime reduces to 8.71 hours. For longer autonomy, engineers should review broader sizing methodologies detailed in our battery storage engineering guide.

System Architecture: AC-Coupled vs DC-Coupled 10kWh Solar Battery

Selecting between an AC-coupled and a DC-coupled architecture dictates round-trip conversion efficiency, system installation complexity, and grid-forming performance.

A 10kwh solar battery installation interfaces with photovoltaic arrays using either high-voltage DC charge controllers or dedicated AC-coupled battery inverters. DC coupling exhibits higher efficiency during direct solar charging, as power transitions only once through the internal DC bus. AC coupling, however, offers superior flexibility when retrofitting storage to an existing solar array without altering string configurations or existing rooftop inverter warranties.

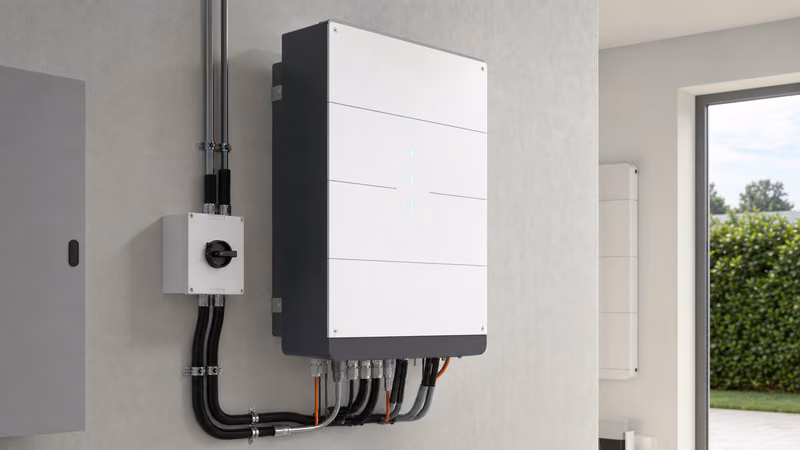

For residential projects utilising a 10kwh powerwall home battery system format—characterised by an all-in-one slimline, wall-mounted enclosure—AC-coupled designs remain popular because the integrated power conversion system simplifies mechanical mounting and on-site wiring.

Pairing Storage: Sizing a 10kW Solar System with Battery Backup

Configuring a 10kw solar system with battery backup demands precise matching between peak array generation, local consumption curves, and the maximum charge rate of the battery management system (BMS).

A 10 kW photovoltaic array operating in a region with 4.5 peak sun hours produces an average of 38 to 45 kWh of energy daily, depending on azimuth and ambient temperature coefficients. A single 10 kwh home battery absorbs only a fraction of this gross yield. If the household exports significant surplus, the battery will reach 100% state-of-charge (SoC) by midday, forcing remaining energy into the grid under potentially unfavourable export remuneration rules.

To optimise the system:

1. Evaluate base consumption: Determine the daytime non-deferrable load profile to calculate actual surplus available for charging.
2. Verify continuous charge acceptance: Check the BMS current limits according to IEC 62619 clause 6.2. If the battery is rated at 0.5C (5 kW maximum charging rate), an incoming solar surge of 8 kW will direct 3 kW to the home loads or grid export, preventing battery thermal overload.
3. Evaluate peak surge capacity: If heavy equipment (such as heat pump compressors or air conditioning units) initiates during an islanded outage, ensure the battery inverter provides a surge rating of at least 1.6 to 2.0 times the nominal capacity for a minimum of 10 seconds.

For installations supporting frequent micro-grid formation, designing with modular scalability allows users to parallel two 10kWh units to comfortably absorb full 10 kW solar yield.

10kw Solar Battery Price, Lifetime Economics, and Capital Payback

A typical 10kw solar battery price ranges from $4,000 to $8,500 for the bare equipment, reaching $7,000 to $12,500 once installation, protection hardware, and isolation switches are included.

The overall capital cost of a 10kWh installation hinges on cell packaging, certified BMS integration, and whether the system uses modular low-voltage rack batteries or high-voltage integrated enclosures. To understand full budget allocations, engineers assess capital outlay against lifetime levelised cost of storage (LCOS), as explored in our solar batteries cost and sizing guide.

Key economic determinants include:

• Cell Chemistry & Cycle Life: Tier-1 prismatic LFP cells achieve 6,000 to 8,000 full cycles before degrading to 70% of initial capacity. Over a 15-year operational life, an 8,000-cycle unit delivers over 60,000 kWh of cumulative throughput, bringing the levelised storage cost below $0.09 per kWh.
• Inverter Integration: All-in-one DC hybrid systems reduce balance-of-system labour expenses by eliminating auxiliary distribution boxes, external shunt trips, and duplicate conduit runs.
• Tariff Arbitrage: Facilities operating under dynamic time-of-use rates utilise the 10kWh battery to discharge during peak pricing windows (typically 16:00 to 21:00) and charge via solar or off-peak overnight mains, generating payback cycles of 6 to 9 years depending on utility tariff structures.

Factory Acceptance Testing & Quality Inspection Checklist for a 10kWh Battery

Factory inspection of a 10kWh battery verifies cell balance, insulation resistance, thermal propagation barriers, and protective switchgear functionality prior to dispatch.

Before signing off on large procurement consignments of stationary storage batteries, quality assurance engineers and EPC contractors should enforce the following inspection criteria:

1. Insulation Resistance Verification: Measure DC insulation between live high-voltage terminals and the earthed chassis using a 1,000V megohmmeter. The reading must exceed 100 MΩ under ambient dry conditions, conforming to IEC 62477-1 standards.
2. BMS Telemetry & Balancing Test: Connect diagnostic tooling to verify cell-level voltage delta across all series elements (e.g., 16 cells in a 51.2V pack). At rest, voltage variance must not exceed 20 mV across all cells.
3. Overcurrent and Short-Circuit Trip Test: Verify the calibration and clear times of the integrated DC moulded-case circuit breaker (MCCB) or pyrotechnic disconnect fuse against simulated fault currents.
4. Thermal Management Sensor Calibration: Check that internal NTC thermistors relay accurate temperatures to the control unit across the -20°C to +55°C operating range, halting charge protocols if temperatures surpass +45°C.
5. Enclosure Protection and Ingress Testing: Confirm the housing meets minimum IP55 or IP65 ingress protection under IEC 60529, ensuring protection against fine dust ingress and projected water jets.

Next steps: specifying and sourcing

When specifying a 10kWh energy storage asset, prepare a technical schedule outlining your continuous peak discharge requirements, grid-connection code compliances (such as IEEE 1547 or G99), nominal bus voltages, and site-specific environmental conditions. Our technical team supports international developers, EPC contractors, and distributors with commercial-grade integration engineering. Explore our factory-built energy storage system designs or review industrial multi-megawatt systems via our liquid-cooled ESS container options. Submit your load profile and single-line diagrams via our quotation request page to receive a comprehensive engineering package and quotation.
