Battery Cell Guide: Formats, Sizing & Procurement

Quick answer: A battery cell is the smallest individual electrochemical unit that converts stored chemical energy into electrical energy through reversible reduction-oxidation reactions. In industrial systems, individual cells are interconnected in series and parallel within modules, controlled by battery management systems to provide the required system voltage, energy capacity, and discharge rates.

In stationary energy storage, the choice of battery cell determines thermal dissipation demands, cycle life, footprint, and capital expenditure. Sourcing engineers and engineering, procurement, and construction (EPC) contractors must evaluate internal impedance, mechanical form factor, degradation curves, and cell-level failure modes before committing to volume procurement. Integrating these units into commercial installations demands strict adherence to international electrical and fire standards, including IEC 62619 clause 7.2 and UL 1973.

Battery Cell Form Factors: Prismatic, Cylindrical, and Pouch

Industrial energy storage systems use three primary mechanical form factors: prismatic, cylindrical, and pouch cells. Prismatic cells encased in rigid aluminium shells represent over 80% of stationary containerised installations because their rectangular geometry maximises volumetric packaging efficiency within standard 19-inch racks.

Cylindrical cells, such as 21700 or 4680 formats, offer high mechanical stability against internal pressure increases but introduce parasitic volume due to void spaces between adjacent cylinders. Pouch cells eliminate rigid enclosures to minimise weight, yet they require external compression frames to prevent delamination during charge-discharge cycling.

When selecting a mechanical form factor for grid-scale racks, prismatic cells simplify the integration of battery monitoring systems because fewer voltage and temperature sensing points are required compared to massive cylindrical arrays.

Lithium Cell Chemistries: LFP vs NMC in Commercial Projects

Stationary storage relies almost exclusively on rechargeable lithium ion cells based on either Lithium Iron Phosphate (LiFePO4 or LFP) or Nickel Manganese Cobalt (NMC) cathodes. LFP chemistry offers inherent thermal stability because the phosphorus-oxygen chemical bond resists oxygen release up to approximately 270 °C, compared to 210 °C for high-nickel NMC formulations.

Commercial projects favour LFP because it achieves 6,000 to 10,000 cycles at 80% depth-of-discharge (DoD) before reaching 70% state-of-health (SoH). NMC cells provide higher gravimetric energy density (up to 260 Wh/kg versus 160-180 Wh/kg for LFP), making them common in electric vehicles, but stationary systems prioritise levelised cost of storage (LCOS) and thermal safety over mass reduction. A detailed technical comparison between these chemistry platforms is covered in our guide to LFP vs NMC commercial battery selection.

Engineering Sizing Calculation: Designing an 800V BESS String

A typical commercial battery rack requires precise cell-level calculations to match the DC input voltage window of the power conversion system (PCS). Consider a design requiring a nominal 500 kWh DC storage block operating on an 800 V DC nominal bus using standard 3.2 V, 314 Ah prismatic LFP cells.

To calculate the required series configuration ($N_s$):

1. Determine nominal cell voltage: $V_{cell} = 3.2\text{ V}$.
2. Divide target nominal bus voltage (800 V) by cell voltage: $800\text{ V} / 3.2\text{ V} = 250\text{ cells}$.
3. Standard industrial racks utilise an even multiple matching modular 16-cell or 24-cell packs; select 256 cells in series ($N_s = 256$).
4. Verify the operating voltage window: at 2.8 V minimum discharge limit, string voltage is $256 \times 2.8\text{ V} = 716.8\text{ V}$. At 3.65 V maximum charge cutoff, string voltage is $256 \times 3.65\text{ V} = 934.4\text{ V}$. This matches standard 1,000 V-rated switchgear.

To calculate string energy and parallel configuration ($N_p$):

Each 314 Ah cell delivers $3.2\text{ V} \times 314\text{ Ah} = 1,004.8\text{ Wh}$ ($1.005\text{ kWh}$). A single 1P256S string contains:

$$\text{String Energy} = 256 \times 1.0048\text{ kWh} = 257.23\text{ kWh}$$

To achieve the 500 kWh target, two parallel strings are deployed ($N_p = 2$), yielding 514.46 kWh nominal capacity. Thermal dissipation at a 0.5C continuous discharge rate ($157\text{ A}$) with an internal AC cell resistance ($R_{ac}$) of $0.18\text{ m}\Omega$ generates:

$$P_{loss} = I^2 \times R = (157\text{ A})^2 \times 0.00018\ \Omega = 4.437\text{ W per cell}$$

For the entire 512-cell rack, internal heat generation equals $2.27\text{ kW}$, defining the baseline cooling requirements for the thermal enclosure as outlined in our battery cooling systems engineering guide.

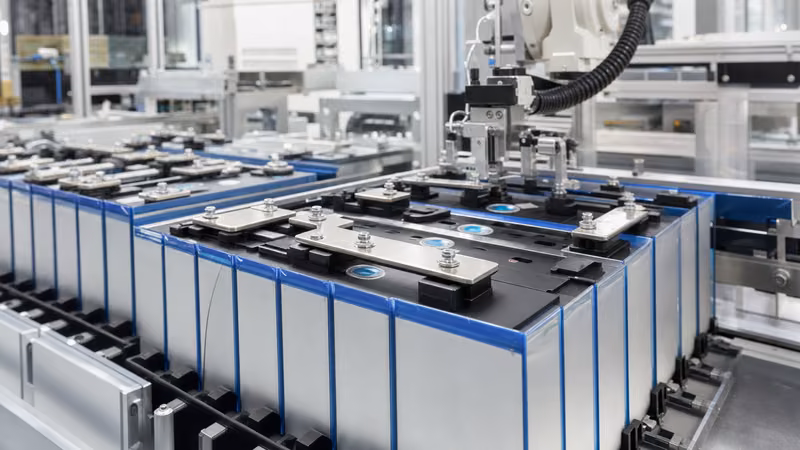

Quality Screening and Sorting Standards for Battery Cell Packs

Factory assembly of lithium ion battery packs requires strict quality screening to prevent accelerated string degradation caused by cell imbalance. A single weak cell in a 256S arrangement determines the usable capacity cutoff for the entire string.

Manufacturers must perform automated sorting across three critical parameters prior to pack assembly:

1. Open Circuit Voltage (OCV) Delta: Group cells within a tolerance of $\pm 2\text{ mV}$ after a minimum 14-day resting period to identify micro-short circuits caused by separator defects.
2. AC Internal Resistance (ACIR): Test internal impedance at 1 kHz according to IEC 62660-2; variance across an assembly batch must not exceed $\pm 3\%$.
3. Capacity Binning: Ensure cell discharge capacities under constant current-constant voltage (CC-CV) testing at 0.5C match within $\pm 1\%$.

Engineers specifying systems must verify that the cell production facility operates under ISO 9001 and IATF 16949 quality controls, with full batch traceability linking each 2D data matrix code to raw cathode material lots.

Where to Purchase Lithium Batteries and Vetting Tier-1 Suppliers

Determining where to purchase lithium batteries for industrial applications involves auditing original equipment manufacturers directly rather than sourcing through commercial middle-tier distributors. Large-scale utility projects source cells directly from Tier-1 manufacturers that have completed UL 9540A thermal runaway propagation testing at the cell, module, and unit levels.

When evaluating lfp battery suppliers for commercial BESS equipment, procurement teams should request:

• Complete UL 9540A 4th Edition test reports verifying that cell-to-cell thermal propagation is prevented by internal venting or insulation barriers.
• UN 38.3 transport safety certifications including T1–T8 altitude, thermal, vibration, and shock testing.
• Third-party lifecycle validation reports demonstrating cell degradation curves under varying ambient temperatures ($25\text{ }^{\circ}\text{C}$ and $45\text{ }^{\circ}\text{C}$).
• Direct factory warranty backing minimum residual capacity retention (typically 70% after 10 years or 6,000 cycles at 0.5C/0.5C operation).

Buyers looking for reliable pricing structures should also review trends and cost drivers detailed in our commercial battery storage cost guide.

Next steps: specifying and sourcing

Specifying the correct battery cell chemistry, capacity, and terminal geometry is the first step toward commissioning a reliable energy storage installation. For project quotations, submit your required DC bus operating voltage window, target continuous and peak C-rates, operational temperature range, and site-specific enclosure requirements. Our engineering team designs fully integrated solutions, from individual modules up to turn-key energy storage systems and custom liquid-cooled ESS containers. Contact our engineering desk directly or submit an RFQ through our online quotation page to receive comprehensive submittal drawings and technical datasheets.
